JUNG 1723NE Nebenstelle 3-Draht is a flush-mounted 3-wire auxiliary station for JUNG building control systems. It expands control and detection fields of compatible motion/presence detectors and system inserts. Requires neutral conductor (N), connects via screw terminals, and is intended for...
More

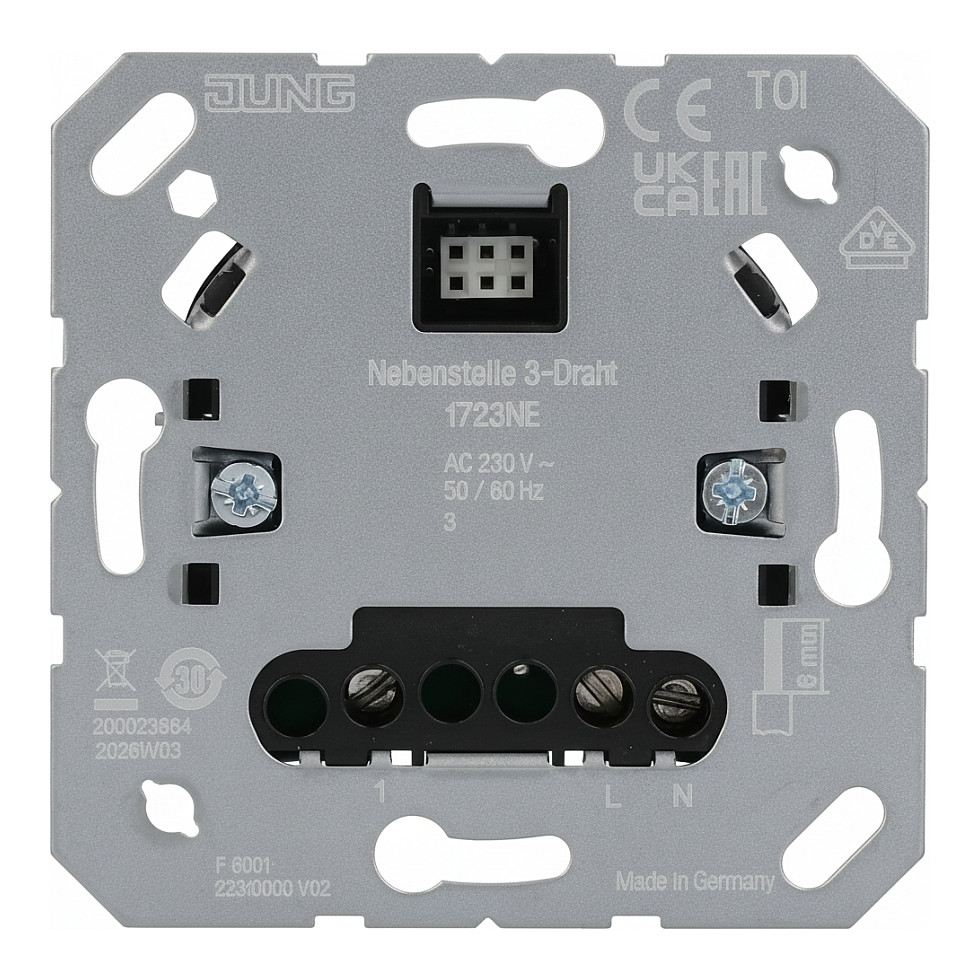

JUNG 1723NE Auxiliary 3-Wire Flush-Mounted Station (Nebenstelle 3-Draht)
Product Code: 1173701331
Available in 4 - 6 days
53,30 €
or
1,66€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 160 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
JUNG 1723NE Nebenstelle 3-Draht is a flush-mounted 3-wire auxiliary station for JUNG building control systems. It expands control and detection fields of compatible motion/presence detectors and system inserts. Requires neutral conductor (N), connects via screw terminals, and is intended for installation in a device box according to DIN 49073. Rated for AC 230 V, 50/60 Hz operation, ambient temperature −20 to +45 °C, and supports up to 100 m total auxiliary line length. Suitable for extending and centrally controlling compatible JUNG main stations and inserts.
-
BrandAlbrecht Jung GmbH & Co. KG
-
Model/MPN1723 NE
-
SKU/Article No.21179542
-
EAN/GTIN4011377166950
-
Product Type3-wire auxiliary station / electronic switch insert
-
Intended UseAuxiliary station to extend control for motion/presence detectors and JUNG inserts
-
Mounting TypeFlush-mounted (Unterputz) - device box per DIN 49073
-
Wiring3-wire auxiliary station (neutral conductor required)
-
Rated VoltageAC 230 V
-
Mains Frequency50/60 Hz
-
Ambient Temperature Range−20 to +45 °C
-
Maximum Auxiliary Line Length100 m
-
Connection TypeScrew terminals
-
Conductor Cross-SectionsSolid: 1 x 0.5–4.0 mm²; 2 x 0.5–2.5 mm²; Fine wire w/o ferrule: 1 x 0.5–4.0 mm²; 2 x 0.5–2.5 mm²; Fine wire with ferrule: 1 x 0.5–4.0 mm²; 2 x 0.5–1.5 mm²
-
Mounting/FasteningClaw/screw fastening
-
Dimensions (W×L×H)82 mm × 235 mm × 92 mm
-
Packaging Unit (VPE)10 pieces
-
Typical ApplicationsExtension of motion/presence detector fields, central control of multiple main stations
Ratings
Description
JUNG 1723NE Nebenstelle 3-Draht is a flush-mounted 3-wire auxiliary station for JUNG building control systems. It expands control and detection fields of compatible motion/presence detectors and system inserts. Requires neutral conductor (N), connects via screw terminals, and is intended for installation in a device box according to DIN 49073. Rated for AC 230 V, 50/60 Hz operation, ambient temperature −20 to +45 °C, and supports up to 100 m total auxiliary line length. Suitable for extending and centrally controlling compatible JUNG main stations and inserts.
Technical Specifications
-
BrandAlbrecht Jung GmbH & Co. KG
-
Model/MPN1723 NE
-
SKU/Article No.21179542
-
EAN/GTIN4011377166950
-
Product Type3-wire auxiliary station / electronic switch insert
-
Intended UseAuxiliary station to extend control for motion/presence detectors and JUNG inserts
-
Mounting TypeFlush-mounted (Unterputz) - device box per DIN 49073
-
Wiring3-wire auxiliary station (neutral conductor required)
-
Rated VoltageAC 230 V
-
Mains Frequency50/60 Hz
-
Ambient Temperature Range−20 to +45 °C
-
Maximum Auxiliary Line Length100 m
-
Connection TypeScrew terminals
-
Conductor Cross-SectionsSolid: 1 x 0.5–4.0 mm²; 2 x 0.5–2.5 mm²; Fine wire w/o ferrule: 1 x 0.5–4.0 mm²; 2 x 0.5–2.5 mm²; Fine wire with ferrule: 1 x 0.5–4.0 mm²; 2 x 0.5–1.5 mm²
-
Mounting/FasteningClaw/screw fastening
-
Dimensions (W×L×H)82 mm × 235 mm × 92 mm
-
Packaging Unit (VPE)10 pieces
-
Typical ApplicationsExtension of motion/presence detector fields, central control of multiple main stations
