JUNG 1702SE is a 2-channel flush-mounted relay switch insert (Schalteinsatz) for standard device boxes (DIN 49073). Designed for switching lighting and motors and—in suitable setups—electric underfloor heating and electrothermal actuators when used with appropriate room controller attachments....
More

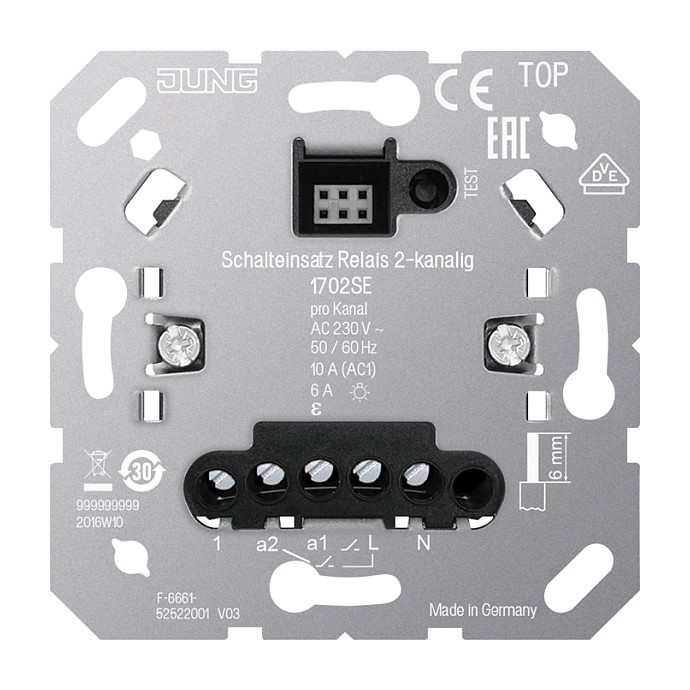

JUNG 1702SE Relay switch insert, 2-channel
Product Code: 1173701349
Available in 4 - 6 days
184,68 €
or
5,77€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 555 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
JUNG 1702SE is a 2-channel flush-mounted relay switch insert (Schalteinsatz) for standard device boxes (DIN 49073). Designed for switching lighting and motors and—in suitable setups—electric underfloor heating and electrothermal actuators when used with appropriate room controller attachments. Features two independent outputs, adjustable time functions, test operation, adaptive zero-point switching and satellite/auxiliary station compatibility. Rated for 230 V AC, 50/60 Hz with a total switching current of 16 A. Installation depth 24 mm, screw terminals (1 x 0.5–4.0 mm² single or 2 x 0.5–2.5 mm² multi). Product weight approx. 98 g.
-
BrandJUNG (Albrecht Jung GmbH & Co. KG)
-
Model / MPN1702SE (1702 SE)
-
SKU21181195
-
EAN4011377166882
-
Product typeRelay switch insert / Schalteinsatz, 2-channel
-
Channels2 independent outputs
-
Rated voltage230 V AC
-
Mains frequency50/60 Hz
-
Total switching current16 A
-
Load type - resistive (AC1)10 A
-
Load type - motors3 A (cos φ = 0.68)
-
Incandescent / HV halogen lampsmax 1500 W per channel (listing-dependent)
-
Electronic transformersmax 1000 W (typical listing value)
-
HV LED lampstypical 400 W
-
Compact fluorescent lampstypical 500 W
-
Inductive transformers625 VA
-
Capacitive load580 VA (70 µF)
-
Switching functionChangeover (changer)
-
Number of poles2x
-
Standby power~0.1–0.5 W depending on attachment/cover
-
Installation typeFlush-mounted insert for device box (DIN 49073)
-
Installation depth24 mm
-
ConnectionScrew terminals
-
Single-wire connection range1 x 0.5–4.0 mm²
-
Multi-wire connection range2 x 0.5–2.5 mm²
-
Fastening typeClaw/screw fastening
-
Ambient temperature−25 to +45 °C
-
Storage/transport temperature−20 to +70 °C
-
Compatibility - auxiliary station2-wire 1720 NE: unlimited; 3-wire 1723 NE: up to 10
-
Push buttons compatibilityUnlimited
-
Number of actuators supportedUp to 10
-
Special featuresAdjustable delay/time functions, test operation, adaptive zero-point switching, satellite unit connection
-
Product weight98 g
-
Package dimensions (retailer listing)9 x 9 x 4 cm
-
Country of origin(retailer listing) China
Ratings
Description
JUNG 1702SE is a 2-channel flush-mounted relay switch insert (Schalteinsatz) for standard device boxes (DIN 49073). Designed for switching lighting and motors and—in suitable setups—electric underfloor heating and electrothermal actuators when used with appropriate room controller attachments. Features two independent outputs, adjustable time functions, test operation, adaptive zero-point switching and satellite/auxiliary station compatibility. Rated for 230 V AC, 50/60 Hz with a total switching current of 16 A. Installation depth 24 mm, screw terminals (1 x 0.5–4.0 mm² single or 2 x 0.5–2.5 mm² multi). Product weight approx. 98 g.
Technical Specifications
-
BrandJUNG (Albrecht Jung GmbH & Co. KG)
-
Model / MPN1702SE (1702 SE)
-
SKU21181195
-
EAN4011377166882
-
Product typeRelay switch insert / Schalteinsatz, 2-channel
-
Channels2 independent outputs
-
Rated voltage230 V AC
-
Mains frequency50/60 Hz
-
Total switching current16 A
-
Load type - resistive (AC1)10 A
-
Load type - motors3 A (cos φ = 0.68)
-
Incandescent / HV halogen lampsmax 1500 W per channel (listing-dependent)
-
Electronic transformersmax 1000 W (typical listing value)
-
HV LED lampstypical 400 W
-
Compact fluorescent lampstypical 500 W
-
Inductive transformers625 VA
-
Capacitive load580 VA (70 µF)
-
Switching functionChangeover (changer)
-
Number of poles2x
-
Standby power~0.1–0.5 W depending on attachment/cover
-
Installation typeFlush-mounted insert for device box (DIN 49073)
-
Installation depth24 mm
-
ConnectionScrew terminals
-
Single-wire connection range1 x 0.5–4.0 mm²
-
Multi-wire connection range2 x 0.5–2.5 mm²
-
Fastening typeClaw/screw fastening
-
Ambient temperature−25 to +45 °C
-
Storage/transport temperature−20 to +70 °C
-
Compatibility - auxiliary station2-wire 1720 NE: unlimited; 3-wire 1723 NE: up to 10
-
Push buttons compatibilityUnlimited
-
Number of actuators supportedUp to 10
-
Special featuresAdjustable delay/time functions, test operation, adaptive zero-point switching, satellite unit connection
-
Product weight98 g
-
Package dimensions (retailer listing)9 x 9 x 4 cm
-
Country of origin(retailer listing) China
