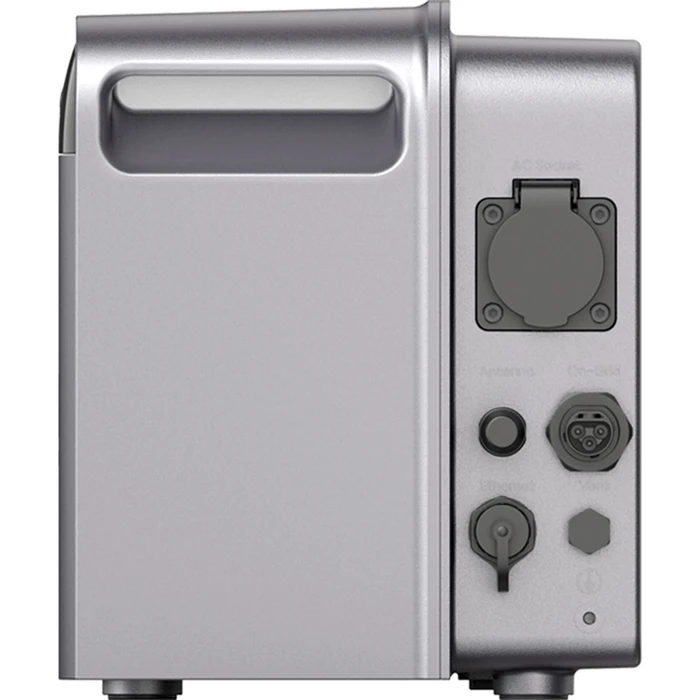

Jackery SolarVault 3 Pro 2520Wh (JS3-2500PA-GY)

Description

Technical Specifications

• Product Name
  Jackery SolarVault 3 Pro 2520Wh (JS3-2500PA-GY)
• SKU
  273529
• EAN / Barcode
  6958657303262
• MPN
  JS3-2500PA-GY
• Category
  Solarstromspeicher (solar storage)
• Battery Capacity (usable / total)
  2520 Wh
• Battery Chemistry
  LiFePO4 (LFP)
• Battery Capacity (Ah)
  60.6 Ah
• Nominal Battery Voltage
  41.6 V DC
• Battery Voltage Range
  32.5–45.5 V DC
• Max Charge Current
  46 A
• Max Discharge Current
  48.8 A
• Cycle Life
  ~6000 cycles (90% DOD, ≥70% SOH)
• AC Output Power (off-grid)
  1200 W
• AC Output Power (on-grid / peak/grid assist)
  Up to 2300 W (per some listings)
• PV Input (max)
  Up to 4000 W
• MPPT Channels
  4 independent MPPTs
• PV per MPPT/string
  Up to ~1000 W per MPPT
• Expandability (battery)
  Expandable per unit up to ~15.12 kWh (parallel/stacking modules / multiple units)
• Parallel Support
  Up to 3 systems in parallel (total ~45.36 kWh)
• Ports / PV Connector
  MC4 standard; DC8020 adapter support for Jackery panels
• Connectivity / Control
  Wi‑Fi, Bluetooth, Ethernet, mobile app
• Protection / Safety
  Integrated BMS, multiple protections
• Fire Safety
  Aerosol fire suppression system (documented in technical sheets/listings)
• Ingress Protection
  IP65
• Operating Temperature
  −20 °C to +50 °C
• Dimensions (product)
  485 × 235 × 282 mm
• Weight (product)
  25500 g
• Color
  Gray (GY)
• Model Variants / References
  JS3-2500PA-GY, JS3-2500PA-GY-20
• Use Cases
  Home solar storage, balcony PV systems, self-consumption optimization, peak shaving
• Certifications & Standards
  (see datasheet/manual for regional certifications and grid-connection requirements)
