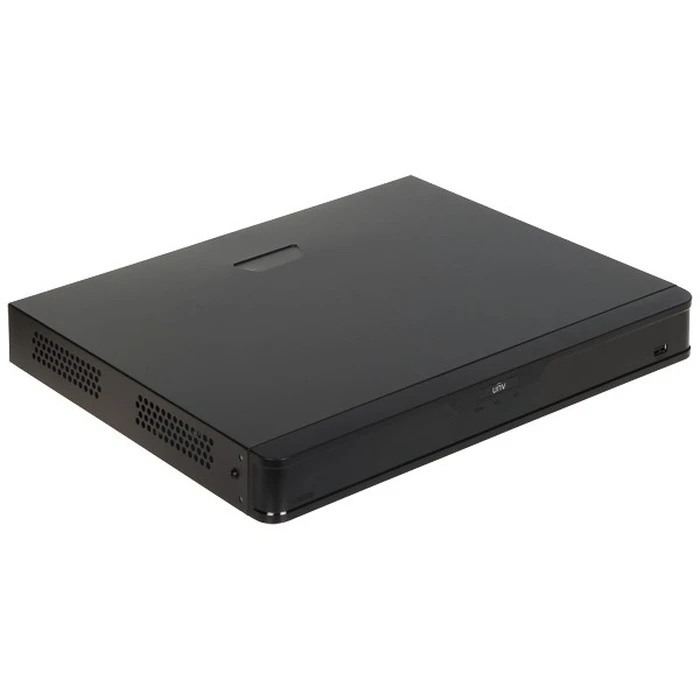

IP Recorder Uniview NVR302-16B-IQ, 16 channels (NVR302-16B-IQ)

Description

Technical Specifications

• Model
  NVR302-16B-IQ
• Brand
  Uniview
• Product Type
  16-channel Network Video Recorder (NVR)
• Video Compression
  Ultra 265, H.265, H.264
• Max Recording Resolution
  Up to 12MP per channel
• IP Video Input
  16 channels
• Decoding Capability (Smart Off)
  2×12MP@30fps; 2×4K@30fps; 4×4MP@30fps; 10×1080P@30fps; 16×720P@30fps
• Decoding Capability (Smart On)
  2×4K@30fps; 4×4MP@30fps; 8×1080P@30fps; 16×720P@30fps
• Video Outputs
  1×HDMI (up to 4K 3840×2160), 1×VGA (simultaneous output)
• Audio
  1-ch audio input (RCA), 1-ch audio output; G.711A/G.711U
• Network Bandwidth Incoming
  160 Mbps
• Network Bandwidth Outgoing
  128 Mbps
• Remote Users Supported
  128
• Storage Bays
  2 × SATA HDD
• Max HDD Capacity
  Up to 10 TB per bay (20 TB total)
• PoE
  Variant note: P16 variant includes 16 built-in PoE ports; NVR302-16B-IQ is non-PoE base model
• Smart Features
  Face detection, face comparison, face search, intrusion, cross line, enter/leave area, defocus, scene change, object left/removed, auto tracking, people/vehicle analytics
• ANR
  Supported
• ONVIF/Third-party Support
  ONVIF Profile S/G/T, RTSP
• Power Supply
  100–240 VAC
• Power Consumption
  ≤ 12 W (unit only)
• Operating Temperature
  -10°C to 55°C (14°F to 131°F)
• Dimensions (WxDxH)
  ~381 × 323 × 53 mm
• Weight
  ~2.7 kg
• Certifications/Compliance
  NDAA (listed by some resellers), ONVIF compatible
• Other Notes
  HDMI and VGA simultaneous output; cloud upgrade support
