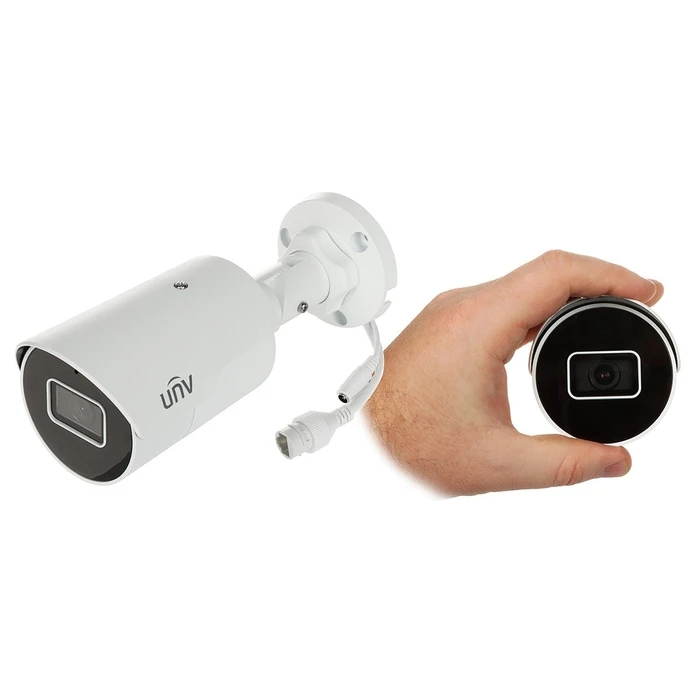

IP Camera Uniview IPC2124LE-ADF28KM-H - 4 MP 2.8 mm

Description

Technical Specifications

• Brand
  Uniview
• Model / MPN
  IPC2124LE-ADF28KM-H
• SKU
  WLONONWCRRGFH
• EAN / Barcode
  6937096334662
• Product Type
  Outdoor fixed bullet network camera
• Series
  EasyStar (Easy Series)
• Image Sensor
  1/3" progressive-scan CMOS
• Maximum Resolution
  4 MP (2688 × 1520)
• Supported Frame Rates
  4MP @ 25/20 fps; 3MP @ 30/25 fps; 2MP/1080P @ 30/25 fps; 720P @ 30 fps
• Lens Focal Length
  2.8 mm fixed
• Aperture
  F1.6
• Lens Mount
  M12
• Horizontal Field of View
  Approx. 97°–101° (sources vary)
• Vertical Field of View
  Approx. 55°–59° (sources vary)
• Diagonal Field of View
  Approx. 111°–126° (sources vary)
• Video Compression
  Ultra265, H.265, H.264, MJPEG
• WDR
  120 dB true WDR
• Day/Night
  IR cut filter with auto switch (ICR)
• Low-light Performance
  Color: 0.003 lux @ F1.6 (AGC on)
• IR / Night Vision
  Smart IR, up to 50 m (164 ft)
• Minimum Illumination
  0 lux with IR on
• Noise Ratio
  S/N > 52 dB (sources vary to >56 dB)
• Storage
  microSD card slot, up to 256/512 GB (varies by source)
• Audio
  Built-in microphone
• Network Protocols
  ONVIF, standard IP protocols
• Power Supply
  DC 12V ±25% or PoE (IEEE 802.3af)
• Power over Ethernet
  Yes (802.3af)
• Ingress Protection
  IP67
• Operating Temperature
  -30°C to 60°C
• Operating Humidity
  Not explicitly specified (typical outdoor range)
• Housing / Material
  Weatherproof metal housing (typical aluminum alloy)
• Mount / Adjustment
  3-axis bracket: Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°
• Dimensions
  190 × 73 × 71 mm
• Product Weight
  Approx. 350 g
• Package Weight
  Approx. 800 g
• Use Case
  Outdoor perimeter and general-purpose surveillance
• Certifications / Compliance
  ONVIF; NDAA compliance not confirmed for this H variant
• Key Features
  4MP resolution, wide-angle 2.8 mm lens, Ultra265/H.265 compression, 120 dB WDR, Smart IR 50 m, PoE, microSD local recording, IP67 weatherproof
