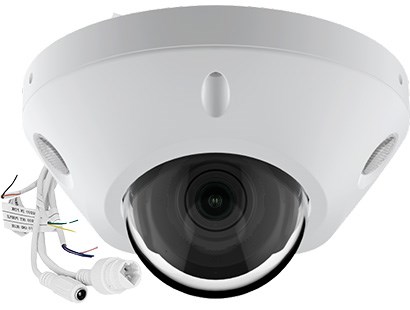

IP Camera TC-C35PS spec 5 MPx 2.8 mm - Tiandy

Description

Technical Specifications

• Brand
  Tiandy
• Model
  TC-C35PS SPEC:I3/E/Y/M/H/2.8MM/V4.2
• Series
  Pro Series
• Product type
  5MP Mini Dome / Fixed IR Dome Camera
• Image sensor
  1/2.7" CMOS
• Maximum resolution
  5 MP (2880 × 1620)
• Frame rate
  Up to 30 fps (some resellers list 25 fps)
• Lens focal length
  2.8 mm (fixed)
• Aperture
  F1.6
• Field of view
  Approx. H:109° / V:59° / D:125.4° (varies by source)
• Minimum illumination
  0.002 Lux @ F1.6 (color), 0 Lux with IR (B/W)
• WDR
  120 dB
• S/N ratio
  >39 dB
• IR / Night vision
  Smart IR, 30 m range, 850 nm
• Video compression
  S+265 / H.265 / H.264 / M-JPEG
• Bitrate range
  32 kbps to 16 Mbps
• Audio
  Audio I/O 1 in / 1 out, built-in microphone, codecs: G.711A/G.711U/ADPCM_D/AAC_LC
• Alarm I/O
  1 input / 1 output
• Analytics / AI
  Human/Vehicle classification, Tripwire, Perimeter protection, Face Capture (detect up to 8 faces, capture up to 4)
• Privacy mask
  4 static privacy mask areas
• Storage
  microSD card slot, up to 512 GB
• Network
  IP camera (standard network interfaces supported per Tiandy)
• Power
  DC 12V and PoE
• Ingress protection
  IP66
• Housing material
  Metal
• Color
  Typical product images show white dome (manufacturer images)
• Operating temperature
  -40 °C to 65 °C
• Operating humidity
  0–95% RH
• DORI distances
  Detect 56 m / Observe 22 m / Recognize 11 m / Identify 5.6 m
• Lens mount
  M12
• Shutter time
  1 s to 1/100000 s
• IR wavelength
  850 nm
• Dimensions
  null
• Weight (product)
  430 g
