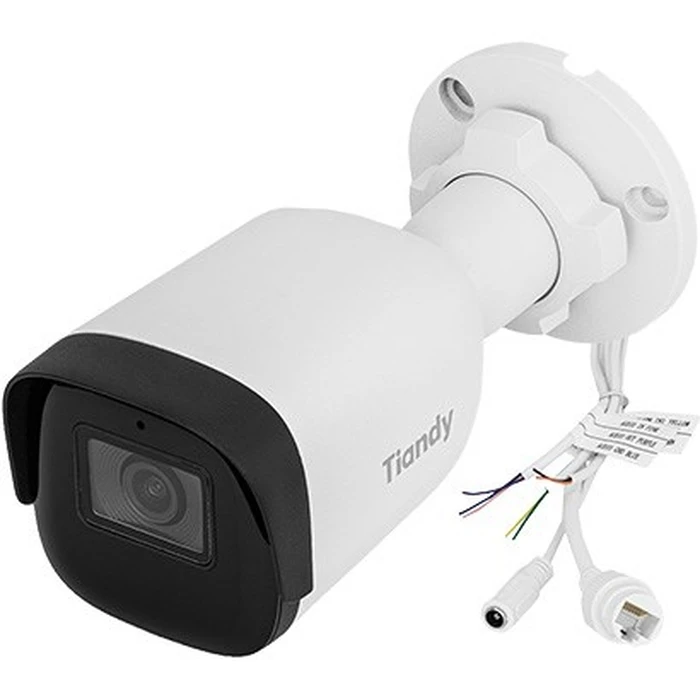

IP Camera 8 Mpx 4K UHD 2.8 mm TC-C38WS

Description

Technical Specifications

• Brand
  Tiandy
• Model
  TC-C38WS (Lite Series)
• Product type
  Fixed bullet IP camera
• Image sensor
  1/2.8" CMOS, 8 megapixel
• Max resolution
  3840 × 2160 (4K UHD)
• Frame rate
  Up to 3840×2160 @ 20 fps (manufacturer datasheet) — some resellers list 30 fps
• Minimum illumination
  Color 0.003 Lux @ F1.6 (AGC ON); B/W 0 Lux with IR (starlight performance variants list 0.002 Lux on some pages)
• Lens
  Fixed 2.8 mm, F1.6 (M12 mount) (4 mm optional variant listed)
• Field of view
  ~96° horizontal (2.8 mm)
• IR range
  Up to 50 m (850 nm)
• WDR
  120 dB
• Night vision
  Starlight + Smart IR
• Video compression
  S+265, H.265, H.264 (Motion JPEG noted on some docs)
• Audio
  Built-in microphone
• Storage
  Micro SD card slot, up to 512 GB (reseller claim)
• AI analytics
  Human & vehicle classification, perimeter/tripwire, safety-helmet detection & heatmap (marketing features vary)
• Network
  PoE (802.3af) and 12 V DC
• Ingress protection
  IP67
• Housing material
  Full metal housing
• Operating temperature
  -40°C to 65°C
• Humidity
  0–95% RH
• Dimensions
  Approx. H 6.6 cm × W 6.8 cm × D 16.1 cm (reseller measurements)
• Weight
  Approximately 650 g (camera only)
• Mounting
  3-axis adjustable bracket (pan/tilt/rotate)
• Color
  White housing (typical images)
• Certifications / Standards
  Manufacturer datasheet references (see sources)
• Packaging (estimated)
  Box approx. 22 × 10 × 10 cm, package weight approx. 1200 g
