Intel K Cooler for LGA1700 (MPN: BXTSRM1, SKU: 142484, EAN: 5032037240512). Designed for Intel 12th Gen processors (examples: i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100, i3-12100F). Includes a 100 mm x 100 mm fan with 4-pin PWM connector, full-load rated ~3150 RPM (±5%),...
More

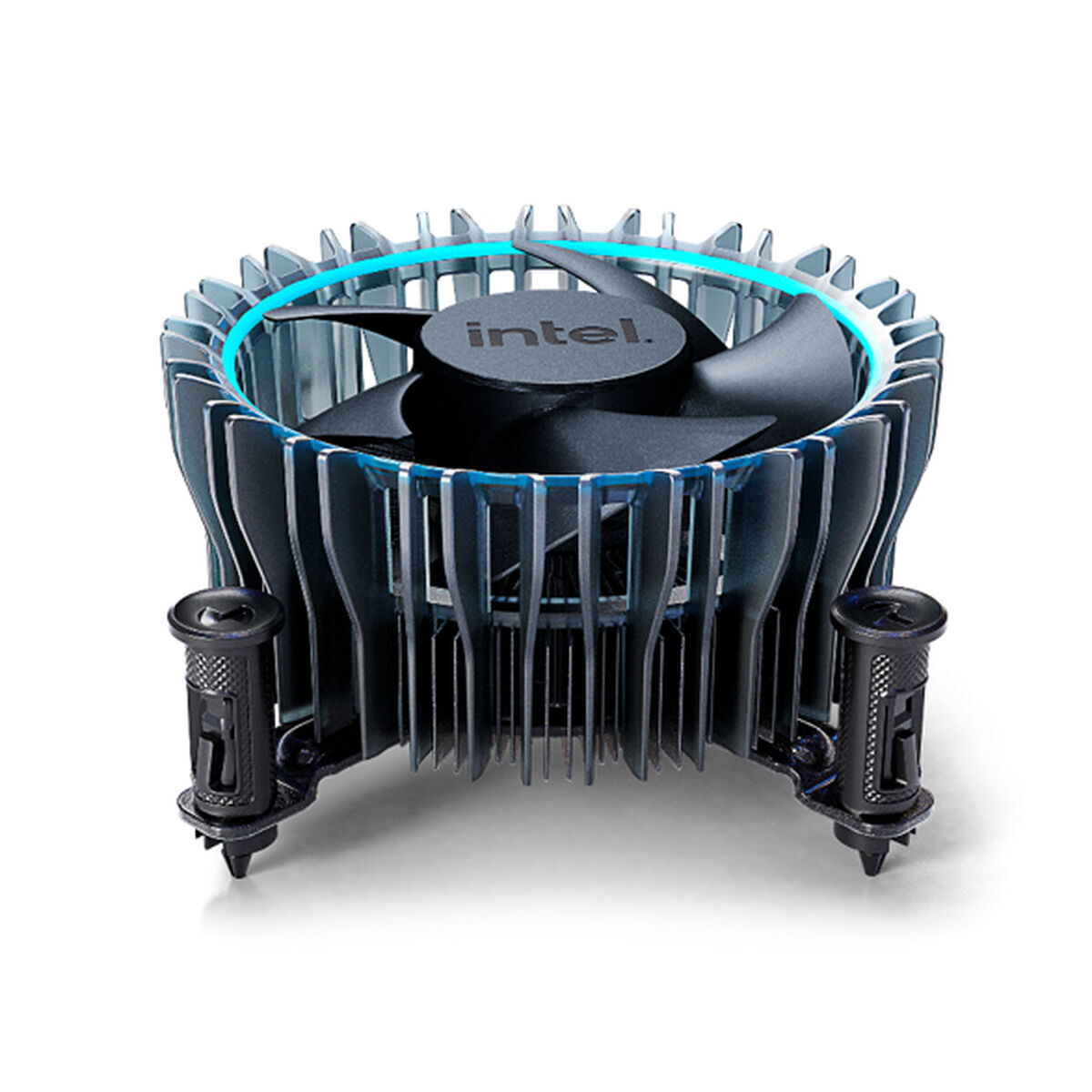

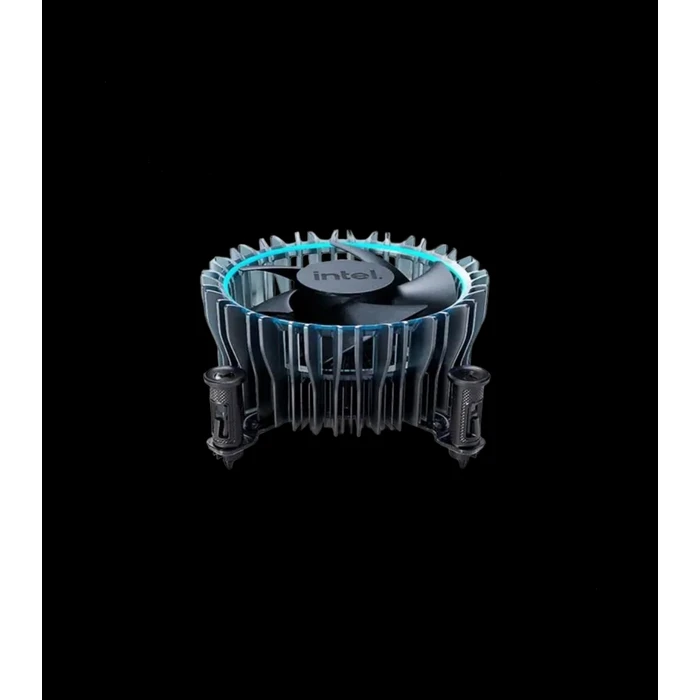

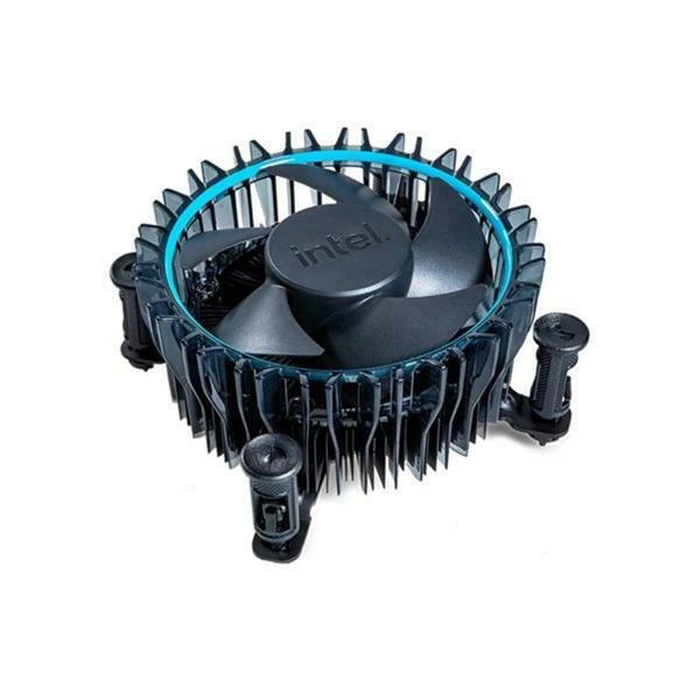

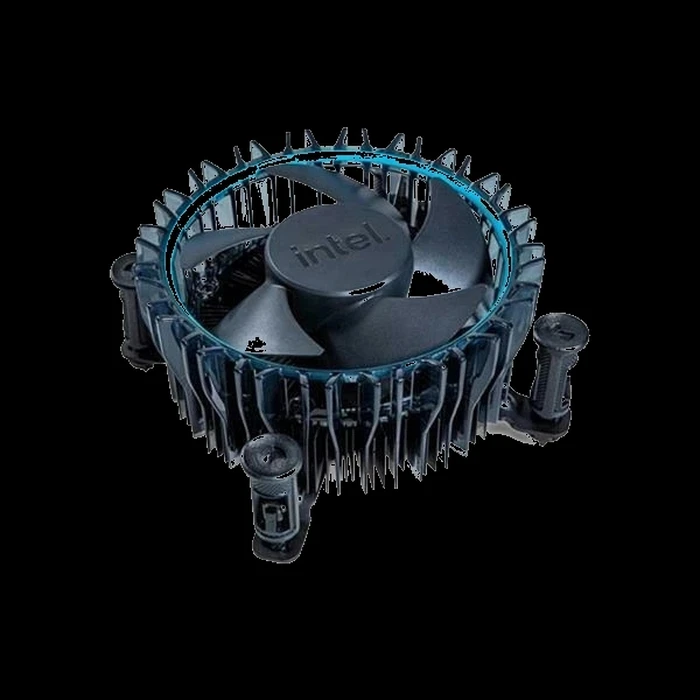

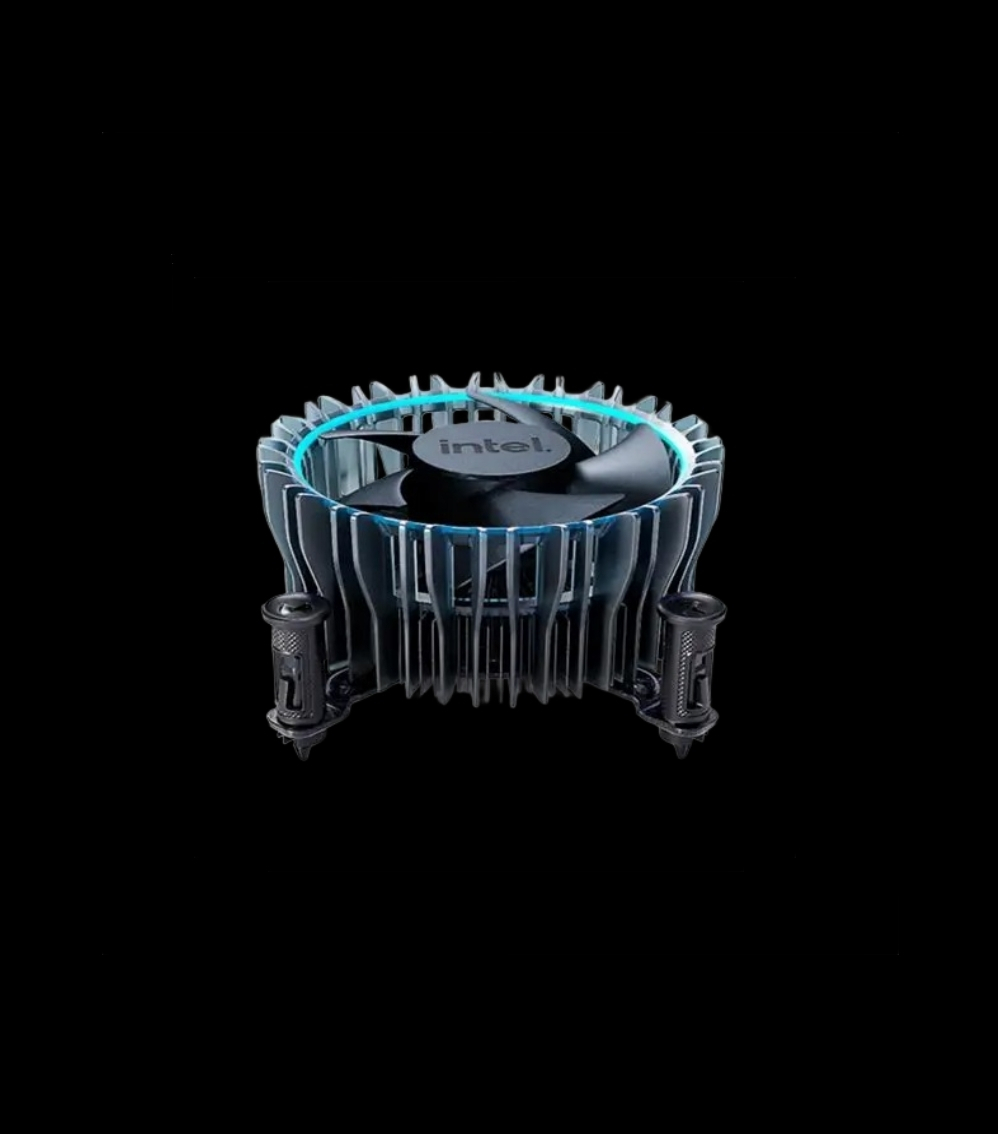

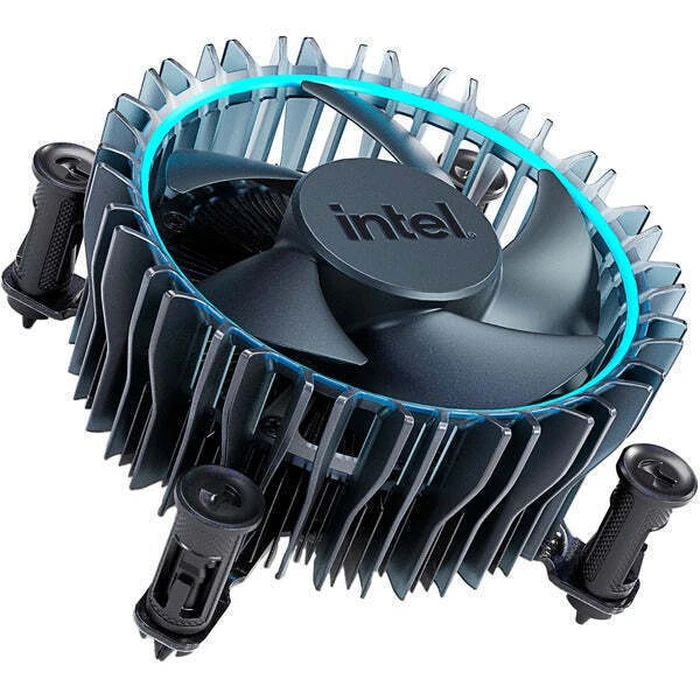

Intel K Cooler LGA1700 Socket (BXTSRM1) - Intel CPU Cooler for 12th Gen
Product Code: 1173699215
Available in 4 - 6 days
33,60 €
or
1,05€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 101 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Intel K Cooler for LGA1700 (MPN: BXTSRM1, SKU: 142484, EAN: 5032037240512). Designed for Intel 12th Gen processors (examples: i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100, i3-12100F). Includes a 100 mm x 100 mm fan with 4-pin PWM connector, full-load rated ~3150 RPM (±5%), minimum ~600 RPM (±20%). Typical noise stated 29 dBA at 2400 RPM (40°C, 65W). Thermal Design Power (TDP) support 65 W. Electrical: 13.2V max / 12.0V nominal / 10.8V low; current draw 400 mA. PWM frequency ~25 kHz (±5 kHz), PWM voltage level max 5.25 V, PWM control range 0–100%. Tachometer output: 2 pulses/rev, pull-up 12V with 10 kΩ. Physical cooler dimensions: 100 mm x 100 mm footprint, 47 mm total height. Product weight ~356 g. Materials not specified by manufacturer. Brand: Intel. Model/MPN: BXTSRM1.
-
Socket1700
-
Compatible CPUsIntel Core i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100, i3-12100F
-
Fan size100 mm x 100 mm
-
Cooler total height47 mm
-
Product mass356 g
-
Fan full-load RPM3150 rpm (±5%)
-
Fan minimum RPMrequired 600 rpm (±20%)
-
Typical noise level29 dBA (measured at 2400 RPM, 40°C, 65 W)
-
Thermal Design Power (TDP)65 W
-
Connector4-pin PWM
-
Voltage (max/nominal/low)13.2 V / 12.0 V / 10.8 V
-
Current draw400 mA
-
PWM frequency25 kHz ±5 kHz
-
PWM control range0–100%
-
Tachometer output2 pulses/rev, pull-up 12V with 10KΩ
-
Maximum PWM voltage5.25 V
-
SKU142484
-
EAN5032037240512
-
MPNBXTSRM1
-
BrandIntel
Ratings
Description
Intel K Cooler for LGA1700 (MPN: BXTSRM1, SKU: 142484, EAN: 5032037240512). Designed for Intel 12th Gen processors (examples: i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100, i3-12100F). Includes a 100 mm x 100 mm fan with 4-pin PWM connector, full-load rated ~3150 RPM (±5%), minimum ~600 RPM (±20%). Typical noise stated 29 dBA at 2400 RPM (40°C, 65W). Thermal Design Power (TDP) support 65 W. Electrical: 13.2V max / 12.0V nominal / 10.8V low; current draw 400 mA. PWM frequency ~25 kHz (±5 kHz), PWM voltage level max 5.25 V, PWM control range 0–100%. Tachometer output: 2 pulses/rev, pull-up 12V with 10 kΩ. Physical cooler dimensions: 100 mm x 100 mm footprint, 47 mm total height. Product weight ~356 g. Materials not specified by manufacturer. Brand: Intel. Model/MPN: BXTSRM1.
Technical Specifications
-
Socket1700
-
Compatible CPUsIntel Core i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100, i3-12100F
-
Fan size100 mm x 100 mm
-
Cooler total height47 mm
-
Product mass356 g
-
Fan full-load RPM3150 rpm (±5%)
-
Fan minimum RPMrequired 600 rpm (±20%)
-
Typical noise level29 dBA (measured at 2400 RPM, 40°C, 65 W)
-
Thermal Design Power (TDP)65 W
-
Connector4-pin PWM
-
Voltage (max/nominal/low)13.2 V / 12.0 V / 10.8 V
-
Current draw400 mA
-
PWM frequency25 kHz ±5 kHz
-
PWM control range0–100%
-
Tachometer output2 pulses/rev, pull-up 12V with 10KΩ
-
Maximum PWM voltage5.25 V
-
SKU142484
-
EAN5032037240512
-
MPNBXTSRM1
-
BrandIntel
