Industrial LTE router (SCR-L300 1.2) for EMEA frequencies. Features: 2× 10/100 Mbps RJ45 Ethernet ports, 1× RS232 serial, digital I/O (2 inputs listed on some vendor pages), Mini-SIM (2FF) slot supporting 1.8 V and 3.0 V SIMs, LTE Cat 1 (DL up to ~10.2 Mbps / UL up to ~5.2 Mbps), NAT, firewall, VPN...
More

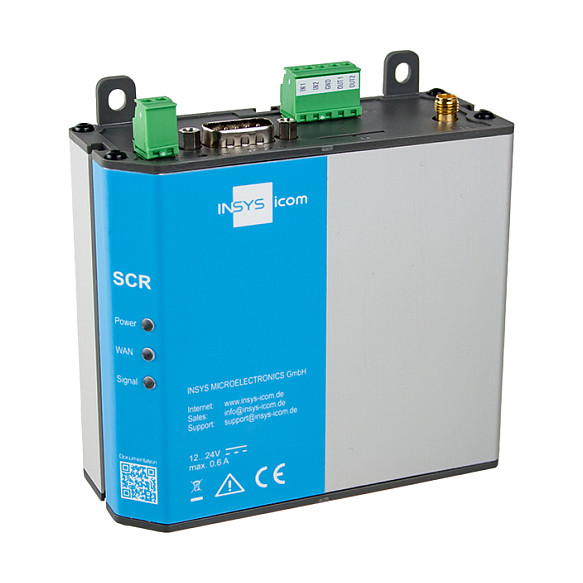

INSYS icom SCR-L300 1.2 LTE Mobile Industrial Router (VPN Option)
Product Code: 1173701496
Available in 4 - 6 days
860,49 €
or
26,87€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 2582 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Industrial LTE router (SCR-L300 1.2) for EMEA frequencies. Features: 2× 10/100 Mbps RJ45 Ethernet ports, 1× RS232 serial, digital I/O (2 inputs listed on some vendor pages), Mini-SIM (2FF) slot supporting 1.8 V and 3.0 V SIMs, LTE Cat 1 (DL up to ~10.2 Mbps / UL up to ~5.2 Mbps), NAT, firewall, VPN support and compatibility with icom Router Management and icom Connectivity Suite. Compact industrial housing (IP40), operating temperature -30 to +70 °C, low power consumption (typ. ~2.5 W), CE & UKCA certified.
-
BrandINSYS icom
-
ModelSCR-L300 1.2
-
MPN10020729
-
EAN4022892000643
-
Product typeIndustrial LTE mobile router / VPN router / IoT gateway
-
Ethernet ports2× RJ45 10/100 Mbit/s
-
Serial interface1× RS232
-
Digital I/O2× digital inputs (model/variant dependent)
-
SIM cardMini-SIM (2FF), supports 1.8 V and 3.0 V
-
LTE categoryLTE Cat 1 (Cat.1)
-
LTE speedsDL up to ~10.2 Mbit/s, UL up to ~5.2 Mbit/s
-
Supported bandsLTE bands (EMEA): 1,2,3,4,5,7,8,20,28,38,40,41,66 (vendor listings)
-
2G support850/900/1800/1900 MHz (GPRS/EDGE)
-
Security featuresVPN support, firewall, NAT
-
Managementicom OS, icom Router Management, icom Connectivity Suite
-
Power consumptionTypical ~2.5 W (LTE variants), Max ~6.0 W
-
Operating temperature-30 °C to +70 °C
-
Humidity0 to 95% non-condensing
-
MTBF> 770,000 h at 25 °C (SN 29500 / IEC 61709)
-
CertificationsCE, UKCA; EMC: EN 55032 Class B, EN 55035, EN 61000-6-3, EN 61000-6-2
-
HousingCompact industrial housing, IP40
-
MountingFlexible mounting (wall / DIN rail options in family)
-
Default loginusername: insys, password: icom (configuration docs)
-
VPN optionAvailable / supported (product listing: "VPN-Option")
Ratings
Description
Industrial LTE router (SCR-L300 1.2) for EMEA frequencies. Features: 2× 10/100 Mbps RJ45 Ethernet ports, 1× RS232 serial, digital I/O (2 inputs listed on some vendor pages), Mini-SIM (2FF) slot supporting 1.8 V and 3.0 V SIMs, LTE Cat 1 (DL up to ~10.2 Mbps / UL up to ~5.2 Mbps), NAT, firewall, VPN support and compatibility with icom Router Management and icom Connectivity Suite. Compact industrial housing (IP40), operating temperature -30 to +70 °C, low power consumption (typ. ~2.5 W), CE & UKCA certified.
Technical Specifications
-
BrandINSYS icom
-
ModelSCR-L300 1.2
-
MPN10020729
-
EAN4022892000643
-
Product typeIndustrial LTE mobile router / VPN router / IoT gateway
-
Ethernet ports2× RJ45 10/100 Mbit/s
-
Serial interface1× RS232
-
Digital I/O2× digital inputs (model/variant dependent)
-
SIM cardMini-SIM (2FF), supports 1.8 V and 3.0 V
-
LTE categoryLTE Cat 1 (Cat.1)
-
LTE speedsDL up to ~10.2 Mbit/s, UL up to ~5.2 Mbit/s
-
Supported bandsLTE bands (EMEA): 1,2,3,4,5,7,8,20,28,38,40,41,66 (vendor listings)
-
2G support850/900/1800/1900 MHz (GPRS/EDGE)
-
Security featuresVPN support, firewall, NAT
-
Managementicom OS, icom Router Management, icom Connectivity Suite
-
Power consumptionTypical ~2.5 W (LTE variants), Max ~6.0 W
-
Operating temperature-30 °C to +70 °C
-
Humidity0 to 95% non-condensing
-
MTBF> 770,000 h at 25 °C (SN 29500 / IEC 61709)
-
CertificationsCE, UKCA; EMC: EN 55032 Class B, EN 55035, EN 61000-6-3, EN 61000-6-2
-
HousingCompact industrial housing, IP40
-
MountingFlexible mounting (wall / DIN rail options in family)
-
Default loginusername: insys, password: icom (configuration docs)
-
VPN optionAvailable / supported (product listing: "VPN-Option")
