The INSYS icom SCR-E300 is a compact industrial LAN-to-LAN router (SCR series) with VPN option, NAT and firewall capabilities. It provides 2 x 10/100 Mbit/s Ethernet ports, 1 x RS-232 serial interface and — in the I/O variant — 2 digital inputs and 2 digital outputs. The device supports 5 separate...
More

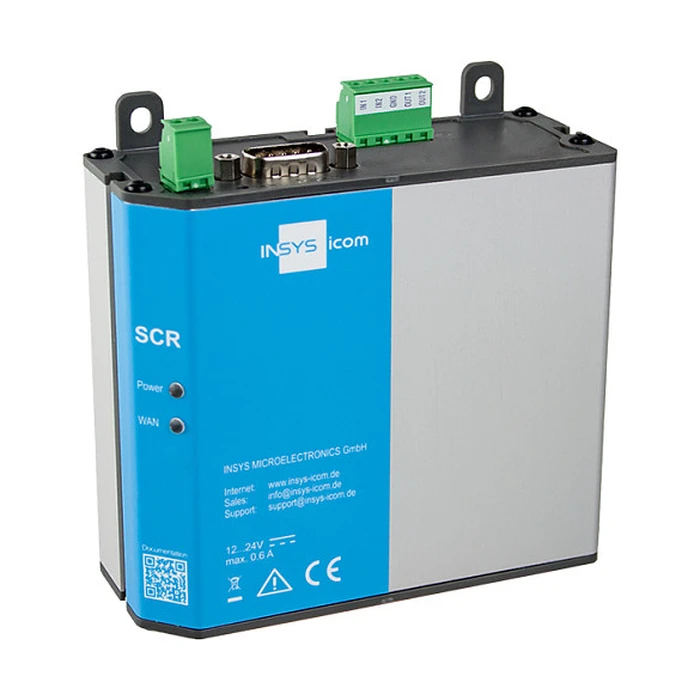

INSYS icom SCR-E300 1.1 LAN-to-LAN Router (VPN Option)
Product Code: 1173701495
Available in 4 - 6 days
749,30 €
or
23,40€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 2248 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The INSYS icom SCR-E300 is a compact industrial LAN-to-LAN router (SCR series) with VPN option, NAT and firewall capabilities. It provides 2 x 10/100 Mbit/s Ethernet ports, 1 x RS-232 serial interface and — in the I/O variant — 2 digital inputs and 2 digital outputs. The device supports 5 separate IP networks, user roles and configuration profiles and is manageable centrally via icom Router Management / icom Connectivity Suite. Hardened for industrial use with IP40 housing, wide operating temperature (-30 to +75 °C) and relevant CE / FCC / UKCA approvals.
-
BrandINSYS icom
-
ModelSCR-E300
-
Product familySCR series
-
MPN10020727
-
EAN / Barcode4022892000636
-
SKU21187897
-
CategoryNetzwerk > Router
-
VariantLAN-to-LAN router (I/O version available)
-
Ethernet ports2 x RJ45 10/100 Mbit/s (auto MDI-X, full/half duplex, shielded)
-
Serial interface1 x RS-232 (up to 230,400 bit/s, hardware handshake)
-
Digital I/O (I/O version)2 digital inputs, 2 digital outputs
-
VPNLAN-to-LAN VPN support; VPN option available
-
Network featuresNAT, firewall, supports 5 separate IP networks
-
Managementicom Router Management and icom Connectivity Suite (central management & VPN)
-
User managementUser roles and variable configuration profiles
-
IsolationEthernet ports isolation 1.5 kV (per datasheet description)
-
MountingDIN-rail mountable (compact industrial housing)
-
Housing protectionIP40
-
Operating temperature-30 °C to +75 °C
-
Humidity0–95% non-condensing
-
MTBF> 770,000 h at 25 °C (SN 29500 / IEC 61709)
-
ApprovalsCE, FCC Part 15 Class B, IC, UKCA
-
EMC standardsEN 55032 Class B, EN 61000-6-3, EN 55035, EN 61000-6-2
-
Safety standardIEC/EN 62368-1
-
Power supply(not specified in available sources)
-
Dimensions (product)(not specified in available sources)
-
Weight (product)~180 g (typical for compact DIN-rail industrial router)
-
Package dimensions (estimated)15 x 12 x 6 cm
-
Package weight (estimated)~350 g
Ratings
Description
The INSYS icom SCR-E300 is a compact industrial LAN-to-LAN router (SCR series) with VPN option, NAT and firewall capabilities. It provides 2 x 10/100 Mbit/s Ethernet ports, 1 x RS-232 serial interface and — in the I/O variant — 2 digital inputs and 2 digital outputs. The device supports 5 separate IP networks, user roles and configuration profiles and is manageable centrally via icom Router Management / icom Connectivity Suite. Hardened for industrial use with IP40 housing, wide operating temperature (-30 to +75 °C) and relevant CE / FCC / UKCA approvals.
Technical Specifications
-
BrandINSYS icom
-
ModelSCR-E300
-
Product familySCR series
-
MPN10020727
-
EAN / Barcode4022892000636
-
SKU21187897
-
CategoryNetzwerk > Router
-
VariantLAN-to-LAN router (I/O version available)
-
Ethernet ports2 x RJ45 10/100 Mbit/s (auto MDI-X, full/half duplex, shielded)
-
Serial interface1 x RS-232 (up to 230,400 bit/s, hardware handshake)
-
Digital I/O (I/O version)2 digital inputs, 2 digital outputs
-
VPNLAN-to-LAN VPN support; VPN option available
-
Network featuresNAT, firewall, supports 5 separate IP networks
-
Managementicom Router Management and icom Connectivity Suite (central management & VPN)
-
User managementUser roles and variable configuration profiles
-
IsolationEthernet ports isolation 1.5 kV (per datasheet description)
-
MountingDIN-rail mountable (compact industrial housing)
-
Housing protectionIP40
-
Operating temperature-30 °C to +75 °C
-
Humidity0–95% non-condensing
-
MTBF> 770,000 h at 25 °C (SN 29500 / IEC 61709)
-
ApprovalsCE, FCC Part 15 Class B, IC, UKCA
-
EMC standardsEN 55032 Class B, EN 61000-6-3, EN 55035, EN 61000-6-2
-
Safety standardIEC/EN 62368-1
-
Power supply(not specified in available sources)
-
Dimensions (product)(not specified in available sources)
-
Weight (product)~180 g (typical for compact DIN-rail industrial router)
-
Package dimensions (estimated)15 x 12 x 6 cm
-
Package weight (estimated)~350 g
