The INSYS icom MRX3 DSL‑B is an industrial, modular DIN‑rail router with an integrated DSL modem (Annex‑B), an integrated 5‑port 10/100 Mbps Ethernet switch, and advanced routing, VPN and security features. It supports VDSL2 (multiple profiles and vectoring), ADSL/ADSL2/ADSL2+, a wide set of...
More

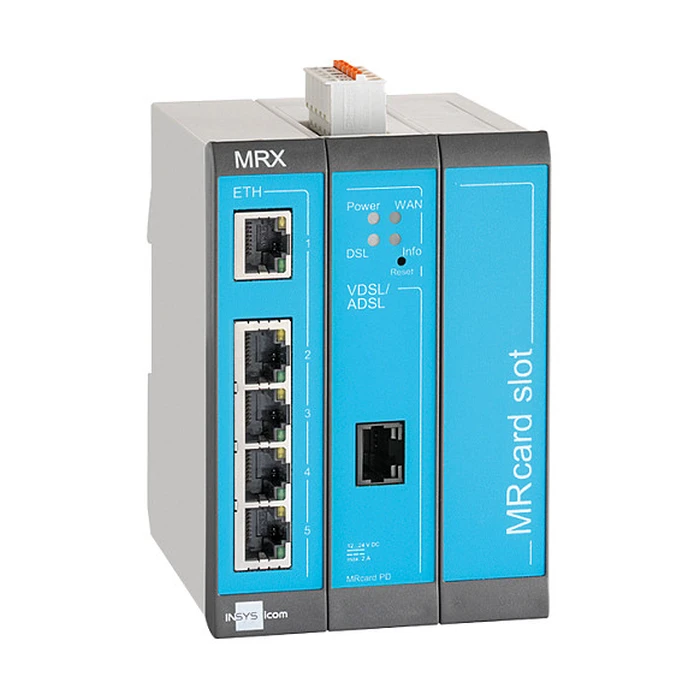

INSYS icom MRX MRX3 DSL Annex‑B Router / DSL‑Modem / 5‑Port Switch (MPN 10019437, EAN 4022892000551)
Product Code: 1173701475
Available in 4 - 6 days
1.355,60 €
or
42,33€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 4067 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The INSYS icom MRX3 DSL‑B is an industrial, modular DIN‑rail router with an integrated DSL modem (Annex‑B), an integrated 5‑port 10/100 Mbps Ethernet switch, and advanced routing, VPN and security features. It supports VDSL2 (multiple profiles and vectoring), ADSL/ADSL2/ADSL2+, a wide set of routing protocols (OSPF, BGP, RIP, RIPng, static routing), VPN technologies (OpenVPN client/server, IPSec, PPTP, DMVPN), VLANs, firewall (stateful packet inspection), SNMP, SSH/HTTPS management and firmware upgrades. Power is 12–24 V DC (redundant inputs supported). Designed for industrial environments (DIN‑rail mount, IP40, wide operating temperature).
-
BrandINSYS icom
-
ModelMRX MRX3 DSL Annex‑B (MRX3 DSL‑B)
-
MPN10019437
-
EAN4022892000551
-
SKU21187605
-
CategoryNetzwerk > Router
-
Device typeIndustrial modular DIN‑rail router with integrated DSL modem
-
WAN interfaceDSL (RJ45) Annex B — VDSL2 G.993.2 (profiles 8a/8b/8c/8d/12a/12b/17a/30a), VDSL2 Vectoring G.993.5, ADSL/ADSL2/ADSL2+ Annex B/J
-
Ethernet ports5 × 10/100 Mbit/s Ethernet (integrated switch)
-
Switch featuresIntegrated 5‑port switch, VLAN tagging, VLAN trunking, Auto MDI‑X
-
Routing protocolsOSPF, RIP‑1, RIP‑2, RIPng, BGP, Static routing, GRE
-
VPNOpenVPN (client & server), IPSec, PPTP (server), DMVPN
-
Firewall & securityStateful Packet Inspection (SPI), IP filtering, SNAT, DNAT, port forwarding, RADIUS support
-
ManagementSNMP, SNMP traps, CLI, SSH, HTTPS, HTTP, Telnet, Firmware upgrade, NTP
-
Hardware CPUARM7
-
RAM448 MB
-
Flash memory7 GB
-
Digital inputs2 DI
-
ExpansionMRcard expansion slot(s) (modular platform)
-
Power supply12–24 V DC with redundant inputs (polarity/transfer recognition)
-
Power consumption~6.5 W typical / 8.0 W max (MRX DSL base variants)
-
Operating temperature-30 °C to +70 °C (platform documentation)
-
Protection classIP40
-
Isolation voltage (Ethernet)1.5 kV
-
Mounting35 mm DIN rail (modular housing)
-
Housing materialNot specified in available sources
-
DimensionsNot specified in available sources
-
WeightNot specified in available sources
Ratings
Description
The INSYS icom MRX3 DSL‑B is an industrial, modular DIN‑rail router with an integrated DSL modem (Annex‑B), an integrated 5‑port 10/100 Mbps Ethernet switch, and advanced routing, VPN and security features. It supports VDSL2 (multiple profiles and vectoring), ADSL/ADSL2/ADSL2+, a wide set of routing protocols (OSPF, BGP, RIP, RIPng, static routing), VPN technologies (OpenVPN client/server, IPSec, PPTP, DMVPN), VLANs, firewall (stateful packet inspection), SNMP, SSH/HTTPS management and firmware upgrades. Power is 12–24 V DC (redundant inputs supported). Designed for industrial environments (DIN‑rail mount, IP40, wide operating temperature).
Technical Specifications
-
BrandINSYS icom
-
ModelMRX MRX3 DSL Annex‑B (MRX3 DSL‑B)
-
MPN10019437
-
EAN4022892000551
-
SKU21187605
-
CategoryNetzwerk > Router
-
Device typeIndustrial modular DIN‑rail router with integrated DSL modem
-
WAN interfaceDSL (RJ45) Annex B — VDSL2 G.993.2 (profiles 8a/8b/8c/8d/12a/12b/17a/30a), VDSL2 Vectoring G.993.5, ADSL/ADSL2/ADSL2+ Annex B/J
-
Ethernet ports5 × 10/100 Mbit/s Ethernet (integrated switch)
-
Switch featuresIntegrated 5‑port switch, VLAN tagging, VLAN trunking, Auto MDI‑X
-
Routing protocolsOSPF, RIP‑1, RIP‑2, RIPng, BGP, Static routing, GRE
-
VPNOpenVPN (client & server), IPSec, PPTP (server), DMVPN
-
Firewall & securityStateful Packet Inspection (SPI), IP filtering, SNAT, DNAT, port forwarding, RADIUS support
-
ManagementSNMP, SNMP traps, CLI, SSH, HTTPS, HTTP, Telnet, Firmware upgrade, NTP
-
Hardware CPUARM7
-
RAM448 MB
-
Flash memory7 GB
-
Digital inputs2 DI
-
ExpansionMRcard expansion slot(s) (modular platform)
-
Power supply12–24 V DC with redundant inputs (polarity/transfer recognition)
-
Power consumption~6.5 W typical / 8.0 W max (MRX DSL base variants)
-
Operating temperature-30 °C to +70 °C (platform documentation)
-
Protection classIP40
-
Isolation voltage (Ethernet)1.5 kV
-
Mounting35 mm DIN rail (modular housing)
-
Housing materialNot specified in available sources
-
DimensionsNot specified in available sources
-
WeightNot specified in available sources
