The Ikusi MAC HOME 1 A/V is a standalone digital AV modulator that converts analog AV signals (CVBS, S-VIDEO, YPbPr, RGB) into a COFDM digital TV RF channel (DVB-T). It supports video encoding in MPEG-2 MP@ML and H.264/MPEG4 AVC Main Profile L4.1. Video resolutions supported: 720×576 @25 fps (PAL)...
More

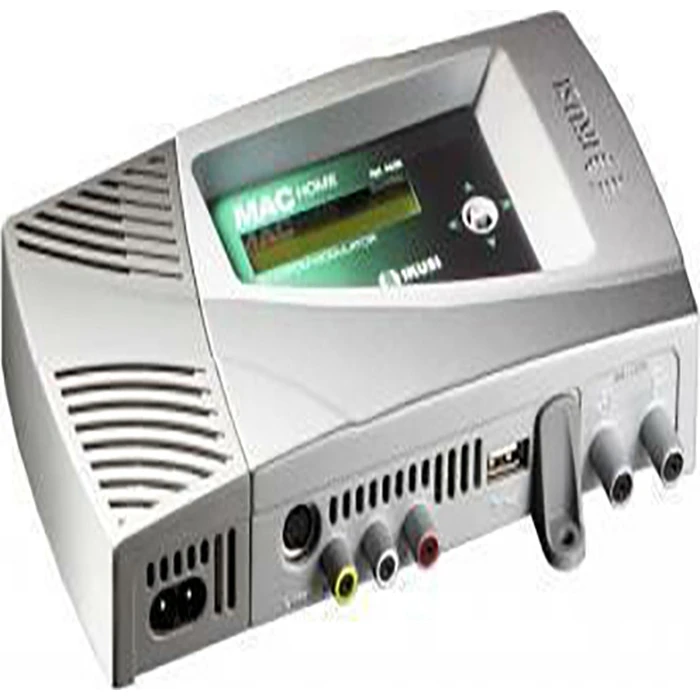

Ikusi MAC HOME Digital AV Modulator 1 A/V
Product Code: 1172727702
Upon Order
546,73 €
or
17,07€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1641 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Ikusi MAC HOME 1 A/V is a standalone digital AV modulator that converts analog AV signals (CVBS, S-VIDEO, YPbPr, RGB) into a COFDM digital TV RF channel (DVB-T). It supports video encoding in MPEG-2 MP@ML and H.264/MPEG4 AVC Main Profile L4.1. Video resolutions supported: 720×576 @25 fps (PAL) and 720×480 @30 fps (NTSC). Video bitrate range 4–10 Mbit/s. Audio encoding: MPEG1 Layer II with bitrates from 96 to 384 kbit/s. DVB features include PAT, PMT, SDT, NIT and others; compliant with ETSI EN 300 744. RF channel bandwidths: 6/7/8 MHz; FFT modes: 2K/8K. RF frequency tuning range: 474–858 MHz. MER ≥ 35 dB. Input video level (Vpp) 0.7–1.4; input impedance 75 Ω. Audio input level (Vpp) 0.5–2.5. Local UI: LCD + joystick. Connections: CVBS (1×RCA), S-Video (1×Mini-DIN), YPbPr/RGB via provided cable, Audio L/R (2×RCA), USB for firmware upgrade and USB player. Power: VAC 230–240 V, consumption 8.1 W. Operating temperature 0–45 °C. Dimensions (without connectors): 210 × 114 × 32 mm. Weight: 1 kg. SKU: 09.003.0002. EAN: 8435136444886. MPN: not provided.
-
Product TypeDigital AV Modulator
-
BrandIkusi
-
ModelMAC HOME 1 A/V
-
SKU09.003.0002
-
EAN8435136444886
-
Inputs (video)CVBS (RCA), S-VIDEO (Mini-DIN), YPbPr, RGB
-
Inputs (audio)2×RCA (L & R)
-
Video CodecsMPEG2 MP@ML, H.264/MPEG4 AVC MP L4.1
-
Video Resolution720x576 @25 fps (PAL); 720x480 @30 fps (NTSC)
-
Video Bitrate4 - 10 MBit/s
-
Audio CodecMPEG1 Layer II
-
Audio Bitrates96, 128, 160, 192, 224, 256, 320, 384 kBit/s
-
Input Video Level (Vpp)0.7 - 1.4 Vpp
-
Input Audio Level (Vpp)0.5 - 2.5 Vpp
-
Input Impedance75 Ω
-
DVB StandardDVB-T (ETSI EN 300 744)
-
Supported RF Channel Bandwidths6 / 7 / 8 MHz
-
OFDM Modes2K / 8K
-
MER≥ 35 dB
-
Tuning Range (RF)474 - 858 MHz
-
RF Level SpecdBµV ≥ 80
-
Output Modulation AttenuationdB ≤ 1.5
-
Level Adjustment RangedB -25
-
Frequency Stability≤ ±30 ppm
-
Adjacent Channel/Spurious (ΔB = 8 MHz)dBc ≤ -45
-
SI Tables SupportedPAT, PMT, SDT, NIT (and related descriptors: SID, LCN, NID, TSID, ONID, etc.)
-
Local InterfaceLCD display + joystick
-
USBFirmware upgrade via USB; USB player included
-
Power SupplyVAC 230 - 240
-
Power Consumption8.1 W
-
Power ConnectorIEC C8
-
Operating Temperature0 °C to 45 °C
-
Dimensions (WxHxD)210 x 114 x 32 mm (without connectors)
-
Weight1 kg
-
Software/FeaturesUSB PLAYER included; firmware upgradeable via USB
-
NotesRGB with sync on composite supported via supplied cable
Ratings
Description
The Ikusi MAC HOME 1 A/V is a standalone digital AV modulator that converts analog AV signals (CVBS, S-VIDEO, YPbPr, RGB) into a COFDM digital TV RF channel (DVB-T). It supports video encoding in MPEG-2 MP@ML and H.264/MPEG4 AVC Main Profile L4.1. Video resolutions supported: 720×576 @25 fps (PAL) and 720×480 @30 fps (NTSC). Video bitrate range 4–10 Mbit/s. Audio encoding: MPEG1 Layer II with bitrates from 96 to 384 kbit/s. DVB features include PAT, PMT, SDT, NIT and others; compliant with ETSI EN 300 744. RF channel bandwidths: 6/7/8 MHz; FFT modes: 2K/8K. RF frequency tuning range: 474–858 MHz. MER ≥ 35 dB. Input video level (Vpp) 0.7–1.4; input impedance 75 Ω. Audio input level (Vpp) 0.5–2.5. Local UI: LCD + joystick. Connections: CVBS (1×RCA), S-Video (1×Mini-DIN), YPbPr/RGB via provided cable, Audio L/R (2×RCA), USB for firmware upgrade and USB player. Power: VAC 230–240 V, consumption 8.1 W. Operating temperature 0–45 °C. Dimensions (without connectors): 210 × 114 × 32 mm. Weight: 1 kg. SKU: 09.003.0002. EAN: 8435136444886. MPN: not provided.
Technical Specifications
-
Product TypeDigital AV Modulator
-
BrandIkusi
-
ModelMAC HOME 1 A/V
-
SKU09.003.0002
-
EAN8435136444886
-
Inputs (video)CVBS (RCA), S-VIDEO (Mini-DIN), YPbPr, RGB
-
Inputs (audio)2×RCA (L & R)
-
Video CodecsMPEG2 MP@ML, H.264/MPEG4 AVC MP L4.1
-
Video Resolution720x576 @25 fps (PAL); 720x480 @30 fps (NTSC)
-
Video Bitrate4 - 10 MBit/s
-
Audio CodecMPEG1 Layer II
-
Audio Bitrates96, 128, 160, 192, 224, 256, 320, 384 kBit/s
-
Input Video Level (Vpp)0.7 - 1.4 Vpp
-
Input Audio Level (Vpp)0.5 - 2.5 Vpp
-
Input Impedance75 Ω
-
DVB StandardDVB-T (ETSI EN 300 744)
-
Supported RF Channel Bandwidths6 / 7 / 8 MHz
-
OFDM Modes2K / 8K
-
MER≥ 35 dB
-
Tuning Range (RF)474 - 858 MHz
-
RF Level SpecdBµV ≥ 80
-
Output Modulation AttenuationdB ≤ 1.5
-
Level Adjustment RangedB -25
-
Frequency Stability≤ ±30 ppm
-
Adjacent Channel/Spurious (ΔB = 8 MHz)dBc ≤ -45
-
SI Tables SupportedPAT, PMT, SDT, NIT (and related descriptors: SID, LCN, NID, TSID, ONID, etc.)
-
Local InterfaceLCD display + joystick
-
USBFirmware upgrade via USB; USB player included
-
Power SupplyVAC 230 - 240
-
Power Consumption8.1 W
-
Power ConnectorIEC C8
-
Operating Temperature0 °C to 45 °C
-
Dimensions (WxHxD)210 x 114 x 32 mm (without connectors)
-
Weight1 kg
-
Software/FeaturesUSB PLAYER included; firmware upgradeable via USB
-
NotesRGB with sync on composite supported via supplied cable
