Ikusi TAE-588 (AE-588) line amplifier for TV/coax distribution systems. Downstream (forward) frequency range: 86–862 MHz. Upstream (return) frequency range: 5–66 MHz. Forward nominal gain 35 dB with amplitude flatness ±0.75 dB. Adjustable forward gain: 0–18 dB; adjustable forward slope: 0–18 dB....
More

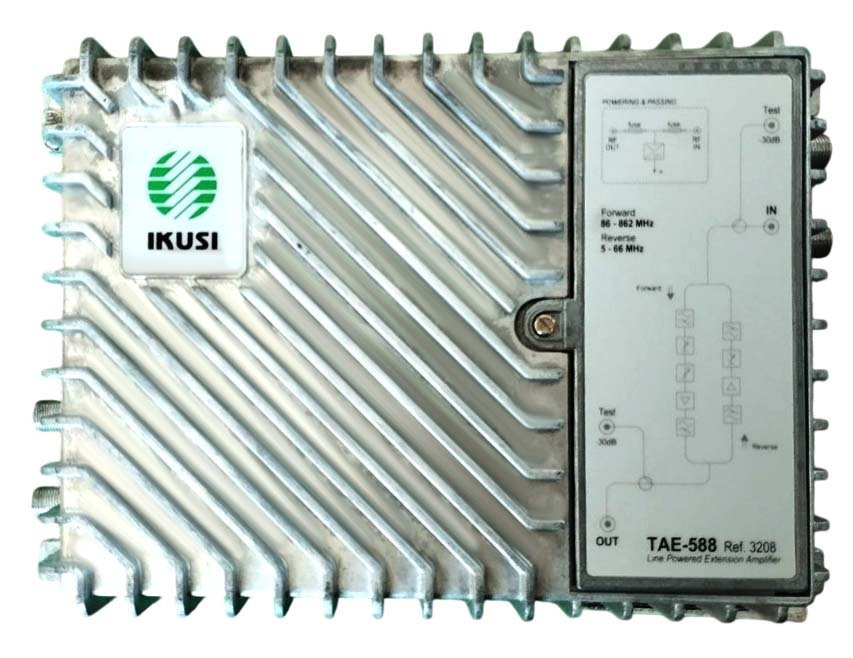

Ikusi Line Amplifier TAE-588 (86-862 MHz / 5-66 MHz)
Product Code: 1172727674
Upon Order
264,12 €
or
8,25€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 793 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Ikusi TAE-588 (AE-588) line amplifier for TV/coax distribution systems. Downstream (forward) frequency range: 86–862 MHz. Upstream (return) frequency range: 5–66 MHz. Forward nominal gain 35 dB with amplitude flatness ±0.75 dB. Adjustable forward gain: 0–18 dB; adjustable forward slope: 0–18 dB. Forward noise figure ≤ 7.5 dB. Forward output levels: IM3 (DIN 45004B, -60 dB) = 124 μV, IM2 (EN 50083-3, -60 dB) = 115 μV, CTB (EN 42 ch, -60 dB) = 110 μV, CSO (EN 42 ch, -60 dB) = 114 μV. Reverse (upstream) gain 25.5 dB, adjustable 0–18 dB, reverse noise figure ≤ 6.5 dB, reverse output levels: DIN -60 dB = 115 μV, IM2 -60 dB = 108 μV. Power supply range Vac 24–90, current 19 mA. Dimensions 220 x 150 x 55 mm. AC fuse rating 1 A. Metal housing, F-type 75 Ω connectors. Suitable for insertion of power via RF line or from output port. Brand: Ikusi. Model: TAE-588 / AE-588. SKU: 09.002.0024. EAN: 8435136432081.
-
BrandIkusi
-
ModelTAE-588 (AE-588)
-
Product TypeLine amplifier (Ενισχυτής Γραμμής)
-
Downstream frequency range86-862 MHz
-
Upstream frequency range5-66 MHz
-
Nominal forward gain35 dB
-
Forward gain flatness±0.75 dB
-
Forward adjustable gain range0-18 dB
-
Forward adjustable slope range0-18 dB
-
Forward noise figure≤ 7.5 dB
-
Forward IM3 output level (IM3 -60dB DIN 45004B)124 μV
-
Forward IM2 output level (IM2 -60dB EN 50083-3)115 μV
-
Forward CTB (CTB -60dB EN 42 ch)110 μV
-
Forward CSO (CSO -60dB EN 42 ch)114 μV
-
Reverse (upstream) gain25.5 dB
-
Reverse adjustable gain range0-18 dB
-
Reverse noise figure≤ 6.5 dB
-
Reverse output level (-60dB DIN 45004B)115 μV
-
Reverse IM2 output level (IM2 -60dB EN 50083-3)108 μV
-
Return loss / isolation (test output)-30 dB
-
ConnectorsF-type 75 Ω
-
Power supply (Vac)24-90 Vac
-
Supply current19 mA
-
AC fuse rating1 A
-
Dimensions (W x D x H)220 x 150 x 55 mm
-
HousingMetal
-
Intended useTV/coaxial distribution line amplification
Ratings
Description
Ikusi TAE-588 (AE-588) line amplifier for TV/coax distribution systems. Downstream (forward) frequency range: 86–862 MHz. Upstream (return) frequency range: 5–66 MHz. Forward nominal gain 35 dB with amplitude flatness ±0.75 dB. Adjustable forward gain: 0–18 dB; adjustable forward slope: 0–18 dB. Forward noise figure ≤ 7.5 dB. Forward output levels: IM3 (DIN 45004B, -60 dB) = 124 μV, IM2 (EN 50083-3, -60 dB) = 115 μV, CTB (EN 42 ch, -60 dB) = 110 μV, CSO (EN 42 ch, -60 dB) = 114 μV. Reverse (upstream) gain 25.5 dB, adjustable 0–18 dB, reverse noise figure ≤ 6.5 dB, reverse output levels: DIN -60 dB = 115 μV, IM2 -60 dB = 108 μV. Power supply range Vac 24–90, current 19 mA. Dimensions 220 x 150 x 55 mm. AC fuse rating 1 A. Metal housing, F-type 75 Ω connectors. Suitable for insertion of power via RF line or from output port. Brand: Ikusi. Model: TAE-588 / AE-588. SKU: 09.002.0024. EAN: 8435136432081.
Technical Specifications
-
BrandIkusi
-
ModelTAE-588 (AE-588)
-
Product TypeLine amplifier (Ενισχυτής Γραμμής)
-
Downstream frequency range86-862 MHz
-
Upstream frequency range5-66 MHz
-
Nominal forward gain35 dB
-
Forward gain flatness±0.75 dB
-
Forward adjustable gain range0-18 dB
-
Forward adjustable slope range0-18 dB
-
Forward noise figure≤ 7.5 dB
-
Forward IM3 output level (IM3 -60dB DIN 45004B)124 μV
-
Forward IM2 output level (IM2 -60dB EN 50083-3)115 μV
-
Forward CTB (CTB -60dB EN 42 ch)110 μV
-
Forward CSO (CSO -60dB EN 42 ch)114 μV
-
Reverse (upstream) gain25.5 dB
-
Reverse adjustable gain range0-18 dB
-
Reverse noise figure≤ 6.5 dB
-
Reverse output level (-60dB DIN 45004B)115 μV
-
Reverse IM2 output level (IM2 -60dB EN 50083-3)108 μV
-
Return loss / isolation (test output)-30 dB
-
ConnectorsF-type 75 Ω
-
Power supply (Vac)24-90 Vac
-
Supply current19 mA
-
AC fuse rating1 A
-
Dimensions (W x D x H)220 x 150 x 55 mm
-
HousingMetal
-
Intended useTV/coaxial distribution line amplification
