Iiyama ProLite TF1734MC-B8X is a 17.0" (5:4) open-frame industrial touchscreen monitor intended for kiosks, POS, retail installations and control panels. TN panel with native SXGA 1280×1024 resolution, up to 75 Hz refresh, 350 cd/m² panel brightness (approx. 300 cd/m² with touch layer), 1000:1...
More

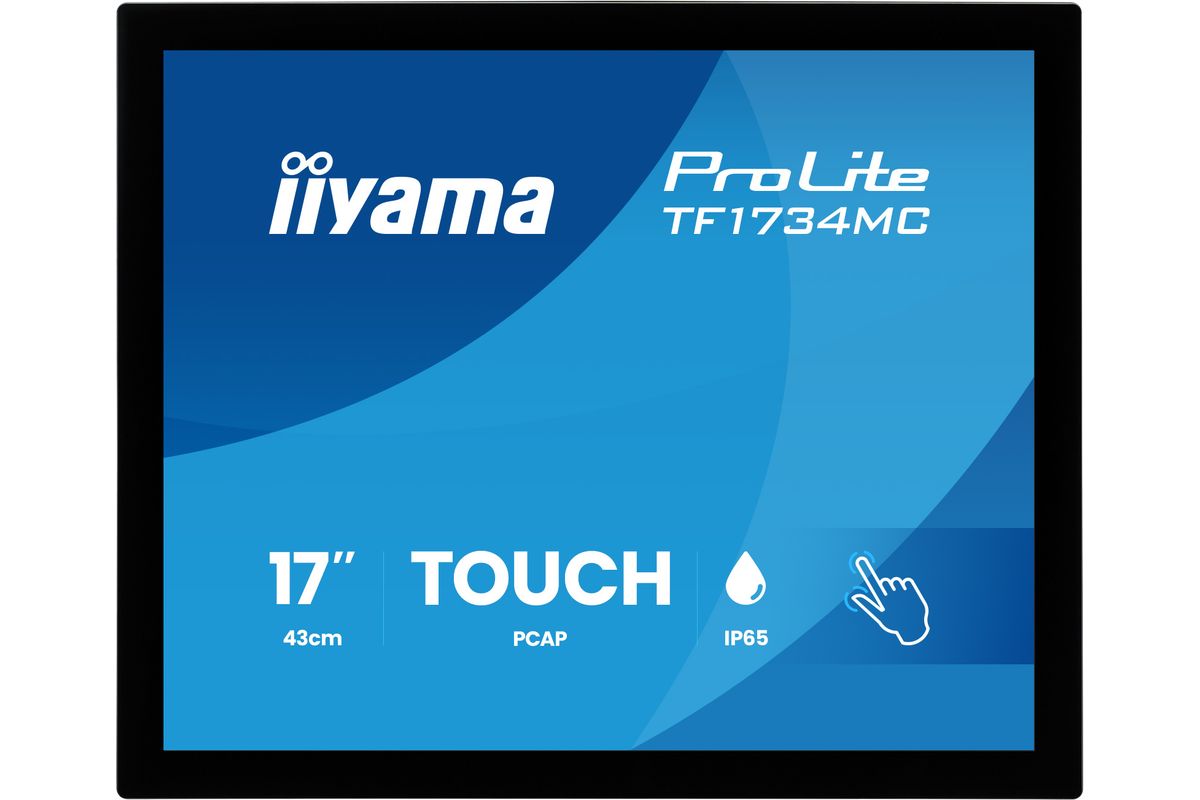

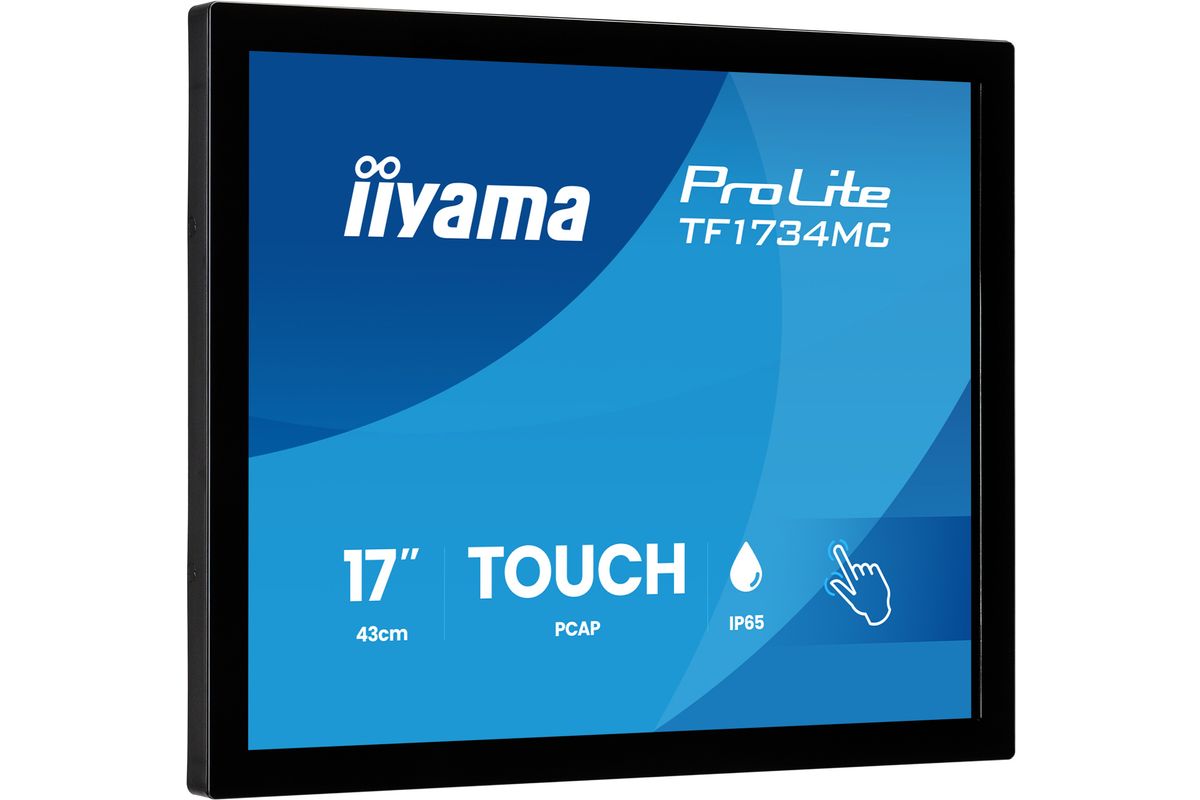

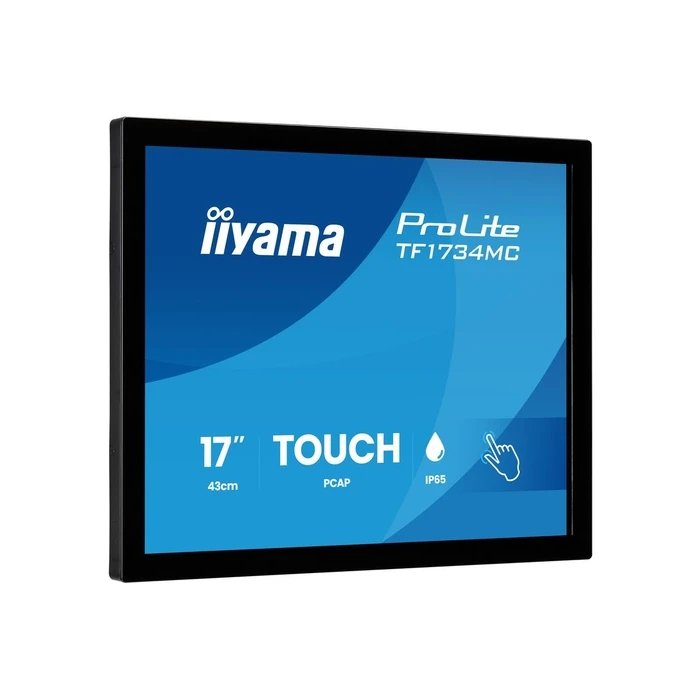

Iiyama ProLite TF1734MC-B8X 17" Open Frame Touch Monitor
Product Code: 1117797495
Available in 1 - 3 days
717,40 €
or
22,40€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

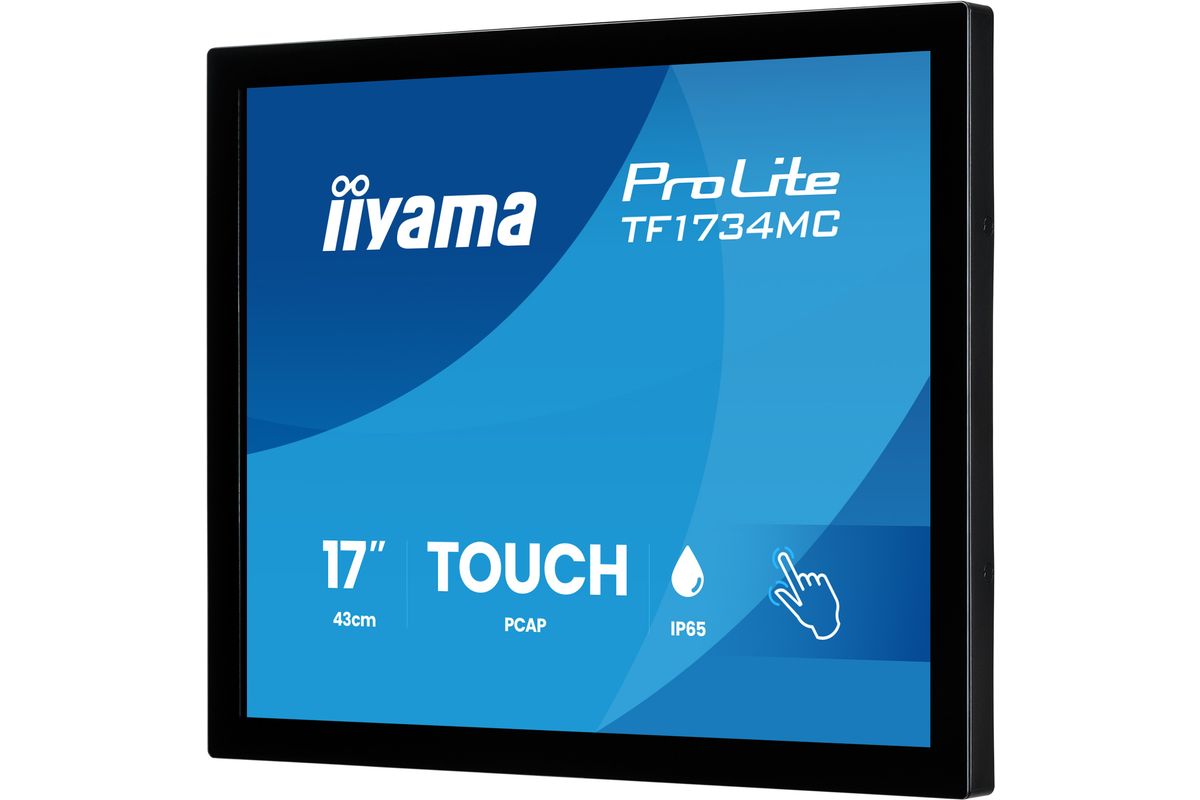

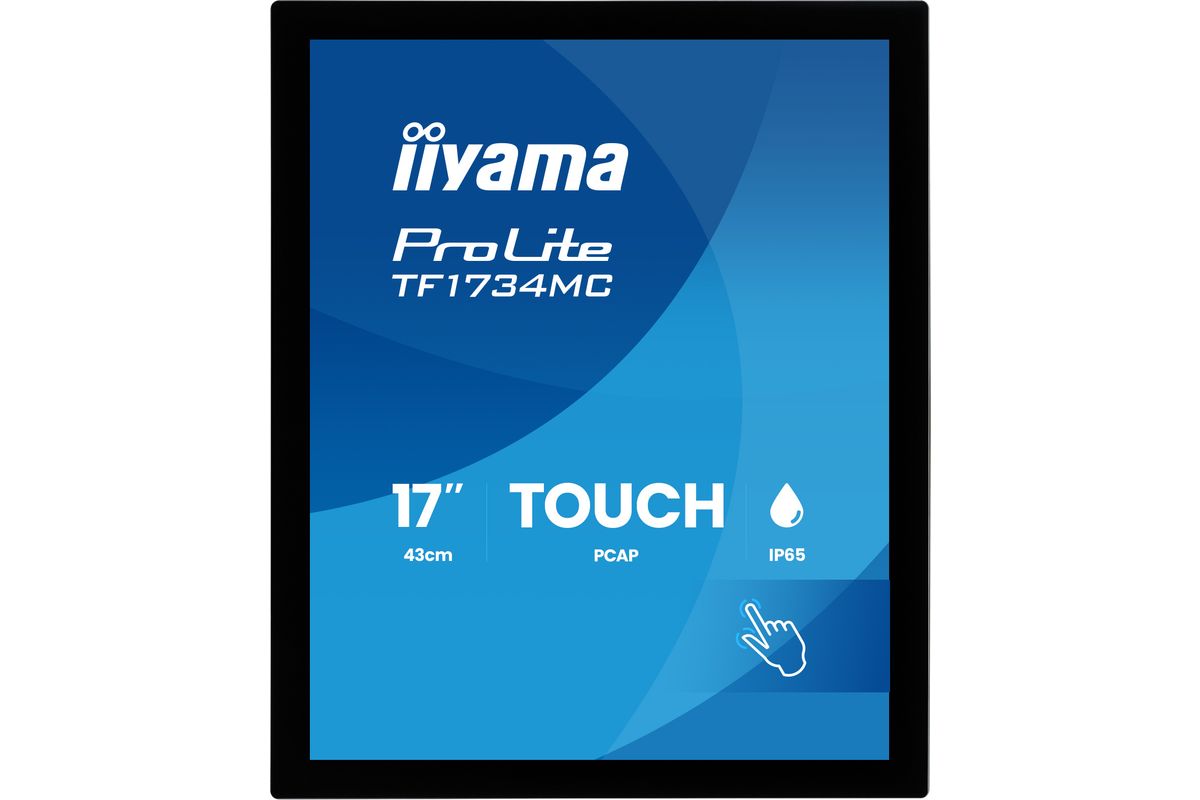

Iiyama ProLite TF1734MC-B8X is a 17.0" (5:4) open-frame industrial touchscreen monitor intended for kiosks, POS, retail installations and control panels. TN panel with native SXGA 1280×1024 resolution, up to 75 Hz refresh, 350 cd/m² panel brightness (approx. 300 cd/m² with touch layer), 1000:1 contrast and 5 ms response time. Projected capacitive (PCAP) multi-touch up to 10 points, HID-compliant, touch-through-glass up to ~6 mm, edge-to-edge bezel-free glass with IP65 front protection. Inputs: DisplayPort, HDMI, VGA; USB for touch interface. VESA 100×100 mounting; open-frame chassis for built-in integration. Power: DC 12 V, typical consumption ~13 W, standby ~1.5 W. Dimensions: 369 × 307 × 47.5 mm. Net weight ~3.6 kg. Suitable for 24/7 usage in many distributor listings.
-
BrandIiyama
-
Model / MPNTF1734MC-B8X
-
Product familyProLite
-
Category17" Open-frame touchscreen monitor
-
Screen size17 inches (≈43.2 cm)
-
Aspect ratio5:4
-
Panel technologyTN
-
Native resolution1280 × 1024 (SXGA)
-
Refresh rateUp to 75 Hz
-
Brightness (panel)350 cd/m²
-
Brightness (with touch layer)≈300 cd/m²
-
Contrast ratio1000:1
-
Response time5 ms (black-to-black)
-
Viewing angle170° horizontal / 160° vertical
-
Color depth≈16.7 million colors
-
Pixel pitch≈0.26 mm
-
Touch technologyProjected capacitive (PCAP)
-
Touch pointsUp to 10 simultaneous touch points
-
Touch interfaceUSB (HID)
-
Touch through glassSupported up to ≈6 mm glass
-
Front protectionIP65 (front)
-
Light transmission through touch panel≈85%
-

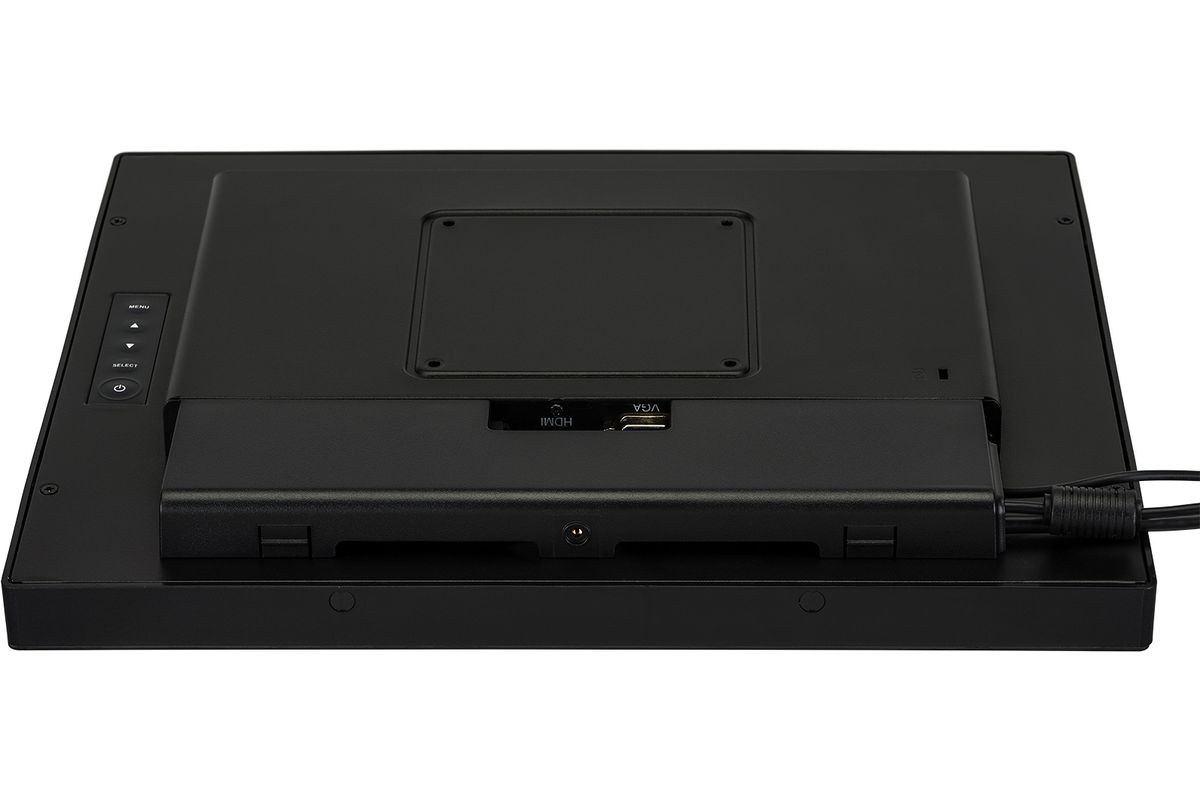

Video inputs1× DisplayPort (digital), 1× HDMI (digital), 1× VGA (analog)
-
Additional connectionsUSB for touch, DC power input
-

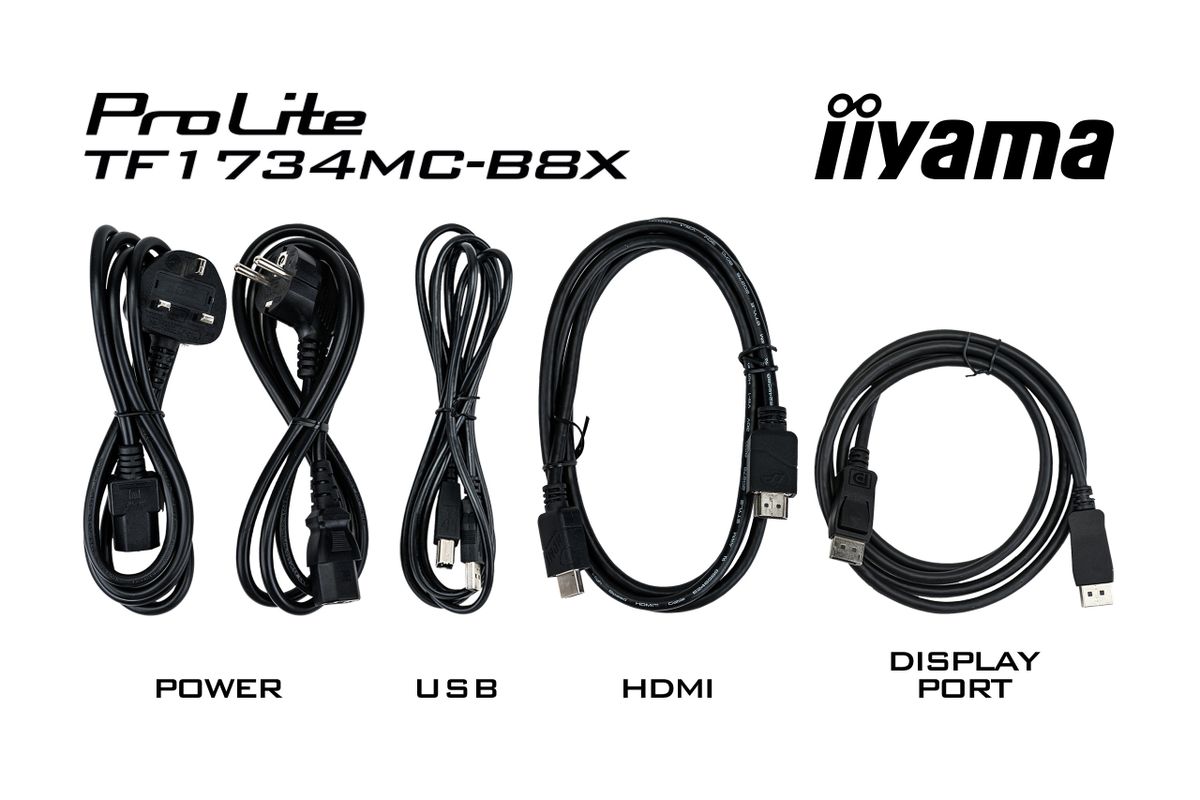

Included cables (reported)Power cable, USB cable, HDMI cable, DisplayPort cable (≈1.8 m)
-

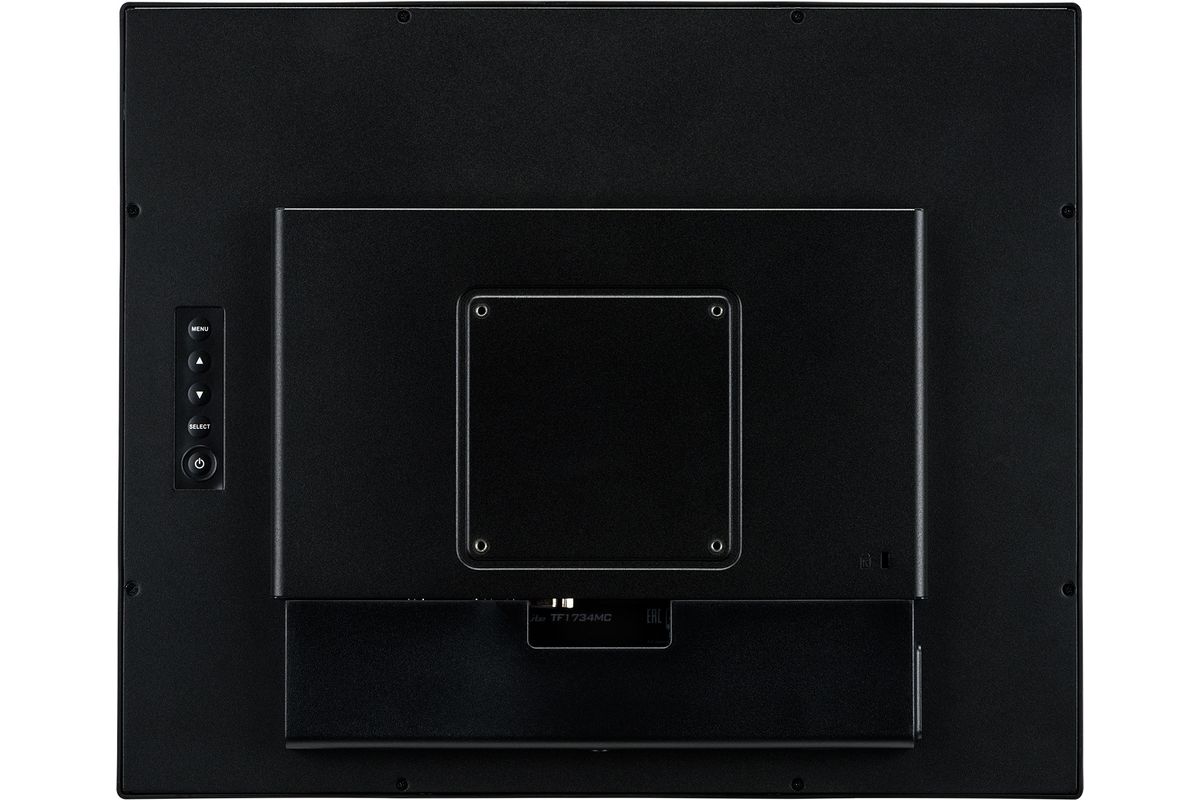

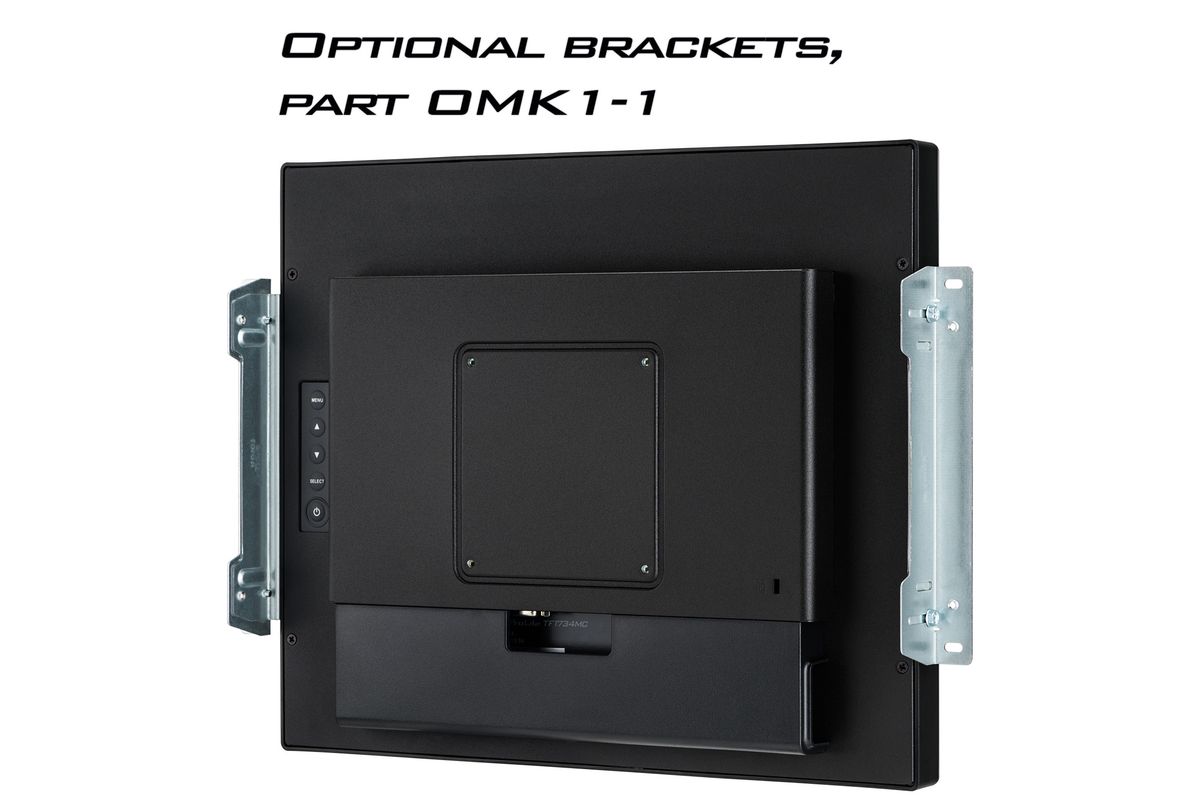

MountingVESA 100 × 100 mm
-
DesignOpen-frame chassis for built-in installations, edge-to-edge bezel-free glass
-

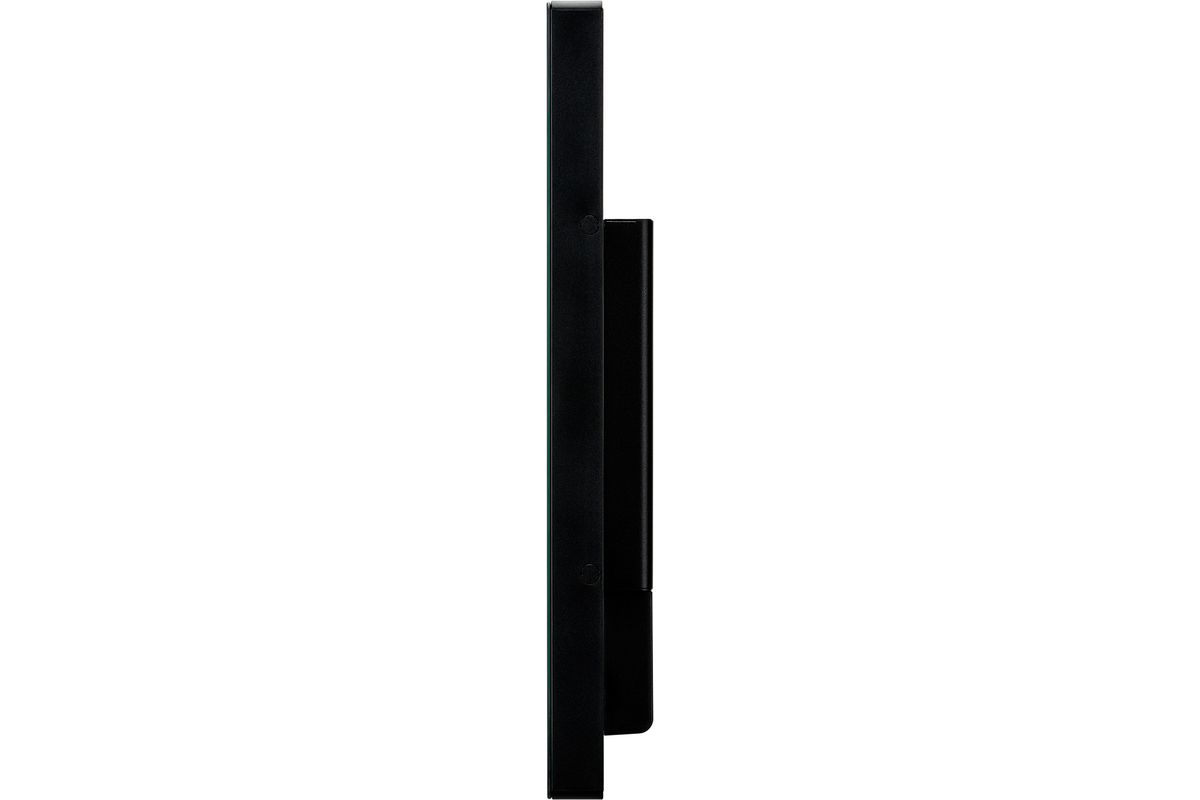

Dimensions (W×H×D)369 × 307 × 47.5 mm
-
Net weight≈3600 g
-
Packaged weight≈5200 g
-
Power inputDC 12 V
-
Typical power consumption≈13 W
-
Standby consumption≈1.5 W
-
Off-mode consumption≈0.3 W
-
Operating dutyListed as suitable for 24/7 use by some distributors
-
Use casesKiosk, POS, retail, digital signage, industrial control, custom integrations
-
EAN / GTIN4948570127818
-
SKU593434
Ratings
Description
Iiyama ProLite TF1734MC-B8X is a 17.0" (5:4) open-frame industrial touchscreen monitor intended for kiosks, POS, retail installations and control panels. TN panel with native SXGA 1280×1024 resolution, up to 75 Hz refresh, 350 cd/m² panel brightness (approx. 300 cd/m² with touch layer), 1000:1 contrast and 5 ms response time. Projected capacitive (PCAP) multi-touch up to 10 points, HID-compliant, touch-through-glass up to ~6 mm, edge-to-edge bezel-free glass with IP65 front protection. Inputs: DisplayPort, HDMI, VGA; USB for touch interface. VESA 100×100 mounting; open-frame chassis for built-in integration. Power: DC 12 V, typical consumption ~13 W, standby ~1.5 W. Dimensions: 369 × 307 × 47.5 mm. Net weight ~3.6 kg. Suitable for 24/7 usage in many distributor listings.
Technical Specifications
-
BrandIiyama
-
Model / MPNTF1734MC-B8X
-
Product familyProLite
-
Category17" Open-frame touchscreen monitor
-
Screen size17 inches (≈43.2 cm)
-
Aspect ratio5:4
-
Panel technologyTN
-
Native resolution1280 × 1024 (SXGA)
-
Refresh rateUp to 75 Hz
-
Brightness (panel)350 cd/m²
-
Brightness (with touch layer)≈300 cd/m²
-
Contrast ratio1000:1
-
Response time5 ms (black-to-black)
-
Viewing angle170° horizontal / 160° vertical
-
Color depth≈16.7 million colors
-
Pixel pitch≈0.26 mm
-
Touch technologyProjected capacitive (PCAP)
-
Touch pointsUp to 10 simultaneous touch points
-
Touch interfaceUSB (HID)
-
Touch through glassSupported up to ≈6 mm glass
-
Front protectionIP65 (front)
-
Light transmission through touch panel≈85%
-
Video inputs1× DisplayPort (digital), 1× HDMI (digital), 1× VGA (analog)
-
Additional connectionsUSB for touch, DC power input
-
Included cables (reported)Power cable, USB cable, HDMI cable, DisplayPort cable (≈1.8 m)
-
MountingVESA 100 × 100 mm
-
DesignOpen-frame chassis for built-in installations, edge-to-edge bezel-free glass
-
Dimensions (W×H×D)369 × 307 × 47.5 mm
-
Net weight≈3600 g
-
Packaged weight≈5200 g
-
Power inputDC 12 V
-
Typical power consumption≈13 W
-
Standby consumption≈1.5 W
-
Off-mode consumption≈0.3 W
-
Operating dutyListed as suitable for 24/7 use by some distributors
-
Use casesKiosk, POS, retail, digital signage, industrial control, custom integrations
-
EAN / GTIN4948570127818
-
SKU593434
