PCIe adapter card that converts a physical PCIe x8 host slot to a SlimSAS 8i (SFF-8654) connection for high-speed NVMe storage. Supports PCIe 4.0 x8 with an integrated PCIe Gen4 redriver and a 100 MHz PCIe clock buffer to improve signal integrity over longer traces/cables. Does not perform lane...
More

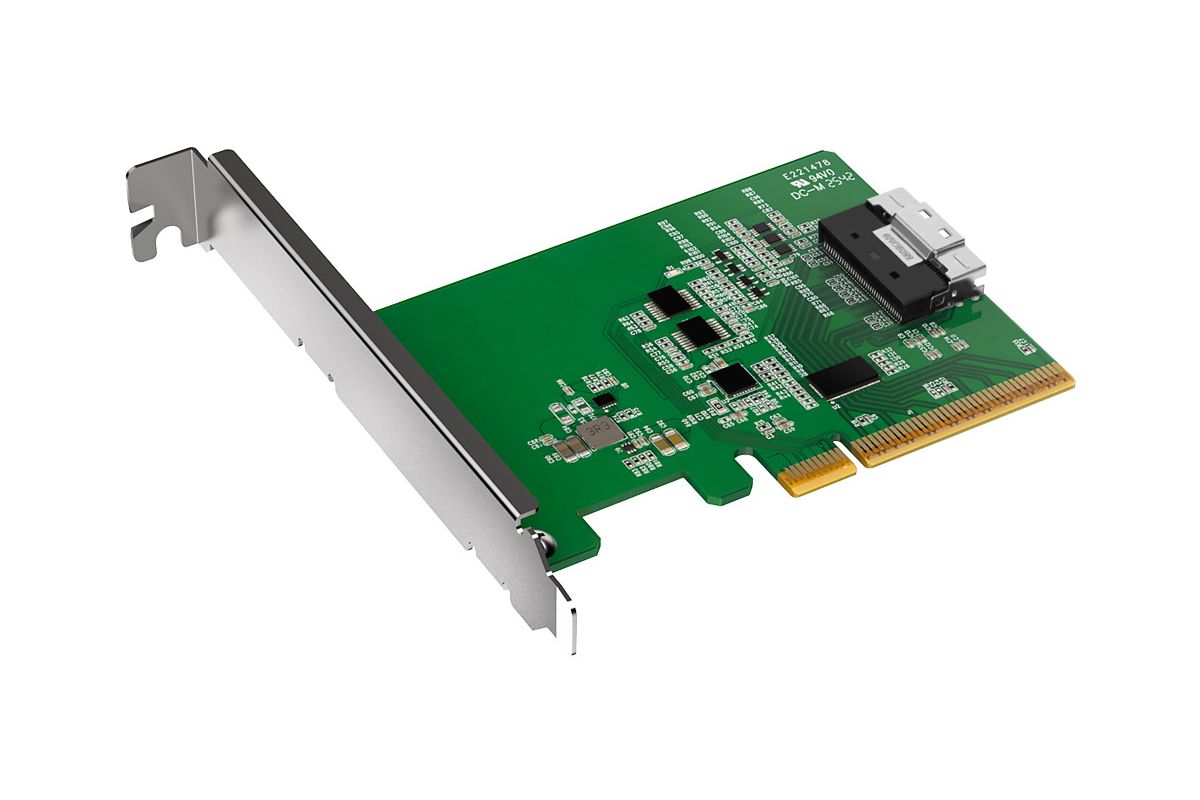

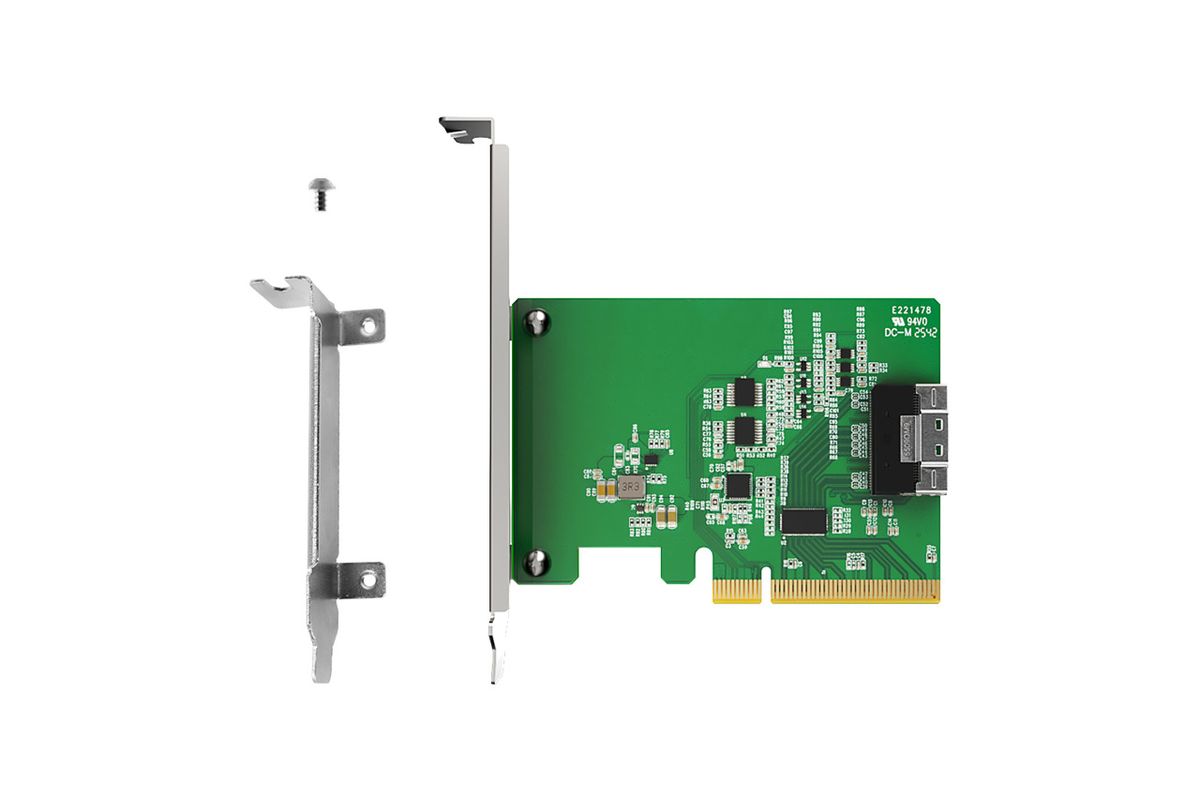

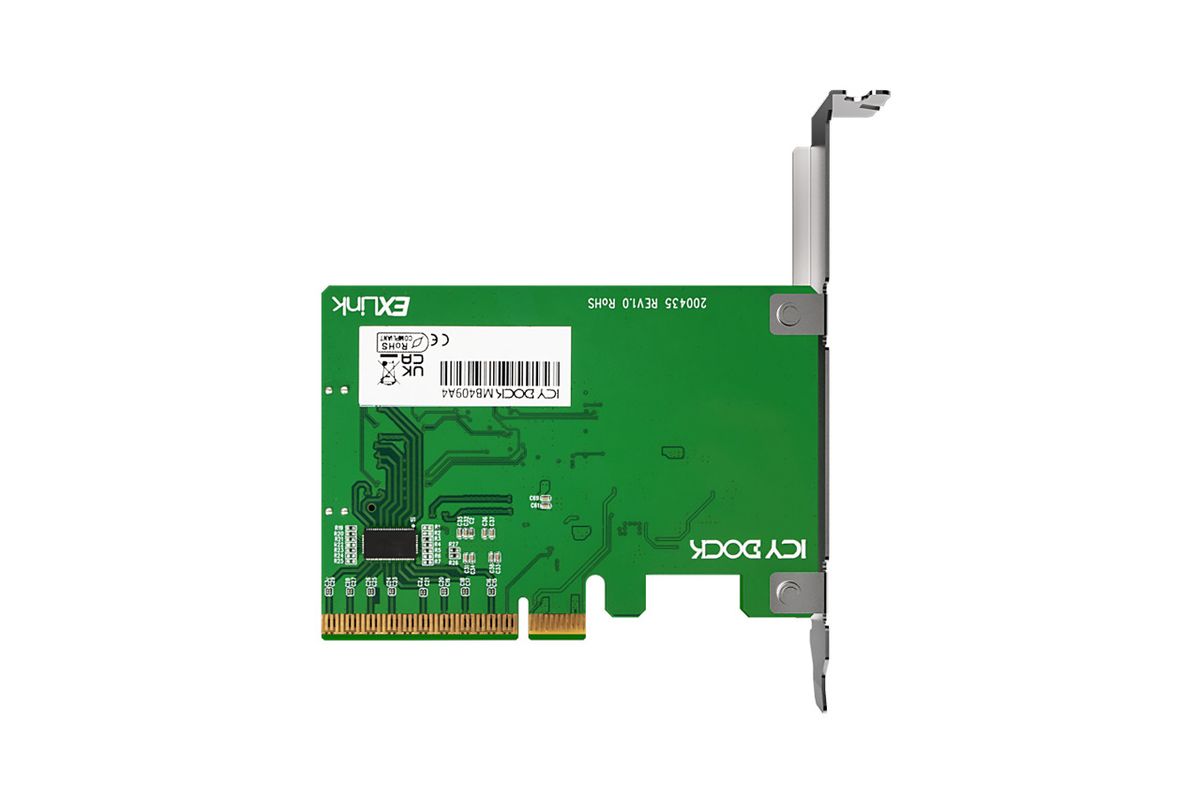

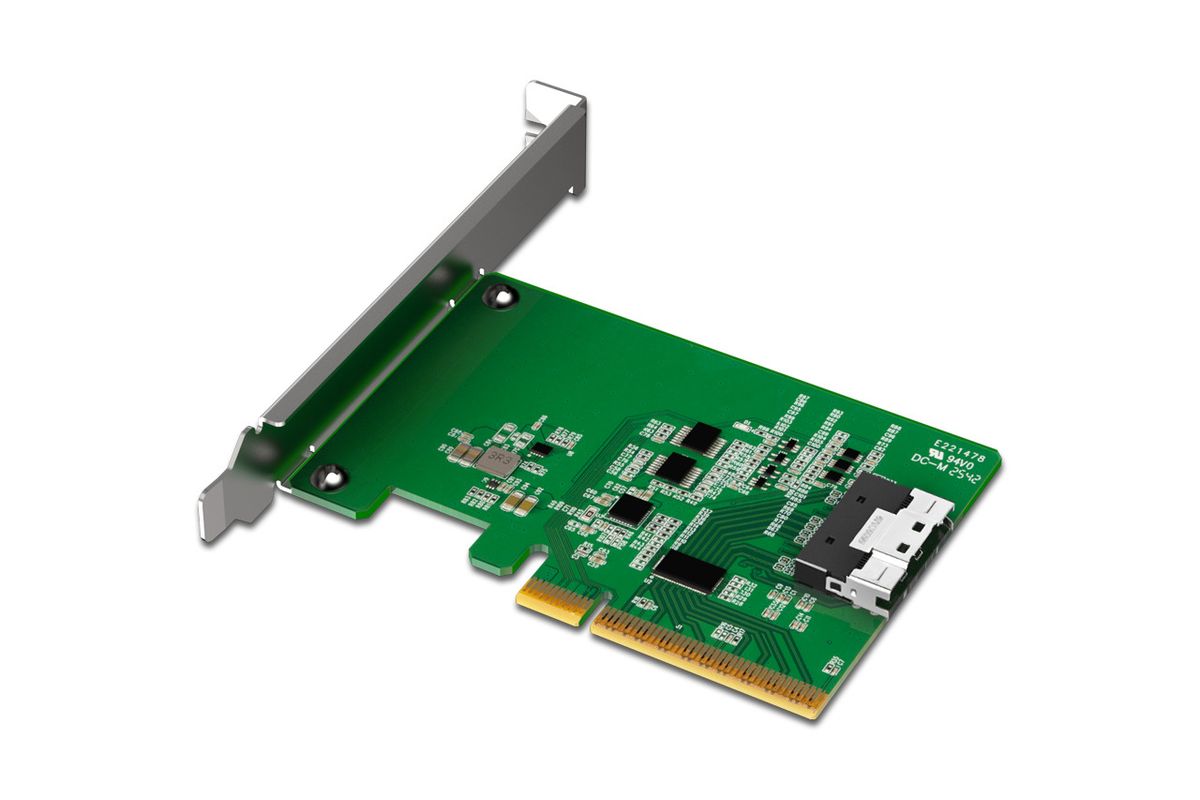

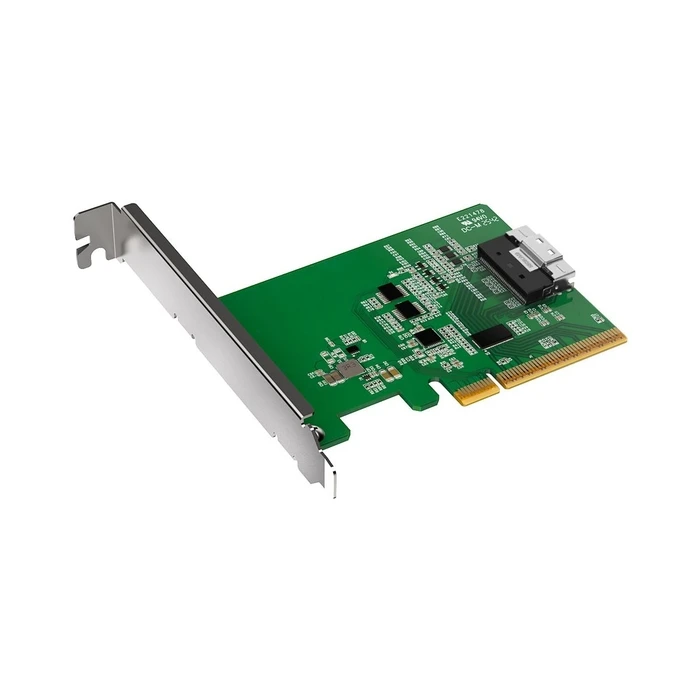

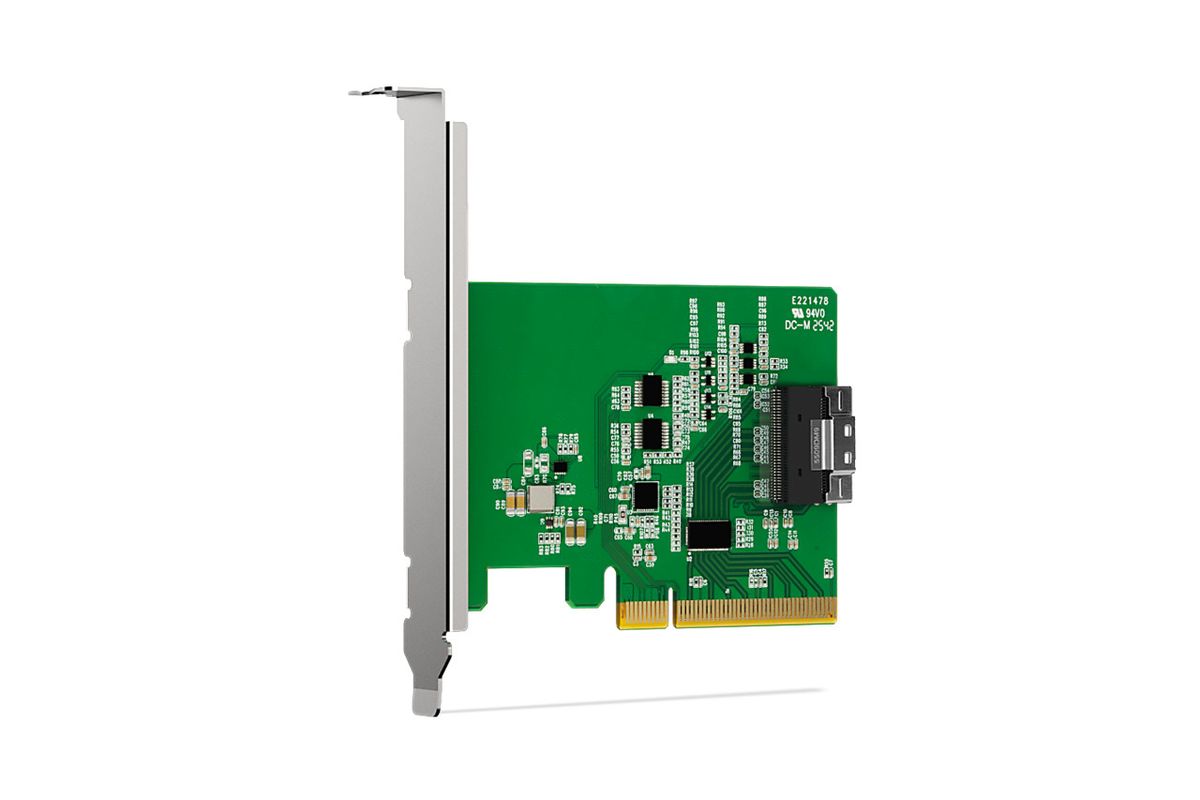

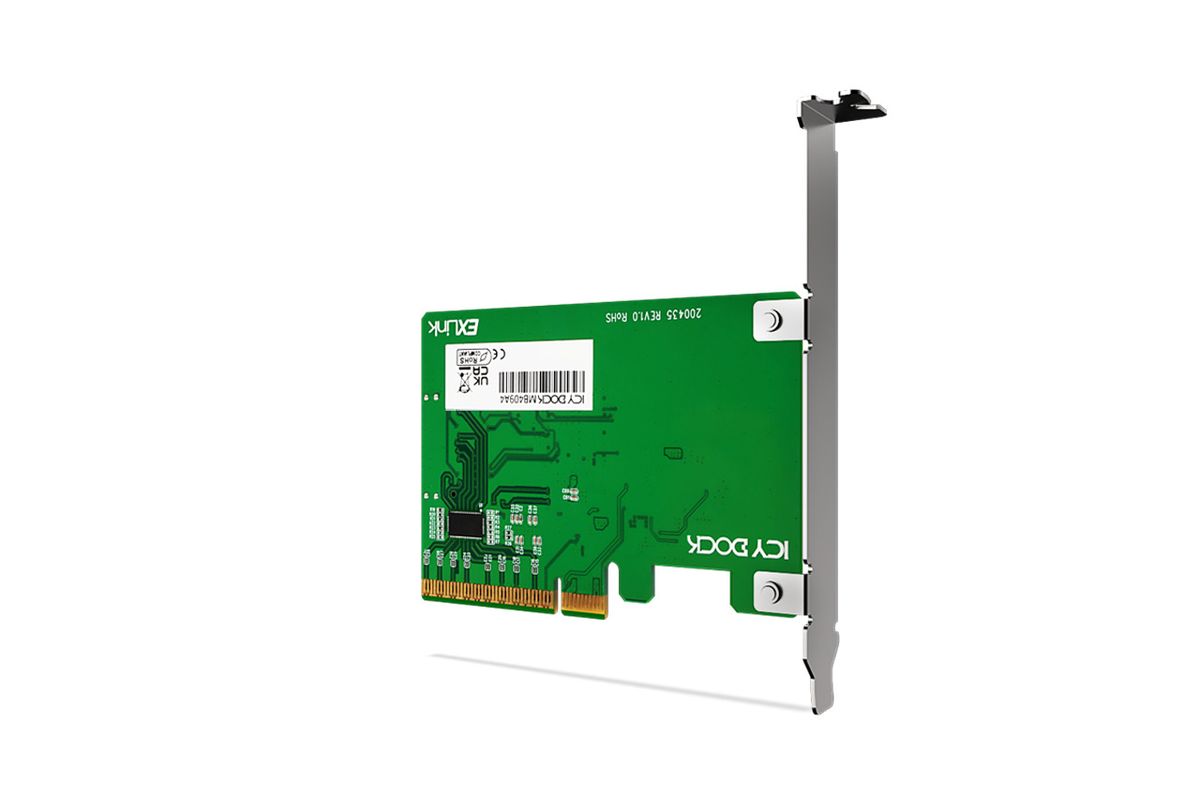

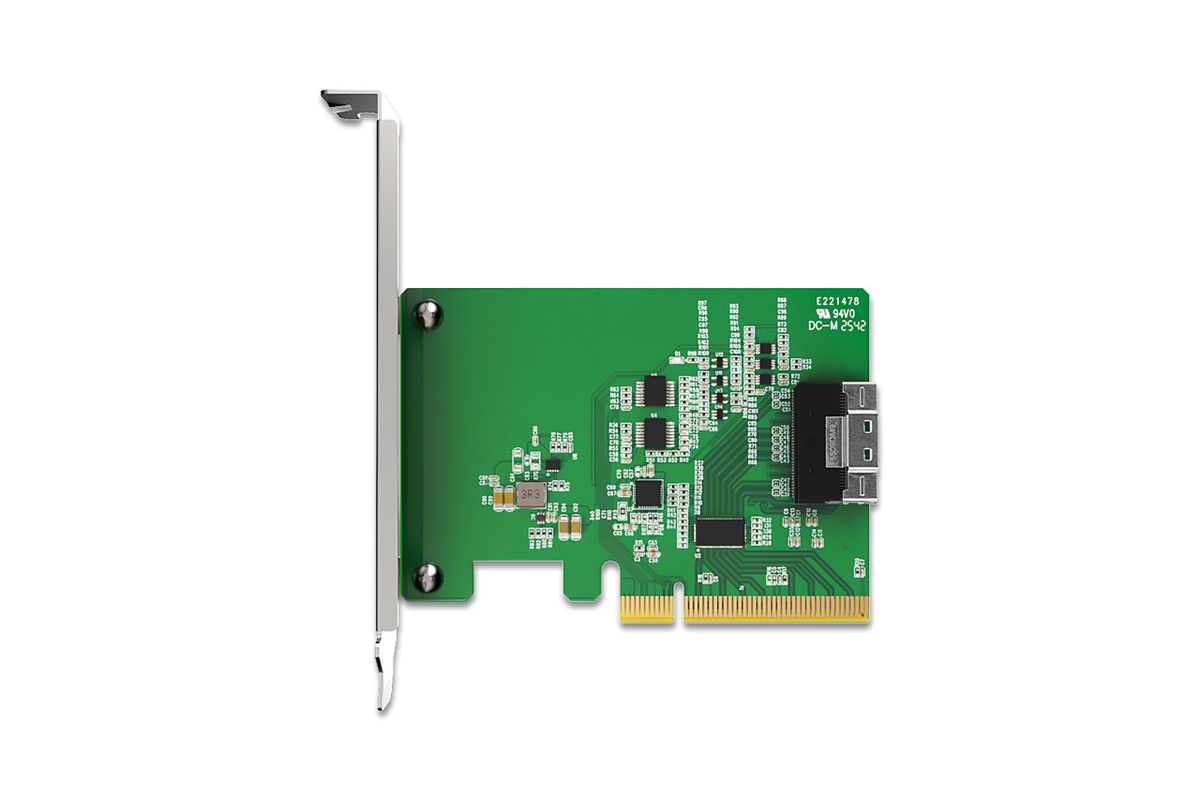

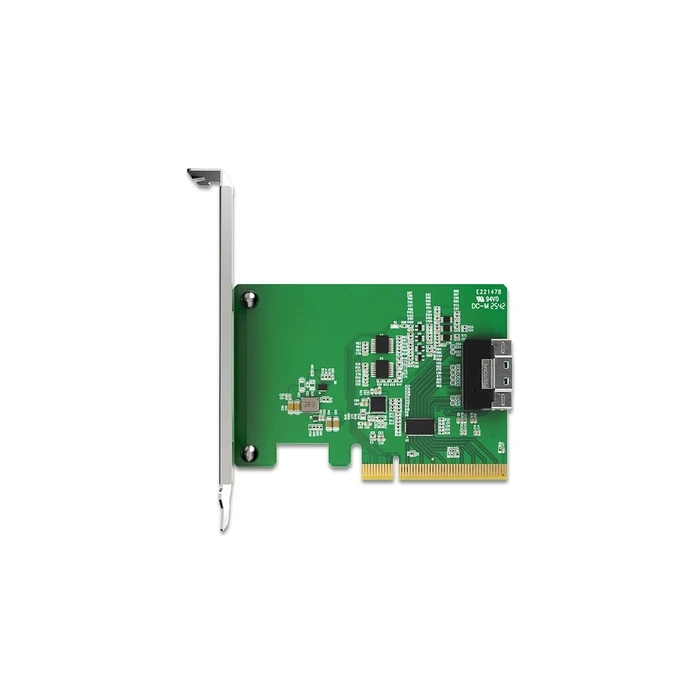

ICY DOCK SlimSAS 8i to PCIe 4.0 x8 Adapter with Receiver (MB409A4)
Product Code: 1117796647
Available in 1 - 3 days
251,55 €
or
7,86€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
PCIe adapter card that converts a physical PCIe x8 host slot to a SlimSAS 8i (SFF-8654) connection for high-speed NVMe storage. Supports PCIe 4.0 x8 with an integrated PCIe Gen4 redriver and a 100 MHz PCIe clock buffer to improve signal integrity over longer traces/cables. Does not perform lane bifurcation itself — motherboard/host must support x8 -> x4/x4 bifurcation to expose two independent NVMe x4 links. Fits in physical PCIe x8 or x16 slots. Dimensions: 109.7 × 120.8 × 21.5 mm. Product code MB409A4, SKU 589313, EAN 4713227447003.
-
BrandICY DOCK
-
Model / MPNMB409A4
-
SKU589313
-
EAN / Barcode4713227447003
-
Product FamilyEXLink
-
Product TypeInternal PCIe expansion adapter
-
Host interfacePCIe x8 (physical)
-
PCIe generationPCIe 4.0 (compatible with PCIe 2.0/3.0/4.0/5.0 hosts)
-
Maximum bandwidthUp to PCIe 4.0 x8 (theoretical ~128 Gbps total)
-
Storage-side connectorSlimSAS 8i (SFF-8654)
-
Supported drive typeNVMe SSDs (via compatible enclosure/cables/racks)
-
PCIe redriverIntegrated PCIe Gen4 redriver
-
Clock buffer100 MHz PCIe clock buffer
-
BifurcationRequires motherboard/host bifurcation support for x4/x4 dual NVMe
-
Form factorCompact PCIe expansion card
-
Dimensions109.7 × 120.8 × 21.5 mm
-
Product weight44.8 g
-
Operating temperature0°C to 70°C
-
Storage temperature-35°C to 70°C
-
Operating humidity5%–65% RH
-
ComplianceCE, UKCA, RoHS, REACH
-
Compatible slotsPhysical PCIe x8 or x16 slots
-
Included functionProvides SlimSAS 8i connectivity to PCIe x8 host; includes receiver/redriver circuitry
-
Package contentsAdapter card (receiver/redriver on board) — cable/enclosure sold separately
Ratings
Description
PCIe adapter card that converts a physical PCIe x8 host slot to a SlimSAS 8i (SFF-8654) connection for high-speed NVMe storage. Supports PCIe 4.0 x8 with an integrated PCIe Gen4 redriver and a 100 MHz PCIe clock buffer to improve signal integrity over longer traces/cables. Does not perform lane bifurcation itself — motherboard/host must support x8 -> x4/x4 bifurcation to expose two independent NVMe x4 links. Fits in physical PCIe x8 or x16 slots. Dimensions: 109.7 × 120.8 × 21.5 mm. Product code MB409A4, SKU 589313, EAN 4713227447003.
Technical Specifications
-
BrandICY DOCK
-
Model / MPNMB409A4
-
SKU589313
-
EAN / Barcode4713227447003
-
Product FamilyEXLink
-
Product TypeInternal PCIe expansion adapter
-
Host interfacePCIe x8 (physical)
-
PCIe generationPCIe 4.0 (compatible with PCIe 2.0/3.0/4.0/5.0 hosts)
-
Maximum bandwidthUp to PCIe 4.0 x8 (theoretical ~128 Gbps total)
-
Storage-side connectorSlimSAS 8i (SFF-8654)
-
Supported drive typeNVMe SSDs (via compatible enclosure/cables/racks)
-
PCIe redriverIntegrated PCIe Gen4 redriver
-
Clock buffer100 MHz PCIe clock buffer
-
BifurcationRequires motherboard/host bifurcation support for x4/x4 dual NVMe
-
Form factorCompact PCIe expansion card
-
Dimensions109.7 × 120.8 × 21.5 mm
-
Product weight44.8 g
-
Operating temperature0°C to 70°C
-
Storage temperature-35°C to 70°C
-
Operating humidity5%–65% RH
-
ComplianceCE, UKCA, RoHS, REACH
-
Compatible slotsPhysical PCIe x8 or x16 slots
-
Included functionProvides SlimSAS 8i connectivity to PCIe x8 host; includes receiver/redriver circuitry
-
Package contentsAdapter card (receiver/redriver on board) — cable/enclosure sold separately
