ICY DOCK EXLink MB309A5 is an M.2 NVMe PCIe Gen5 x4 to 1× MCIO 4i (SFF-TA-1016) adapter. It accepts an M.2 M-key NVMe SSD (supports PCIe 2.0/3.0/4.0/5.0) and provides an MCIO 4i endpoint for connection to MCIO-based hosts, cables, enclosures or mobile racks. The board includes an integrated PCIe...
More
ICY DOCK EXLink MB309A5 M.2 NVMe PCIe 5.0 x4 to 1× MCIO 4i Adapter (with Redriver)
Product Code: 1117796640
Available in 1 - 3 days
167,96 €
or
5,25€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

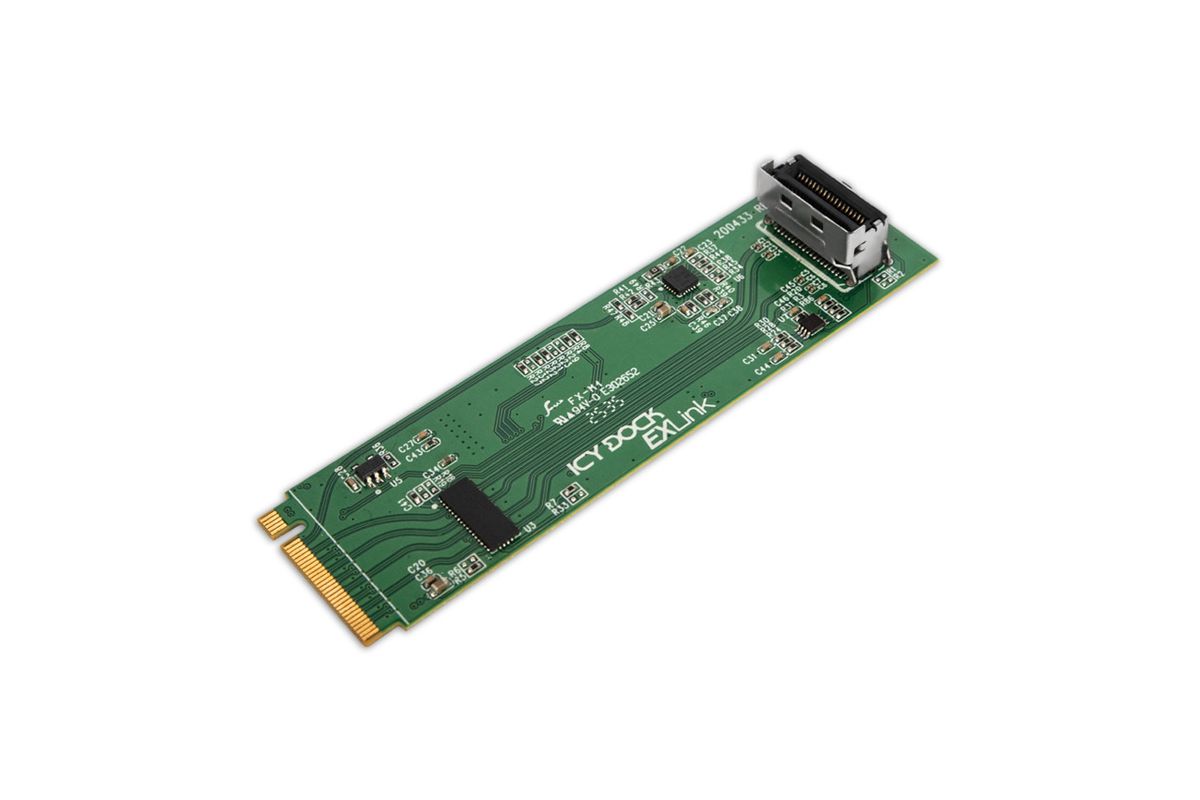

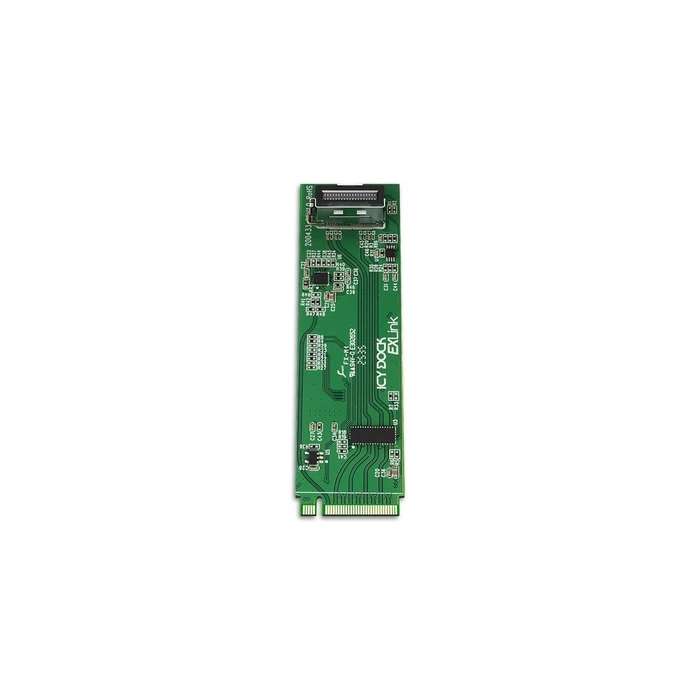

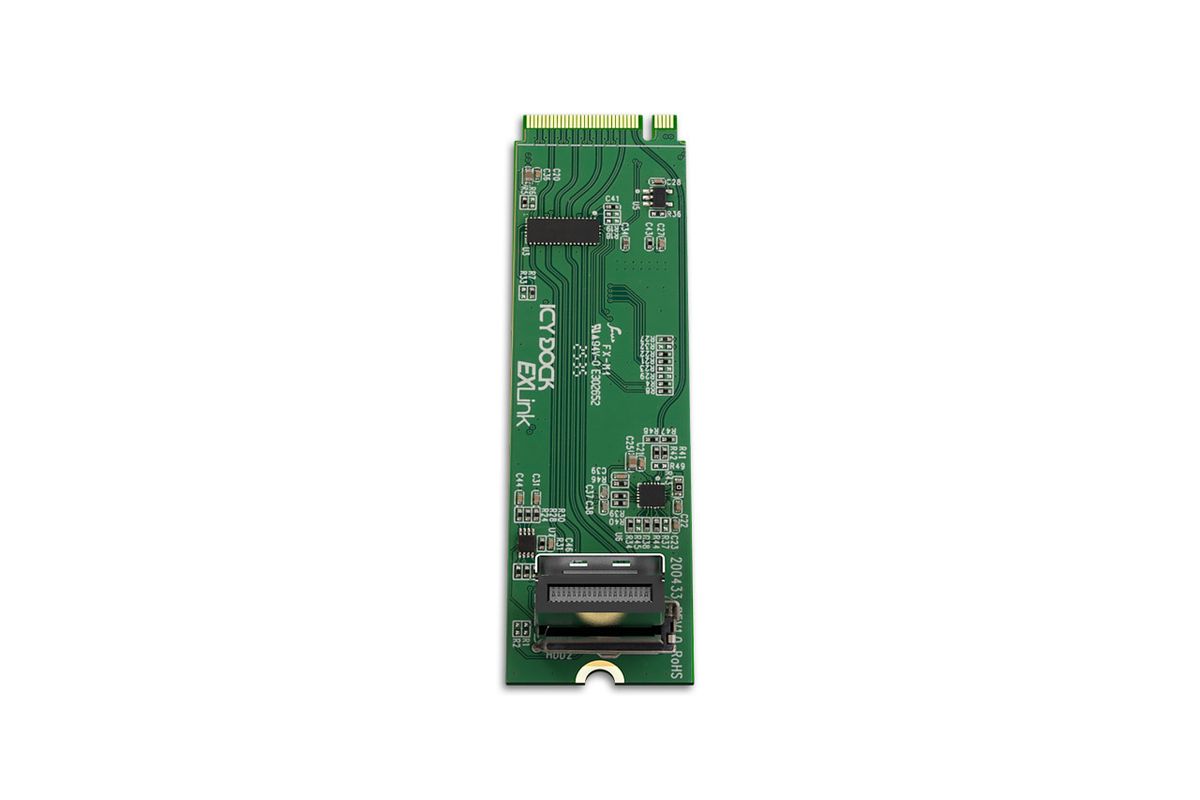

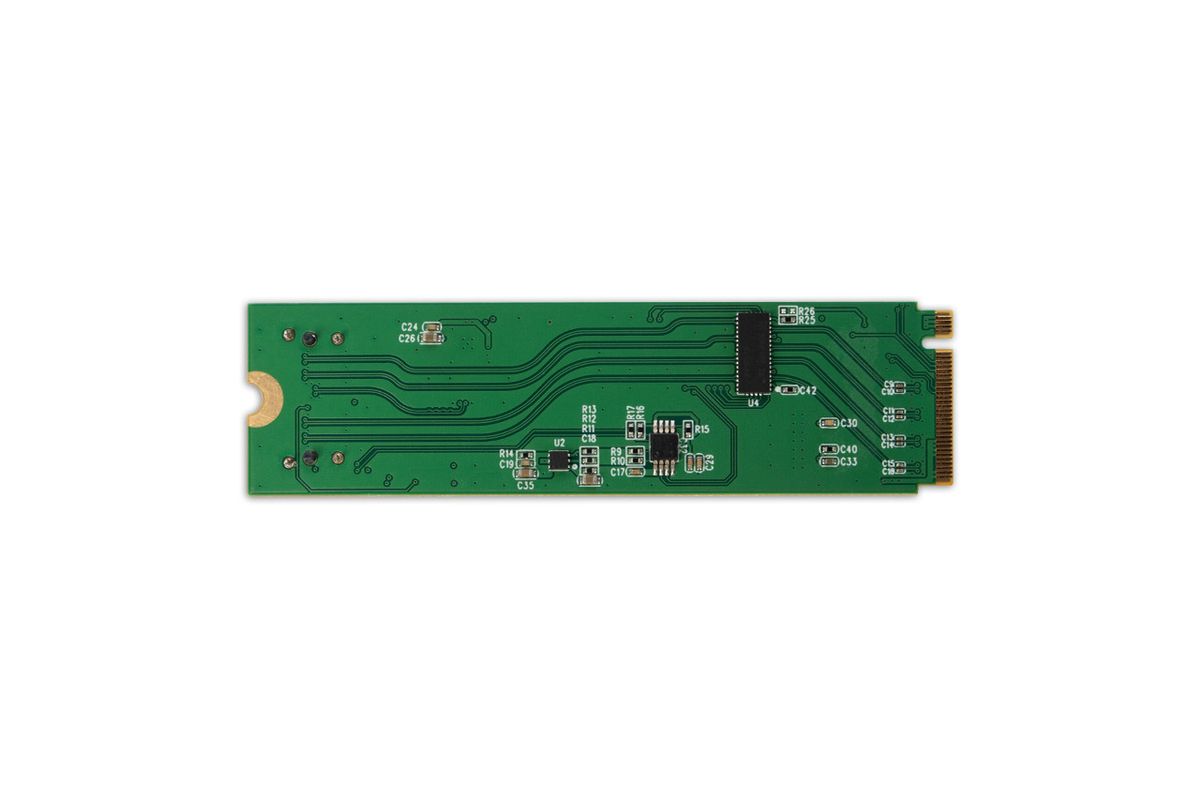

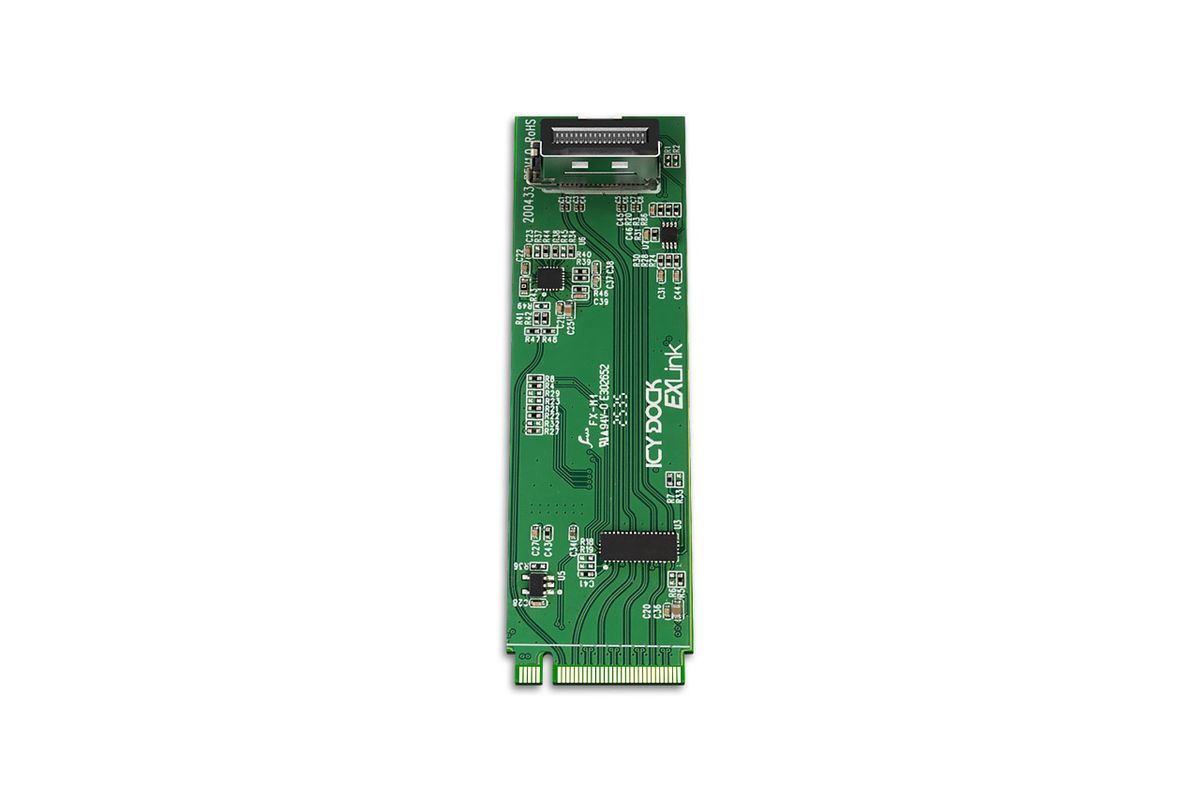

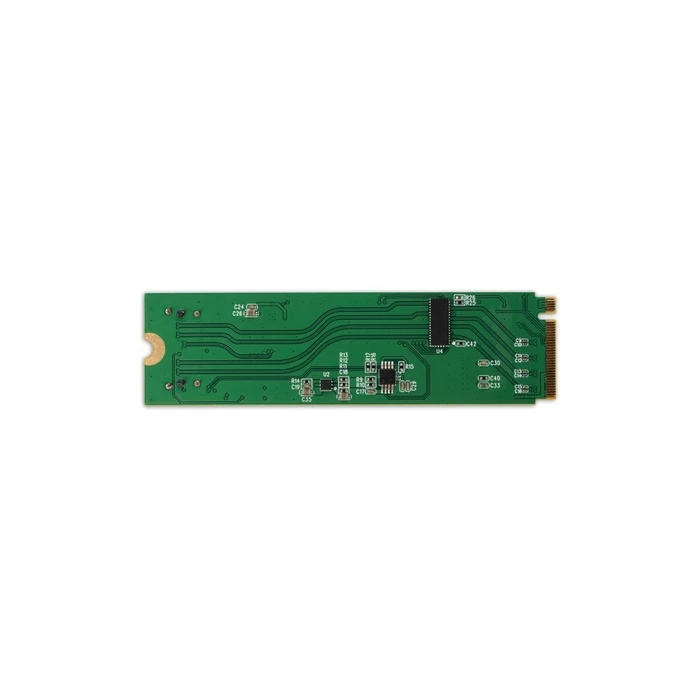

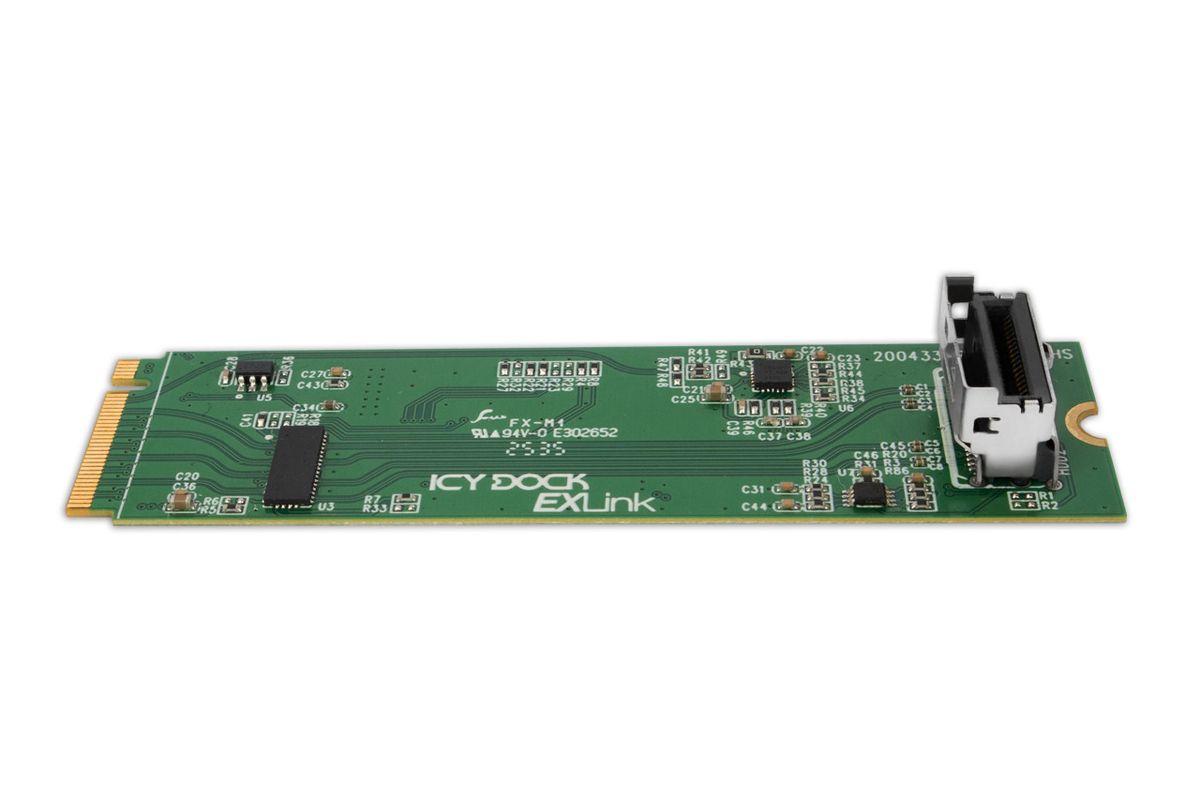

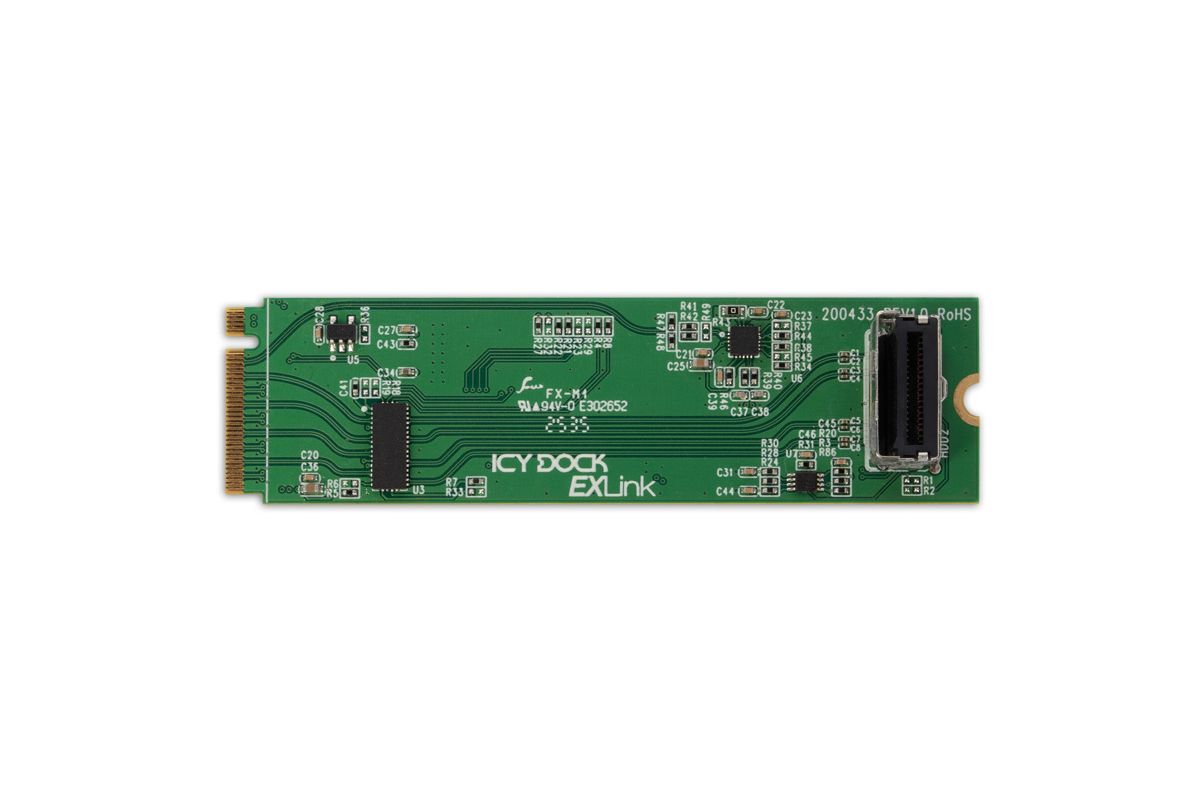

ICY DOCK EXLink MB309A5 is an M.2 NVMe PCIe Gen5 x4 to 1× MCIO 4i (SFF-TA-1016) adapter. It accepts an M.2 M-key NVMe SSD (supports PCIe 2.0/3.0/4.0/5.0) and provides an MCIO 4i endpoint for connection to MCIO-based hosts, cables, enclosures or mobile racks. The board includes an integrated PCIe Gen5 redriver to preserve signal integrity over longer MCIO cable runs, a 100 MHz clock buffer, SMBus repeater, and power-signal gating. No external power required. Max theoretical throughput: PCIe 5.0 x4 (up to 128 Gbps). Product dimensions: 80 × 22 × 10 mm. Net product weight: 5.8 g. Operating temp: 0°C to 70°C. Storage temp: −35°C to 70°C. Certifications: CE, UKCA, RoHS, REACH. Package contents: MB309A5 adapter and user manual. Warranty: 2-year limited.
-
BrandICY DOCK
-
Model / MPNMB309A5
-
SKU589306
-
EAN / Barcode4713227447072
-
Product FamilyEXLink
-
Product TypeM.2 NVMe PCIe 5.0 x4 to 1× MCIO 4i adapter
-
Adapter TypeM.2 M-key NVMe to MCIO 4i (SFF-TA-1016)
-
Host InterfaceM.2 M-key (PCIe NVMe)
-
Endpoint Interface1× MCIO 4i (SFF-TA-1016)
-
Supported PCIe GenerationsPCIe 2.0, 3.0, 4.0, 5.0
-
PCIe Configurationx4
-
Maximum Transfer RatePCIe 5.0 x4 (theoretical up to 128 Gbps)
-
Integrated ComponentsPCIe Gen5 redriver, 100 MHz clock buffer, SMBus repeater
-
Supported SSD Form FactorsM.2 NVMe (retailer lists M.2 2280 compatibility)
-
External Power RequiredNo
-
Product Dimensions (W×H×D)80 × 22 × 10 mm
-
Net Product Weight5.8 g
-
Package Gross Weight36.2 g
-
Operating Temperature0°C to 70°C
-
Storage Temperature−35°C to 70°C
-
CertificationsCE, UKCA, RoHS, REACH
-
Warranty2-year limited warranty
-
Package Contents1× MB309A5 adapter, 1× user manual
-
Intended ApplicationsServers, workstations, industrial PCs, MCIO-based mobile racks/enclosures, edge-AI and other bandwidth-intensive systems
Ratings
Description
ICY DOCK EXLink MB309A5 is an M.2 NVMe PCIe Gen5 x4 to 1× MCIO 4i (SFF-TA-1016) adapter. It accepts an M.2 M-key NVMe SSD (supports PCIe 2.0/3.0/4.0/5.0) and provides an MCIO 4i endpoint for connection to MCIO-based hosts, cables, enclosures or mobile racks. The board includes an integrated PCIe Gen5 redriver to preserve signal integrity over longer MCIO cable runs, a 100 MHz clock buffer, SMBus repeater, and power-signal gating. No external power required. Max theoretical throughput: PCIe 5.0 x4 (up to 128 Gbps). Product dimensions: 80 × 22 × 10 mm. Net product weight: 5.8 g. Operating temp: 0°C to 70°C. Storage temp: −35°C to 70°C. Certifications: CE, UKCA, RoHS, REACH. Package contents: MB309A5 adapter and user manual. Warranty: 2-year limited.
Technical Specifications
-
BrandICY DOCK
-
Model / MPNMB309A5
-
SKU589306
-
EAN / Barcode4713227447072
-
Product FamilyEXLink
-
Product TypeM.2 NVMe PCIe 5.0 x4 to 1× MCIO 4i adapter
-
Adapter TypeM.2 M-key NVMe to MCIO 4i (SFF-TA-1016)
-
Host InterfaceM.2 M-key (PCIe NVMe)
-
Endpoint Interface1× MCIO 4i (SFF-TA-1016)
-
Supported PCIe GenerationsPCIe 2.0, 3.0, 4.0, 5.0
-
PCIe Configurationx4
-
Maximum Transfer RatePCIe 5.0 x4 (theoretical up to 128 Gbps)
-
Integrated ComponentsPCIe Gen5 redriver, 100 MHz clock buffer, SMBus repeater
-
Supported SSD Form FactorsM.2 NVMe (retailer lists M.2 2280 compatibility)
-
External Power RequiredNo
-
Product Dimensions (W×H×D)80 × 22 × 10 mm
-
Net Product Weight5.8 g
-
Package Gross Weight36.2 g
-
Operating Temperature0°C to 70°C
-
Storage Temperature−35°C to 70°C
-
CertificationsCE, UKCA, RoHS, REACH
-
Warranty2-year limited warranty
-
Package Contents1× MB309A5 adapter, 1× user manual
-
Intended ApplicationsServers, workstations, industrial PCs, MCIO-based mobile racks/enclosures, edge-AI and other bandwidth-intensive systems
