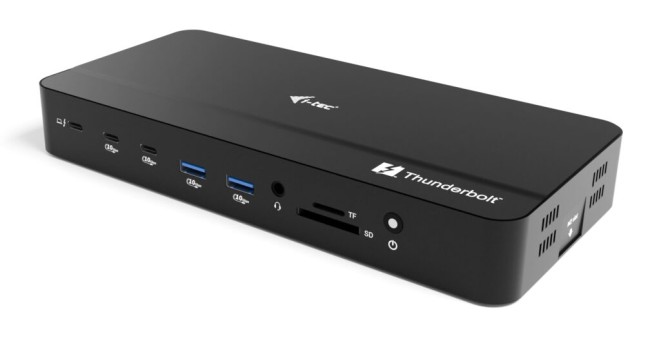

i-tec Thunderbolt 5 Triple Display Docking Station M.2 slot 6x USB 2.5 GLAN Power Delivery 140W

Description

Technical Specifications

• Brand
  i-tec
• Model
  Thunderbolt 5 Triple Display Docking Station M.2 slot 6x USB 2.5 GLAN Power Delivery 140W
• SKU
  NB-DOK-ITE-175
• MPN
  TB5TRIPLEDOCKM2PD
• EAN
  8595611707940
• Color
  Black
• Host connection
  1× Thunderbolt 5 (host)
• Downstream Thunderbolt ports
  2× Thunderbolt 5 (downstream for data/video expansion)
• Maximum data transfer speed
  Up to 120 Gbps (Thunderbolt 5 aggregate)
• Display support
  Up to three 8K displays (via DP2.1 + TB5 downstream ports)
• Video outputs
  1× DisplayPort 2.1 + 2× TB5 downstream video-capable ports
• Power Delivery
  Up to 140W PD (laptop charging)
• Ethernet
  2.5GbE RJ-45 LAN
• Storage expansion
  Integrated M.2 NVMe slot (manufacturer: NVMe performance claim up to 7000 MB/s)
• Card readers
  SD and microSD card readers
• Audio
  3.5 mm combo headset/microphone jack

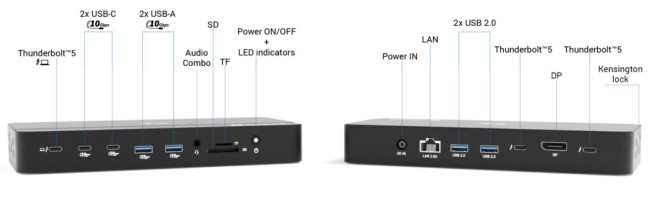

• USB connectivity
  Six USB ports total (manufacturer/retail breakdown: 2× USB-C 3.2 Gen 2, 2× USB-A 3.2 Gen 2, 2× USB-A 2.0 - retailer listings)
• Total ports
  13 ports (manufacturer summary for USB, video, LAN, audio, card readers)
• Included power adapter
  180W power adapter (listed by retailers)
• Included cable
  Thunderbolt 5 cable included (listed by retailers)
• Dimensions
  215 × 100 × 30 mm
• Product weight
  360 g
• Package weight (est.)
  ~1500 g
• Compatibility
  TB5, TB4, TB3, USB4, USB-C hosts
• OS support
  Windows, macOS, Linux, Android, iPadOS (retailer/manufacturer notes; some retailers list ChromeOS/iOS)
• Use case
  Single-cable docking for demanding multitasking, creative workflows and professional environments
• Material / Finish
  Plastic enclosure, black finish
• Manufacturer support documentation
  Datasheet and product page available from i-tec
