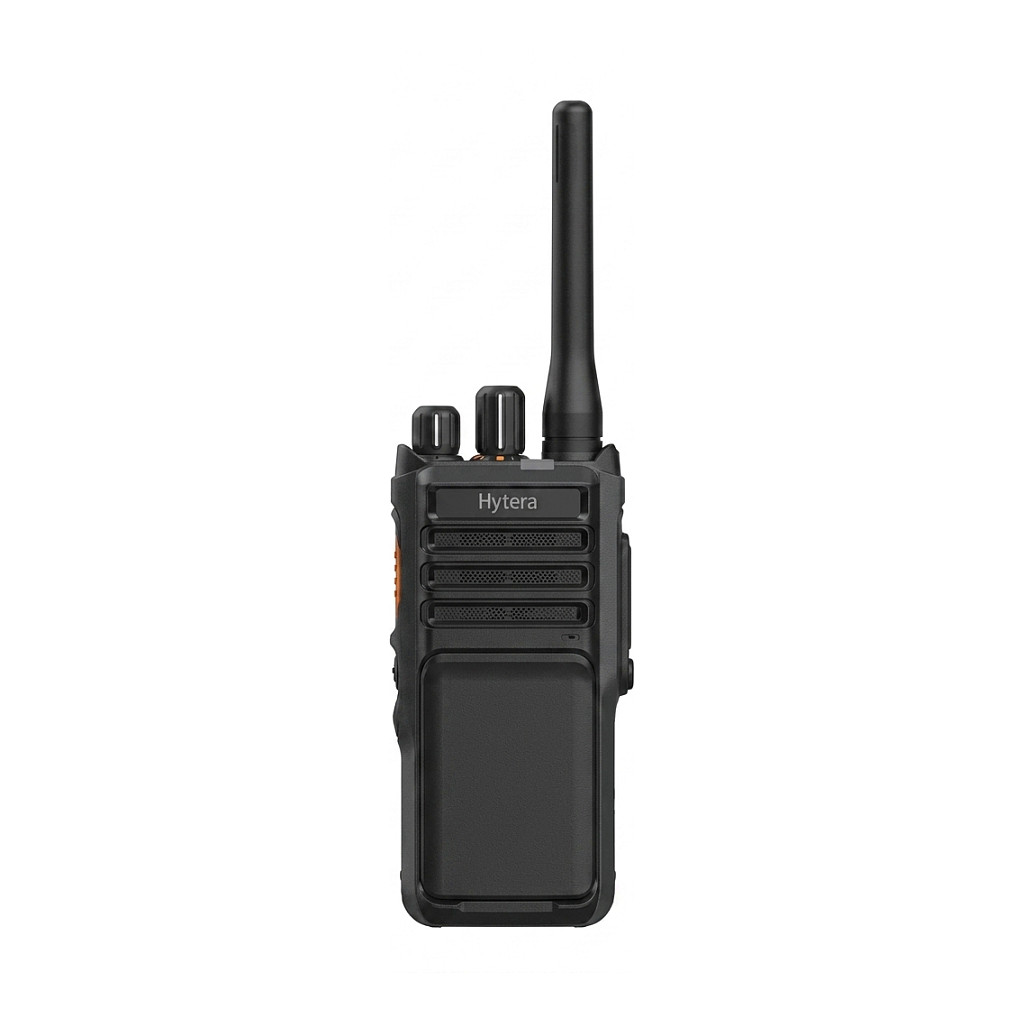

Hytera HP505 U1 Standard Package UHF 400–470 MHz with 1500mAh Li‑ion Battery, Desktop Charger with Power Adapter, Standard Antenna 400–470

Description

Technical Specifications

• Product Name
  HYTERA HP505 U1 Standard-Paket (UHF 400–470 MHz)
• Brand
  HYTERA
• Model (MPN)
  HP505 U1
• EAN
  6927404306559
• Radio Type
  Portable Two-Way Radio (DMR & Analog FM)
• Frequency Range
  UHF 400–470 MHz
• Channel Capacity
  256 channels
• Zone Capacity
  16 zones (16 channels per zone)
• Channel Spacing
  12.5 kHz / 20 kHz / 25 kHz
• RF Power Output
  1 W / 4 W
• Battery Capacity
  1500 mAh Li-ion
• Operating Voltage
  7.4 V
• Battery Life
  ~15 hours (5/5/90 duty cycle, GNSS off)
• Dimensions
  119 × 55 × 30.5 mm
• Weight
  265 g (with antenna and battery)
• Material
  Polycarbonate housing
• IP Rating
  IP67
• Military Standard
  MIL-STD-810G
• Antenna Impedance
  50 Ω
• Audio Output Power
  0.5 W (rated)
• Audio Distortion
  ≤ 3%
• Sensitivity
  0.18 µV (-122 dBm)
• Frequency Stability
  ±0.5 ppm
• Display / Keypad
  No display, No keypad
• Controls
  Volume knob, Channel knob, 2 programmable buttons
• USB Port
  USB Type-C (charging, programming, firmware update)
• Bluetooth
  Optional (hardware, BT 5.x)
• GPS/GNSS
  Optional (GNSS support for positioning)
• Encryption
  Basic E2E encryption, Authentication supported
• Emergency Features
  Emergency alarm, Lone Worker, Remote Monitor (optional)
• Analog Signaling
  CTCSS/CDCSS, 2-Tone, 5-Tone, HDC1200
• Trunking
  Pseudo Trunking, XPT Trunking (optional license)
• Remote Management
  Remote disable/enable, Radio check (optional)
• Firmware/Programming
  Via USB Type-C using Hytera software / Hytool Radio Manager
• Package Contents
  Handset, 1500 mAh battery, Desktop charger with power adapter, UHF antenna 400–470, Belt clip, User manual
