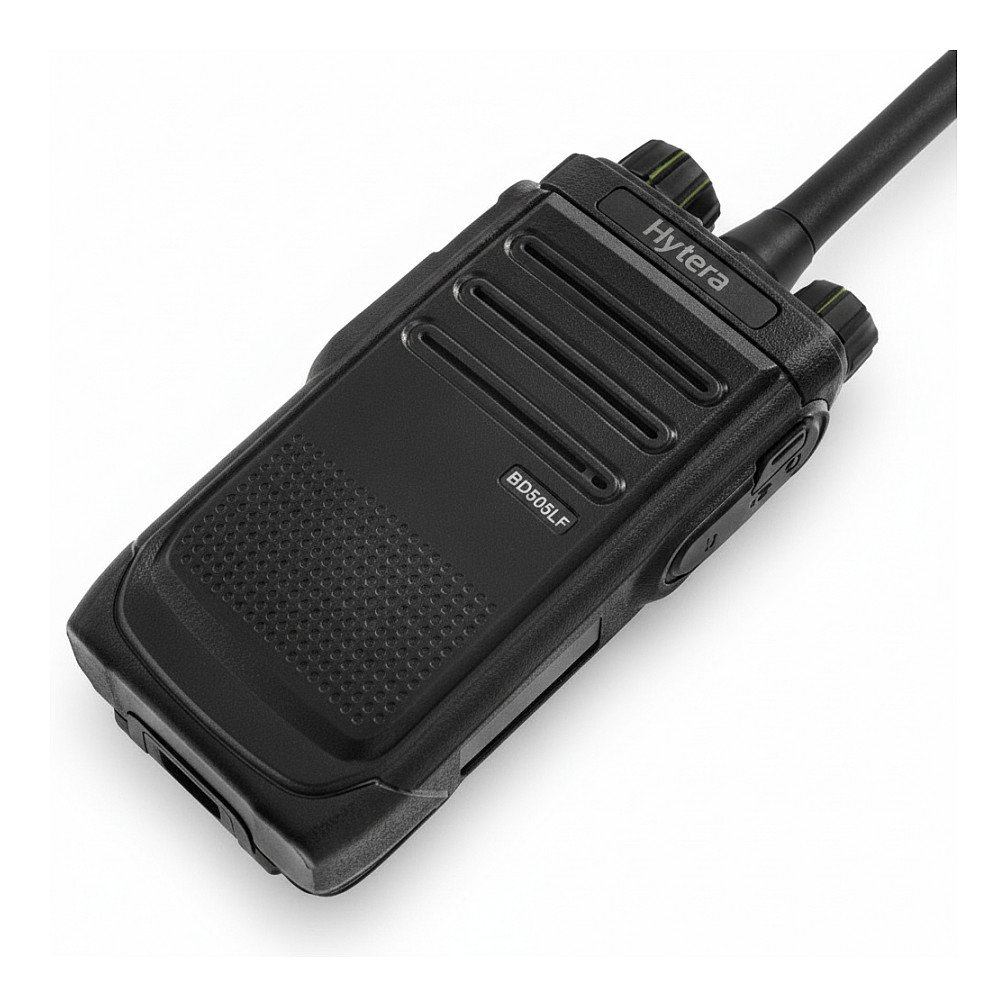

Hytera BD505LF Licence-free DMR Handheld Radio PMR446 446 MHz with 1500mAh Li‑ion Battery

Description

Technical Specifications

• Product Name
  HYTERA BD505LF Lizenzfreies DMR-Handfunkgerät PMR446 446MHz
• Brand
  HYTERA
• Model / MPN
  BD505LF
• EAN / Barcode
  6927404300120
• SKU / Article Number
  21148881
• Radio Standard
  DMR Tier I (license-free) and analogue PMR446
• Frequency Range
  UHF 446 MHz (PMR446)
• Transmit Power
  0.5 W
• Channel Capacity
  16 (Hytera EU typical) — some listings show 48 (region-dependent)
• Zone Capacity
  1 (Hytera EU) — some listings show up to 3 (region-dependent)
• Channel Spacing
  12.5 kHz / 25 kHz (varies by mode/region)
• Battery Type
  Lithium‑ion removable battery
• Battery Capacity
  1500 mAh
• Battery Life
  >12 hours (analogue) / >16 hours (digital) at 5/5/90 duty cycle
• Operating Voltage
  7.4 V
• Frequency Stability
  ±0.5 ppm
• Antenna Impedance
  50 Ω
• Dimensions
  ~108 × 54.5 × 28 mm (some listings 108 × 54 × 29 mm)
• Weight
  ~240 g (some listings ~220 g)
• Protection Rating
  IP54 (dust and water resistant)
• Ruggedness
  Tested to MIL‑STD‑810 C/D/E/F/G (regional pages may list MIL‑STD‑810G)
• Operating Temperature
  -30 °C to +60 °C
• Storage Temperature
  -40 °C to +85 °C
• Audio Output Power
  0.5 W
• Audio Distortion
  ≤3%
• Audio Response
  +1 to -3 dB
• Hum & Noise Rejection
  40 dB @ 12.5 kHz (≈45 dB @ 25 kHz)
• Sensitivity (Analogue)
  Typical <0.22 µV; spec <0.28 µV (-118 dBm)
• Sensitivity (Digital)
  -116 dBm (BER 5%), -110 dBm (BER 1%)
• Adjacent Channel Selectivity
  60 dB @ 12.5 kHz
• Intermodulation
  65 dB @ 12.5 kHz
• Spurious Response Rejection
  70 dB @ 12.5 kHz
• Conducted Spurious Emission
  < -57 dBm (<1 GHz) / < -47 dBm (>1 GHz)
• Display
  No (no external display)
• Keyboard
  No full keypad
• Bluetooth
  No
• GPS
  No
• Wi‑Fi
  No
• Programmable Keys
  1 programmable button
• Antenna
  Fixed / non-removable
• CTCSS/DTCS (Pilot Tone)
  Yes
• Accessories (typical)
  1500 mAh Li‑ion battery, belt clip, hand strap, single-unit charger / power adapter (varies by package)
• Package Contents (typical)
  BD505LF radio, battery, belt clip, hand strap, single charger/power adapter (dependent on retailer)
• Intended Use
  Business/two-way short range communication, licence-free PMR446 environments
