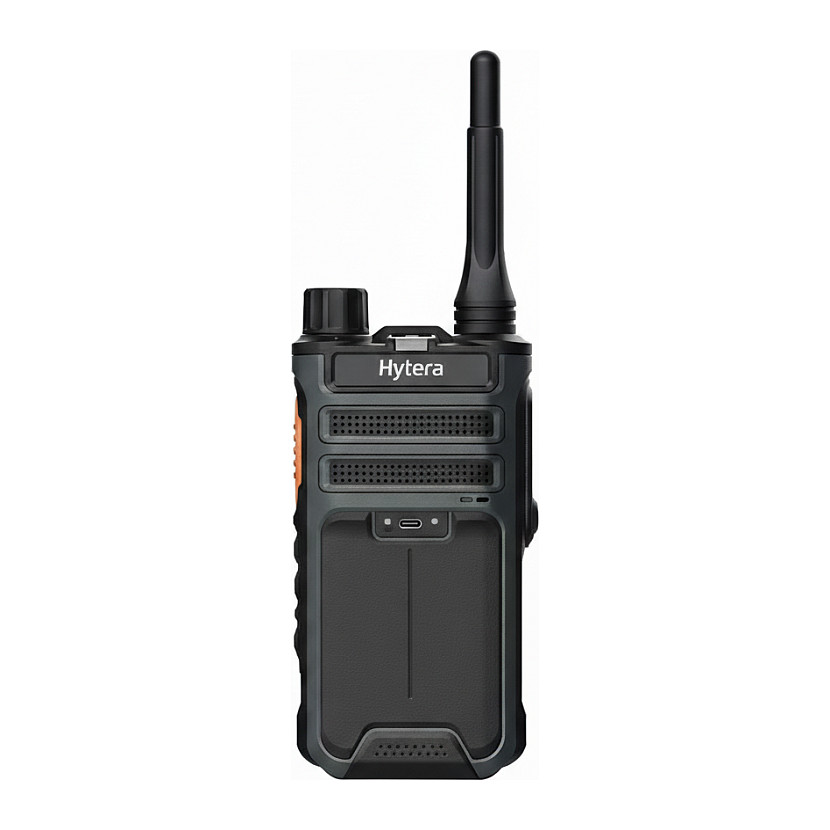

Hytera AP515 V1 136–174 MHz Analog Portable Two‑Way Radio (VHF) — 4000mAh Li‑polymer, AN0160H19 Stubby Antenna, PS2030 EU Adapter, IP54, MIL‑STD‑810G

Description

Technical Specifications

• Brand
  HYTERA
• Model / MPN
  AP515 V1
• SKU
  21148889
• EAN / Barcode
  6927404305873
• Product Type
  Analog portable two‑way radio (business)
• Frequency Range
  136–174 MHz (VHF)
• Channel Capacity
  32 channels
• Zone Capacity
  2 zones
• Channels per Zone
  16
• Channel Spacing
  12.5 kHz / 20 kHz / 25 kHz
• RF Output Power
  VHF: 4–5 W (high) / 1 W (low)
• Receiver Sensitivity
  0.18 μV (12 dB SINAD)
• Antenna Impedance
  50 Ω
• Frequency Stability
  ±0.5 ppm
• Battery Capacity
  4000 mAh (Li‑polymer, BP4010)
• Battery Voltage
  3.7 V
• Battery Life
  Approx. 17–18 hours (5/5/90 duty cycle, high TX power)
• Dimensions (radio)
  105 × 55 × 29.5 mm
• Weight (radio)
  200 g ±5 g (with antenna and battery)
• Ingress Protection
  IP54
• Ruggedness
  MIL‑STD‑810G
• Operating Temperature
  -20 °C to +60 °C
• Storage Temperature
  -40 °C to +85 °C
• ESD Protection
  IEC 61000‑4‑2 Level 4 (±8 kV contact, ±15 kV air)
• Audio Output
  Louder audio, up to ~90 dB @30 cm (300 Hz–3 kHz reported)
• Display / Keypad
  No display, no keypad (analog‑only config in some listings)
• Included Items (retailer set)
  Battery BP4010 4000 mAh, AN0160H19 antenna, USB‑C charging cable, PS2030 EU adapter, nylon hand strap (RO04), belt clip (BC48)
• Antenna Model
  AN0160H19 (stubby, ~146–174 MHz listing on Hytera accessory page)
• Charging / Connector
  USB‑C charging (cable included in some retail sets)
• Bluetooth
  Optional BT 5.0 (BLE + EDR) per Hytera specs (feature dependent)
• Housing Material
  Flame‑retardant polycarbonate (reseller description)
• Certifications / Compliance
  RoHS and regional safety standards (per manufacturer documentation)
• Additional Features
  Noise cancellation, redesigned RF/antenna for improved sensitivity and range
