Huawei SUN2000-4KTL-M1 three-phase PV inverter. Rated AC power 4000 W, max PV input power 6000 Wp. Supports maximum system voltage up to 1100 V and nominal DC input 600 V with MPPT operating range 140 V to 980 V and start-up voltage 200 V. Features 2 MPP trackers, maximum input current per MPPT 11...
More

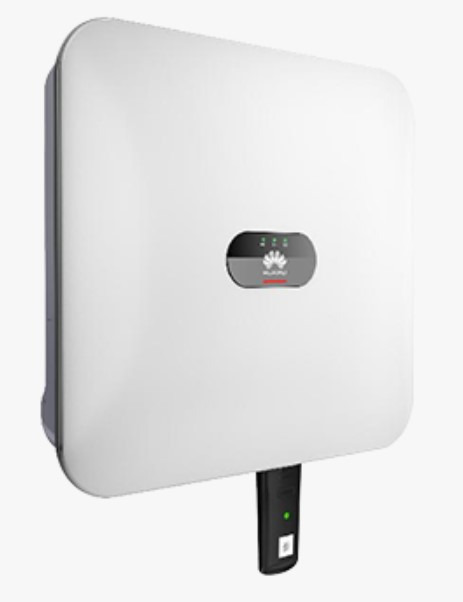

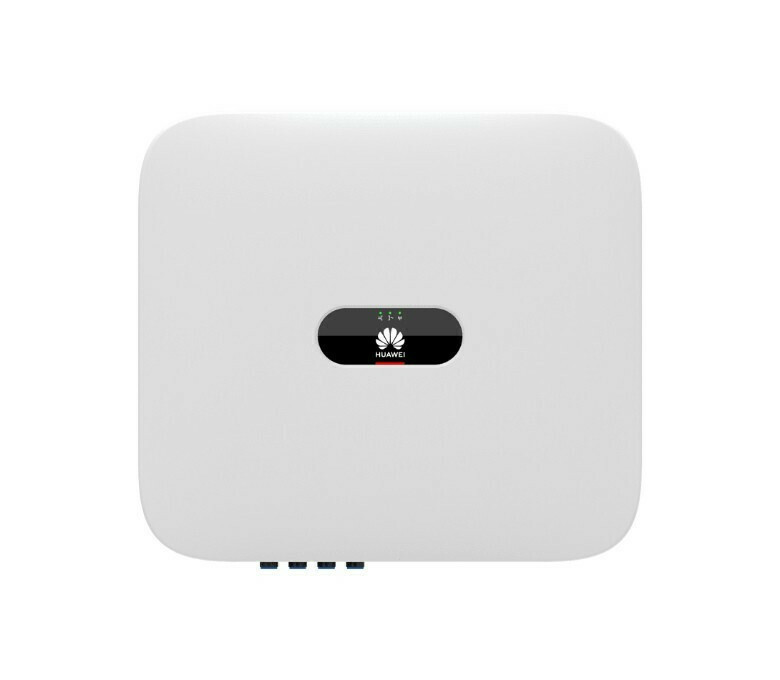

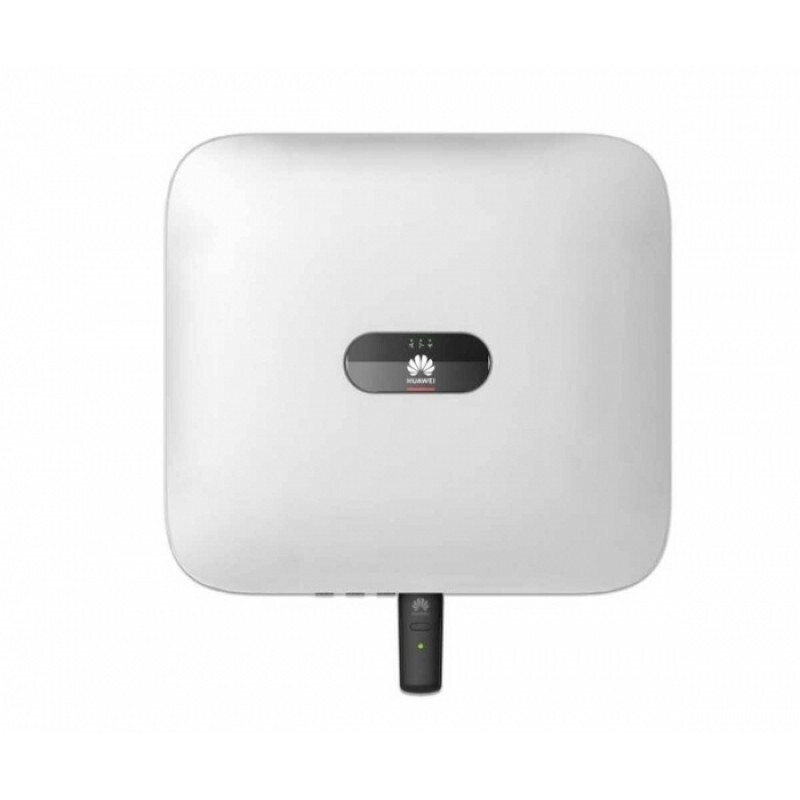

Huawei SUN2000-4KTL-M1 Solar Inverter 4000W 600V Input (Three-phase)
Product Code: 1173749644
Upon Order
1.550,27 €
or
48,41€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 4651 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Huawei SUN2000-4KTL-M1 three-phase PV inverter. Rated AC power 4000 W, max PV input power 6000 Wp. Supports maximum system voltage up to 1100 V and nominal DC input 600 V with MPPT operating range 140 V to 980 V and start-up voltage 200 V. Features 2 MPP trackers, maximum input current per MPPT 11 A and max string short-circuit current 15 A. AC connection: three-phase 220/380 V or 230/400 V, 3W / N + PE, 50/60 Hz. Max apparent AC power 4400 VA, max AC output current 6.8 A, THD ≤ 3%. Compatible with HUAWEI Smart String ESS (5kWh–30kWh) battery solutions: battery voltage range 600 V – 980 V, max battery charge current 16 A, max charge power up to 10,000 W and max discharge power up to 4,400 W (as specified). High operational efficiency (specified up to 99.5%). Complies with multiple safety and grid codes (EN/IEC 62109-1/-2, IEC 62116 and various national grid standards such as G98, G99, VDE-AR-N-4105, CEI 0-21).
-
BrandHuawei
-
ModelSUN2000-4KTL-M1
-
Product TypeThree-phase grid-tied solar inverter
-
Rated AC Power (Nominal)4000 W
-
Max AC Apparent Power4400 VA
-
Max PV DC Input Power6000 Wp
-
Max System DC Voltage1100 V
-
MPPT Voltage Operating Range140 V - 980 V
-
Start-up DC Voltage200 V
-
Nominal DC Input Voltage600 V
-
Number of MPP Trackers2
-
Max Input Current per MPPT11 A
-
Max Short-circuit Current per String15 A
-
Battery CompatibilityHUAWEI Smart String ESS 5kWh–30kWh (DC coupling)
-
Battery DC Voltage Range600 V - 980 V (for ESS)
-
Max Battery Charge Current16 A
-
Max Battery Charge Power10,000 W
-
Max Battery Discharge Power4,400 W
-
AC Nominal Voltages Supported220 Vac/380 Vac, 230 Vac/400 Vac (3W / N + PE)
-
AC Frequency50 Hz / 60 Hz
-
Max AC Output Current6.8 A
-
Total Harmonic Distortion (THD)≤ 3%
-
Efficiency / YieldSpecified up to 99.5%
-
Safety and StandardsEN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
-
Grid ComplianceG98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, and others
-
Backup SupportSupports Backup Box-B1 (specified backup outputs)
-
Communications / ExtrasSupports FusionHome-NetEco 10000s integration; WLAN-FE dongle support
-
Physical DimensionsNot specified by data
-
Product Weight (approx.)16000 g
Ratings
Description
Huawei SUN2000-4KTL-M1 three-phase PV inverter. Rated AC power 4000 W, max PV input power 6000 Wp. Supports maximum system voltage up to 1100 V and nominal DC input 600 V with MPPT operating range 140 V to 980 V and start-up voltage 200 V. Features 2 MPP trackers, maximum input current per MPPT 11 A and max string short-circuit current 15 A. AC connection: three-phase 220/380 V or 230/400 V, 3W / N + PE, 50/60 Hz. Max apparent AC power 4400 VA, max AC output current 6.8 A, THD ≤ 3%. Compatible with HUAWEI Smart String ESS (5kWh–30kWh) battery solutions: battery voltage range 600 V – 980 V, max battery charge current 16 A, max charge power up to 10,000 W and max discharge power up to 4,400 W (as specified). High operational efficiency (specified up to 99.5%). Complies with multiple safety and grid codes (EN/IEC 62109-1/-2, IEC 62116 and various national grid standards such as G98, G99, VDE-AR-N-4105, CEI 0-21).
Technical Specifications
-
BrandHuawei
-
ModelSUN2000-4KTL-M1
-
Product TypeThree-phase grid-tied solar inverter
-
Rated AC Power (Nominal)4000 W
-
Max AC Apparent Power4400 VA
-
Max PV DC Input Power6000 Wp
-
Max System DC Voltage1100 V
-
MPPT Voltage Operating Range140 V - 980 V
-
Start-up DC Voltage200 V
-
Nominal DC Input Voltage600 V
-
Number of MPP Trackers2
-
Max Input Current per MPPT11 A
-
Max Short-circuit Current per String15 A
-
Battery CompatibilityHUAWEI Smart String ESS 5kWh–30kWh (DC coupling)
-
Battery DC Voltage Range600 V - 980 V (for ESS)
-
Max Battery Charge Current16 A
-
Max Battery Charge Power10,000 W
-
Max Battery Discharge Power4,400 W
-
AC Nominal Voltages Supported220 Vac/380 Vac, 230 Vac/400 Vac (3W / N + PE)
-
AC Frequency50 Hz / 60 Hz
-
Max AC Output Current6.8 A
-
Total Harmonic Distortion (THD)≤ 3%
-
Efficiency / YieldSpecified up to 99.5%
-
Safety and StandardsEN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
-
Grid ComplianceG98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, and others
-
Backup SupportSupports Backup Box-B1 (specified backup outputs)
-
Communications / ExtrasSupports FusionHome-NetEco 10000s integration; WLAN-FE dongle support
-
Physical DimensionsNot specified by data
-
Product Weight (approx.)16000 g
