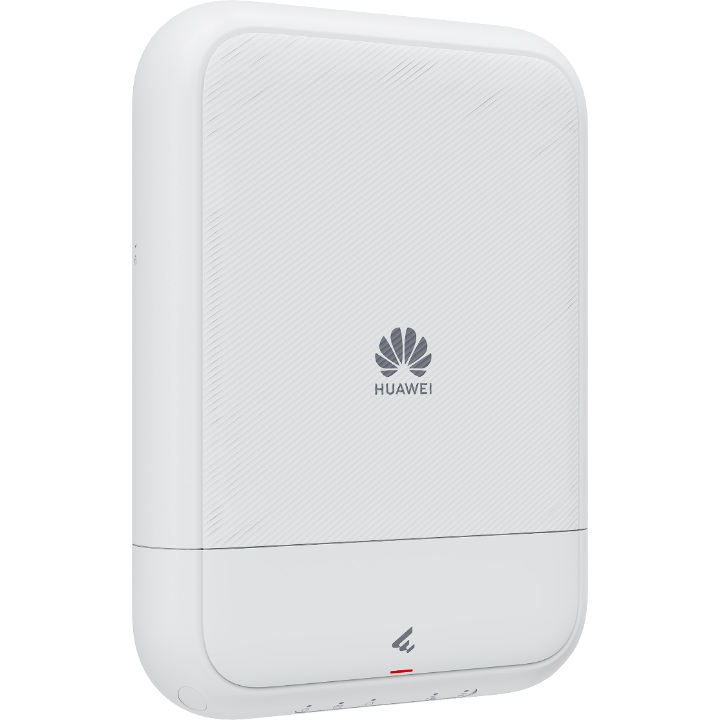

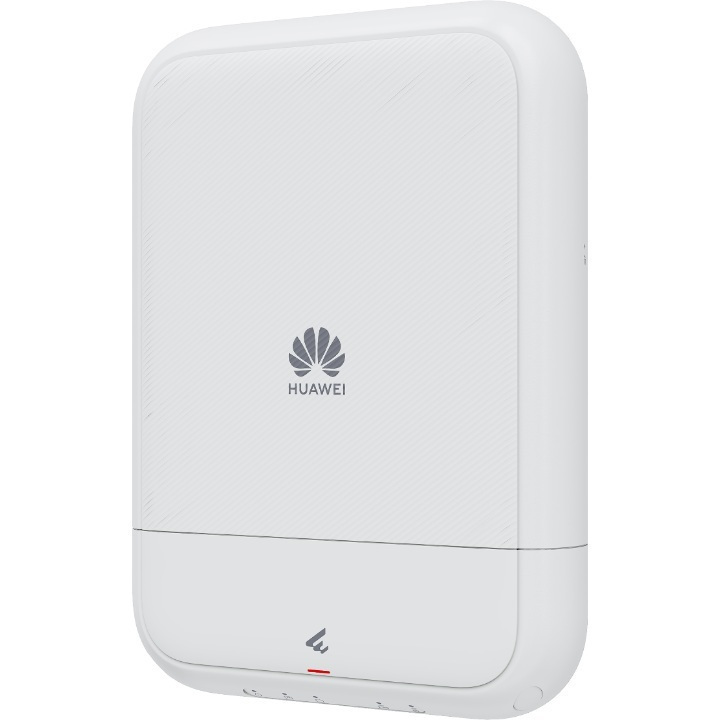

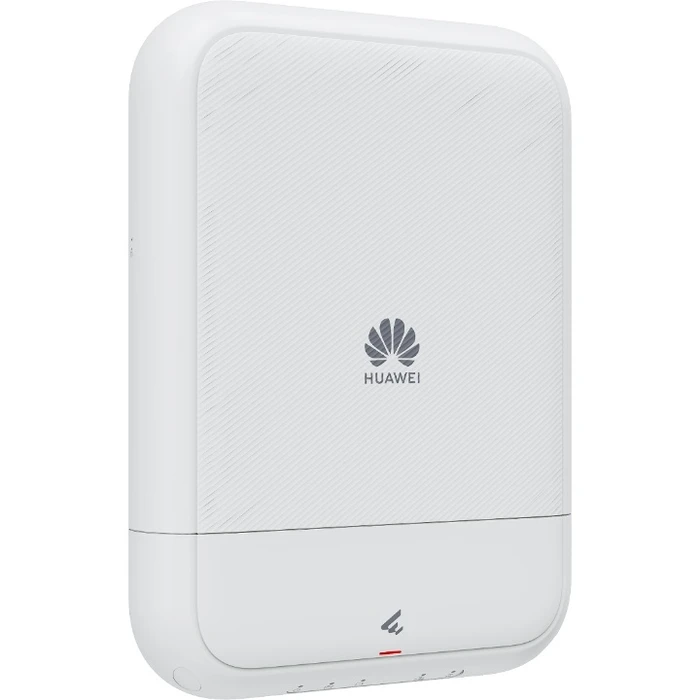

Huawei eKitEngine AP771 Outdoor Wi‑Fi 7 Dual‑Band Access Point (2.4 & 5 GHz) MPN: 50088525

Description

Technical Specifications

• Brand
  Huawei
• Model
  eKitEngine AP771
• Wi‑Fi Standard
  IEEE 802.11be (Wi‑Fi 7), backward compatible with 802.11a/b/g/n/ac/ax
• Frequency Bands
  2.4 GHz (2×2) + 5 GHz (2×2)
• Maximum Throughput
  Up to 3.57 Gbps (0.69 Gbps on 2.4 GHz + 2.88 Gbps on 5 GHz)
• Antenna Type
  Built‑in omnidirectional hybrid dual‑polarization antennas
• Antenna Gain
  2.4 GHz: 4 dBi; 5 GHz: 7 dBi
• Coverage Radius
  Up to 130 meters (typical outdoor conditions)
• Radio Technologies
  MU‑MIMO, OFDMA, Multi‑RU, 4096‑QAM, MLO (Multi‑Link Operation), preamble puncturing
• Ports
  1 × 2.5G PoE+ RJ45 (100M/1000M/2500M auto‑sensing)
• PoE Standard
  Supports IEEE 802.3af/at (PoE+)
• Surge Protection
  6 kA on the Ethernet port
• Maximum Power Consumption
  18.8 W
• Ingress Protection
  IP65 (waterproof, dustproof); UV‑proof PC material
• Operating Temperature
  −30°C to +60°C
• Dimensions (H×W×D)
  270 × 196 × 51 mm
• Weight
  1.14 kg
• Maximum Concurrent Users
  ≤ 256

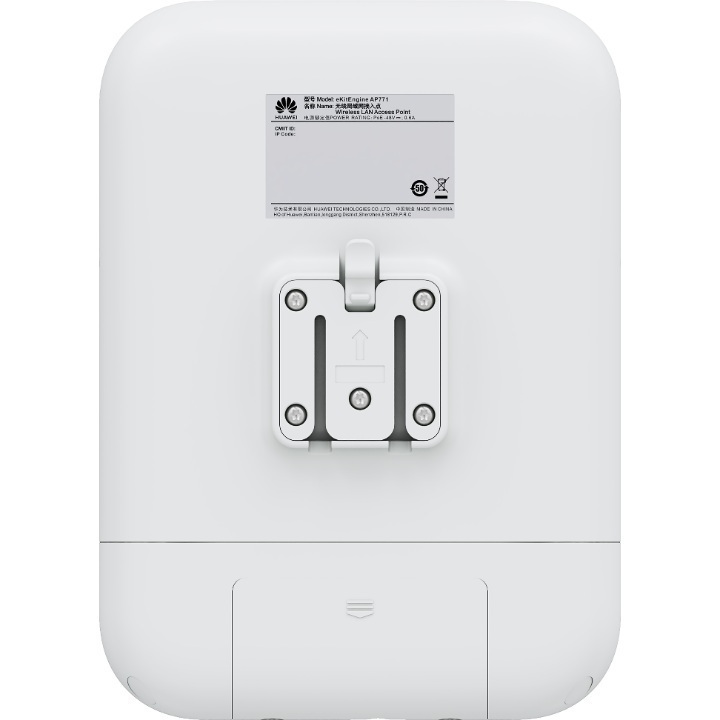

• Mounting Options
  Pole mount (up to 114 mm diameter), rail mount, latch‑based mount
• Deployment Modes
  Fit, Fat, Cloud
• Management
  HUAWEI eKit application; supports cloud management
• Installation Environment
  Outdoor, omnidirectional coverage optimized for pole mounting
• Material
  UV‑proof PC (housing)
• Typical Use Case
  SME outdoor Wi‑Fi deployments, public outdoor areas, campus/outdoor coverage
