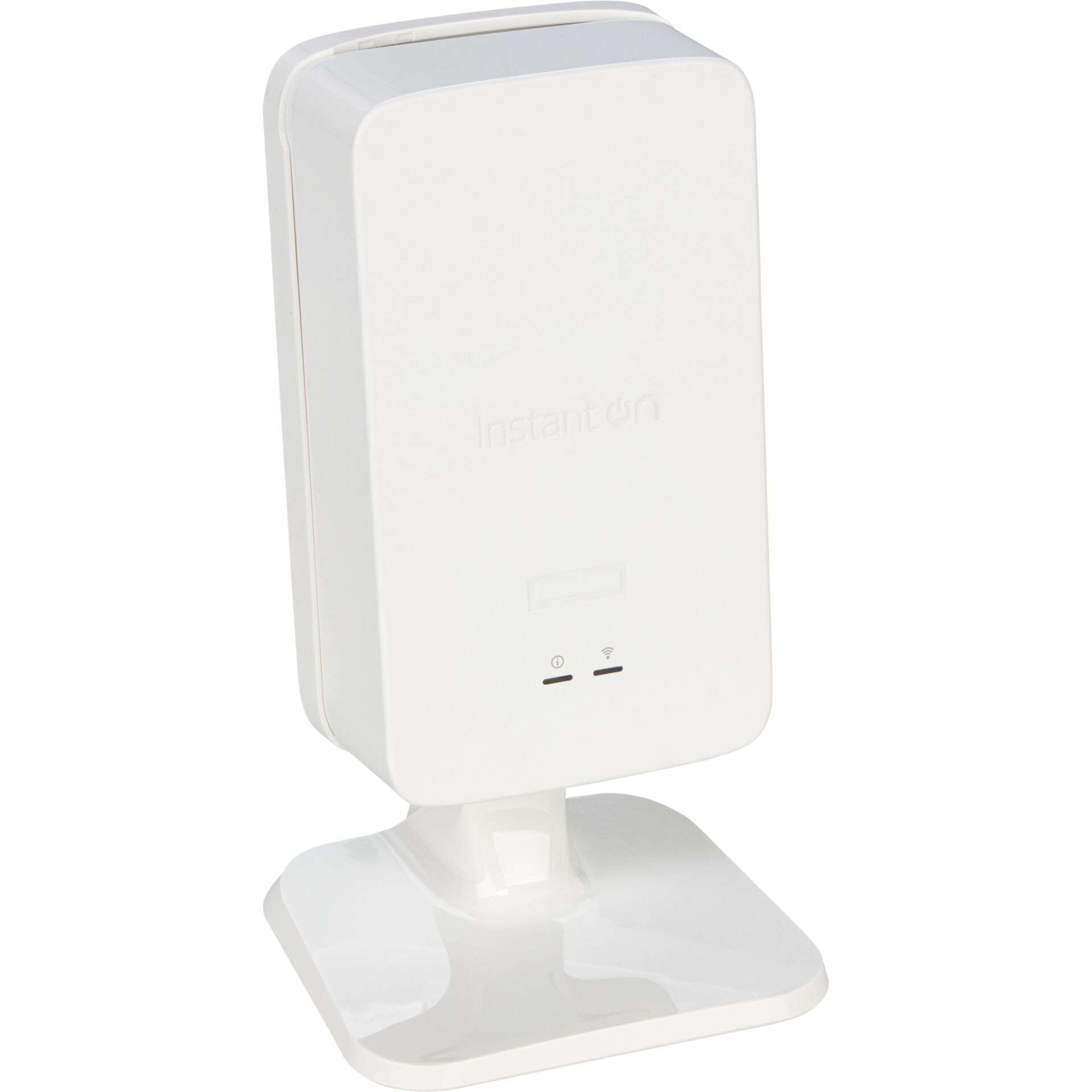

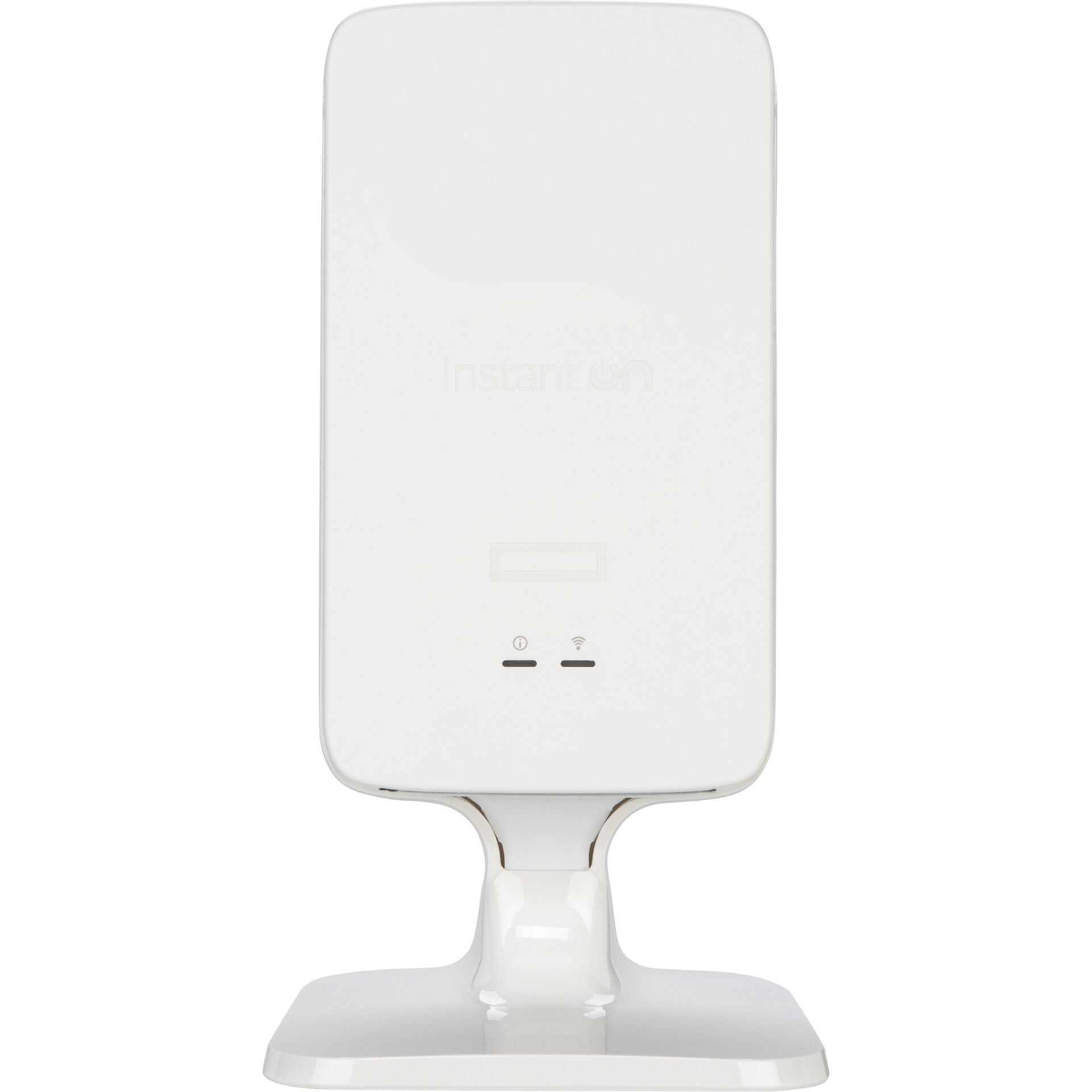

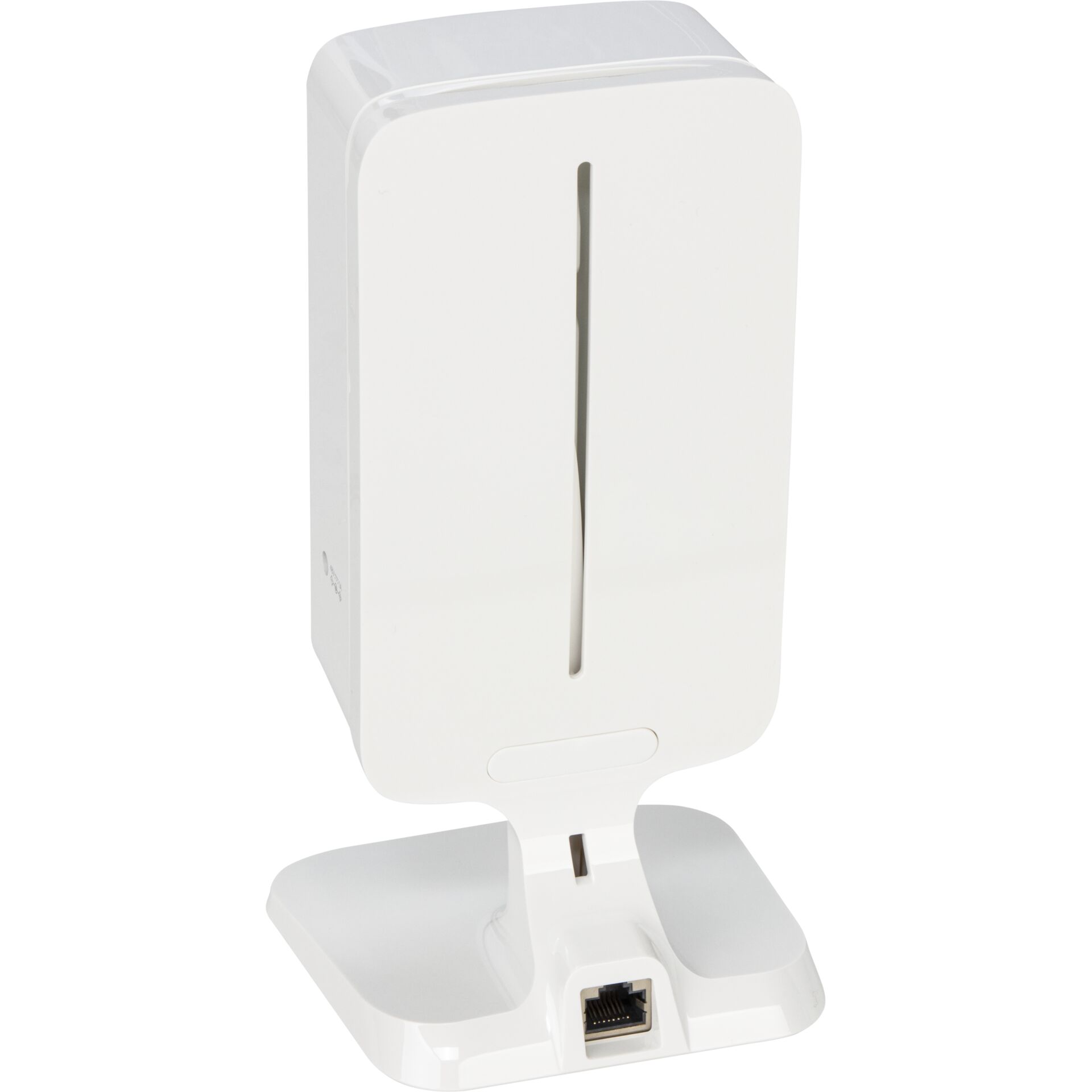

HPE Networking Instant On AP22D AP Set w. PSU Dual Radio (S0J34A#ABB)

Description

Technical Specifications

• Product Name
  HPE Networking Instant On AP22D AP Set w. PSU Dual Radio
• Brand
  HPE Networking Instant On (Aruba Instant On)
• Model
  AP22D
• MPN
  S0J34A#ABB
• EAN/Barcode
  0190017695747
• SKU
  205391
• Category
  Networks - wireless routers / access points
• Wi‑Fi Standard
  Wi‑Fi 6 (802.11ax)
• Bands
  2.4 GHz and 5 GHz
• Radio Configuration
  Dual‑radio, 2x2 spatial streams (2x2 MIMO)
• Maximum Data Rate
  Up to 1774 Mbps (combined)
• Recommended Maximum Active Devices
  Up to 75
• Uplink Port
  1 x 2.5 GbE Base‑T (PoE input)

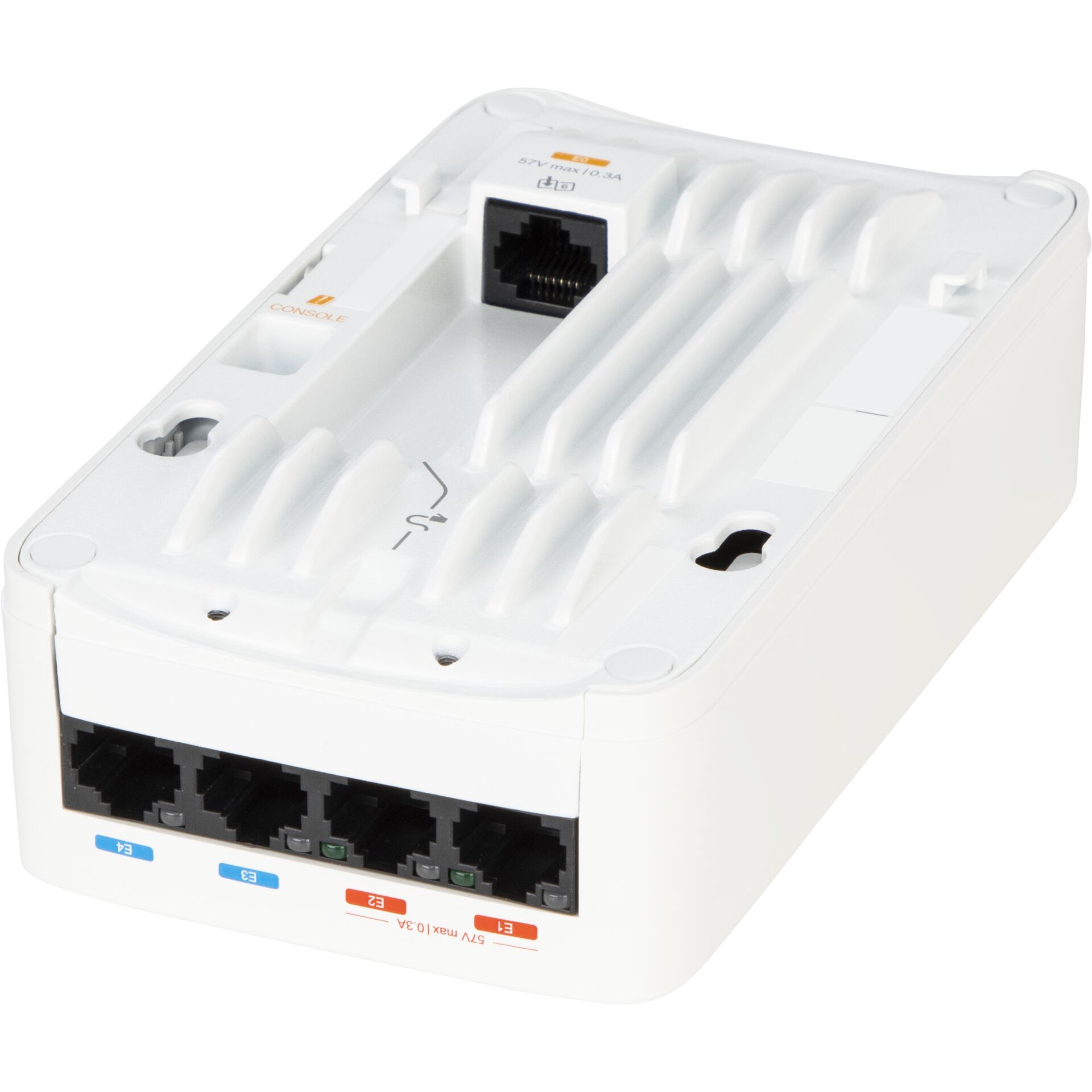

• Downlink Ports
  4 x 1 GbE Base‑T for wired devices
• PoE Output (Passthrough)
  2 x 15W (802.3af) on downlink ports (when powered appropriately)
• PoE Input
  Supports 802.3at and 802.3bt (PoE PD)
• Power Consumption
  Up to ~51W (PoE powered operation, depends on usage)
• Security
  WPA2, WPA3, OWE
• Antenna Type
  Internal dual semi‑directional antenna array
• Antenna Gain
  ~5.2 dBi (2.4 GHz); ~5.4 dBi (5 GHz)
• Transmit Power
  2.4 GHz up to +20 dBm; 5 GHz up to +21 dBm
• Ethernet Speeds Supported
  1 GbE and 2.5 GbE
• Mounting
  Desktop or wall mount
• Color
  White
• Dimensions (AP22D)
  86 x 150 x 47 mm
• Weight (device)
  ~360 g
• Housing Material
  Plastic (ABS) enclosure
• Included in Bundle
  AP22D access point, external PSU (power supply), mounting kit and documentation (typical)
• Use Case
  Small/medium business wireless access and wired device connectivity
• Form Factor
  Compact desktop/wall access point bundle
