The HPE FlexFabric 5920AF 24XG Switch is a 1U data center top of rack networking switch built for high density 10GbE connectivity, ultra low latency, and deep buffering. It provides 24 fixed 1000/10000 SFP+ ports, one RJ 45 serial console port, and one RJ 45 out of band management port. The switch...
More

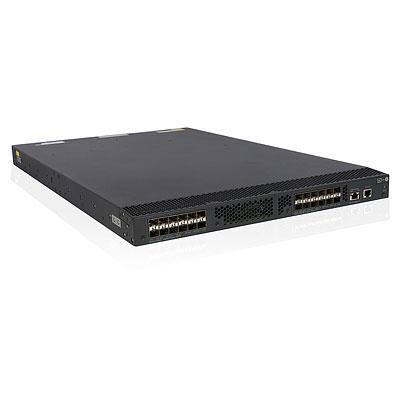

HPE FlexFabric 5920AF 24XG Switch No Pwr Fan
Product Code: 1200659409
Available in 4 - 10 days
285,70 €
or
8,92€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The HPE FlexFabric 5920AF 24XG Switch is a 1U data center top of rack networking switch built for high density 10GbE connectivity, ultra low latency, and deep buffering. It provides 24 fixed 1000/10000 SFP+ ports, one RJ 45 serial console port, and one RJ 45 out of band management port. The switch supports full Layer 2 and Layer 3 capabilities with IPv4 and IPv6 dual stack, Intelligent Resilient Fabric IRF virtualization, TRILL, VEPA readiness, OpenFlow, and SDN support. Key performance specifications include 480 Gbps switching capacity, 367 Mpps throughput, and under 1.7 microseconds latency for 64 byte packets at 10 Gbps. Hardware resources include 256 MB flash, 2 GB SDRAM, a 3.6 GB ultra deep packet buffer, and a 128000 entry MAC address table. Physical dimensions are 43.7 mm H x 439.9 mm W x 659.9 mm D, with a product weight of about 13 kg. The No Pwr Fan variant indicates the unit is supplied without power supplies and fan modules. This switch is intended for enterprise and data center access layer deployments, server edge networks, and loss sensitive workloads requiring reliable 10GbE switching.
-
BrandHPE
-
ModelFlexFabric 5920AF-24XG
-
Official MPNJG296A
-
Product SKUW127376047
-
EAN5715328082328
-
Product TypeData center top of rack networking switch
-
Form Factor1U rack mounted
-
Ports24 fixed 1000/10000 SFP+ ports
-
Management Ports1 RJ-45 serial console port; 1 RJ-45 out-of-band management port
-
Layer SupportFull Layer 2 and Layer 3 features
-
IP SupportIPv4 and IPv6 dual stack
-
Switching Capacity480 Gbps
-
Throughput367 Mpps
-
LatencyLess than 1.7 microseconds for 64 byte packets at 10 Gbps
-
Flash Memory256 MB
-
SDRAM2 GB
-
Packet Buffer3.6 GB ultra deep buffering
-
MAC Address Table128000 entries
-
Power Input100 to 240 VAC, 50 to 60 Hz
-
Idle Power Consumption343 W
-
Maximum Power Rating366 W
-
Heat Dissipation1249 BTU/hr
-
Dimensions43.7 mm H x 439.9 mm W x 659.9 mm D
-
Weight13 kg
-
ColorBlack or product code 5513
-
FeaturesIntelligent Resilient Fabric IRF; TRILL; VEPA readiness; OpenFlow; SDN support; QoS; port mirroring; rate limiting; flow control; DHCP client; IGMP snooping; link aggregation; spanning tree support
-
ApplicationEnterprise data center access layer; server edge; loss sensitive workloads; high density 10GbE deployments
-
Packaging NoteNo Pwr Fan configuration, indicating no power supplies or fan modules included
Ratings
Description
The HPE FlexFabric 5920AF 24XG Switch is a 1U data center top of rack networking switch built for high density 10GbE connectivity, ultra low latency, and deep buffering. It provides 24 fixed 1000/10000 SFP+ ports, one RJ 45 serial console port, and one RJ 45 out of band management port. The switch supports full Layer 2 and Layer 3 capabilities with IPv4 and IPv6 dual stack, Intelligent Resilient Fabric IRF virtualization, TRILL, VEPA readiness, OpenFlow, and SDN support. Key performance specifications include 480 Gbps switching capacity, 367 Mpps throughput, and under 1.7 microseconds latency for 64 byte packets at 10 Gbps. Hardware resources include 256 MB flash, 2 GB SDRAM, a 3.6 GB ultra deep packet buffer, and a 128000 entry MAC address table. Physical dimensions are 43.7 mm H x 439.9 mm W x 659.9 mm D, with a product weight of about 13 kg. The No Pwr Fan variant indicates the unit is supplied without power supplies and fan modules. This switch is intended for enterprise and data center access layer deployments, server edge networks, and loss sensitive workloads requiring reliable 10GbE switching.
Technical Specifications
-
BrandHPE
-
ModelFlexFabric 5920AF-24XG
-
Official MPNJG296A
-
Product SKUW127376047
-
EAN5715328082328
-
Product TypeData center top of rack networking switch
-
Form Factor1U rack mounted
-
Ports24 fixed 1000/10000 SFP+ ports
-
Management Ports1 RJ-45 serial console port; 1 RJ-45 out-of-band management port
-
Layer SupportFull Layer 2 and Layer 3 features
-
IP SupportIPv4 and IPv6 dual stack
-
Switching Capacity480 Gbps
-
Throughput367 Mpps
-
LatencyLess than 1.7 microseconds for 64 byte packets at 10 Gbps
-
Flash Memory256 MB
-
SDRAM2 GB
-
Packet Buffer3.6 GB ultra deep buffering
-
MAC Address Table128000 entries
-
Power Input100 to 240 VAC, 50 to 60 Hz
-
Idle Power Consumption343 W
-
Maximum Power Rating366 W
-
Heat Dissipation1249 BTU/hr
-
Dimensions43.7 mm H x 439.9 mm W x 659.9 mm D
-
Weight13 kg
-
ColorBlack or product code 5513
-
FeaturesIntelligent Resilient Fabric IRF; TRILL; VEPA readiness; OpenFlow; SDN support; QoS; port mirroring; rate limiting; flow control; DHCP client; IGMP snooping; link aggregation; spanning tree support
-
ApplicationEnterprise data center access layer; server edge; loss sensitive workloads; high density 10GbE deployments
-
Packaging NoteNo Pwr Fan configuration, indicating no power supplies or fan modules included
