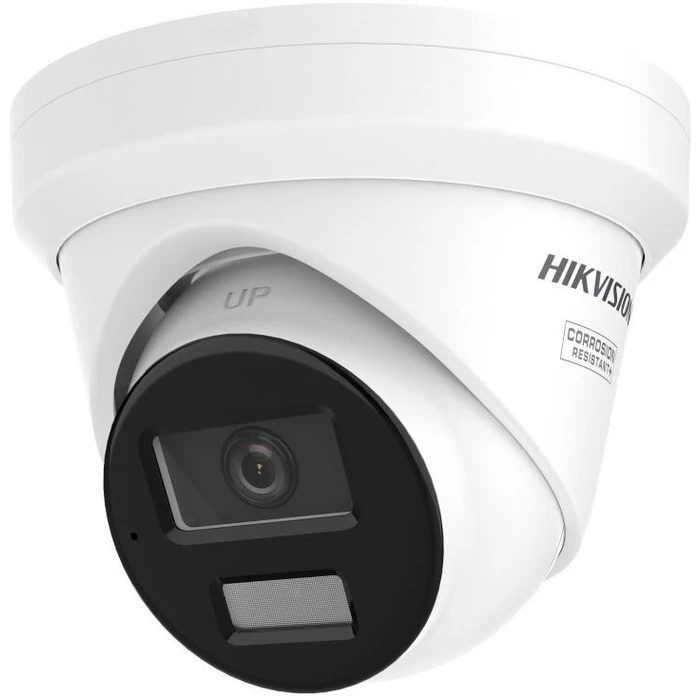

Hikvision Pro Series with AcuSense DS-2CD2343G2-LIZ2UY(2.8/4mm) Turret Outdoor IP Security Camera 4MP 2688x1520

Description

Technical Specifications

• Model
  DS-2CD2343G2-LIZ2UY(2.8/4mm)
• Brand
  Hikvision
• Series
  Pro Series with AcuSense
• Form Factor
  Turret (ceiling/wall mount)
• Resolution
  2688 × 1520 (4 MP)
• Image Sensor
  1/3" Progressive Scan CMOS
• Lens
  Motorized varifocal 2.8 mm / 4 mm, F1.6, M12 mount
• Field of View (2.8 mm)
  Horizontal 103°, Vertical 55°, Diagonal 122°
• Field of View (4 mm)
  Horizontal 84°, Vertical 45°, Diagonal 100°
• Minimum Illumination
  0.005 Lux (Color, F1.6, AGC ON); 0 Lux with IR
• WDR
  120 dB
• Night / Illumination
  Smart Hybrid Light (IR + White Light), IR wavelength 850 nm, up to ~30 m
• Video Compression
  H.265 / H.264 / H.265+ / H.264+
• Frame Rate
  Up to 25 fps (50 Hz) / 30 fps (60 Hz) at 2688×1520
• Streams
  Main stream, sub-stream, third stream (variant-dependent)
• AcuSense Analytics
  Deep-learning based human and vehicle classification
• Other Analytics
  Motion detection, video tampering alarm, exception alarm, face detection
• Audio
  Built-in microphone (variant-dependent)
• Storage
  microSD / microSDHC / microSDXC up to 512 GB
• Network
  1 × RJ45 10/100 Mbps
• Power
  Supports PoE and DC (variant-dependent; check regional datasheet)
• Ingress Protection
  IP67 (variant-dependent)
• Operating Temperature
  See official datasheet for regional operating ranges
• Mounting
  Ceiling or wall
• SKU
  WLONONWCROYZ4
• EAN / Barcode
  6936422162986
• MPN
  DS-2CD2343G2-LIZ2UY(2.8/4mm)
