The Hikvision DS-2TP21B-6AVF/W is a portable bi-spectrum handheld thermographic camera designed for elevated skin temperature screening (not a medical diagnostic thermometer). It features a 160×120 thermal sensor (VOx), up to 8 MP visible camera, 3.5-inch touch LCD, thermal/optical fusion, audio...
More

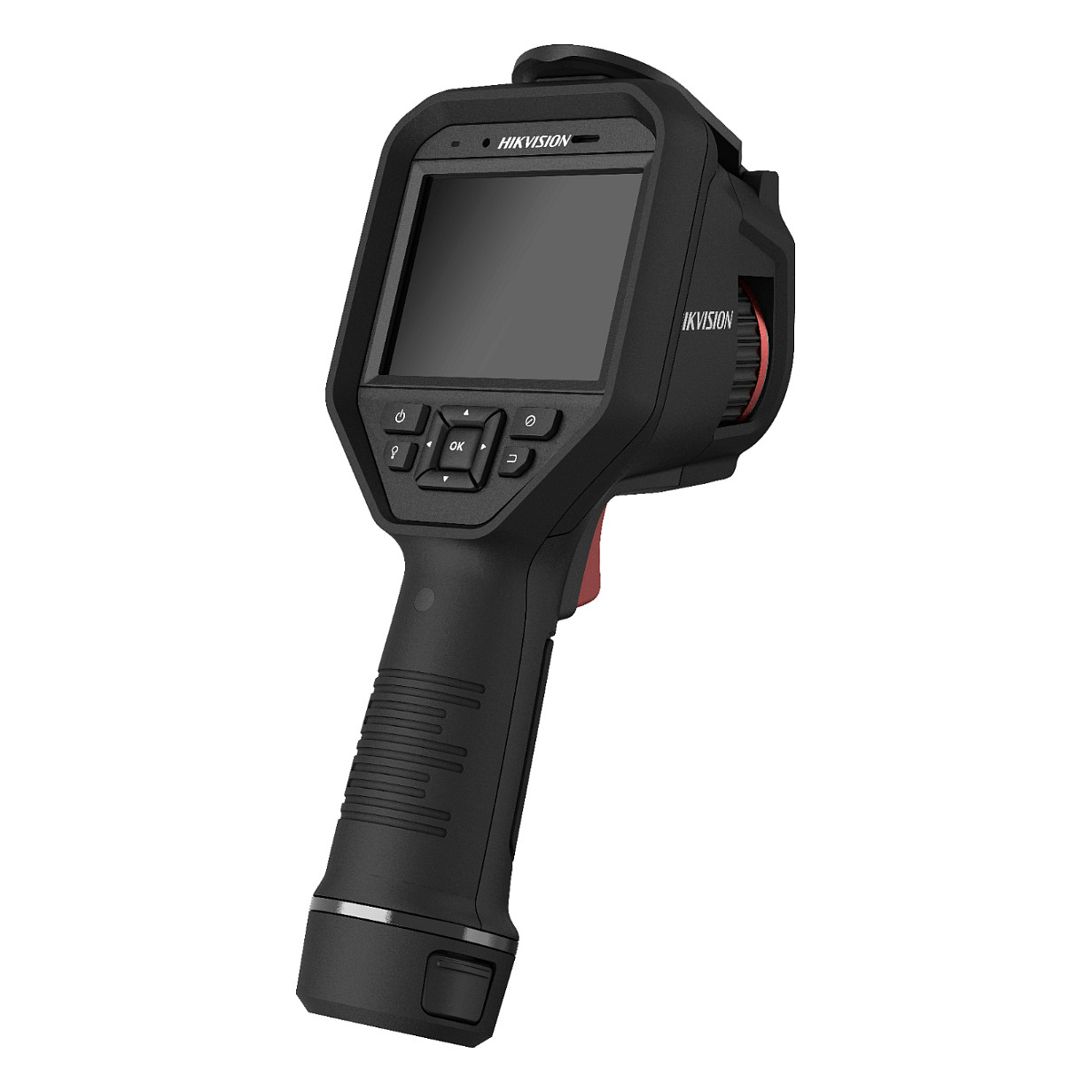

Hikvision Portable Bi-Spectrum Thermal/Optical Handheld Temperature Screening Camera DS-2TP21B-6AVF/W
Product Code: 1173702546
Available in 4 - 6 days
4.271,17 €
or
133,38€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 12814 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Hikvision DS-2TP21B-6AVF/W is a portable bi-spectrum handheld thermographic camera designed for elevated skin temperature screening (not a medical diagnostic thermometer). It features a 160×120 thermal sensor (VOx), up to 8 MP visible camera, 3.5-inch touch LCD, thermal/optical fusion, audio alarm and intercom, Wi‑Fi and USB-C connectivity, hot-swappable battery with multi-hour runtime, and an IP54 housing suitable for screening environments such as hospitals, airports and schools.
-
BrandHikvision
-
Model / MPNDS-2TP21B-6AVF/W
-
SKU21236628
-
EAN / Barcode6941264047810
-
Product TypePortable bi-spectrum thermal/optical handheld temperature screening camera
-
Thermal Resolution160 × 120
-
Optical ResolutionUp to 8 MP (configurable: 2 MP, 5 MP, 8 MP)
-
Thermal SensorVOx uncooled focal plane array
-
Pixel Pitch17 μm
-
Response Waveband8 μm – 14 μm
-
NETD (Thermal Sensitivity)≤ 40 mK (< 40 mK)
-
Thermal Lens Focal Length6 mm (listed also as 6.2 mm on some sources)
-
Field of View (Thermal)25° × 18.7°
-
IFOV2.74 mrad
-
ApertureF1.1
-
Image Frequency25 Hz
-
Focus ModeManual
-
Display3.5-inch LCD touch display
-
Display Resolution640 × 480 (display)
-
Display ModeThermal/optical fusion display
-
Temperature Measurement Range30 °C to 45 °C
-
Temperature Accuracy±0.5 °C (without black body); ±0.3 °C (with black body) — screening accuracy ±0.5 °C noted in docs
-
AlarmsColor-highlight alarm, audio alarm, configurable thresholds
-
AudioAudio alarm and audio intercom supported
-
Image EnhancementDDE, 3D DNR, adaptive AGC
-
Thermal Palettes / PIP / Digital ZoomSupported (product listings mention multiple palettes, digital zoom and picture-in-picture)
-
ConnectivityWi‑Fi, Bluetooth (listed), USB Type-C
-
StorageMicroSD card support (multiple listings / video show 16 GB card in compartment) — treat as secondary confirmation
-
Battery / RuntimeHot-swappable battery; up to ~5 hours continuous operation (conditions dependent; wireless and lights off)
-
Operating Temperature Range10 °C to 35 °C
-
Protection RatingIP54
-
Dimensions (device)244 mm × 100 mm × 104 mm
-
Weight (with battery)653 g
-
Weight (without battery)511 g
-
Tripod MountSupported (listed in video / product notes)
-
Intended UseElevated skin temperature screening in crowded screening environments (not a medical device)
-
Packaging (typical)Handheld camera with battery, charger/cable (USB-C), user manual; retail packaging dimensions estimated ~30×15×12 cm
-
NotesNot a medical diagnostic thermometer; accuracy depends on screening setup and use of a calibration black body
Ratings
Description
The Hikvision DS-2TP21B-6AVF/W is a portable bi-spectrum handheld thermographic camera designed for elevated skin temperature screening (not a medical diagnostic thermometer). It features a 160×120 thermal sensor (VOx), up to 8 MP visible camera, 3.5-inch touch LCD, thermal/optical fusion, audio alarm and intercom, Wi‑Fi and USB-C connectivity, hot-swappable battery with multi-hour runtime, and an IP54 housing suitable for screening environments such as hospitals, airports and schools.
Technical Specifications
-
BrandHikvision
-
Model / MPNDS-2TP21B-6AVF/W
-
SKU21236628
-
EAN / Barcode6941264047810
-
Product TypePortable bi-spectrum thermal/optical handheld temperature screening camera
-
Thermal Resolution160 × 120
-
Optical ResolutionUp to 8 MP (configurable: 2 MP, 5 MP, 8 MP)
-
Thermal SensorVOx uncooled focal plane array
-
Pixel Pitch17 μm
-
Response Waveband8 μm – 14 μm
-
NETD (Thermal Sensitivity)≤ 40 mK (< 40 mK)
-
Thermal Lens Focal Length6 mm (listed also as 6.2 mm on some sources)
-
Field of View (Thermal)25° × 18.7°
-
IFOV2.74 mrad
-
ApertureF1.1
-
Image Frequency25 Hz
-
Focus ModeManual
-
Display3.5-inch LCD touch display
-
Display Resolution640 × 480 (display)
-
Display ModeThermal/optical fusion display
-
Temperature Measurement Range30 °C to 45 °C
-
Temperature Accuracy±0.5 °C (without black body); ±0.3 °C (with black body) — screening accuracy ±0.5 °C noted in docs
-
AlarmsColor-highlight alarm, audio alarm, configurable thresholds
-
AudioAudio alarm and audio intercom supported
-
Image EnhancementDDE, 3D DNR, adaptive AGC
-
Thermal Palettes / PIP / Digital ZoomSupported (product listings mention multiple palettes, digital zoom and picture-in-picture)
-
ConnectivityWi‑Fi, Bluetooth (listed), USB Type-C
-
StorageMicroSD card support (multiple listings / video show 16 GB card in compartment) — treat as secondary confirmation
-
Battery / RuntimeHot-swappable battery; up to ~5 hours continuous operation (conditions dependent; wireless and lights off)
-
Operating Temperature Range10 °C to 35 °C
-
Protection RatingIP54
-
Dimensions (device)244 mm × 100 mm × 104 mm
-
Weight (with battery)653 g
-
Weight (without battery)511 g
-
Tripod MountSupported (listed in video / product notes)
-
Intended UseElevated skin temperature screening in crowded screening environments (not a medical device)
-
Packaging (typical)Handheld camera with battery, charger/cable (USB-C), user manual; retail packaging dimensions estimated ~30×15×12 cm
-
NotesNot a medical diagnostic thermometer; accuracy depends on screening setup and use of a calibration black body
