The Hikvision HikMicro HM-TD1228-3/G1/T3A (HeatPro) is a thermal + optical bi-spectrum network turret camera designed for perimeter protection and advanced surveillance. Thermal module: VOx uncooled FPA, 256 × 192 @12 μm, spectral range 8–14 μm, NETD ≤25 mK (@25°C, F1.0), 3.6 mm F1.0 lens, IFOV...
More

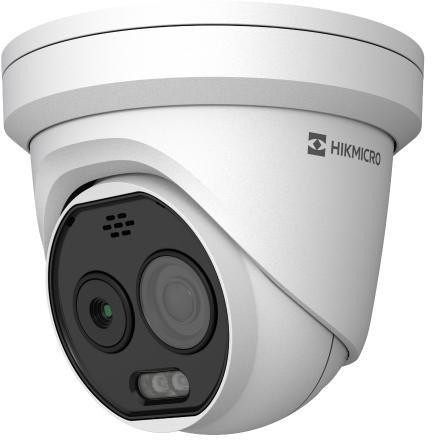

Hikvision HikMicro HM-TD1228-3/G1/T3A HeatPro Thermal & Optical Bi-spectrum Network Turret Camera
Product Code: 1127718239
Upon Order
810,06 €
or
25,30€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 2431 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Hikvision HikMicro HM-TD1228-3/G1/T3A (HeatPro) is a thermal + optical bi-spectrum network turret camera designed for perimeter protection and advanced surveillance. Thermal module: VOx uncooled FPA, 256 × 192 @12 μm, spectral range 8–14 μm, NETD ≤25 mK (@25°C, F1.0), 3.6 mm F1.0 lens, IFOV 3.33 mrad, FOV 50.0° × 37.3°, 25 Hz. Optical module: 1/2.7" progressive scan CMOS, 5 MP (2688 × 1944), 4.3 mm F1.6 lens, FOV 84.0° × 43.1°, min. illumination 0.0089 Lux (F1.6, AGC ON), IR & white-light up to 30 m, WDR 120 dB. Features include bi-spectrum fusion, picture-in-picture, target coloration (white-hot/black-hot), GUANLAN large-scale AI for accurate human/vehicle detection and low false alarms, smart hybrid light (white light / IR / smart), strobe + siren visual & audio alarms, audio & alarm I/O, digital zoom ×2/×4, 17 color palettes, temperature measurement -20 °C to 150 °C, IP66 rating, DC 12V power, typical consumption ~1W, detector guarantee 10 years. Identifiers: SKU WLONONWCRTDBX, EAN 6974004647780, MPN 100661700 / HM-TD1228-3/G1/T3A. See Hikvision product page for official images and downloads.
-
BrandHikvision (HikMicro)
-
ModelHM-TD1228-3/G1/T3A (HeatPro)
-
SKUWLONONWCRTDBX
-
EAN6974004647780
-
MPN100661700
-
Thermal sensorVanadium Oxide (VOx) Uncooled Focal Plane Array (UFPA)
-
Thermal resolution256 × 192 pixels
-
Thermal pixel pitch12 μm
-
Thermal spectral range8 μm – 14 μm
-
Thermal NETD≤25 mK (@25°C, F1.0)
-
Thermal focal length3.6 mm
-
Thermal apertureF1.0
-
Thermal IFOV3.33 mrad
-
Thermal FOV (H × V)50.0° × 37.3°
-
Thermal frame rate25 Hz
-
Optical sensor1/2.7" Progressive Scan CMOS
-
Optical resolution5 MP (2688 × 1944)
-
Optical focal length4.3 mm
-
Optical apertureF1.6
-
Optical FOV (H × V)84.0° × 43.1°
-
Min. illumination0.0089 Lux (F1.6, AGC ON); 0 Lux with IR
-
IR/White light range30 m
-
WDR120 dB
-
Bi-spectrum featuresBi-spectrum fusion; Picture-in-Picture (thermal overlay)
-
AIGUANLAN Large-Scale AI model for human/vehicle detection and classification
-
AlarmsIntegrated strobe + siren; visual (adjustable white light strobe) and audio alarms
-
I/OAudio & alarm input/output supported
-
Temperature measurementRange –20 °C to 150 °C (–4 °F to 302 °F)
-
Digital zoom×2, ×4
-
Color palettes17 (white-hot, black-hot, rainbow, etc.)
-
Protection ratingIP66
-
Power supplyDC 12V
-
Typical power consumption~1W
-
Mounting typeTurret (network turret/bullet style)
-
Detector guarantee10 years (manufacturer stated)
-
Dimensions (package L×W×H)27 cm × 17 cm × 12 cm (approx.)
-
Product weight700 g (approx.)
-
Package weight1200 g (approx.)
-
Intended applicationsPerimeter protection, night surveillance, all-weather monitoring
Ratings
Description
The Hikvision HikMicro HM-TD1228-3/G1/T3A (HeatPro) is a thermal + optical bi-spectrum network turret camera designed for perimeter protection and advanced surveillance. Thermal module: VOx uncooled FPA, 256 × 192 @12 μm, spectral range 8–14 μm, NETD ≤25 mK (@25°C, F1.0), 3.6 mm F1.0 lens, IFOV 3.33 mrad, FOV 50.0° × 37.3°, 25 Hz. Optical module: 1/2.7" progressive scan CMOS, 5 MP (2688 × 1944), 4.3 mm F1.6 lens, FOV 84.0° × 43.1°, min. illumination 0.0089 Lux (F1.6, AGC ON), IR & white-light up to 30 m, WDR 120 dB. Features include bi-spectrum fusion, picture-in-picture, target coloration (white-hot/black-hot), GUANLAN large-scale AI for accurate human/vehicle detection and low false alarms, smart hybrid light (white light / IR / smart), strobe + siren visual & audio alarms, audio & alarm I/O, digital zoom ×2/×4, 17 color palettes, temperature measurement -20 °C to 150 °C, IP66 rating, DC 12V power, typical consumption ~1W, detector guarantee 10 years. Identifiers: SKU WLONONWCRTDBX, EAN 6974004647780, MPN 100661700 / HM-TD1228-3/G1/T3A. See Hikvision product page for official images and downloads.
Technical Specifications
-
BrandHikvision (HikMicro)
-
ModelHM-TD1228-3/G1/T3A (HeatPro)
-
SKUWLONONWCRTDBX
-
EAN6974004647780
-
MPN100661700
-
Thermal sensorVanadium Oxide (VOx) Uncooled Focal Plane Array (UFPA)
-
Thermal resolution256 × 192 pixels
-
Thermal pixel pitch12 μm
-
Thermal spectral range8 μm – 14 μm
-
Thermal NETD≤25 mK (@25°C, F1.0)
-
Thermal focal length3.6 mm
-
Thermal apertureF1.0
-
Thermal IFOV3.33 mrad
-
Thermal FOV (H × V)50.0° × 37.3°
-
Thermal frame rate25 Hz
-
Optical sensor1/2.7" Progressive Scan CMOS
-
Optical resolution5 MP (2688 × 1944)
-
Optical focal length4.3 mm
-
Optical apertureF1.6
-
Optical FOV (H × V)84.0° × 43.1°
-
Min. illumination0.0089 Lux (F1.6, AGC ON); 0 Lux with IR
-
IR/White light range30 m
-
WDR120 dB
-
Bi-spectrum featuresBi-spectrum fusion; Picture-in-Picture (thermal overlay)
-
AIGUANLAN Large-Scale AI model for human/vehicle detection and classification
-
AlarmsIntegrated strobe + siren; visual (adjustable white light strobe) and audio alarms
-
I/OAudio & alarm input/output supported
-
Temperature measurementRange –20 °C to 150 °C (–4 °F to 302 °F)
-
Digital zoom×2, ×4
-
Color palettes17 (white-hot, black-hot, rainbow, etc.)
-
Protection ratingIP66
-
Power supplyDC 12V
-
Typical power consumption~1W
-
Mounting typeTurret (network turret/bullet style)
-
Detector guarantee10 years (manufacturer stated)
-
Dimensions (package L×W×H)27 cm × 17 cm × 12 cm (approx.)
-
Product weight700 g (approx.)
-
Package weight1200 g (approx.)
-
Intended applicationsPerimeter protection, night surveillance, all-weather monitoring
