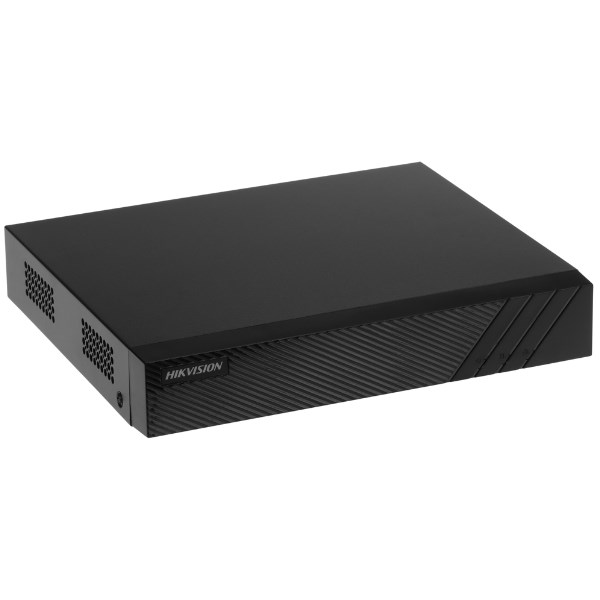

Hikvision DS-7604NI-Q1/4P(E)(STD)/PL 4-Channel IP NVR with 4 PoE Ports

Description

Technical Specifications

• Model
  DS-7604NI-Q1/4P(E)(STD)/PL
• Brand
  Hikvision
• Product Type
  4-channel IP NVR with built-in 4-port PoE switch
• IP Video Inputs
  4
• Max Resolution
  Up to 8 MP
• Incoming Bandwidth
  40 Mbps
• Outgoing Bandwidth
  80 Mbps
• Video Compression
  H.265+, H.265, H.264+, H.264
• Decoding Capability
  Up to 1-ch @ 8 MP (30 fps) or 5-ch @ 1080p (30 fps) (varies by source/firmware)
• Simultaneous Playback
  4-ch
• HDMI Output
  1 × HDMI (up to 4K@30Hz)
• VGA Output
  1 × VGA (simultaneous HDMI/VGA output supported)
• Audio Input
  1 × RCA
• Audio Output
  1 × RCA
• Audio Compression
  G.711ulaw, G.711alaw, G.722, G.726
• Network Interface
  1 × RJ-45 10/100 Mbps (some listings mention Gigabit)
• PoE Ports
  4 × RJ-45 PoE (10/100 Mbps)
• PoE Power Budget
  Not specified (varies by region/reseller)
• HDD Bays
  1 × SATA
• Maximum HDD Capacity
  Up to 8 TB (per disk)
• USB Ports
  2 × USB 2.0
• Alarm I/O
  N/A / Not available on standard model
• Supported Features
  Motion Detection 2.0; Human/Vehicle Analysis; Remote access via Hik-Connect and HiLookVision; digital zoom; advanced search
• Power Supply
  48 VDC
• Power Consumption
  ≤ 50 W (reported on reseller listing; varies with PoE and HDD)
• Dimensions
  263 × 223 × 48 mm
• Weight
  ~1000 g
• Operating Temperature
  -10 °C to +55 °C
• EAN
  6936422184438
• SKU
  WLONONWCROZ10
• MPN
  DS-7604NI-Q1/4P E PL
