The Hikvision DS-3T1512HP-SI-8P4F/NPU is a managed Gigabit PoE++ switch designed for network deployments requiring PoE power and advanced management. It features 8x Gigabit RJ-45 ports (10/100/1000 Mbps) with PoE support (up to 30 W per port) and a total PoE budget of 300 W, plus 4x Gigabit SFP...
More

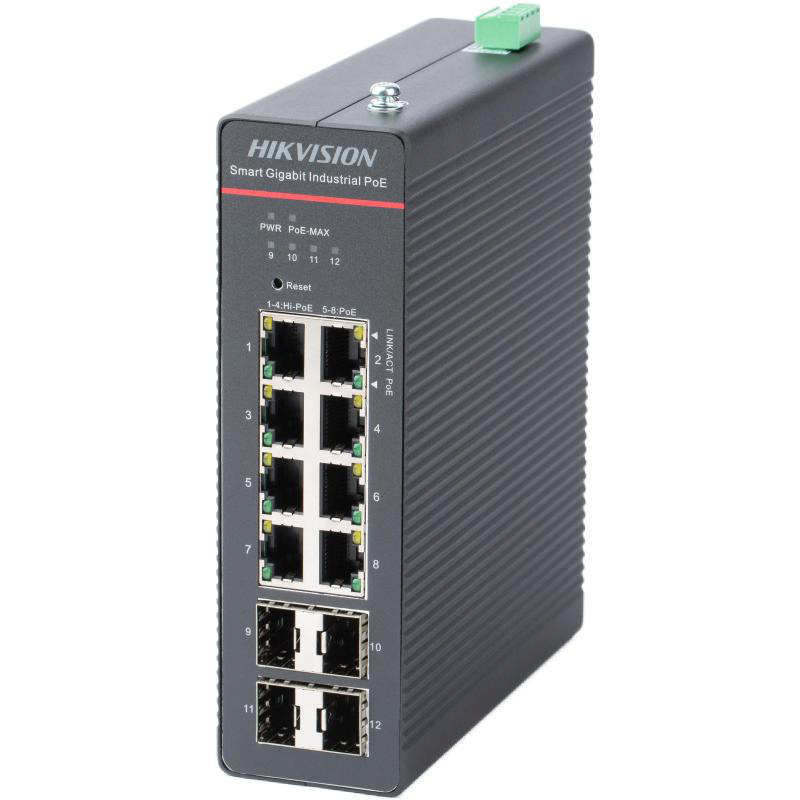

Hikvision DS-3T1512HP-SI-8P4F/NPU Managed PoE++ Switch - 8x Gigabit RJ-45 + 4x SFP, 300W PoE Budget
Product Code: 1127681270
Available in 4 - 10 days
275,62 €
or
8,61€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Hikvision DS-3T1512HP-SI-8P4F/NPU is a managed Gigabit PoE++ switch designed for network deployments requiring PoE power and advanced management. It features 8x Gigabit RJ-45 ports (10/100/1000 Mbps) with PoE support (up to 30 W per port) and a total PoE budget of 300 W, plus 4x Gigabit SFP slots for fiber uplinks. The switch supports IEEE 802.3bt/802.3at/802.3af standards, VLAN (up to 4094), QoS, link aggregation, port mirroring, DHCP snooping, IP Source Guard, loop protection and broadcast storm control. It is fanless, metal-housed, DIN-rail mountable, and powered by DC (48–57 V via 4-pin terminal block). Additional features include surge protection (6 kV), SNMP/SNMPv2 support, web-based management and compliance with RoHS, REACH, EMC, CB, WEEE and LVD standards. Suitable for CCTV, VoIP and wireless deployments requiring managed PoE.
-
ModelDS-3T1512HP-SI-8P4F/NPU
-
SKUWLONONWCROPPO
-
EAN6936422105655
-
MPN301803311
-
ManufacturerHikvision
-
Switch TypeManaged
-
PoE SupportYes (PoE/PoE+/PoE++)
-
PoE StandardIEEE 802.3bt, IEEE 802.3at, IEEE 802.3af
-
PoE Ports Quantity8
-
PoE Power per Port30 W
-
Total PoE Budget300 W
-
Gigabit Ethernet (copper) Ports8 (10/100/1000 Mbps)
-
SFP Module Slots Quantity4 (Gigabit)
-
Switching Capacity56 Gbit/s
-
Forwarding Rate41.66 Mpps
-
Packet Buffer Memory4.1 MB
-
MAC Address Table8000 entries
-
VLAN SupportYes (up to 4094 VLANs)
-
Virtual LAN FeaturesVLAN Identifier (VLAN ID)
-
Quality of Service (QoS)Yes (IEEE 802.1p)
-
Link AggregationYes
-
Port MirroringYes
-
Rate LimitingYes
-
Broadcast Storm ControlYes
-
Loop ProtectionYes
-
IP Source Guard (IPSG)Yes
-
DHCP FeaturesDHCP snooping, DHCP client
-
Security Algorithms/ManagementSNMP, SNMPv2, Web-based management
-
Management InterfaceWeb GUI
-
Forwarding/Performance56 Gbit/s switching capacity, 41.66 Mpps
-
Power SourceDC (48 - 57 V)
-
Power ConnectorTerminal block (4-pin)
-
Input Current7.5 A
-
Power Consumption (Typical)7 W
-
Power Consumption (Max)307 W
-
Surge ProtectionYes (6 kV)
-
Power Protection FeaturesSurge protection
-
FanlessYes
-
Housing MaterialMetal
-
Product ColourBlack
-
DIN Rail MountingYes
-
Rack MountingNo
-
IP CodeIP40
-
Operating Temperature-40 - 75 °C
-
Storage Temperature-40 - 85 °C
-
Operating Relative Humidity5 - 95%
-
Storage Relative Humidity5 - 95%
-
Dimensions (H x W x D)46 mm x 155 mm x 130 mm
-
Product Weight840 g
-
Package Weight1160 g
-
Compliance CertificatesRoHS, REACH, EMC, CB, WEEE, LVD
-
10G SupportNo
-
Sustainability ComplianceYes
-
Networking StandardsIEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.1p
Ratings
Description
The Hikvision DS-3T1512HP-SI-8P4F/NPU is a managed Gigabit PoE++ switch designed for network deployments requiring PoE power and advanced management. It features 8x Gigabit RJ-45 ports (10/100/1000 Mbps) with PoE support (up to 30 W per port) and a total PoE budget of 300 W, plus 4x Gigabit SFP slots for fiber uplinks. The switch supports IEEE 802.3bt/802.3at/802.3af standards, VLAN (up to 4094), QoS, link aggregation, port mirroring, DHCP snooping, IP Source Guard, loop protection and broadcast storm control. It is fanless, metal-housed, DIN-rail mountable, and powered by DC (48–57 V via 4-pin terminal block). Additional features include surge protection (6 kV), SNMP/SNMPv2 support, web-based management and compliance with RoHS, REACH, EMC, CB, WEEE and LVD standards. Suitable for CCTV, VoIP and wireless deployments requiring managed PoE.
Technical Specifications
-
ModelDS-3T1512HP-SI-8P4F/NPU
-
SKUWLONONWCROPPO
-
EAN6936422105655
-
MPN301803311
-
ManufacturerHikvision
-
Switch TypeManaged
-
PoE SupportYes (PoE/PoE+/PoE++)
-
PoE StandardIEEE 802.3bt, IEEE 802.3at, IEEE 802.3af
-
PoE Ports Quantity8
-
PoE Power per Port30 W
-
Total PoE Budget300 W
-
Gigabit Ethernet (copper) Ports8 (10/100/1000 Mbps)
-
SFP Module Slots Quantity4 (Gigabit)
-
Switching Capacity56 Gbit/s
-
Forwarding Rate41.66 Mpps
-
Packet Buffer Memory4.1 MB
-
MAC Address Table8000 entries
-
VLAN SupportYes (up to 4094 VLANs)
-
Virtual LAN FeaturesVLAN Identifier (VLAN ID)
-
Quality of Service (QoS)Yes (IEEE 802.1p)
-
Link AggregationYes
-
Port MirroringYes
-
Rate LimitingYes
-
Broadcast Storm ControlYes
-
Loop ProtectionYes
-
IP Source Guard (IPSG)Yes
-
DHCP FeaturesDHCP snooping, DHCP client
-
Security Algorithms/ManagementSNMP, SNMPv2, Web-based management
-
Management InterfaceWeb GUI
-
Forwarding/Performance56 Gbit/s switching capacity, 41.66 Mpps
-
Power SourceDC (48 - 57 V)
-
Power ConnectorTerminal block (4-pin)
-
Input Current7.5 A
-
Power Consumption (Typical)7 W
-
Power Consumption (Max)307 W
-
Surge ProtectionYes (6 kV)
-
Power Protection FeaturesSurge protection
-
FanlessYes
-
Housing MaterialMetal
-
Product ColourBlack
-
DIN Rail MountingYes
-
Rack MountingNo
-
IP CodeIP40
-
Operating Temperature-40 - 75 °C
-
Storage Temperature-40 - 85 °C
-
Operating Relative Humidity5 - 95%
-
Storage Relative Humidity5 - 95%
-
Dimensions (H x W x D)46 mm x 155 mm x 130 mm
-
Product Weight840 g
-
Package Weight1160 g
-
Compliance CertificatesRoHS, REACH, EMC, CB, WEEE, LVD
-
10G SupportNo
-
Sustainability ComplianceYes
-
Networking StandardsIEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.1p
