Hikvision DS-3T1512HP-SI-8P4F is a managed PoE++ Ethernet switch with 8 Gigabit RJ-45 ports and 4 SFP ports. Supports IEEE 802.3af/at/bt PoE standards with a total PoE budget of 300 W (up to 30 W per port). Switching capacity of 56 Gbit/s and forwarding rate of 41.66 Mpps. DC power input 48–57 V...
More

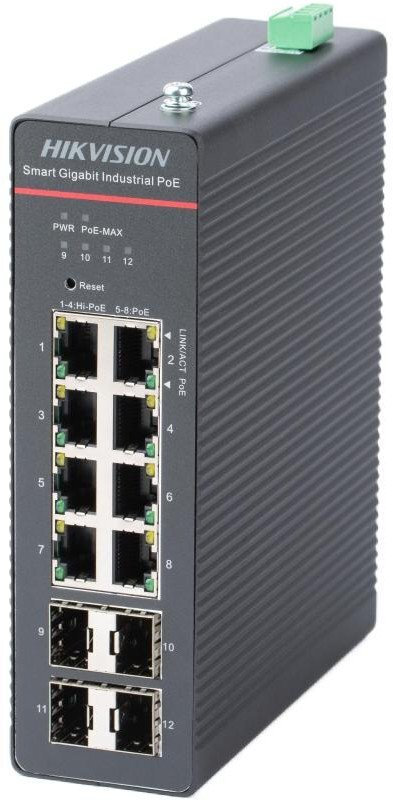

Hikvision DS-3T1512HP-SI-8P4F Managed PoE++ Switch 8x Gigabit Ethernet + 4x SFP, 300W PoE
Product Code: 1127681269
Available in 4 - 10 days
312,00 €
or
9,74€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Hikvision DS-3T1512HP-SI-8P4F is a managed PoE++ Ethernet switch with 8 Gigabit RJ-45 ports and 4 SFP ports. Supports IEEE 802.3af/at/bt PoE standards with a total PoE budget of 300 W (up to 30 W per port). Switching capacity of 56 Gbit/s and forwarding rate of 41.66 Mpps. DC power input 48–57 V via 4-pin terminal block, surge protection up to 6 kV. 8x Gigabit copper ports, 4x SFP slots, MAC table up to 8000 entries, 4.1 MB packet buffer, VLAN support up to 4094. Metal housing, fanless design, black color, DIN-rail mountable. Web-based management, SNMP/SNMPv2, DHCP snooping, IP Source Guard, QoS, link aggregation, port mirroring, loop protection and broadcast storm control. Operating temperature -40 to 75 °C. Dimensions 155 x 130 x 46 mm, weight 840 g.
-
Product TypeManaged Switch
-
PoEYes (PoE/PoE+/PoE++)
-
PoE StandardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
-
PoE Ports Quantity8
-
PoE Power per PortUp to 30 W
-
Total PoE Budget300 W
-
Ethernet Ports (RJ-45)8 x Gigabit Ethernet (10/100/1000)
-
SFP Ports4 x SFP
-
Switching Capacity56 Gbit/s
-
Forwarding Rate41.66 Mpps
-
MAC Address Table8000 entries
-
Packet Buffer Memory4.1 MB
-
VLAN SupportYes
-
Number of VLANs4094
-
QoS SupportYes (IEEE 802.1p)
-
Link AggregationYes
-
Port MirroringYes
-
Broadcast Storm ControlYes
-
Loop ProtectionYes
-
DHCP FeaturesDHCP snooping, DHCP client
-
IP Source Guard (IPSG)Yes
-
Management InterfaceWeb-based management, SNMP, SNMPv2
-
Security AlgorithmsSNMP, SNMPv2
-
Power SourceDC (48 - 57 V)
-
Power Connector4-pin terminal block
-
Input Current7.5 A
-
Power Consumption (Typical)7 W
-
Power Consumption (Max)307 W
-
Surge ProtectionYes (6 kV)
-
Operating Temperature-40 to 75 °C
-
Storage Temperature-40 to 85 °C
-
Operating Relative Humidity5 - 95%
-
Storage Relative Humidity5 - 95%
-
Housing MaterialMetal
-
Product ColourBlack
-
FanlessYes
-
DIN Rail MountingYes
-
Rack MountingNo
-
Height46 mm
-
Width155 mm
-
Depth130 mm
-
Weight840 g
-
Package Weight1160 g
-
Switching Optical Modules TypeGigabit Ethernet (SFP)
-
Forwarding/Performance FeaturesRate limiting, QoS, VLAN ID support
-
Compliance CertificatesEMC, RoHS, CB, LVD, REACH, WEEE
-
International Protection (IP) CodeIP40
-
SKUWLONONWCROWWC
-
Manufacturer Part Number (MPN)100661575
-
EAN6936422147723
-
Model/Part NumberDS-3T1512HP-SI-8P4F
-
BrandHikvision
Ratings
Description
Hikvision DS-3T1512HP-SI-8P4F is a managed PoE++ Ethernet switch with 8 Gigabit RJ-45 ports and 4 SFP ports. Supports IEEE 802.3af/at/bt PoE standards with a total PoE budget of 300 W (up to 30 W per port). Switching capacity of 56 Gbit/s and forwarding rate of 41.66 Mpps. DC power input 48–57 V via 4-pin terminal block, surge protection up to 6 kV. 8x Gigabit copper ports, 4x SFP slots, MAC table up to 8000 entries, 4.1 MB packet buffer, VLAN support up to 4094. Metal housing, fanless design, black color, DIN-rail mountable. Web-based management, SNMP/SNMPv2, DHCP snooping, IP Source Guard, QoS, link aggregation, port mirroring, loop protection and broadcast storm control. Operating temperature -40 to 75 °C. Dimensions 155 x 130 x 46 mm, weight 840 g.
Technical Specifications
-
Product TypeManaged Switch
-
PoEYes (PoE/PoE+/PoE++)
-
PoE StandardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
-
PoE Ports Quantity8
-
PoE Power per PortUp to 30 W
-
Total PoE Budget300 W
-
Ethernet Ports (RJ-45)8 x Gigabit Ethernet (10/100/1000)
-
SFP Ports4 x SFP
-
Switching Capacity56 Gbit/s
-
Forwarding Rate41.66 Mpps
-
MAC Address Table8000 entries
-
Packet Buffer Memory4.1 MB
-
VLAN SupportYes
-
Number of VLANs4094
-
QoS SupportYes (IEEE 802.1p)
-
Link AggregationYes
-
Port MirroringYes
-
Broadcast Storm ControlYes
-
Loop ProtectionYes
-
DHCP FeaturesDHCP snooping, DHCP client
-
IP Source Guard (IPSG)Yes
-
Management InterfaceWeb-based management, SNMP, SNMPv2
-
Security AlgorithmsSNMP, SNMPv2
-
Power SourceDC (48 - 57 V)
-
Power Connector4-pin terminal block
-
Input Current7.5 A
-
Power Consumption (Typical)7 W
-
Power Consumption (Max)307 W
-
Surge ProtectionYes (6 kV)
-
Operating Temperature-40 to 75 °C
-
Storage Temperature-40 to 85 °C
-
Operating Relative Humidity5 - 95%
-
Storage Relative Humidity5 - 95%
-
Housing MaterialMetal
-
Product ColourBlack
-
FanlessYes
-
DIN Rail MountingYes
-
Rack MountingNo
-
Height46 mm
-
Width155 mm
-
Depth130 mm
-
Weight840 g
-
Package Weight1160 g
-
Switching Optical Modules TypeGigabit Ethernet (SFP)
-
Forwarding/Performance FeaturesRate limiting, QoS, VLAN ID support
-
Compliance CertificatesEMC, RoHS, CB, LVD, REACH, WEEE
-
International Protection (IP) CodeIP40
-
SKUWLONONWCROWWC
-
Manufacturer Part Number (MPN)100661575
-
EAN6936422147723
-
Model/Part NumberDS-3T1512HP-SI-8P4F
-
BrandHikvision
