The Hikvision DS-3E1106P-EI/M is a smart managed PoE switch featuring 4 x 10/100 Mbps PoE ports and 2 x 10/100 Mbps RJ45 uplink ports. It supports IEEE 802.3af/at, offers a total PoE budget of 45 W (max ~30 W per port), long-range PoE up to 300 m, 802.1Q VLAN, PoE watchdog for device restart,...
More

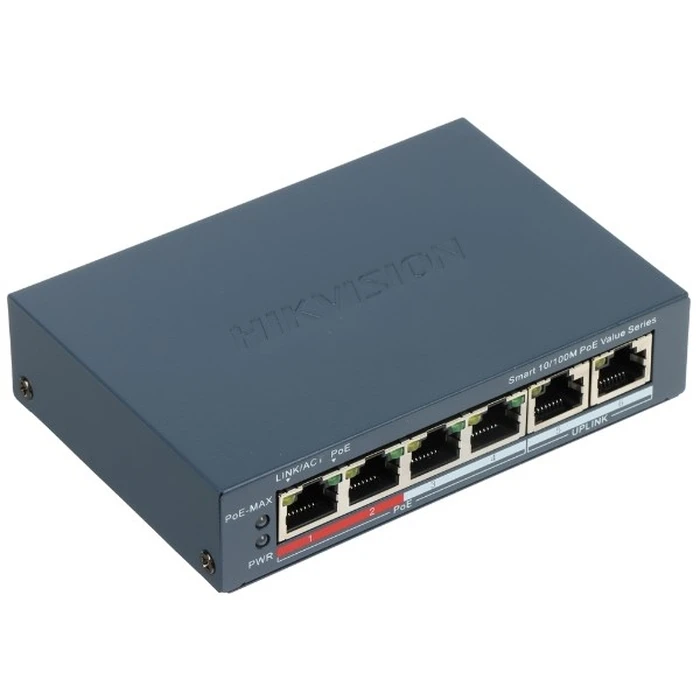

Hikvision DS-3E1106P-EI/M 4-Port Smart Managed PoE Switch (4x 10/100 PoE + 2x 10/100 uplink), 45W, Metal Housing, Grey
Product Code: 1127678649
Available in 4 - 10 days
58,68 €
or
1,83€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Hikvision DS-3E1106P-EI/M is a smart managed PoE switch featuring 4 x 10/100 Mbps PoE ports and 2 x 10/100 Mbps RJ45 uplink ports. It supports IEEE 802.3af/at, offers a total PoE budget of 45 W (max ~30 W per port), long-range PoE up to 300 m, 802.1Q VLAN, PoE watchdog for device restart, STP/RSTP loop prevention, cable fault detection and 6 kV surge protection. Metal housing, grey finish, desktop or wall-mountable. Note: ports are Fast Ethernet (10/100), not Gigabit.
-
BrandHikvision
-
Model / MPNDS-3E1106P-EI/M / 301802985
-
SKUWLONONWCROPPB
-
EAN / Barcode6942160449913
-
Product typeSmart managed PoE switch (Fast Ethernet)
-
Ports4 × 10/100 Mbps PoE ports; 2 × 10/100 Mbps RJ45 uplink ports
-
PoE total budget45 W
-
Max PoE per portUp to 30 W (depending on distribution)
-
PoE standards supportedIEEE 802.3af, IEEE 802.3at
-
Long-range PoEUp to 300 m
-
PoE pinoutEnd-span (1/2-, 3/6+)
-
Switching capacity14 Gbps
-
Packet forwarding rate10.42 Mpps
-
MAC address table2 K entries
-
Internal buffer1 Mbit
-
Power supply54 V DC, 0.92 A
-
Max power consumption~50 W
-
Surge protection6 kV
-
Management interfacesWeb GUI, Hik-Partner Pro, Hik-Central Pro
-
Protocols & features802.1Q VLAN, STP/RSTP, LLDP, SNMP v1/v2c, Link aggregation (static), Port isolation, PoE watchdog, Cable detection
-
Housing materialMetal
-
ColorGrey
-
Dimensions (device)121.1 × 27.6 × 83.1 mm
-
Product weight (net)270 g
-
Package weight (gross)~770 g
-
MountingDesk-mounted, wall-mounted
-
Operating temperature0 °C to 40 °C
-
Storage temperature-40 °C to 85 °C
-
Operating humidity5%–95% non-condensing
Ratings
Description
The Hikvision DS-3E1106P-EI/M is a smart managed PoE switch featuring 4 x 10/100 Mbps PoE ports and 2 x 10/100 Mbps RJ45 uplink ports. It supports IEEE 802.3af/at, offers a total PoE budget of 45 W (max ~30 W per port), long-range PoE up to 300 m, 802.1Q VLAN, PoE watchdog for device restart, STP/RSTP loop prevention, cable fault detection and 6 kV surge protection. Metal housing, grey finish, desktop or wall-mountable. Note: ports are Fast Ethernet (10/100), not Gigabit.
Technical Specifications
-
BrandHikvision
-
Model / MPNDS-3E1106P-EI/M / 301802985
-
SKUWLONONWCROPPB
-
EAN / Barcode6942160449913
-
Product typeSmart managed PoE switch (Fast Ethernet)
-
Ports4 × 10/100 Mbps PoE ports; 2 × 10/100 Mbps RJ45 uplink ports
-
PoE total budget45 W
-
Max PoE per portUp to 30 W (depending on distribution)
-
PoE standards supportedIEEE 802.3af, IEEE 802.3at
-
Long-range PoEUp to 300 m
-
PoE pinoutEnd-span (1/2-, 3/6+)
-
Switching capacity14 Gbps
-
Packet forwarding rate10.42 Mpps
-
MAC address table2 K entries
-
Internal buffer1 Mbit
-
Power supply54 V DC, 0.92 A
-
Max power consumption~50 W
-
Surge protection6 kV
-
Management interfacesWeb GUI, Hik-Partner Pro, Hik-Central Pro
-
Protocols & features802.1Q VLAN, STP/RSTP, LLDP, SNMP v1/v2c, Link aggregation (static), Port isolation, PoE watchdog, Cable detection
-
Housing materialMetal
-
ColorGrey
-
Dimensions (device)121.1 × 27.6 × 83.1 mm
-
Product weight (net)270 g
-
Package weight (gross)~770 g
-
MountingDesk-mounted, wall-mounted
-
Operating temperature0 °C to 40 °C
-
Storage temperature-40 °C to 85 °C
-
Operating humidity5%–95% non-condensing
