The Hikvision DS-3E0310HP-E is an unmanaged Layer 2 PoE switch designed for powering and connecting IP devices such as cameras and VoIP phones. It features eight 10/100 Mbps RJ-45 PoE ports and two Gigabit (1 Gbps) copper uplink ports. The total PoE budget is 110 W. The switch supports IEEE...
More

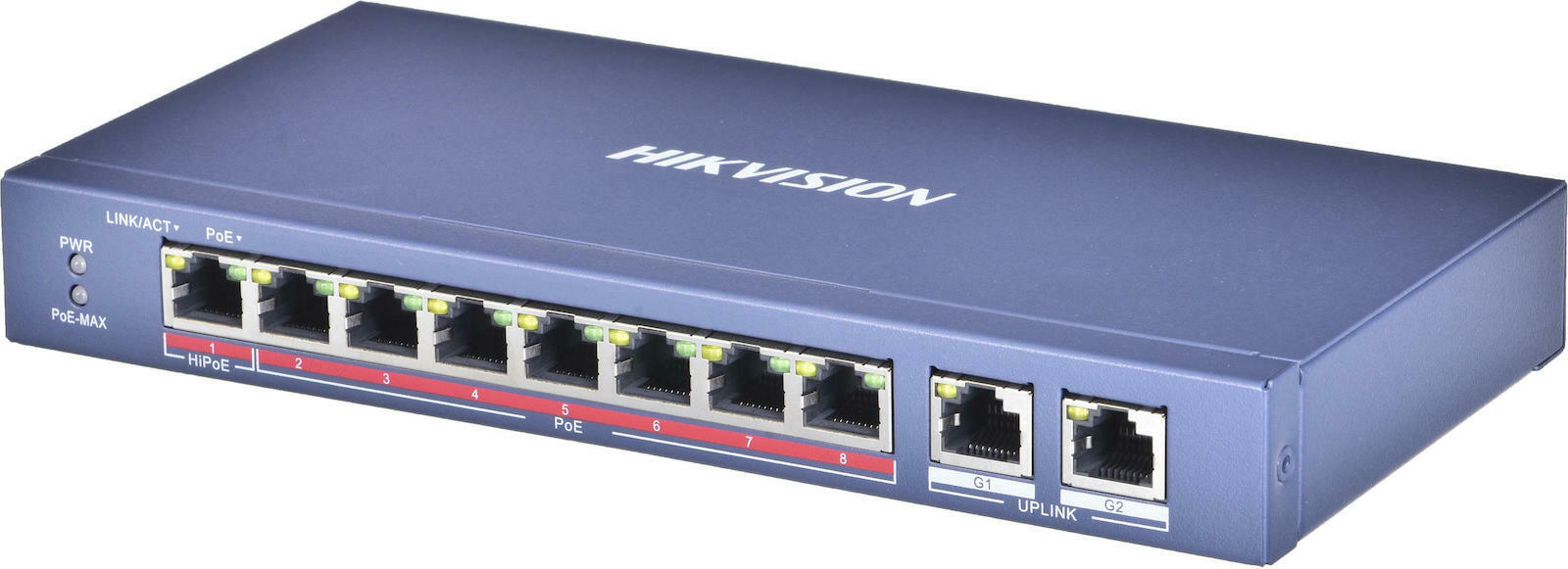

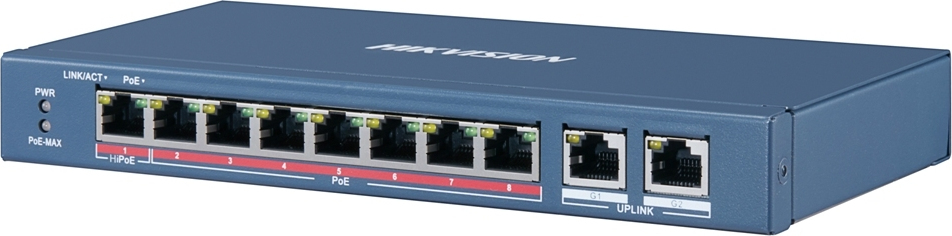

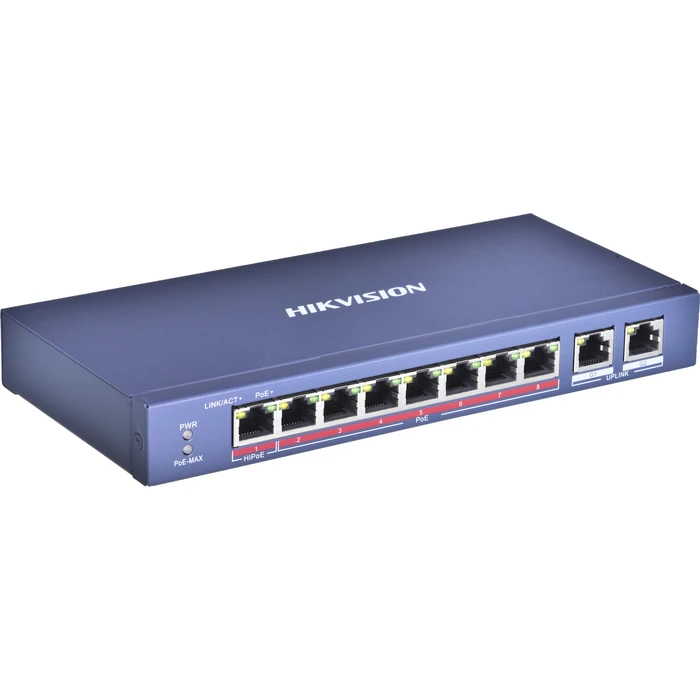

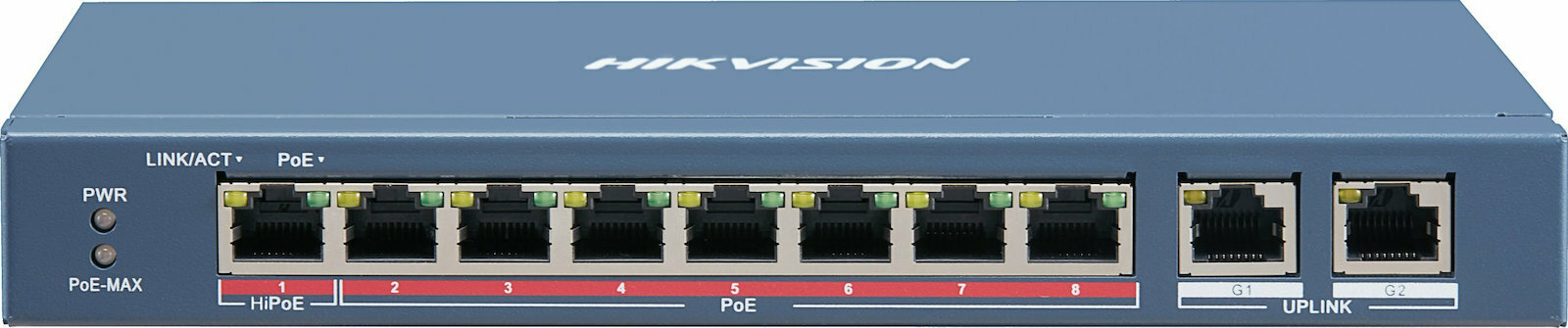

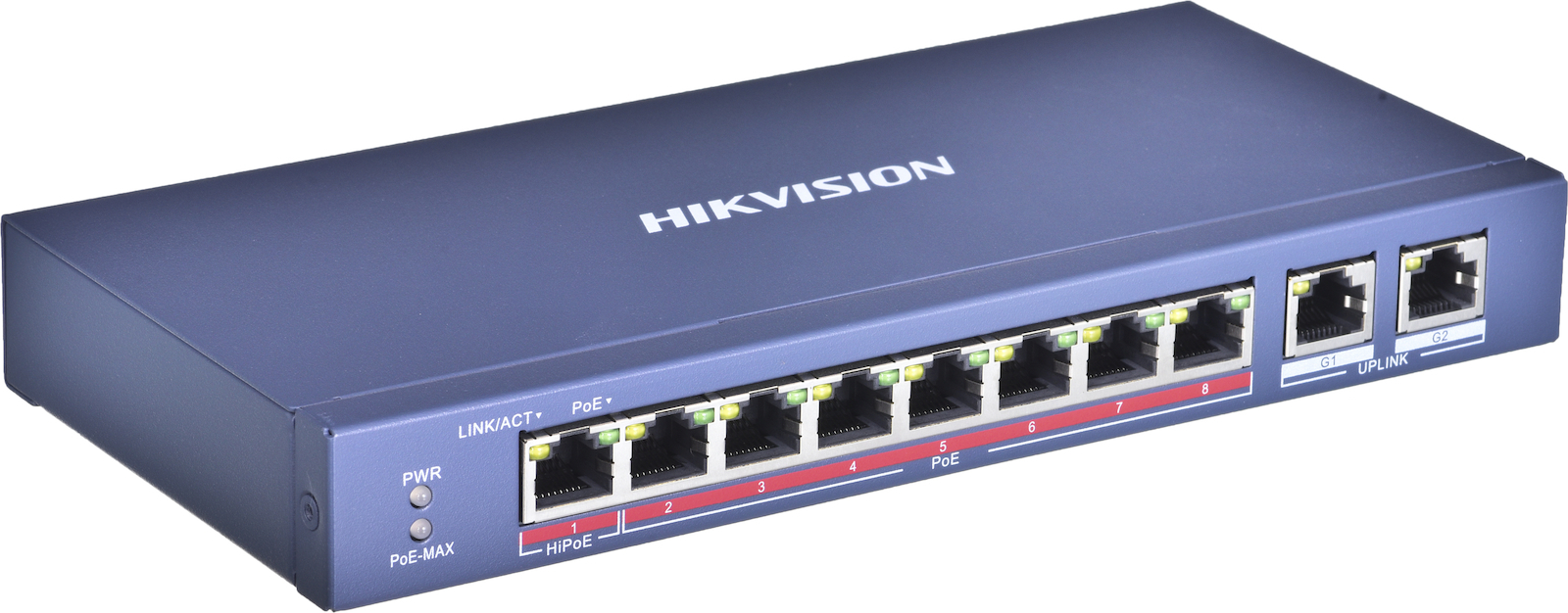

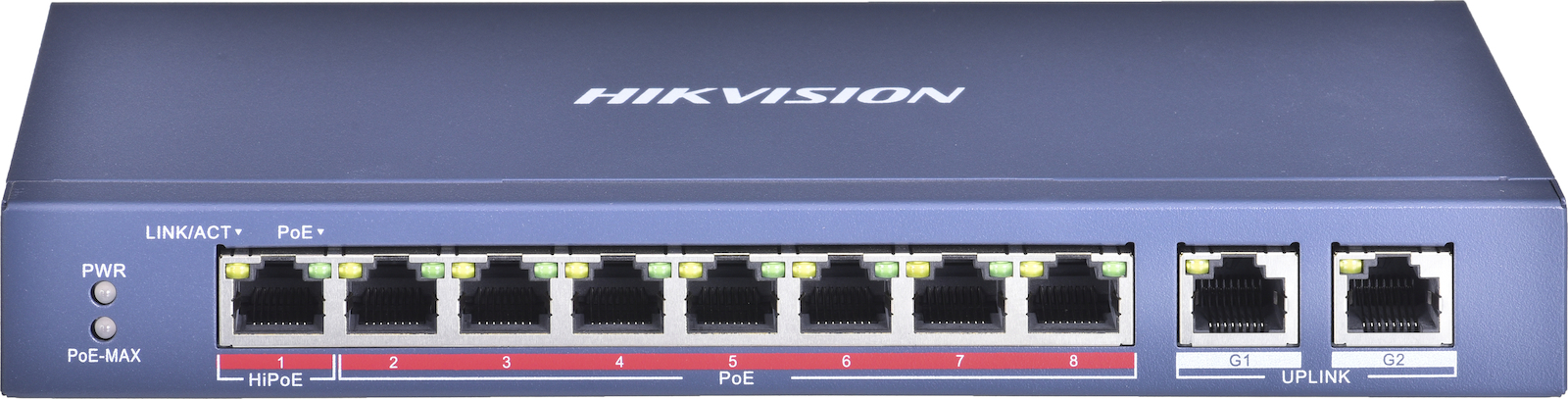

Hikvision DS-3E0310HP-E Unmanaged L2 PoE Switch (8 PoE x 10/100 + 2 Gigabit uplink)
Product Code: 1127681276
Upon Order
91,39 €
or
2,85€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Hikvision DS-3E0310HP-E is an unmanaged Layer 2 PoE switch designed for powering and connecting IP devices such as cameras and VoIP phones. It features eight 10/100 Mbps RJ-45 PoE ports and two Gigabit (1 Gbps) copper uplink ports. The total PoE budget is 110 W. The switch supports IEEE 802.3af/at/bt standards, store-and-forward switching, auto MDI/MDI-X and full duplex. It has a metal blue housing, measures 217.6 x 108.5 x 27.6 mm and weighs 560 g. Operating temperature range is 0–40 °C with 5–95% relative humidity. Suitable for small to medium surveillance and network deployments requiring PoE.
-
TypeUnmanaged
-
LayerL2 (Layer 2)
-
PoEYes
-
Total PoE budget110 W
-
PoE ports quantity8
-
PoE power per port90 W (listed)
-
Basic switching RJ-45 ports typeFast Ethernet (10/100)
-
Basic switching RJ-45 ports quantity8
-
Gigabit Ethernet (copper) ports quantity2
-
Switching capacity5.6 Gbit/s
-
Forwarding rate4.17 Mpps
-
MAC address table4000 entries
-
Store-and-forwardYes
-
Auto MDI/MDI-XYes
-
Full duplexYes
-
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
-
10G supportNo
-
LED indicatorsYes
-
Housing materialMetal
-
Product colourBlue
-

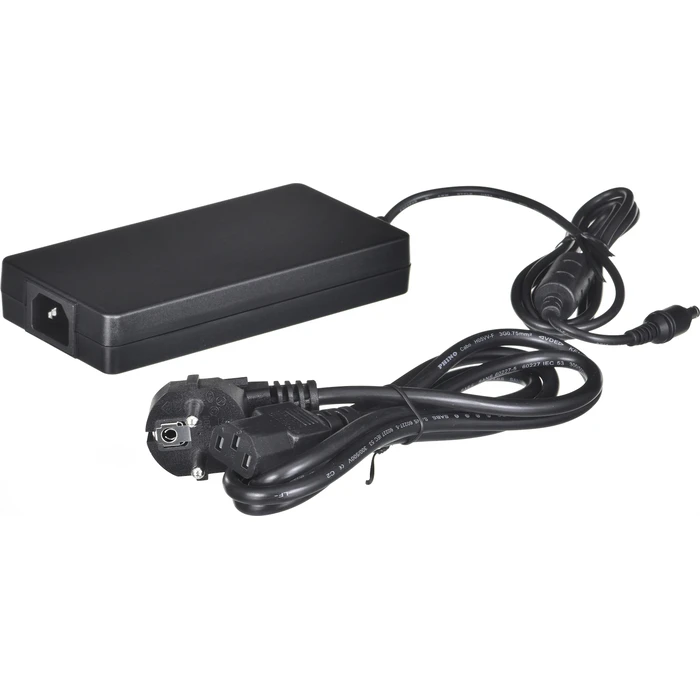

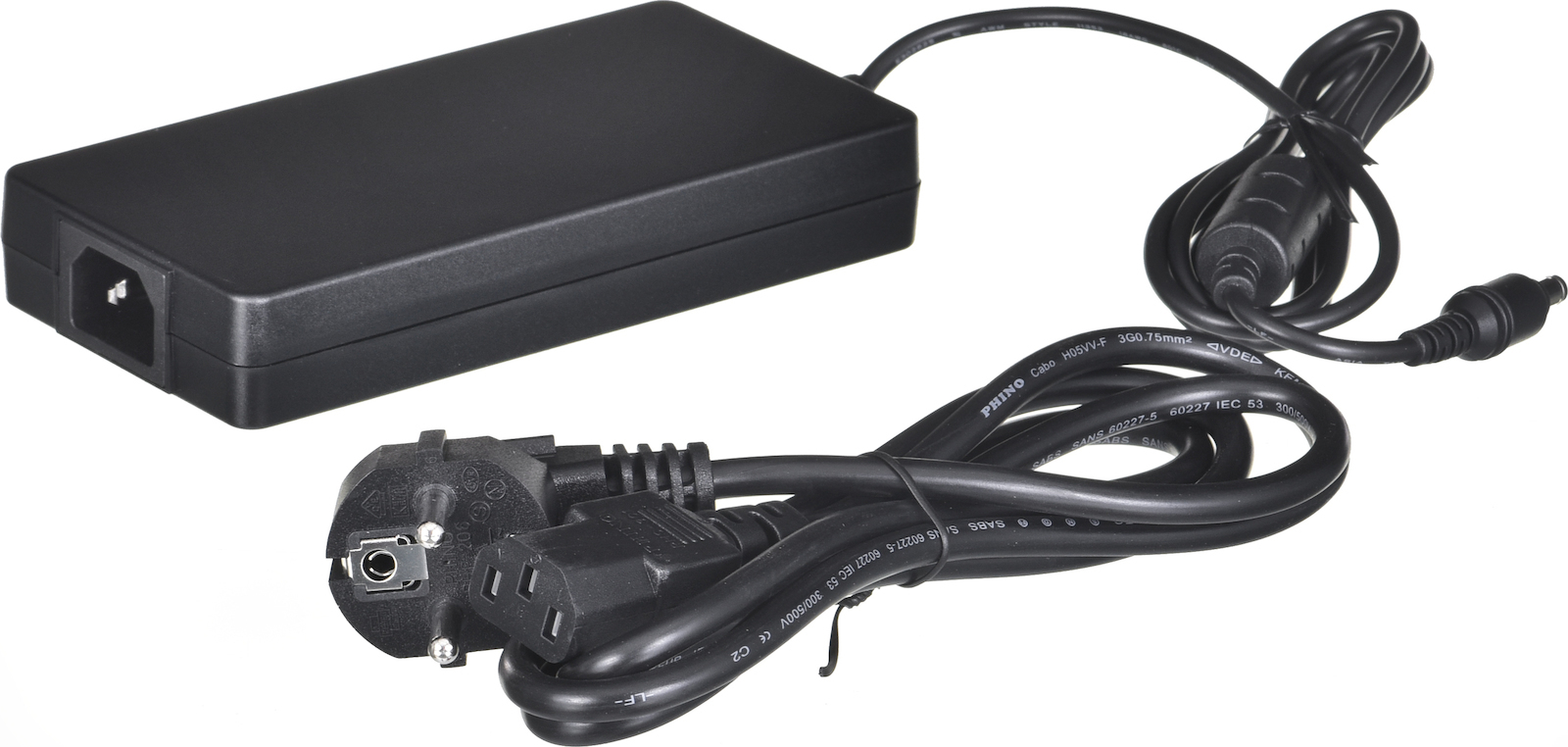

Power sourceDC
-
DC input voltage54 V
-
Input current2.22 A
-
Power consumption (typical)10 W
-
Power consumption (max)120 W
-
Operating temperature0 - 40 °C
-
Storage temperature-40 - 85 °C
-
Operating relative humidity5 - 95%
-
Storage relative humidity5 - 95%
-
Height27.6 mm
-
Depth108.5 mm
-
Width217.6 mm
-
Weight560 g
-
Package weight1270 g
Ratings
Description
The Hikvision DS-3E0310HP-E is an unmanaged Layer 2 PoE switch designed for powering and connecting IP devices such as cameras and VoIP phones. It features eight 10/100 Mbps RJ-45 PoE ports and two Gigabit (1 Gbps) copper uplink ports. The total PoE budget is 110 W. The switch supports IEEE 802.3af/at/bt standards, store-and-forward switching, auto MDI/MDI-X and full duplex. It has a metal blue housing, measures 217.6 x 108.5 x 27.6 mm and weighs 560 g. Operating temperature range is 0–40 °C with 5–95% relative humidity. Suitable for small to medium surveillance and network deployments requiring PoE.
Technical Specifications
-
TypeUnmanaged
-
LayerL2 (Layer 2)
-
PoEYes
-
Total PoE budget110 W
-
PoE ports quantity8
-
PoE power per port90 W (listed)
-
Basic switching RJ-45 ports typeFast Ethernet (10/100)
-
Basic switching RJ-45 ports quantity8
-
Gigabit Ethernet (copper) ports quantity2
-
Switching capacity5.6 Gbit/s
-
Forwarding rate4.17 Mpps
-
MAC address table4000 entries
-
Store-and-forwardYes
-
Auto MDI/MDI-XYes
-
Full duplexYes
-
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
-
10G supportNo
-
LED indicatorsYes
-
Housing materialMetal
-
Product colourBlue
-
Power sourceDC
-
DC input voltage54 V
-
Input current2.22 A
-
Power consumption (typical)10 W
-
Power consumption (max)120 W
-
Operating temperature0 - 40 °C
-
Storage temperature-40 - 85 °C
-
Operating relative humidity5 - 95%
-
Storage relative humidity5 - 95%
-
Height27.6 mm
-
Depth108.5 mm
-
Width217.6 mm
-
Weight560 g
-
Package weight1270 g
