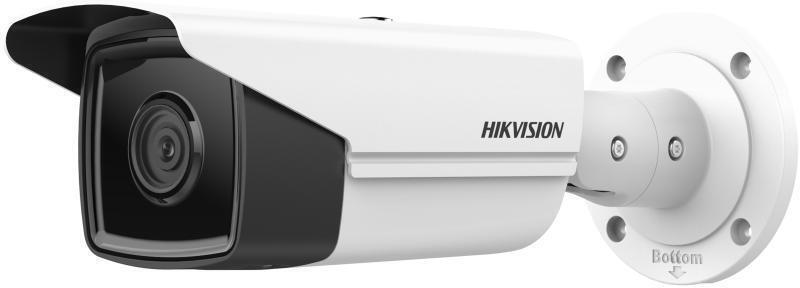

Hikvision DS-2CD2T83G2-2LI 4K IP Surveillance Camera, 2.8 mm Lens, IP67, IK10

Description

Technical Specifications

• Model
  DS-2CD2T83G2-2LI
• Form factor
  Bullet
• Brand
  Hikvision
• MPN
  50305
• EAN
  6942160462578
• Maximum resolution
  3840 x 2160 (4K)
• Sensor type
  CMOS progressive scan (1 / 2.8")
• Total video megapixels
  8 MP (4K)
• Lens focal length
  2.8 mm (fixed)
• Maximum aperture
  F1.6
• Lens viewing angle (diagonal)
  127°
• Lens viewing angle (horizontal)
  108°
• Lens viewing angle (vertical)
  59°
• Field of view (horizontal)
  108°
• Day/Night mode
  Yes (IR cut filter)
• Infra-red wavelength
  850 nm
• Night vision distance
  60 m
• LED type
  IR / White
• Minimum illumination
  0 lx (with IR/white light)
• Video compression
  H.265+, H.265, H.264+, H.264, M-JPEG
• Frame rate
  30 fps
• Wide Dynamic Range (WDR)
  Yes (120 dB)
• Noise reduction
  3D DNR
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Region of Interest (ROI)
  Yes
• Bit rate control
  CBR / VBR
• Bit rate range
  32 Kbps - 16 Mbps
• Video streaming
  Yes
• Video recording
  Yes
• Motion detection
  Yes
• Behavior analysis
  Intrusion detection, Line crossing detection
• Human & vehicle classification
  Yes
• Active tampering alarm
  Yes
• Privacy masking areas
  8
• Number of sensors
  1
• Optical sensor size
  1 / 2.8" (25.4 / 2.8 mm)
• Shutter speed
  1/3 - 1/100000 s
• Recognize/Identify/Observe/Detect distances
  Recognize 16 m
• Storage (local)
  microSDXC / microSDHC / MicroSD up to 512 GB
• Built-in HDD
  No
• Network storage
  NAS supported
• Automatic Network Replenishment (ANR)
  Yes
• Network interface
  1 x Ethernet (RJ-45) Fast Ethernet
• Networking standards
  IEEE 802.1x, IEEE 802.3at
• PoE support
  Yes (Power over Ethernet)
• Power input
  DC 12 V or PoE
• Power consumption (PoE)
  9.5 W
• Power consumption (max)
  8 W (listed)
• Operating temperature range
  -30 °C to 60 °C
• Operating relative humidity
  0 - 95%
• Storage temperature range
  -30 °C to 60 °C
• Storage relative humidity
  0 - 95%
• Ingress protection
  IP67 (dust tight, water protection)
• Vandal resistance
  IK10
• Housing material
  Metal
• Product colour
  White
• Mounting type
  Ceiling / Wall
• Placement supported
  Outdoor
• Connectivity technology
  Wired
• Wi‑Fi
  No
• 4G
  No
• Bluetooth
  No
• Ethernet LAN
  Yes
• Ethernet ports
  1
• Number of users supported
  32
• Simultaneous live view channels
  6
• User access levels
  Administrator, Operator, User
• Web-based management
  Yes
• Mobile app
  Yes
• Security features
  Password protection, HTTPS/TLS, Digest authentication, IP address filtering, Password reset via email
• Audit & logs
  Audit log, Flash log, Heartbeat
• Tamper / warnings
  Active tampering alarm
• Certifications
  REACH, RoHS, CB, KC, WEEE, RCM

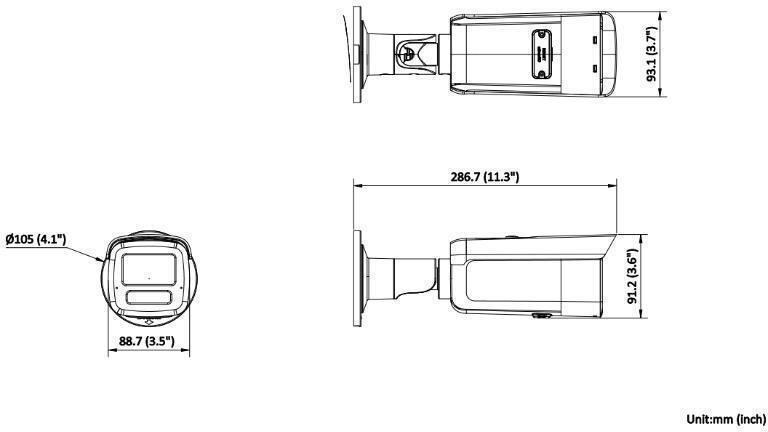

• Dimensions (HxWxL)
  93.1 mm x 88.7 mm x 286.7 mm
• Product weight
  1.16 kg
• Package weight
  1.66 kg
• Package dimensions (HxWxD)
  15.5 cm x 38.6 cm x 15.6 cm
• Maximum memory card size
  512 GB
• Compatible memory cards
  microSDXC, microSDHC, MicroSD (TransFlash)
• Lens count
  1
• Number of privacy masking areas
  8
• Signal-to-Noise Ratio (SNR)
  52 dB
• Dynamic range
  120 dB
• Camera type
  IP security camera
