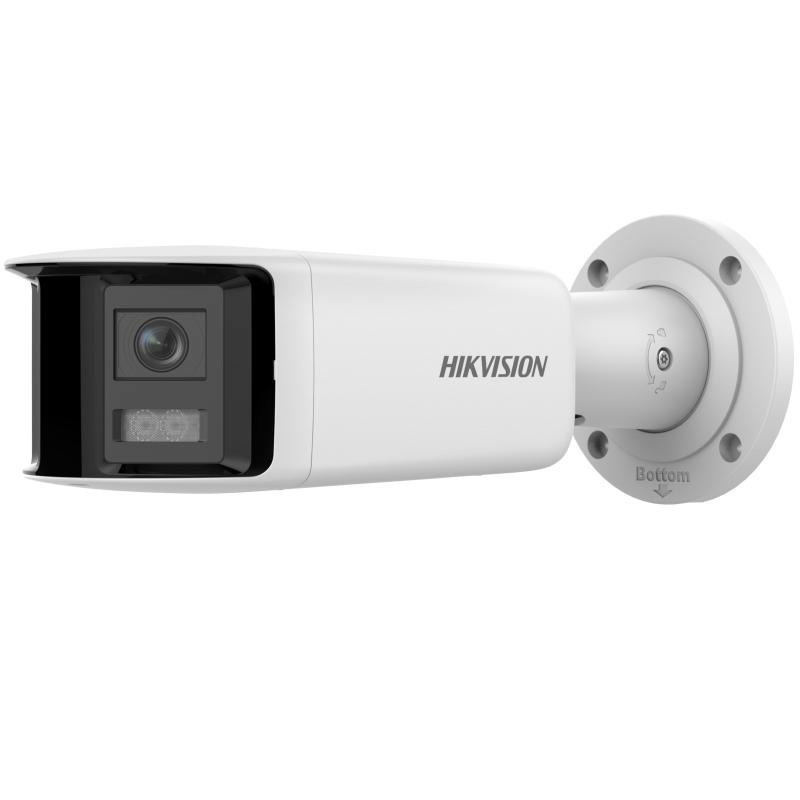

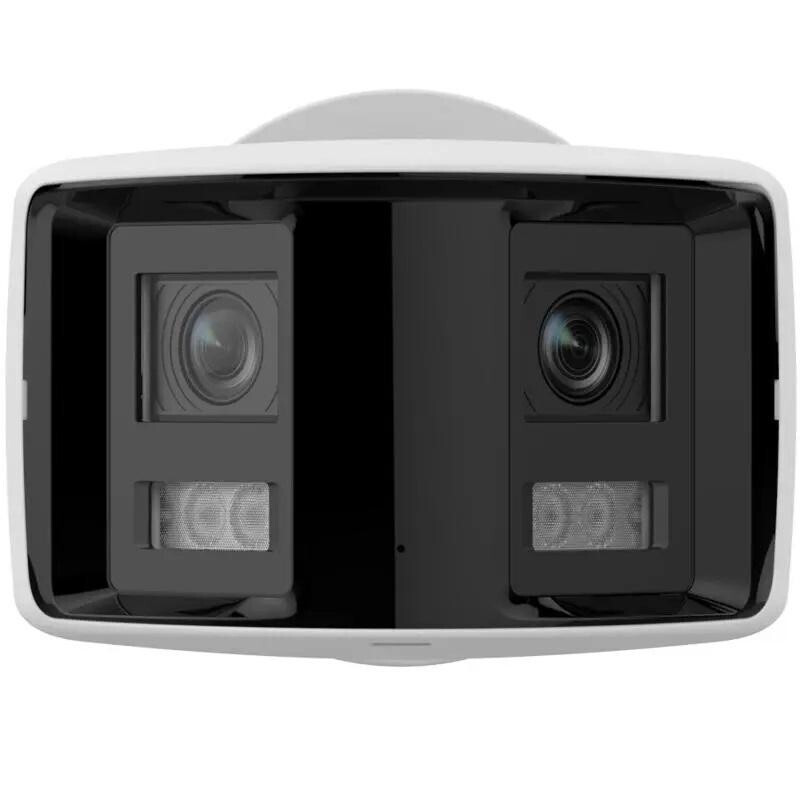

Hikvision DS-2CD2T66G2P-ISU/SL(C) IP Surveillance Camera Full HD+ 6MP Waterproof with 2.8 mm Lens

Description

Technical Specifications

• Type
  Bullet IP camera
• Brand
  Hikvision
• Model
  DS-2CD2T66G2P-ISU/SL(C)
• Total Megapixels
  6 MP
• Maximum resolution
  3632 x 1632 pixels
• Sensor type
  CMOS
• Optical sensor size
  1/2.5" (25.4 / 2.5 mm)
• Number of sensors
  2
• Progressive scan
  Yes
• Lens focal length
  2.8 mm (fixed)
• Maximum aperture number
  f/1.6
• Lens viewing angle (horizontal)
  180°
• Lens viewing angle (vertical)
  81°
• Night vision
  Yes
• Infrared (IR) wavelength
  850 nm
• Night vision distance
  40 m
• Minimum illumination
  0 lx
• Wide Dynamic Range (WDR)
  Yes (120 dB)
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Noise reduction
  3D noise reduction
• Image adjustment
  Contrast, Sharpness, Saturation, Brightness
• Video compression formats
  H.264, H.264+, H.265, H.265+, M-JPEG
• Frame rate
  20 fps
• Bit rate range
  32 Kbps - 16 Mbps
• Bit rate control
  CBR / VBR
• Region of Interest (ROI)
  Yes
• Smart/Analytics features
  Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Pixel counter
• Video motion detection
  Yes
• Digital watermark
  Yes
• Audio input channels
  1
• Audio output channels
  1
• Audio codecs
  G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Alarm input channels
  1
• Alarm output channels
  1
• Reset button
  Yes
• Storage type
  microSDHC / microSDXC / microSD (TransFlash)
• Maximum memory card size
  256 GB
• Built-in HDD
  No
• Ethernet interface
  1 x RJ-45 Fast Ethernet
• Networking standards
  IEEE 802.1x
• Connectivity technology
  Wired
• PoE support
  Yes (Power over Ethernet)
• Power source
  12 V DC or PoE
• Power consumption (max)
  10.5 W (12.5 W PoE)
• DC output voltage
  12 V
• DC output current
  0.88 A
• Security protocols
  TLS, HTTPS, IP address filtering, Password protection
• Heartbeat
  Yes
• Anti-flicker
  Yes
• Mirror
  Yes
• Day/Night mode
  Yes (IR cut-off filter)
• Placement supported
  Indoor & outdoor
• Ingress protection (IP) code
  IP67
• Housing material
  Metal
• Product colour
  White
• Dimensions (H x W x L)
  105.1 mm x 118.6 mm x 306.5 mm
• Weight
  1.4 kg
• Operating temperature
  -30 - 60 °C
• Storage temperature
  -30 - 60 °C
• Operating relative humidity
  0 - 95%
• Storage relative humidity
  0 - 95%
• Number of users supported
  32
• Live view channels
  Yes
• Simultaneous live view channels
  6
• Number of languages
  33
• Signal-to-Noise Ratio (SNR)
  52 dB
• Detect/Observe/Recognize/Identify distances
  Detect 42 m, Observe 16.5 m, Recognize 8 m, Identify 4 m
• Tilt range
  0 - 90°
• Pan range
  0 - 355°
• Rotation angle
  360°
• Camera shutter speed
  1/3 - 1/100000 s
• Noise reduction technology
  3DNR
• Dynamic range
  120 dB
• Image quality controls
  Yes
• Warnings
  Avoid direct contact with water; ensure proper installation and protection against falling; do not dispose with household waste.
