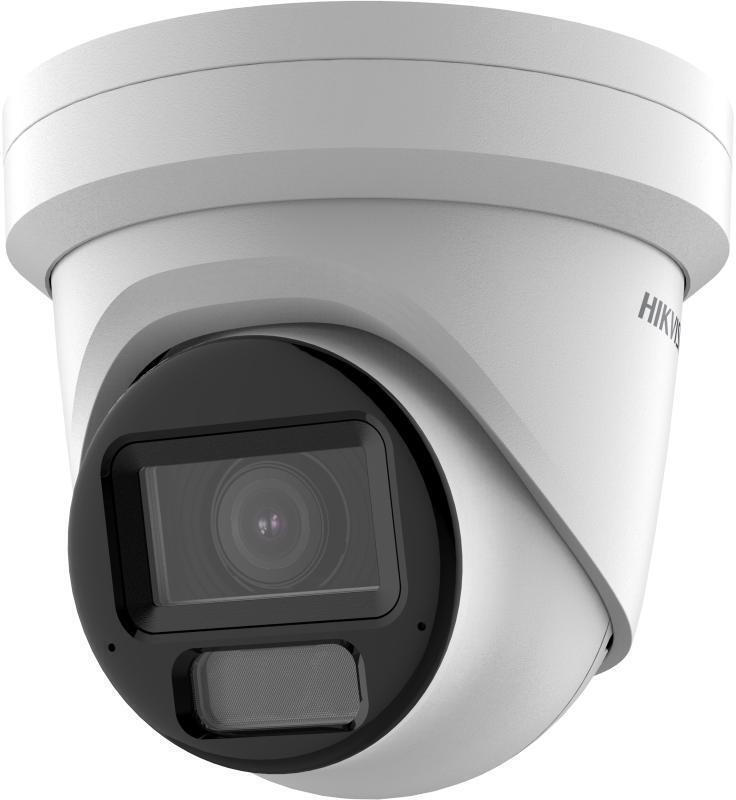

Hikvision DS-2CD2H43G2-LIZS2U IP Surveillance Camera 4MP Full HD+ Outdoor Turret with Microphone and 2.8-12mm Lens

Description

Technical Specifications

• Model
  DS-2CD2H43G2-LIZS2U
• Type
  IP turret/dome surveillance camera
• Image sensor
  1 / 3" CMOS, 4 MP total (single sensor)
• Maximum resolution
  2688 x 1520 (4 MP)
• Frame rate
  Up to 30 fps
• Lens
  2.8 - 12 mm varifocal lens
• Field of view (horizontal)
  102.4° - 31.2°
• Aperture (max)
  F1.6
• Optical zoom
  Yes (varifocal 2.8-12 mm)
• Night vision
  Yes, IR/White LED, Smart IR
• Night vision distance
  Up to 40 m
• IR wavelength
  850 nm
• Video compression
  H.265, H.265+, H.264, H.264+, M-JPEG
• Wide Dynamic Range (WDR)
  Yes, 120 dB
• Noise reduction
  3D DNR
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Day/Night mode
  Yes (IR cut filter)
• Privacy masking
  Yes, up to 8 areas
• Region of Interest (ROI)
  Yes
• Video streaming
  Yes, multiple streams
• Bit rate range
  32 Kbps - 8 Mbps
• Audio
  Built-in microphone(s), audio input 1 channel, audio output 1 channel
• Audio formats
  G.722.1, G.711 μ-law, G.726, PCM, G.711 A-law, AAC-LC, MP2L2, MP3
• Intelligent features
  IVS: intrusion detection, line crossing; Face detection; Human and vehicle classification
• Security features
  HTTPS encryption, digest authentication, password protection, password reset via email, IP address filtering, audit/flash logs
• Storage
  microSD / microSDHC / microSDXC up to 512 GB, NAS, ANR support
• Networking
  Ethernet (RJ-45) 10/100, IEEE 802.3af (PoE)
• Power source
  12 V DC or PoE (802.3af)
• Power consumption
  max 10.56 W (DC) / 12.5 W (PoE)
• Housing material
  Metal
• Ingress protection
  IP67 (water & dust resistant)
• Impact protection
  IK10
• Operating temperature
  -30 °C to 60 °C
• Operating humidity
  0 - 95% RH

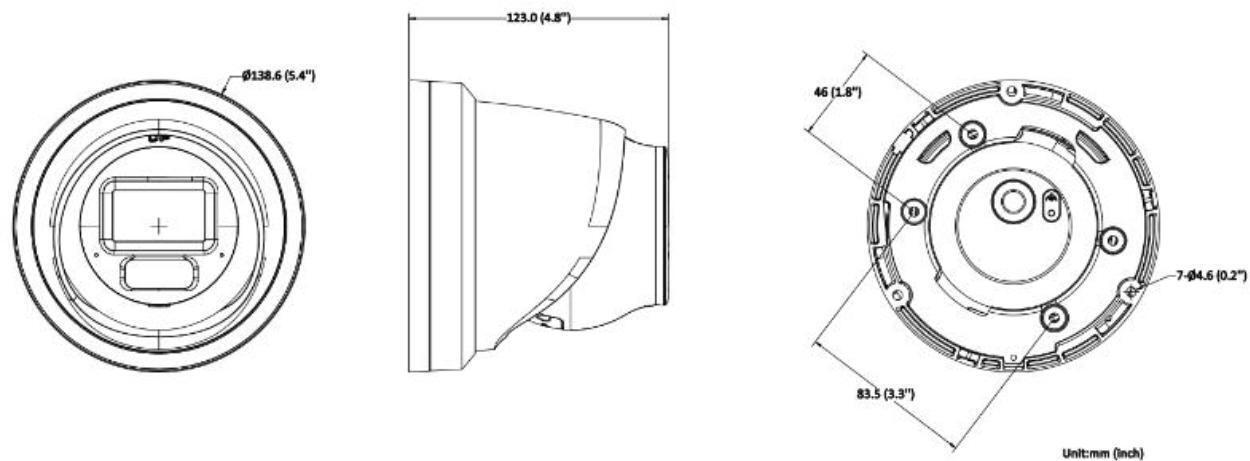

• Dimensions
  Diameter 139 mm, Height 123 mm
• Weight
  860 g
• Package weight
  1.15 kg
• Color
  White
• Mounting
  Ceiling/wall (turret), outdoor placement supported
• Browser support
  IE10/IE11, Chrome 57+, Firefox 52+
• Client compatibility
  iVMS-4200, Hik-Connect, Hik-Central
• Compliance
  CE, RoHS, CB, UL, LVD
• Warnings
  Contains electronic components – do not dispose with household waste; avoid direct water contact during installation; ensure proper installation and mechanical protection
