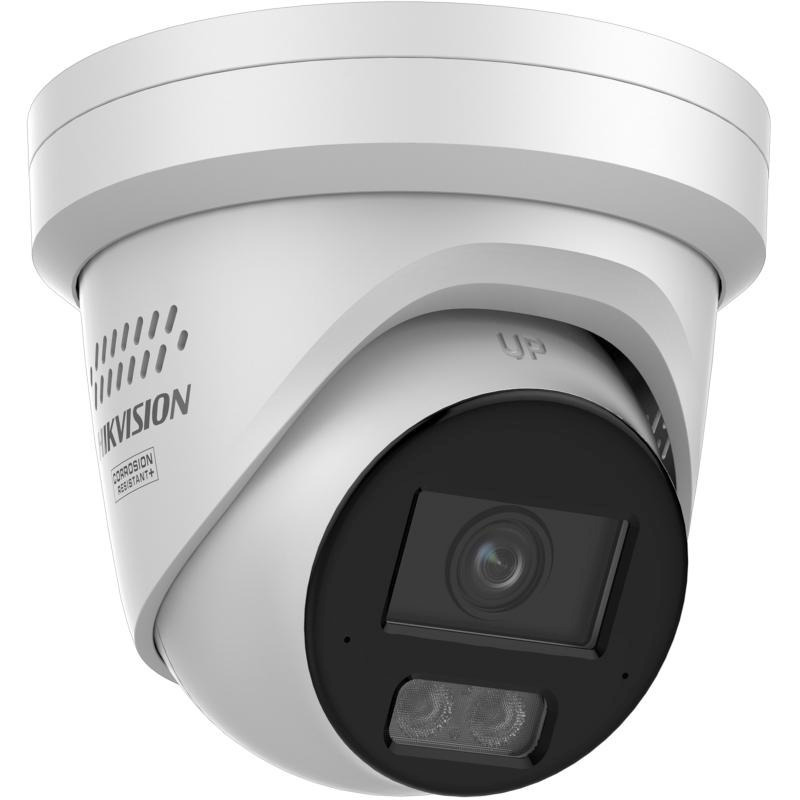

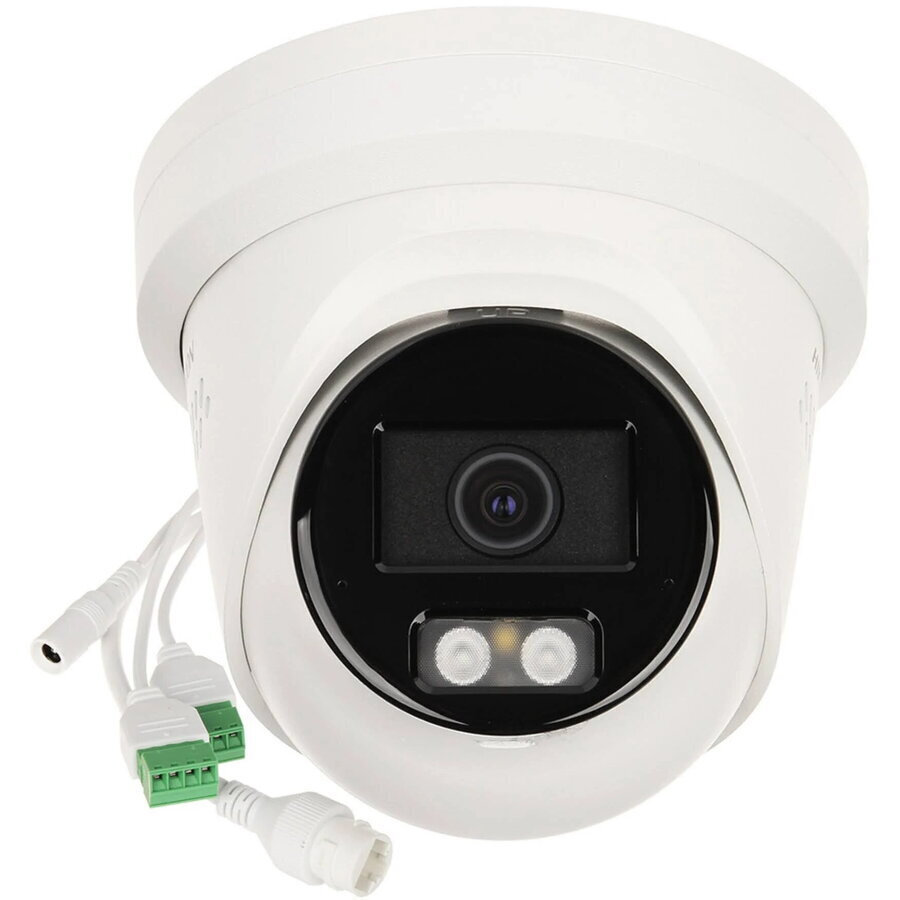

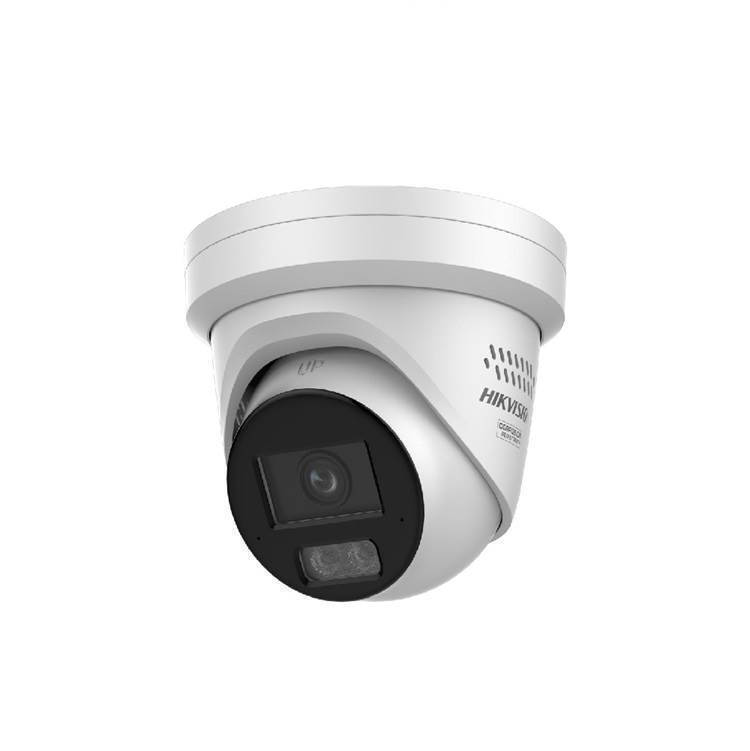

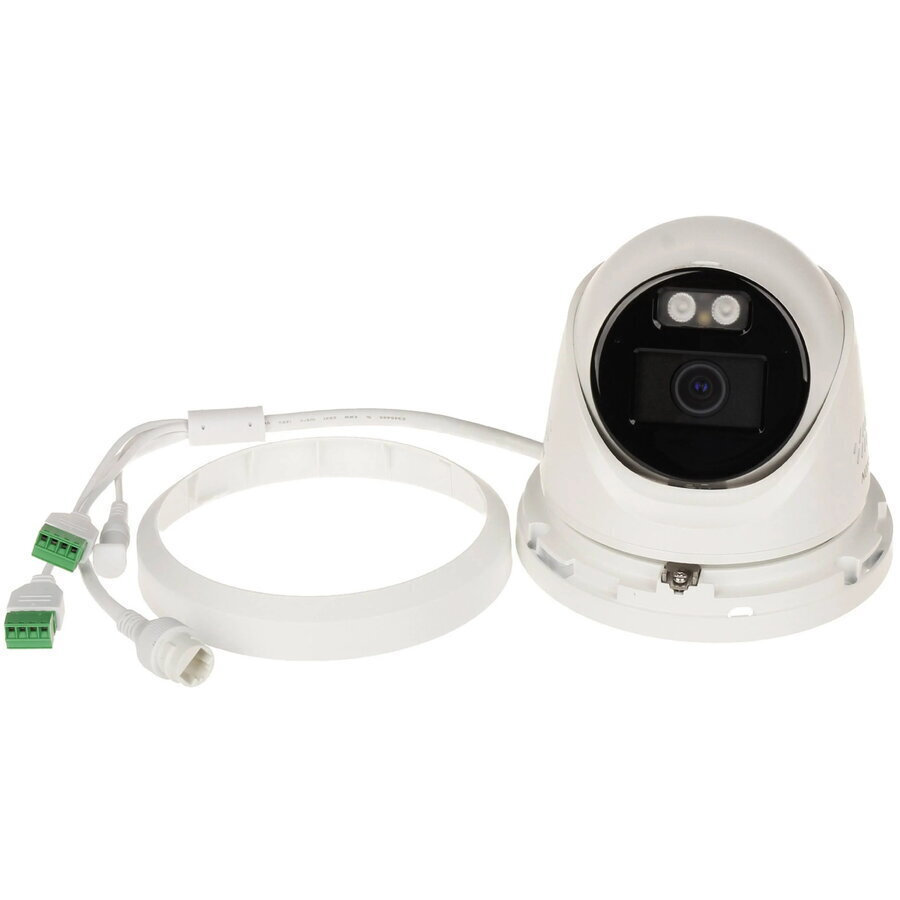

Hikvision DS-2CD2387G3-LIS2UY/SL 4K IP Turret Camera 2.8mm, Built-in Light, Two-way Audio, IP67, IK10

Description

Technical Specifications

• Product Type
  IP turret security camera
• Total Megapixels
  8 MP
• Maximum Resolution
  3840 x 2160 (4K)
• Sensor Type
  CMOS progressive scan (1/1.8")
• Lens Focal Length
  2.8 mm (fixed)
• Field of View (Diagonal)
  134.3°
• Field of View (Horizontal)
  108.8°
• Field of View (Vertical)
  56.4°
• Frame Rate
  30 fps
• Video Compression
  H.265, H.265+, H.264, H.264+
• Supported Video Modes
  1520p, 2160p
• Wide Dynamic Range (WDR)
  Yes (130 dB)
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Noise Reduction
  3D noise reduction
• Smart Features
  Human & vehicle targets classification, Video motion detection, Pixel counter, Region of Interest (ROI)
• Audio
  Built-in microphone and speaker, Two-way audio, Audio formats: MP2L2, MP3, G.722.1, AAC-LC, G.711 μ-law, G.711 A-law
• Built-in Light
  Yes (IR + white light), IR wavelength 850 nm
• Night Vision Distance
  30 m (IR)
• Observe/Detect/Recognize/Identify Distances
  Observe: 35 m; Detect: 89 m; Recognize: 17 m; Identify: 8 m
• Lens Type
  Fixed focus, 1 lens
• PTZ
  No (fixed turret) but pan range 0–360° / tilt 0–75° for mounting orientation
• Privacy Protection
  Yes (up to 4 privacy masking areas)
• Storage Options
  microSD (microSDHC, microSDXC) up to 512 GB, NAS, ANR support
• Power Supply
  12V DC, PoE (Power over Ethernet)
• Power Consumption (PoE)
  17 W
• Power Consumption (max)
  15.5 W
• Network Interfaces
  1 × RJ-45 Ethernet (Wired only, no Wi‑Fi)
• Remote Management
  Yes; Management software: iVMS-4200, Hik-Connect, Hik-Central
• Cloud Managed
  Yes
• Security / Authentication
  Digest authentication, Password reset via email, Audit log, Flash log, Heartbeat
• Environmental Ratings
  IP67 (waterproof), IK10 (vandal resistant)
• Operating Temperature
  −30 to 60 °C
• Storage Temperature
  −30 to 60 °C
• Operating Humidity
  0 - 95% RH
• Storage Relative Humidity
  0 - 95% RH

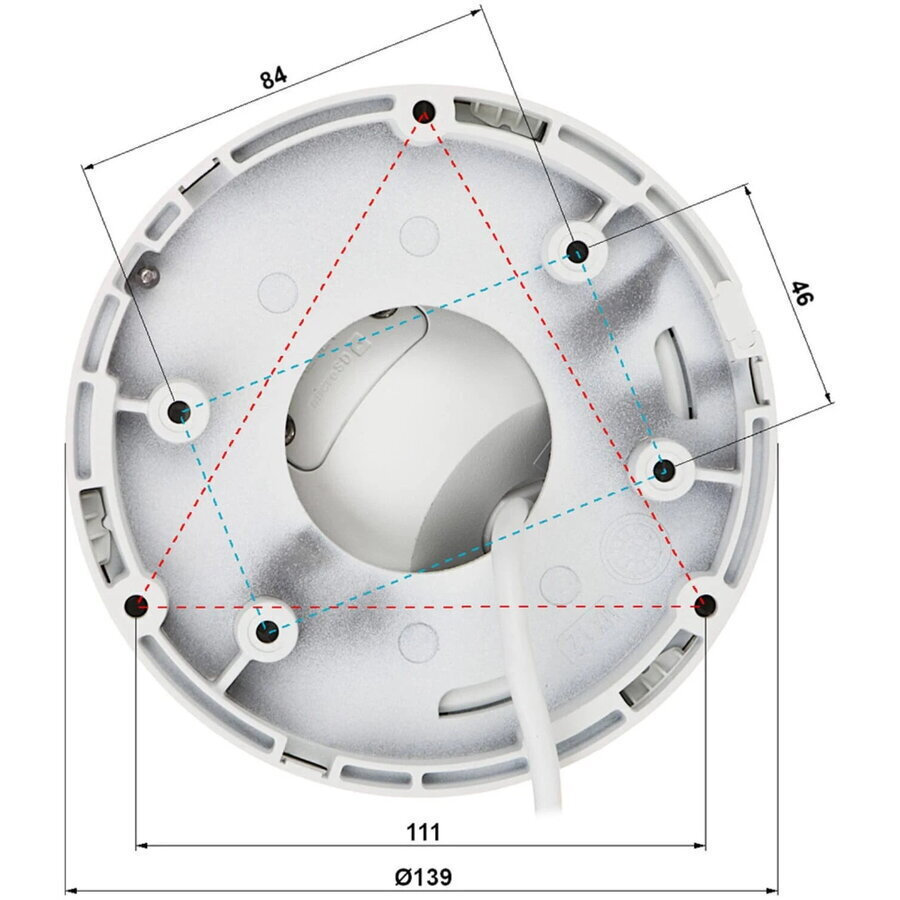

• Dimensions (Camera)
  Diameter 138 mm, Height 115.4 mm
• Weight (Camera)
  820 g
• Package Weight
  1200 g
• Physical Color
  White
• Mounting Type
  Ceiling (also suitable for indoor & outdoor mounting)
• Maximum Users / Access
  32 users (Administrator, Operator, User)
• Simultaneous Live View Channels
  6 channels
• Languages Supported
  33
• Dynamic Range Technology
  WDR
• Smart IR/Human detection/Anti-flicker
  Yes
• Mirror
  Yes
• Number of Alarm Inputs / Outputs
  1 input, 1 output
• Number of Privacy Masking Areas
  4
• Card Reader Integrated
  Yes (microSD)
• Bit Rate Range
  8 - 320 Kbit/s (audio) ; Video bit rate 32 Kbps to 8 Mbps
• Video Shutter Speed
  1 - 1/100000 s
• Sensor SNR
  52 dB
• Memory/Card Compatibility
  microSDHC, microSDXC, MicroSD (TransFlash)
• Package Contents
  1 × camera, manual (other accessories as per package)
• Model / MPN
  20104585000
• EAN
  6936422107475
