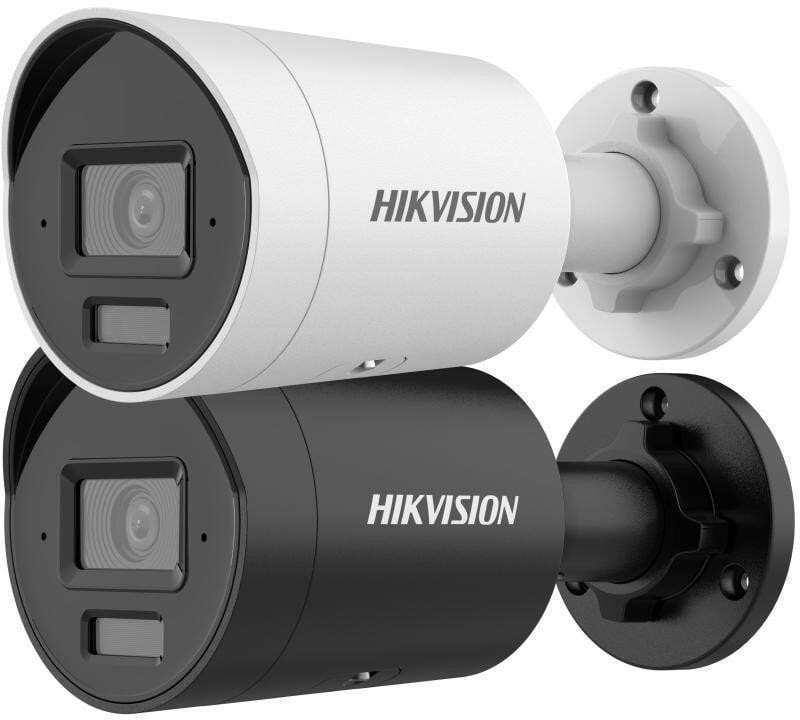

Hikvision DS-2CD2063G2-LI2U 6MP IP Bullet Surveillance Camera, 4mm Lens, IP67, Built-in Microphone

Description

Technical Specifications

• Model
  DS-2CD2063G2-LI2U
• Type
  IP Bullet Security Camera
• Brand
  Hikvision
• Total Megapixels
  6 MP
• Maximum Resolution
  3200 x 1800 pixels
• Sensor Type
  CMOS
• Optical Sensor Size
  1/2.4"
• Number of Sensors
  1
• Frame Rate
  30 fps
• Lens Focal Length
  4 mm (fixed)
• Maximum Aperture Number
  F/1.6
• Lens Viewing Angle (Horizontal)
  84°
• Lens Viewing Angle (Vertical)
  45°
• Lens Viewing Angle (Diagonal)
  100°
• Form Factor
  Bullet
• Housing Material
  Metal
• Product Colour
  White
• Ingress Protection (IP) Code
  IP67
• Mounting Type
  Ceiling / Wall
• Power Supply
  12 V DC, PoE (IEEE 802.3af)
• Power Consumption (PoE)
  7.5 W
• Power Consumption (max)
  6 W
• DC Output Voltage
  12 V
• DC Output Current
  0.5 A
• Ethernet Interface
  Fast Ethernet (RJ-45)
• Networking Standards
  IEEE 802.3af
• Connectivity Technology
  Wired
• Built-in Microphone
  Yes
• Audio Codecs
  G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate Range (Audio)
  32 - 320 Kbit/s
• Sample Rates (Audio)
  8 - 48 kHz
• Video Compression Formats
  H.265+, H.265, H.264+, H.264, M-JPEG
• Bit Rate Control
  CBR / VBR
• Region of Interest (ROI) Encoding
  Yes
• Wide Dynamic Range (WDR)
  Yes (120 dB)
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Noise Reduction
  3D Noise Reduction
• Minimum Illumination
  0 lx
• Infra-red Wavelength
  850 nm
• Night Vision
  Yes
• Night Vision Distance
  40 m
• LED Type
  IR / White
• Detect Distance
  78 m
• Observe Distance
  31 m
• Recognize Distance
  15 m
• Identify Distance
  7 m
• Day/Night Mode
  Yes
• Storage Options
  microSD (TransFlash), microSDHC, microSDXC
• Maximum Memory Card Size
  512 GB
• Card Reader Integrated
  Yes
• Number of Lenses
  1
• Camera Shutter Speed
  1/3 - 1/100000 s
• Progressive Scan
  Yes
• Signal-to-Noise Ratio (SNR)
  52 dB
• Security Features
  Password protection, HTTPS encryption, Digest authentication, IP address filtering, Active tampering alarm, Password reset via email, Heartbeat, Flash log, Audit log
• Behavior Analysis
  Line crossing detection
• Video Motion Detection
  Yes
• Mirror
  Yes
• Reset Button
  Yes
• User Access Levels
  Administrator, Operator, User
• Number of Users Supported
  32
• Number of Simultaneous Live View Channels
  6
• Live View
  Yes
• Web Browser Management
  Yes
• Mobile App Support
  Yes
• Languages Supported
  Multi (33 languages)
• Operating Temperature
  -30 - 60 °C
• Storage Temperature
  -30 - 60 °C
• Operating Relative Humidity
  0 - 95% RH
• Storage Relative Humidity
  0 - 95% RH
• Package Weight
  760 g
• Package Dimensions (W x L x H)
  23.4 x 12.0 x 11.7 cm
• Product Weight
  515 g
• Product Dimensions
  Length 176.3 mm; Diameter 74.4 mm
• Warnings
  Contains electronic components - do not dispose with household waste; Avoid direct contact with water; Ensure proper installation and fall protection
