HC-SR04 ultrasonic distance sensor module. Operating voltage: 3–5.5 V. Operating temperature: -20 to 80 °C. Quiescent current < 2 mA. Sensor beam angle < 15°. Detection range: 2 cm to 450 cm with accuracy up to 3 mm. 4-pin interface (VCC, Trig, Echo, GND). Compatible with Arduino and other...
More

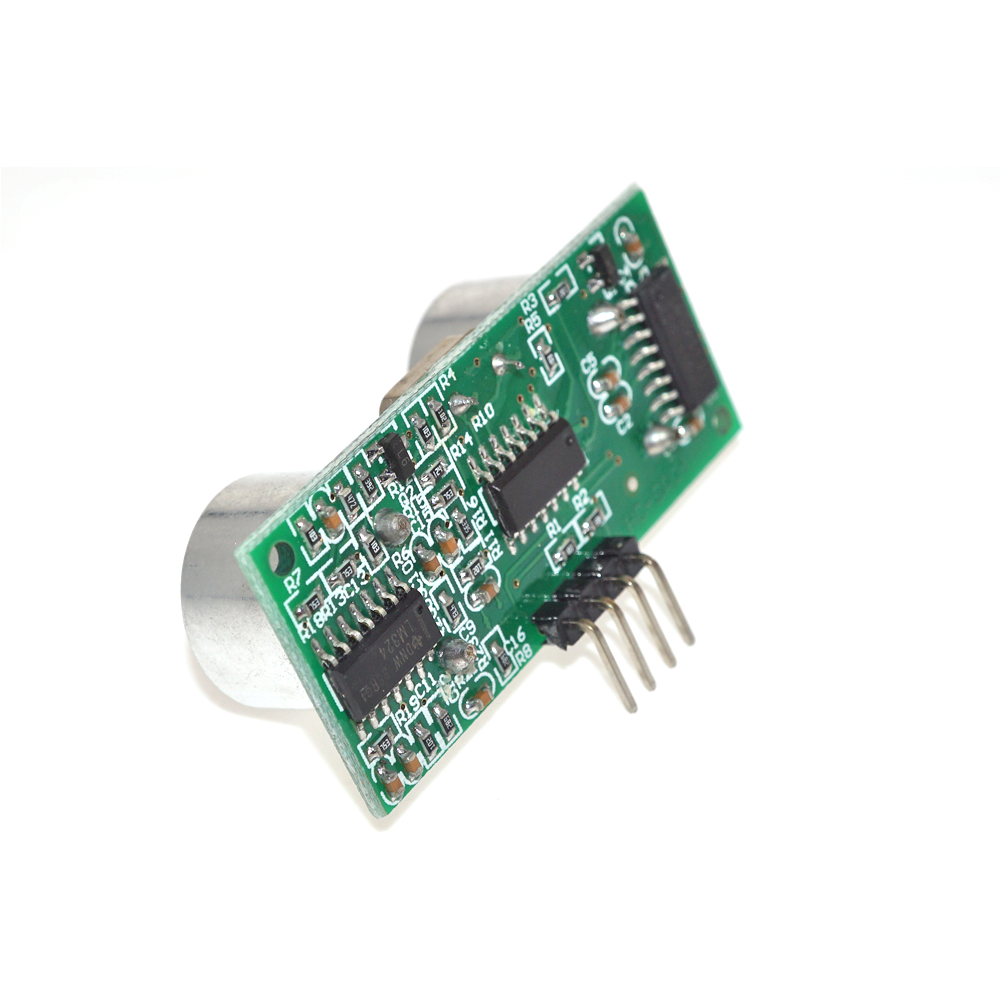

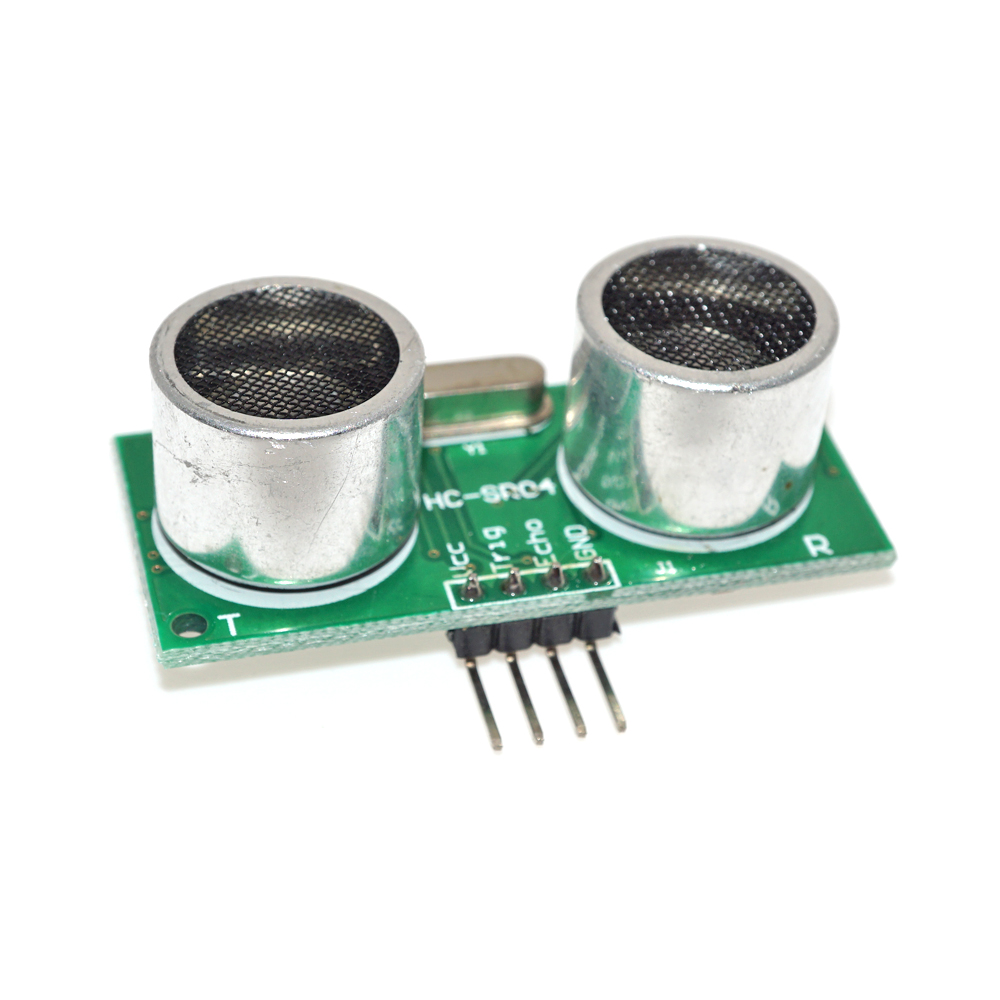

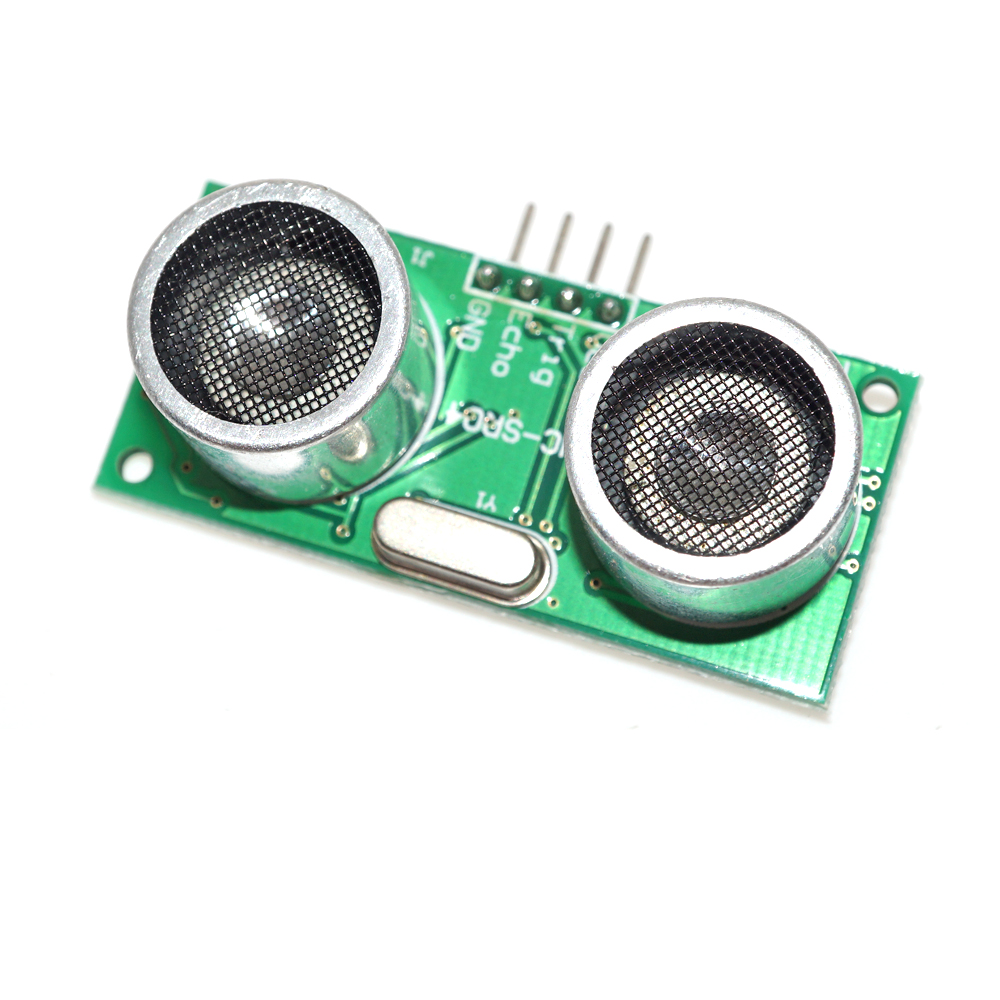

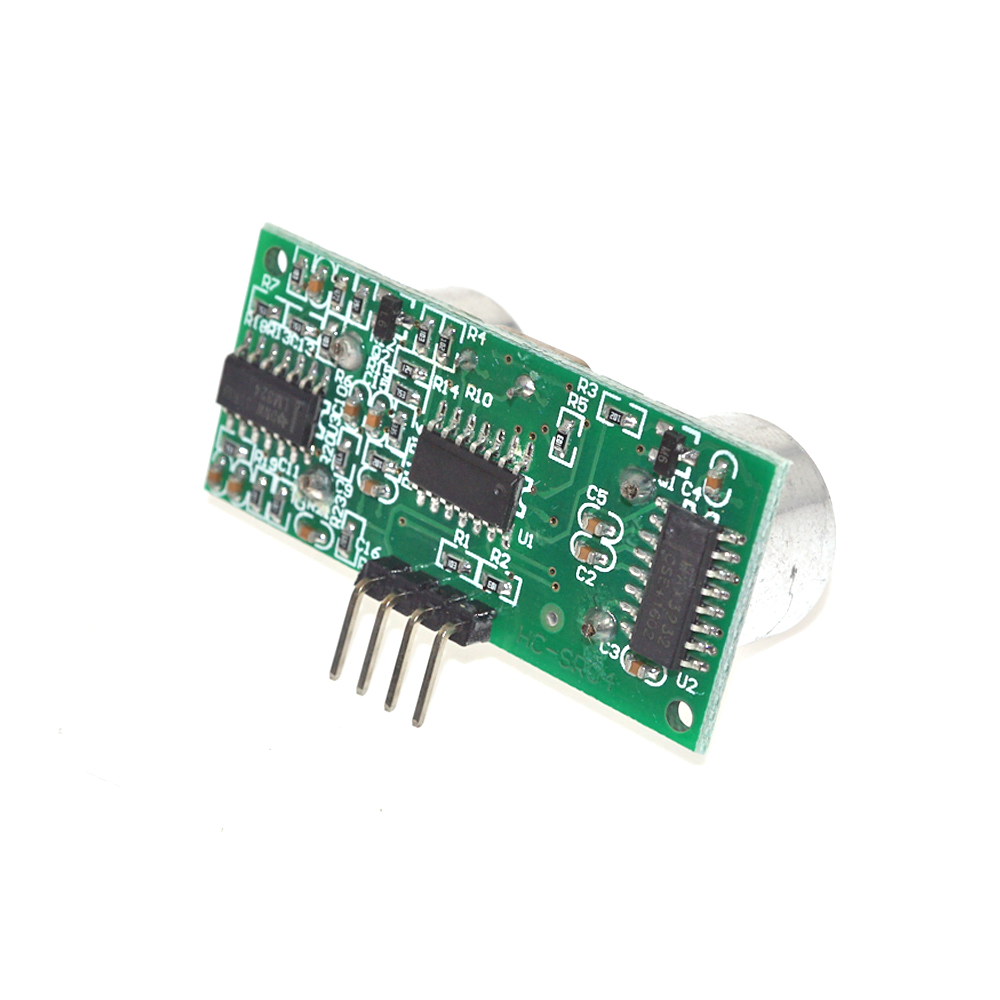

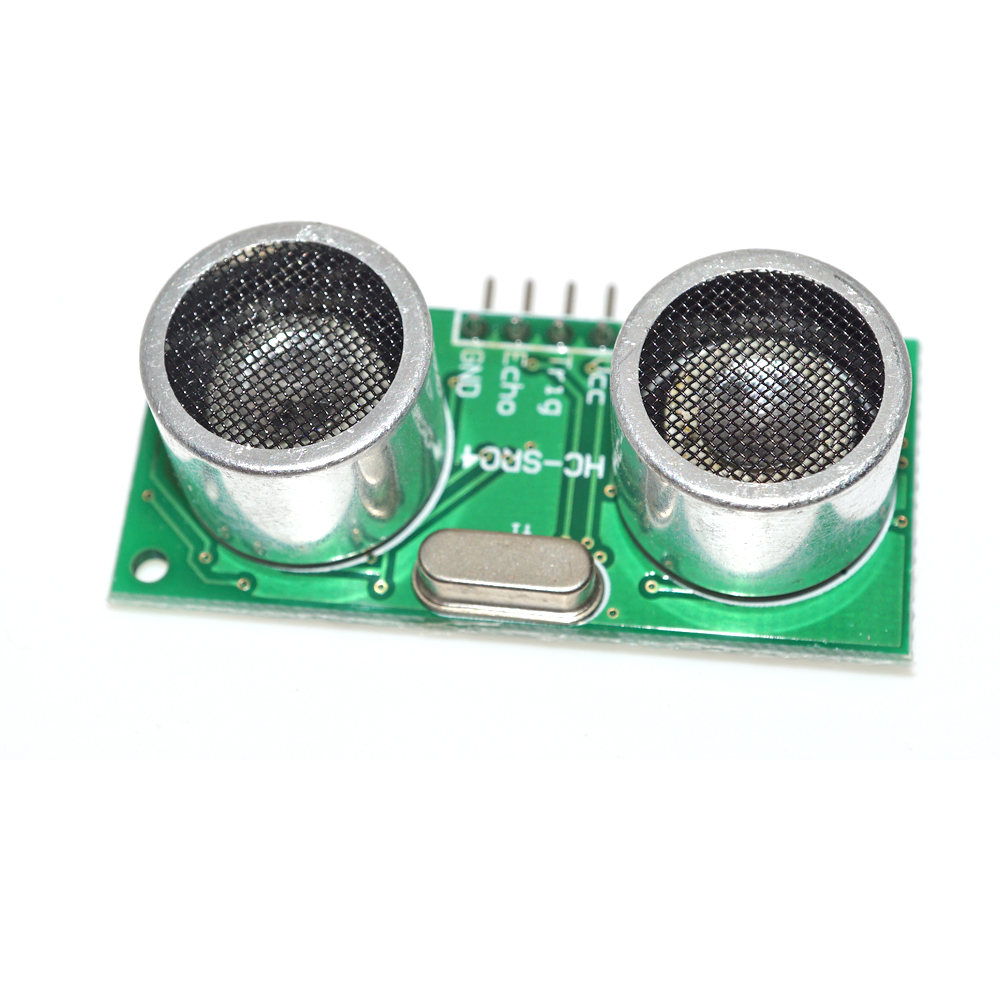

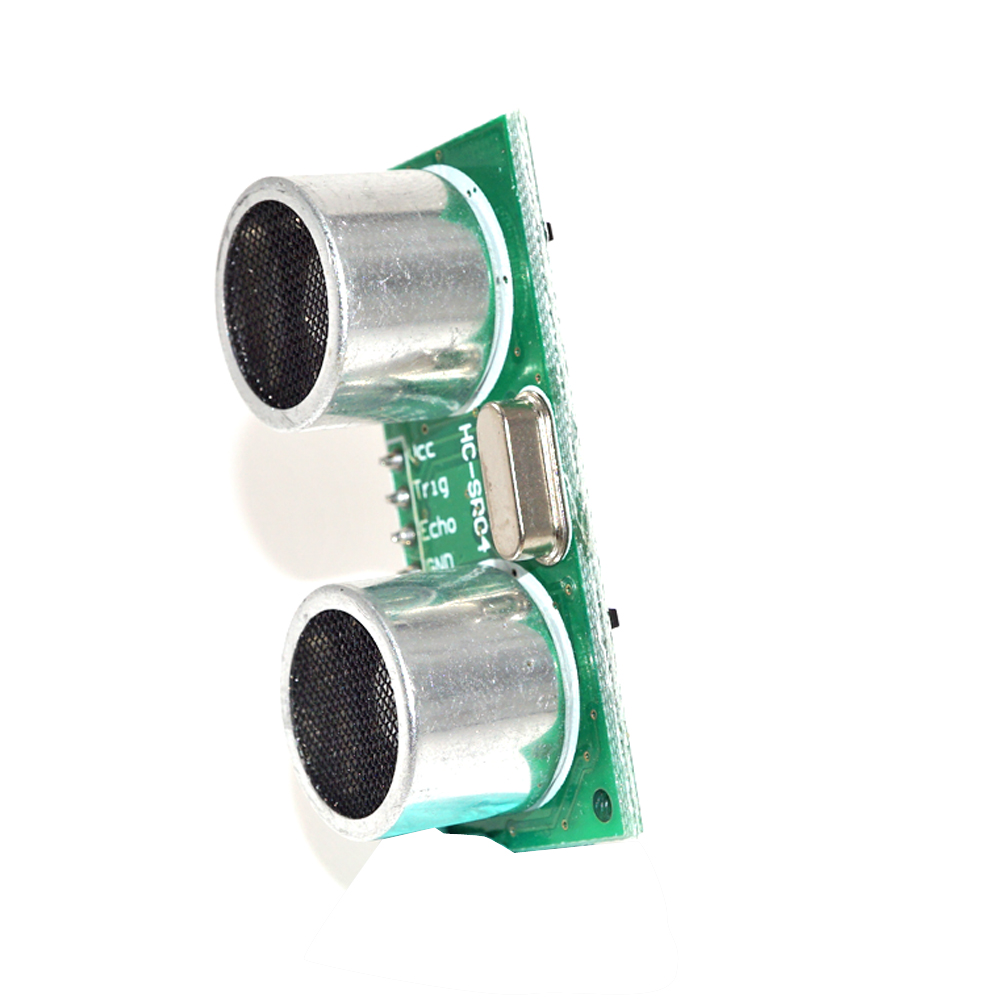

HC-SR04 Ultrasonic Sensor
Product Code: 1143722882
Available in 4 - 6 days
5,13 €
With the purchase of this product you earn 16 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
HC-SR04 ultrasonic distance sensor module. Operating voltage: 3–5.5 V. Operating temperature: -20 to 80 °C. Quiescent current < 2 mA. Sensor beam angle < 15°. Detection range: 2 cm to 450 cm with accuracy up to 3 mm. 4-pin interface (VCC, Trig, Echo, GND). Compatible with Arduino and other microcontroller platforms for distance measurement, obstacle detection and robotics projects.
-
ModelHC-SR04
-
Product TypeUltrasonic distance sensor module
-
Operating Voltage3 - 5.5 V
-
Operating Temperature-20 to 80 °C
-
Quiescent Current< 2 mA
-
Detection Range2 cm - 450 cm
-
Resolution / AccuracyUp to 3 mm
-
Beam Angle< 15°
-
Interface4-pin (VCC, Trig, Echo, GND)
-
Typical Module DimensionsApprox. 45 x 20 x 15 mm
-
WeightApprox. 10 g
-
ManufacturerArduino OEM
-
SKUARD3261-1
-
MPNARD3261-1
-
EANARD3261-1
-
CategoryArduino OEM
Ratings
Description
HC-SR04 ultrasonic distance sensor module. Operating voltage: 3–5.5 V. Operating temperature: -20 to 80 °C. Quiescent current < 2 mA. Sensor beam angle < 15°. Detection range: 2 cm to 450 cm with accuracy up to 3 mm. 4-pin interface (VCC, Trig, Echo, GND). Compatible with Arduino and other microcontroller platforms for distance measurement, obstacle detection and robotics projects.
Technical Specifications
-
ModelHC-SR04
-
Product TypeUltrasonic distance sensor module
-
Operating Voltage3 - 5.5 V
-
Operating Temperature-20 to 80 °C
-
Quiescent Current< 2 mA
-
Detection Range2 cm - 450 cm
-
Resolution / AccuracyUp to 3 mm
-
Beam Angle< 15°
-
Interface4-pin (VCC, Trig, Echo, GND)
-
Typical Module DimensionsApprox. 45 x 20 x 15 mm
-
WeightApprox. 10 g
-
ManufacturerArduino OEM
-
SKUARD3261-1
-
MPNARD3261-1
-
EANARD3261-1
-
CategoryArduino OEM
