HC-SR04 Dual ultrasonic sensor module (ST1099) for distance measurement with microcontrollers (Arduino, ESP, etc.). Power supply: +5V DC. Quiescent current:
More

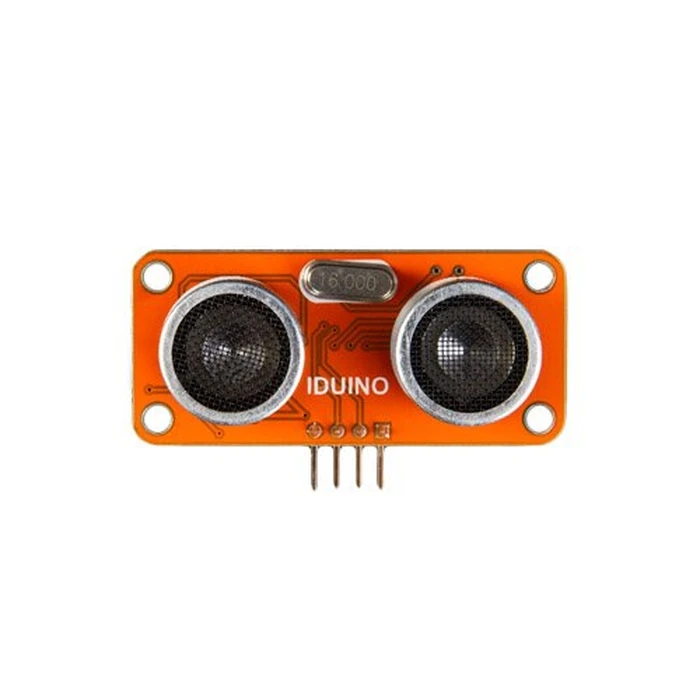

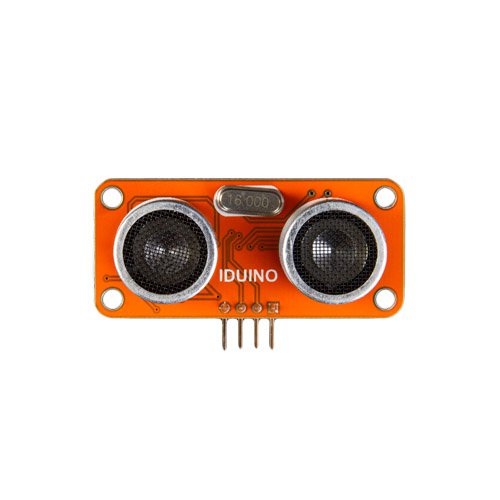

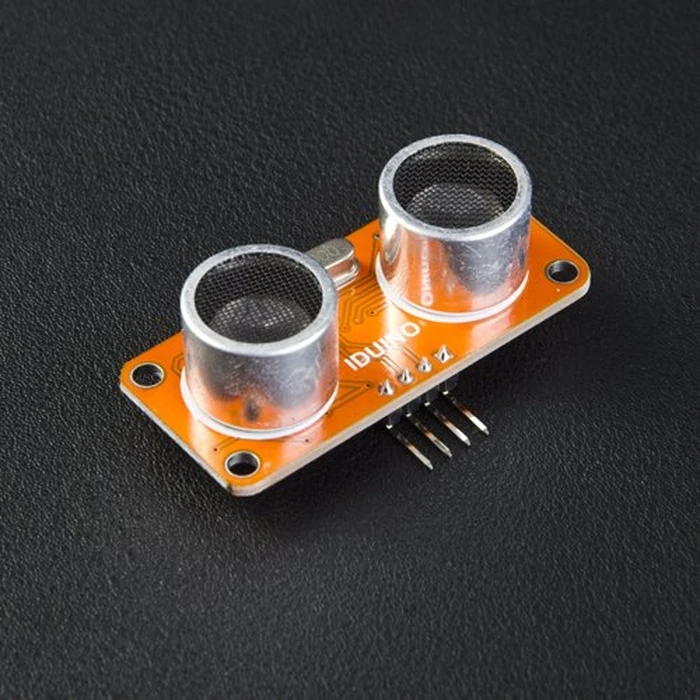

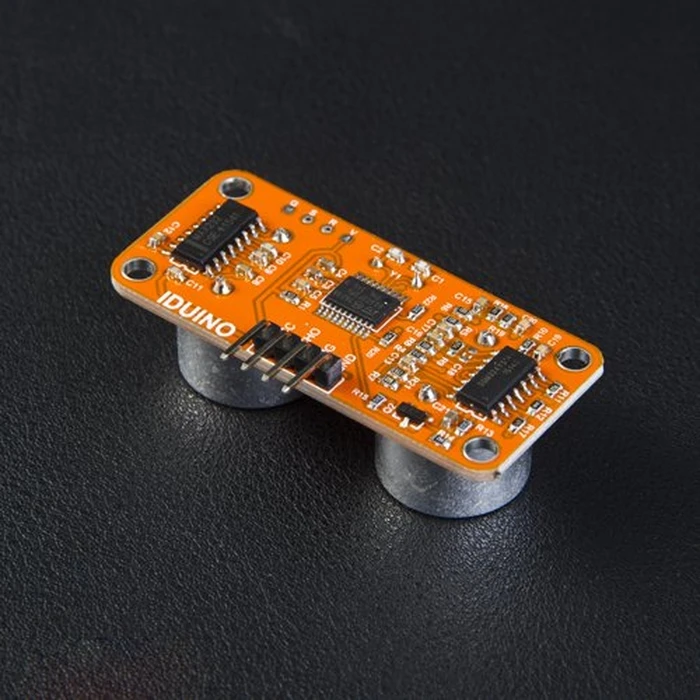

HC-SR04 Dual Ultrasonic Sensor Module (ST1099)
Product Code: 1143723078
Available in 4 - 6 days
5,71 €
With the purchase of this product you earn 18 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
HC-SR04 Dual ultrasonic sensor module (ST1099) for distance measurement with microcontrollers (Arduino, ESP, etc.). Power supply: +5V DC. Quiescent current: <2 mA. Typical operating current: 15 mA. Measuring range: 2 cm – 400 cm (approx. 1" – 13 ft). Resolution: 0.3 cm. Measuring/beam angle: ~30° (effective angle <15°). Trigger input pulse width: 10 µs. Connections: VCC, Trig, Echo, GND. Typical PCB/module components: PCB board, two ultrasonic transducers, header pins. Common uses: obstacle detection, distance sensing, robotics and automation. SKU/MPN/EAN: ST1099.
-
ModelHC-SR04 Dual (ST1099)
-
TypeDual ultrasonic distance sensor module
-
Power Supply+5V DC
-
Quiescent Current<2 mA
-
Operating Current15 mA
-
Ranging Distance2 cm – 400 cm (approx. 1" – 13 ft)
-
Resolution0.3 cm
-
Effective Angle<15°
-
Measuring Angle30°
-
Trigger Input Pulse Width10 µs
-
InterfaceTrigger (Trig) and Echo pins, VCC, GND
-
MaterialPCB board with two ultrasonic transducers and header pins
-
Typical Module Size~45 x 20 x 15 mm (typical HC-SR04 form factor)
-
SKUST1099
-
EANST1099
-
MPNST1099
-
BrandUnbranded / Generic
Ratings
Description
HC-SR04 Dual ultrasonic sensor module (ST1099) for distance measurement with microcontrollers (Arduino, ESP, etc.). Power supply: +5V DC. Quiescent current: <2 mA. Typical operating current: 15 mA. Measuring range: 2 cm – 400 cm (approx. 1" – 13 ft). Resolution: 0.3 cm. Measuring/beam angle: ~30° (effective angle <15°). Trigger input pulse width: 10 µs. Connections: VCC, Trig, Echo, GND. Typical PCB/module components: PCB board, two ultrasonic transducers, header pins. Common uses: obstacle detection, distance sensing, robotics and automation. SKU/MPN/EAN: ST1099.
Technical Specifications
-
ModelHC-SR04 Dual (ST1099)
-
TypeDual ultrasonic distance sensor module
-
Power Supply+5V DC
-
Quiescent Current<2 mA
-
Operating Current15 mA
-
Ranging Distance2 cm – 400 cm (approx. 1" – 13 ft)
-
Resolution0.3 cm
-
Effective Angle<15°
-
Measuring Angle30°
-
Trigger Input Pulse Width10 µs
-
InterfaceTrigger (Trig) and Echo pins, VCC, GND
-
MaterialPCB board with two ultrasonic transducers and header pins
-
Typical Module Size~45 x 20 x 15 mm (typical HC-SR04 form factor)
-
SKUST1099
-
EANST1099
-
MPNST1099
-
BrandUnbranded / Generic
