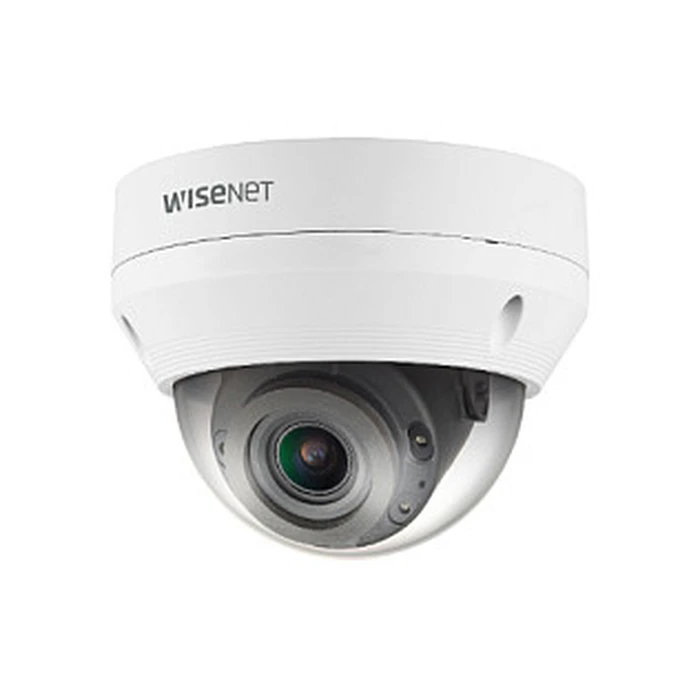

Hanwha Techwin / Wisenet QNV-8080R 5MP Outdoor Vandal-Resistant IR Fixed Dome IP Camera (Q Series)

Description

Technical Specifications

• Brand
  Hanwha Techwin (Wisenet)
• Model
  QNV-8080R
• Series
  Q Series (Wisenet Q)
• Product Type
  Fixed dome / vandal-resistant outdoor IP camera
• Image Sensor
  1/2.8-inch CMOS
• Maximum Resolution
  5 MP (2592 × 1944)
• Frame Rate
  Up to 30 fps at 5 MP
• Lens
  Motorized varifocal 3.2–10 mm (3.1x optical zoom)
• Aperture
  F1.6 (wide) / F2.9 (tele)
• Field of View
  Horizontal approx. 101°–31° (manufacturer-stated ranges)
• Video Codecs
  H.265, H.264, MJPEG
• Bandwidth Optimization
  WiseStream II supported
• WDR
  120 dB True WDR
• Day/Night
  ICR (mechanical IR cut filter)
• Minimum Illumination
  0.15 lux (color), 0 lux (B/W with IR)
• IR Illumination
  Built‑in IR LEDs, up to 30 m
• Analytics
  Motion detection, tampering detection, defocus detection, virtual line/enter-exit detection and other intelligent analytics
• Storage
  microSD / SDHC / SDXC slot (up to 128 GB)
• Network Interface
  10/100 Mbps Ethernet
• Power
  PoE IEEE 802.3af (Class 3); Max power ~8.90 W, Typical PoE consumption ~6.6 W
• Installation Features
  Simple focus, CVBS composite video output for installation, hallway view, LDC (lens distortion correction)
• Environmental Rating
  IP66 (weatherproof)
• Vandal Resistance
  IK10
• Operating Use
  Outdoor surveillance
• Mount / Accessories
  Compatible mounts: SBP-300LMW, SBP-300WMW1, SBP-300KMW, SBP-300BW, SBP-300PMW (per reseller listings)
• Supported Features
  WiseStream II, multiple streams, multi-codec, OSD, ROI
• Max microSD Capacity
  128 GB
• Country of Origin
  Vietnam (listed by some distributors)
