Goobay singlemode fibre-optic patch cable, model 59664, 20 m length with SC-APC (8°) connector to SC-UPC connector. Designed for FTTH, FTTB, FTTx, ONT connections and data center patching. OS2 singlemode fibre (9/125 µm) optimized for bend performance (ITU-T G.657.A2). LSZH jacket for low smoke and...
More

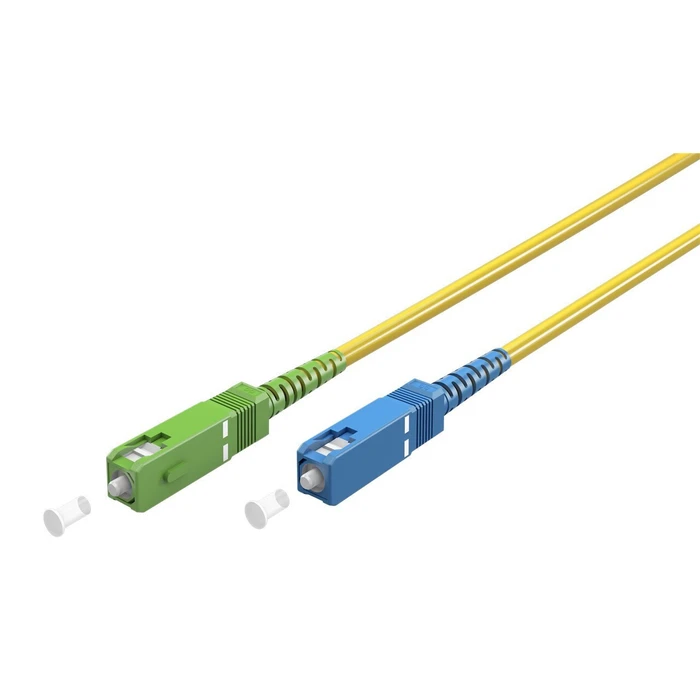

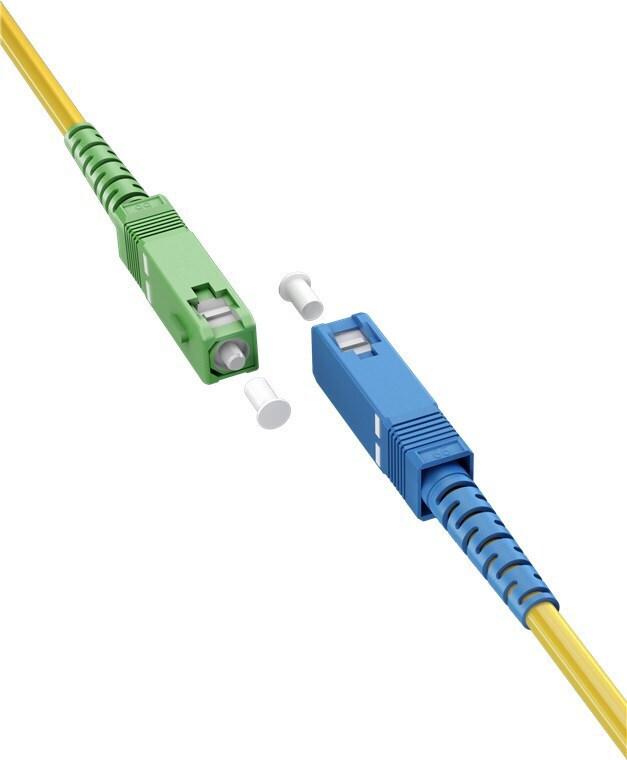

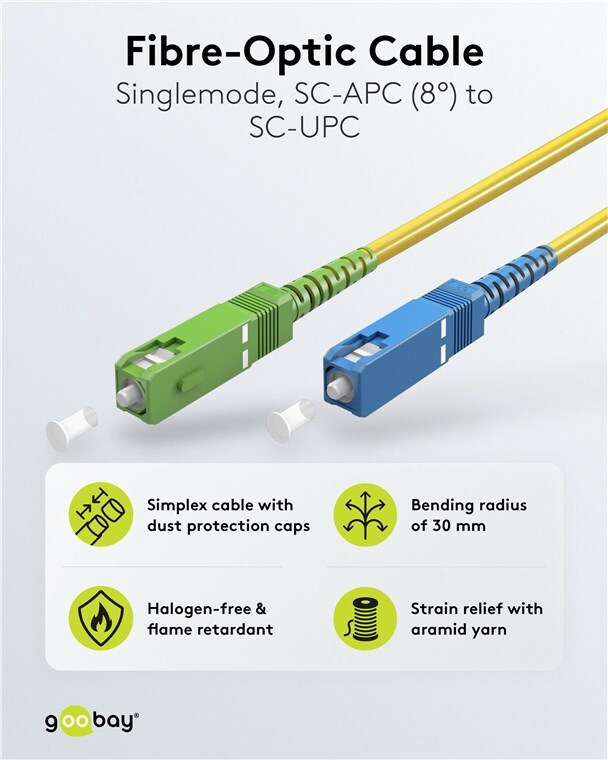

Goobay Singlemode Fibre-Optic Patch Cable SC-APC to SC-UPC, OS2, LSZH, 20 m, Yellow (59664)
Product Code: 1172727774
Available in 4 - 6 days
11,05 €
With the purchase of this product you earn 34 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

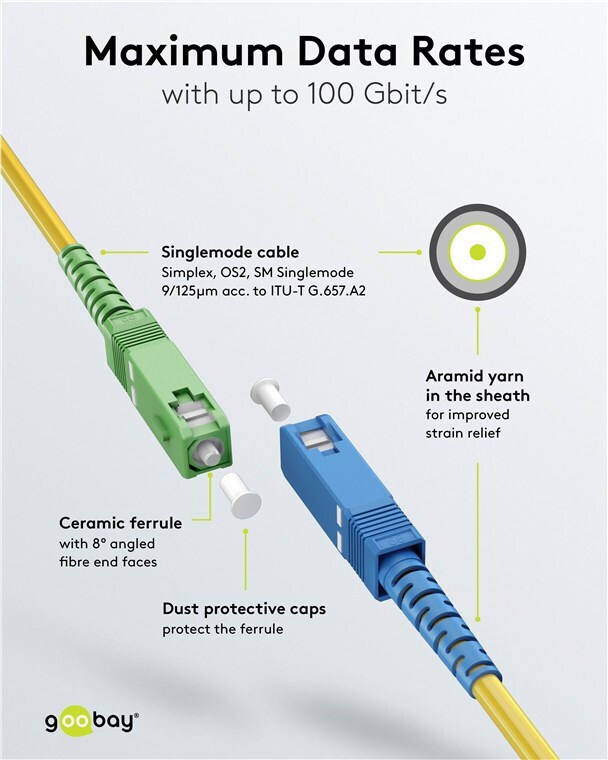

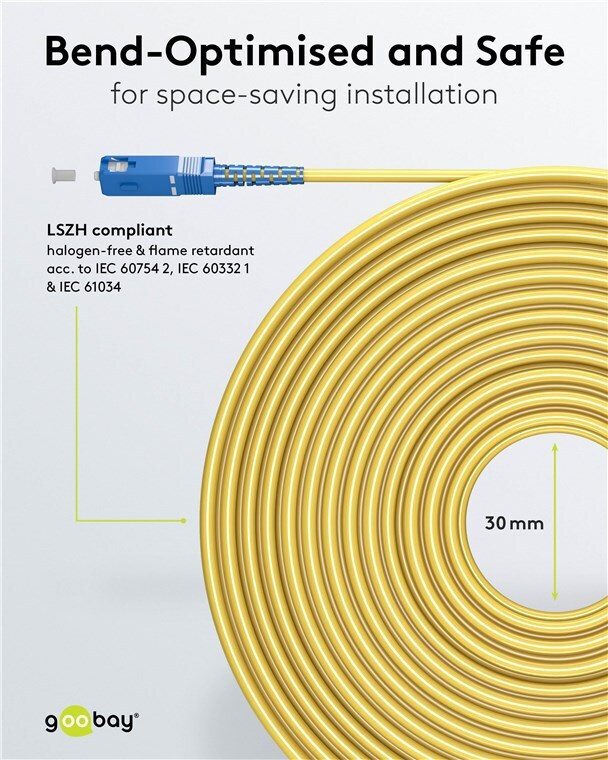

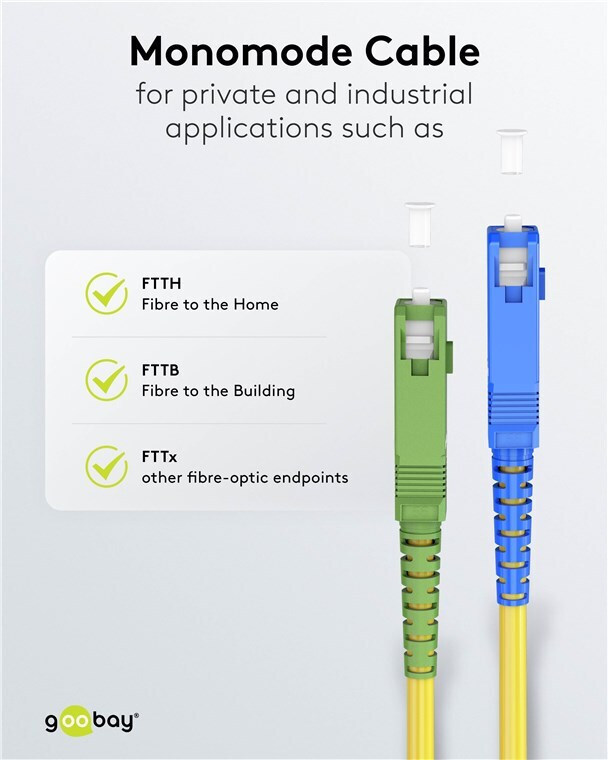

Goobay singlemode fibre-optic patch cable, model 59664, 20 m length with SC-APC (8°) connector to SC-UPC connector. Designed for FTTH, FTTB, FTTx, ONT connections and data center patching. OS2 singlemode fibre (9/125 µm) optimized for bend performance (ITU-T G.657.A2). LSZH jacket for low smoke and halogen-free safety, meeting IEC 60754-2, IEC 60332-1 and IEC 61034. Simplex design, ceramic ferrule, 3 mm outer diameter, minimum bend radius >30 mm. Supports high data rates (up to 100 Gbit/s), tested with insertion loss and return loss measurements. Operating temperature -40 °C to +85 °C. Packaged in polybag.
-
BrandGoobay
-
Model / Part Number59664
-
Product TypeSinglemode fibre-optic patch cable (patch cord)
-
Connector 1SC-APC (8°) (angled)
-
Connector 2SC-UPC (polished)
-
Fiber TypeSinglemode OS2 (9/125 µm)
-
Fiber StandardITU-T G.657.A2 (bend-optimized)
-
Cable Length20 m
-
Cable ConstructionSimplex
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Outer Diameter3 mm
-
Minimum Bend Radius>30 mm
-
Ferrule MaterialCeramic
-
Nominal Core Diameter9 µm
-
Cladding Diameter125 µm
-
Center Wavelength1310 nm
-
Max Data RateUp to 100 Gbit/s (dependent on system)
-
Operating Temperature-40 °C to +85 °C
-
Fire / Smoke StandardsIEC 60754-2, IEC 60332-1, IEC 61034
-
ApplicationFTTH, FTTB, FTTx, ONT connections, data center patching, optical network links
-
PackagingPolybag (bulk)
-
Test & CertificationSupplied with individual test measurements for insertion loss and return loss
Ratings
Description
Goobay singlemode fibre-optic patch cable, model 59664, 20 m length with SC-APC (8°) connector to SC-UPC connector. Designed for FTTH, FTTB, FTTx, ONT connections and data center patching. OS2 singlemode fibre (9/125 µm) optimized for bend performance (ITU-T G.657.A2). LSZH jacket for low smoke and halogen-free safety, meeting IEC 60754-2, IEC 60332-1 and IEC 61034. Simplex design, ceramic ferrule, 3 mm outer diameter, minimum bend radius >30 mm. Supports high data rates (up to 100 Gbit/s), tested with insertion loss and return loss measurements. Operating temperature -40 °C to +85 °C. Packaged in polybag.
Technical Specifications
-
BrandGoobay
-
Model / Part Number59664
-
Product TypeSinglemode fibre-optic patch cable (patch cord)
-
Connector 1SC-APC (8°) (angled)
-
Connector 2SC-UPC (polished)
-
Fiber TypeSinglemode OS2 (9/125 µm)
-
Fiber StandardITU-T G.657.A2 (bend-optimized)
-
Cable Length20 m
-
Cable ConstructionSimplex
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Outer Diameter3 mm
-
Minimum Bend Radius>30 mm
-
Ferrule MaterialCeramic
-
Nominal Core Diameter9 µm
-
Cladding Diameter125 µm
-
Center Wavelength1310 nm
-
Max Data RateUp to 100 Gbit/s (dependent on system)
-
Operating Temperature-40 °C to +85 °C
-
Fire / Smoke StandardsIEC 60754-2, IEC 60332-1, IEC 61034
-
ApplicationFTTH, FTTB, FTTx, ONT connections, data center patching, optical network links
-
PackagingPolybag (bulk)
-
Test & CertificationSupplied with individual test measurements for insertion loss and return loss
