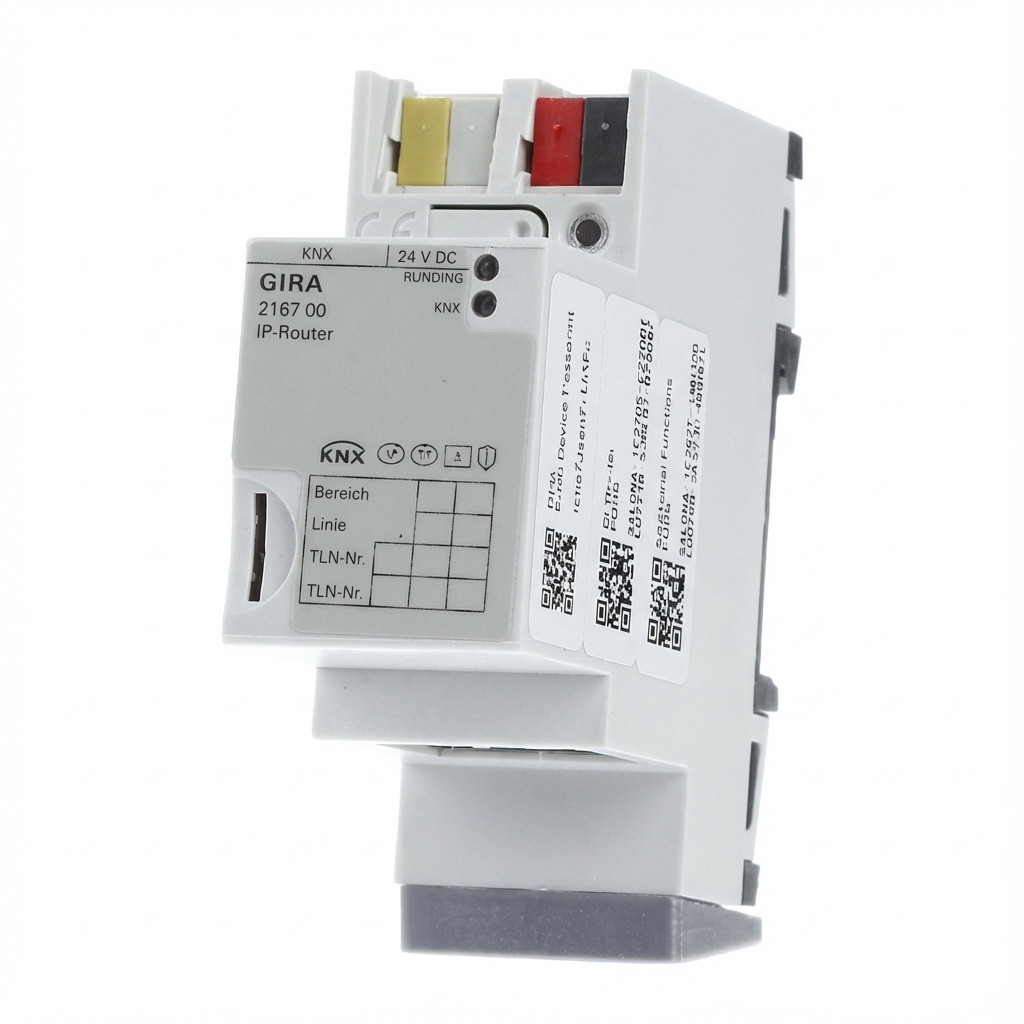

GIRA IP-Router KNX/EIB REG 216700

Description

Technical Specifications

• Brand
  GIRA
• Model / MPN
  216700
• Product Type
  KNX/IP router (IP-Router KNX/EIB REG)
• Functions
  Line coupler; Area coupler; KNX time sender (time/date to bus); Telegram logger (microSD recording)
• Security
  KNX Data Secure; KNX IP Secure
• Ethernet
  10/100Base-T; integrated 2x RJ45 switch
• KNX Tunnelling
  Up to 4 simultaneous KNXnet/IP tunneling connections
• Bus access
  PC/bus access for visualization and facility systems
• Telegram handling
  Filtering and forwarding of telegrams
• microSD support
  microSD / microSDHC recording (up to 32 GB)
• NTP
  Supports NTP synchronization for time/date on KNX bus
• Power supply
  External 24–30 V DC (SELV) (device NOT powered by KNX bus)
• Power consumption
  Approximately 2 W (typical listing)
• Mounting
  DIN-rail (REG installation format)
• Width
  2 TE (approx. 36 mm)
• Protection rating
  IP20
• Color
  Grey
• Material
  Plastic
• Dimensions (modules)
  2 TE width; other physical dims per manufacturer documentation
• Firmware/Tools
  Firmware updates and configuration via Gira Project Assistant (GPA)
• Logging
  Telegram recording to removable microSD (card typically not included)
• Reliability
  Automatic correction of telegram losses in WLAN environments
• Usage
  Connect KNX/EIB lines via Ethernet; bus access for PCs, HomeServer, FacilityServer
