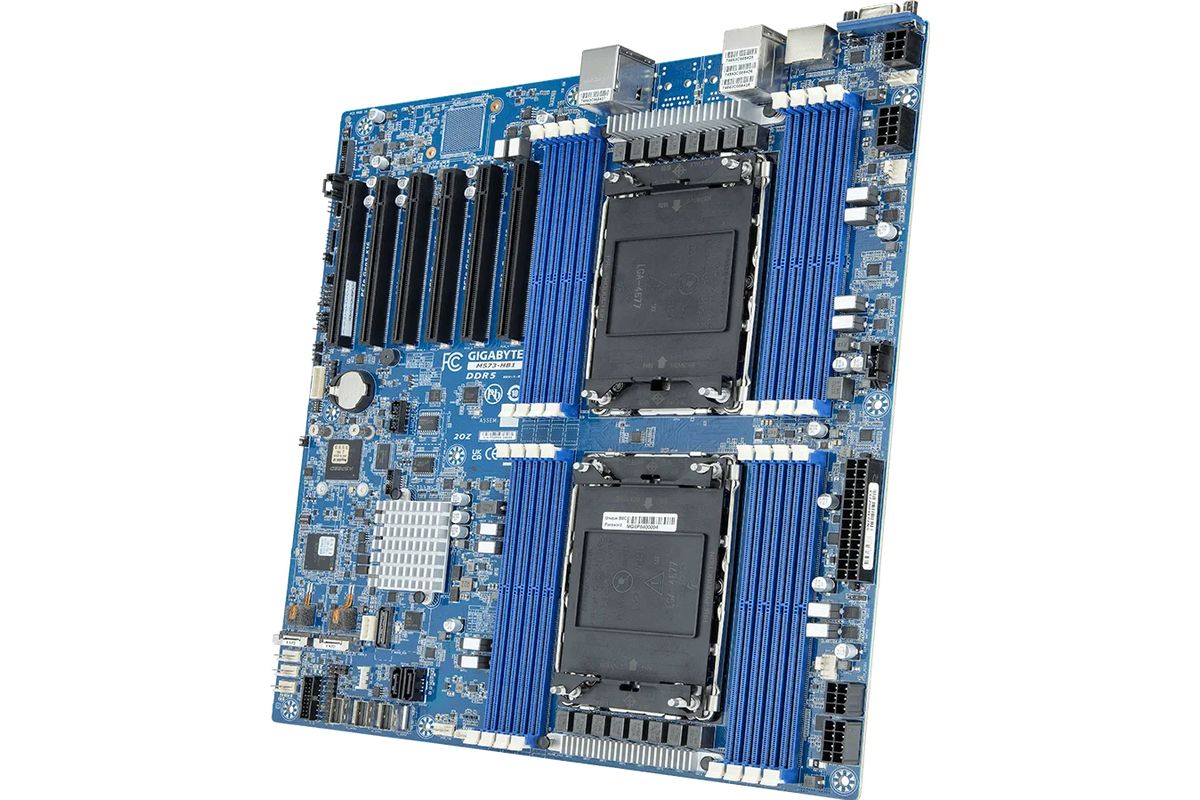

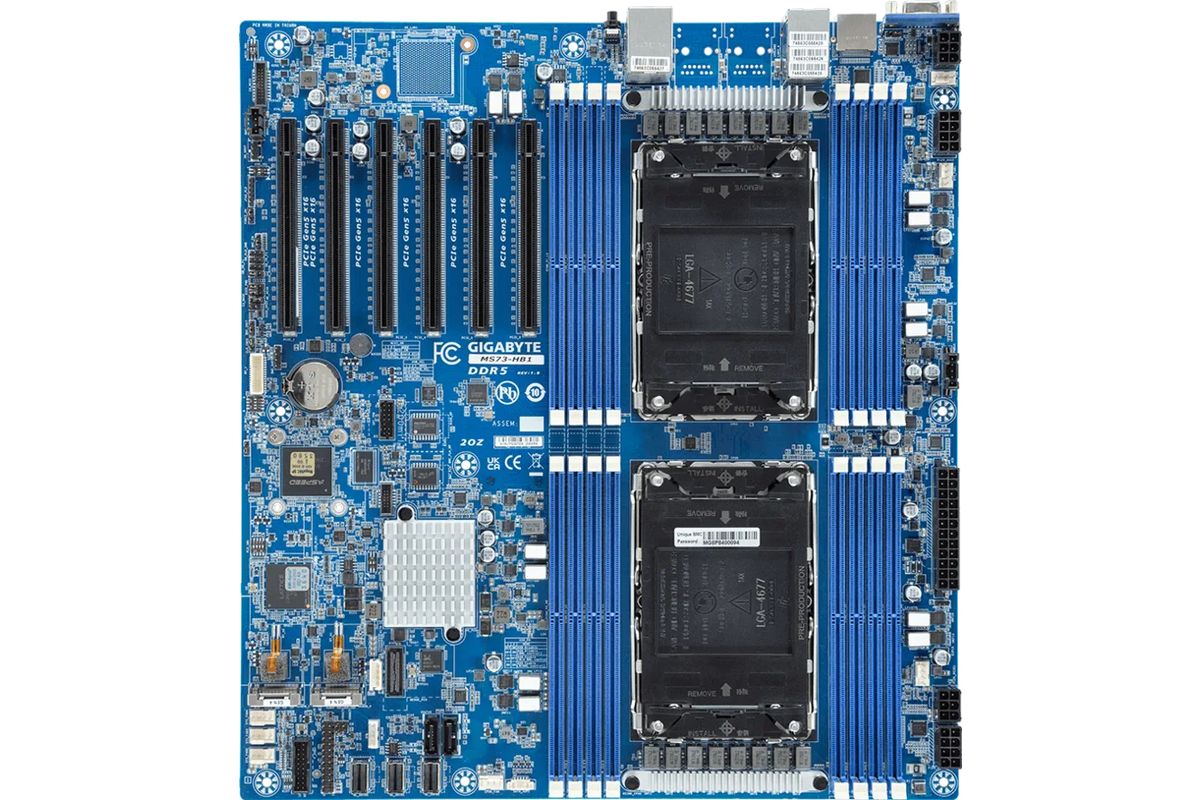

GigaByte MS73-HB1 Dual Intel XEON 5th/4th Gen Mainboard (9MS73HB1MR-000)

Description

Technical Specifications

• Brand
  Giga Computing / GIGABYTE
• Model
  MS73-HB1 (MPN 9MS73HB1MR-000)
• SKU
  493962
• EAN / Barcode
  4719331849368
• Form Factor
  E-ATX
• Board Dimensions
  305 x 330 mm
• CPU Socket
  2 x LGA 4677 (Socket E)
• Chipset
  Intel C741
• Supported CPUs
  Dual Intel Xeon Scalable 5th Gen & 4th Gen (Silver/Gold/Platinum)
• TDP Support per CPU
  up to 350 W (reported)
• Memory Type
  DDR5 RDIMM (supports RDIMM and 3DS RDIMM)
• Memory Channels
  8-channel (per platform)
• DIMM Slots
  16
• Max Memory Module Size
  RDIMM up to 128 GB, 3DS RDIMM up to 256 GB (module-dependent)
• Max Memory Speed
  up to 4800 MHz (platform dependent)
• PCIe Expansion
  6 x PCIe Gen5 x16 slots
• M.2 Slots
  2 x M.2 (PCIe Gen4 x4)
• SATA
  12 x SATA 6 Gb/s via 3 x SlimSAS + 2 x additional SATA 6 Gb/s
• RAID Support
  Intel SATA RAID 0/1/10/5
• LAN (Onboard)
  2 x 1GbE (Intel I210-AT)
• Management LAN
  Dedicated management LAN port on some revisions
• BMC / IPMI
  ASPEED AST2600 referenced on regional spec sheets
• Internal Headers
  TPM, IPMB, PMBus, VROC

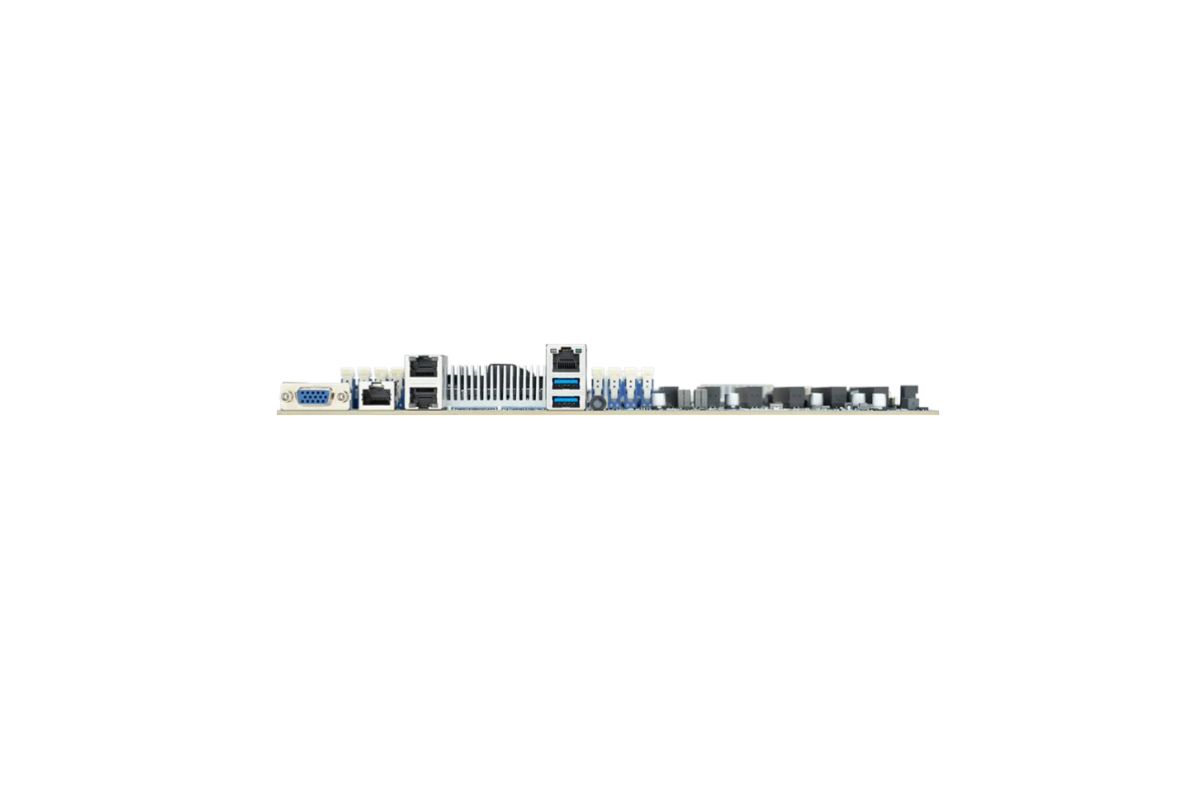

• Rear I/O
  2 x USB 3.2 Gen1, 1 x VGA, 1 x COM, 2 x RJ45 LAN, 1 x management RJ45 (varies by region)
• Power Connectors
  1 x 24-pin ATX, 2 x 8-pin ATX12V, 2 x 6-pin ATX12V
• Fan Headers
  Multiple: 2 x CPU fan, 4 x chassis fan (typical)
• Special Features
  NCSI support on some SKUs, BIOS/ID button with LED on some revisions
• Target Market
  Enterprise / Server deployments
• Revisions
  Rev. 1.x and 3.x listed by manufacturer
• Package Contents (typical)
  Motherboard, I/O shield (if applicable), manual, driver/resource DVD or support instructions (varies)
• Typical Product Weight
  ~1500 g
• Typical Package Weight
  ~3500 g
