The Gigabyte B550M X Aorus Elite is a Micro ATX motherboard based on the AMD B550 chipset for the AM4 socket. It supports AMD Ryzen CPUs (Zen 2 and Zen 3) and provides PCIe 4.0 support for graphics and NVMe storage with compatible processors. Key features include: Micro ATX form factor, 4x DDR4...
More

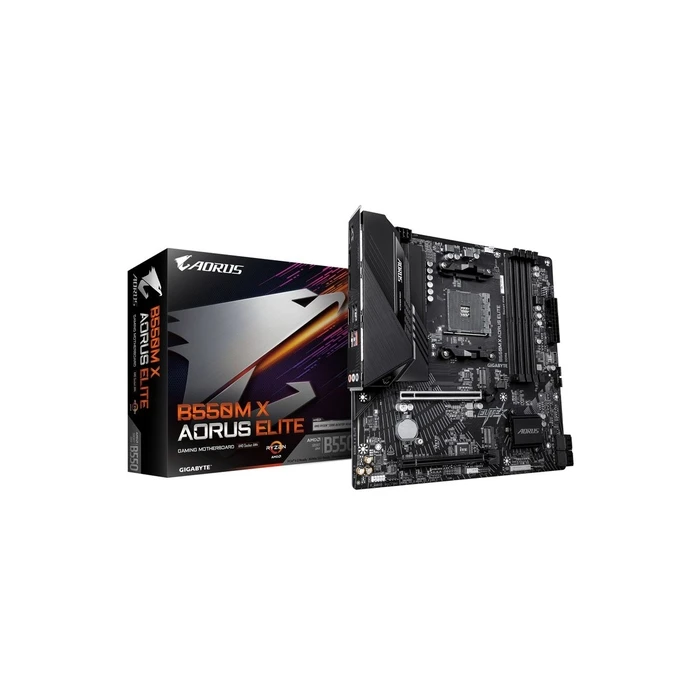

Gigabyte B550M X Aorus Elite Motherboard (B550, AM4, mATX, DDR4)
Product Code: 1117744962
Available in 1 - 3 days
166,01 €
or
5,18€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 499 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Gigabyte B550M X Aorus Elite is a Micro ATX motherboard based on the AMD B550 chipset for the AM4 socket. It supports AMD Ryzen CPUs (Zen 2 and Zen 3) and provides PCIe 4.0 support for graphics and NVMe storage with compatible processors. Key features include: Micro ATX form factor, 4x DDR4 DIMM slots (dual channel, wide range of supported memory frequencies including OC), 1x PCIe 4.0 x16 slot, dual M.2 (one PCIe 4.0 x4, one PCIe 3.0/PCIe3 x2), 4x SATA III 6Gb/s ports, Realtek Gigabit Ethernet, HDMI 2.1 and DisplayPort outputs, 7.1-channel audio, a 5+3 phase VRM with Low RDS(on) MOSFETs, Smart Fan 5 (Fan Stop and Hybrid Fan Headers), RGB header and BIOS Flashback support.
-
BrandGigabyte
-
ModelB550M X AORUS ELITE
-
Form FactorMicro ATX
-
ChipsetAMD B550
-
SocketAM4
-
CPU SupportAMD Ryzen (Zen 2, Zen 3) - see vendor CPU support list
-
Memory TypeDDR4
-
DIMM Slots4 DIMM Slots
-
Memory ChannelsDual Channel
-
Memory Speeds Supported2133, 2400, 2667, 2933, 3200, 3333OC, 3600OC, 4000OC, 4400OC, 4600OC, 4733OC
-
PCIe x16 Slots1 x PCIe 4.0 x16
-
M.2 Slots2 (1 x M.2 PCIe 4.0 x4, 1 x M.2 PCIe 3.0 (x2) / PCIe3)
-
SATA Ports4 x SATA III 6Gb/s
-
NVMe SupportDual NVMe PCIe 4.0/3.0 M.2 support with up to 64 Gb/s bandwidth on supported M.2
-
LANRealtek Gigabit Ethernet (GbE)
-

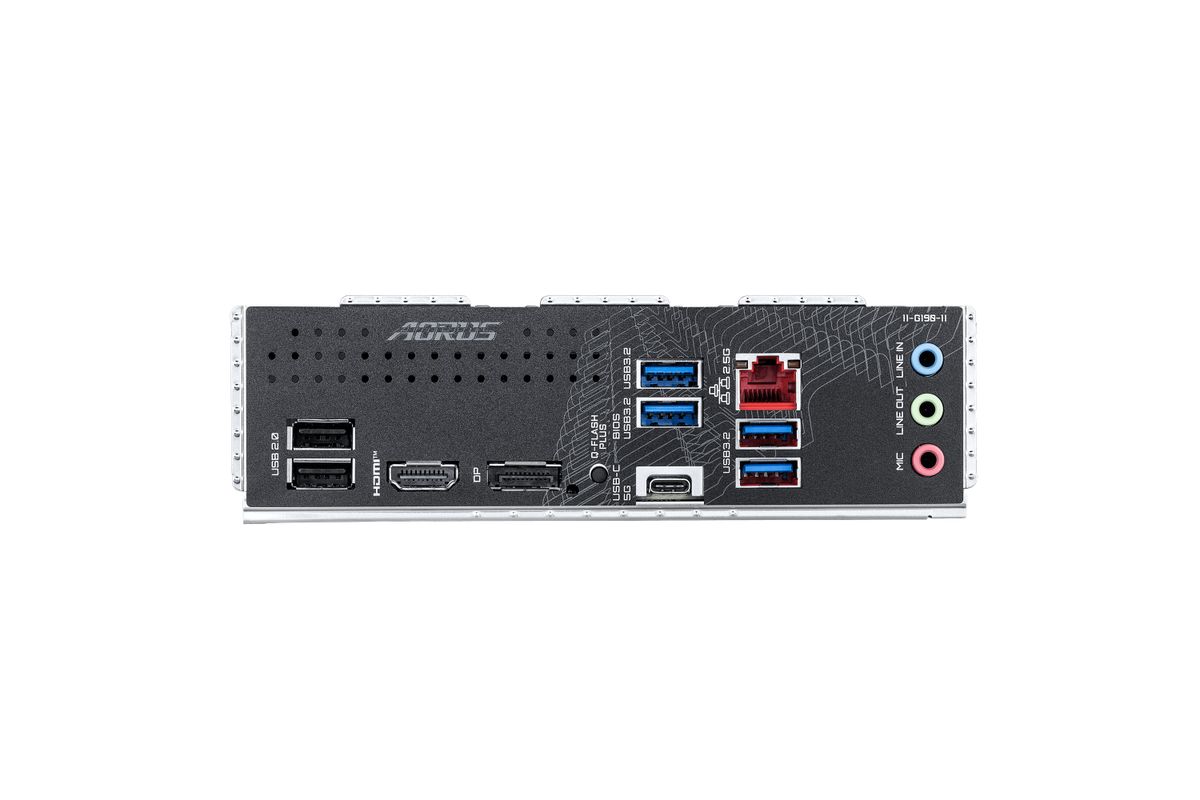

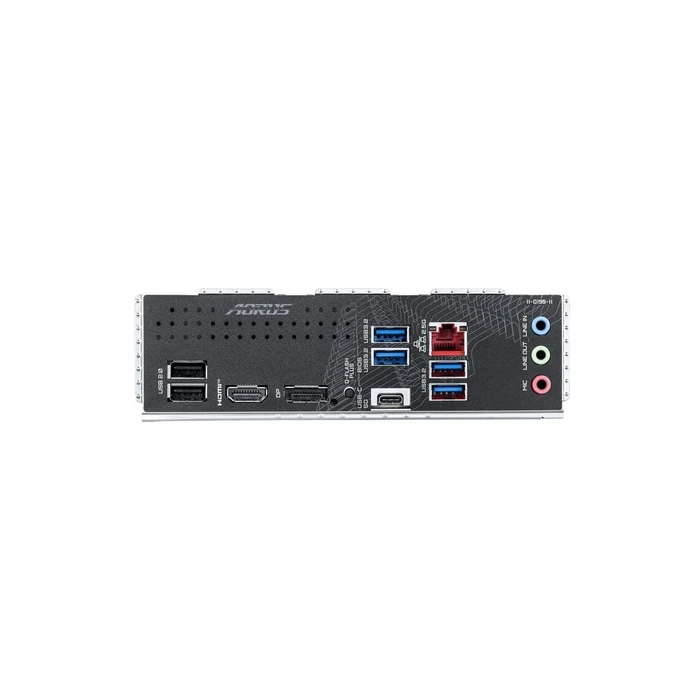

USB Ports (rear)2 x USB 2.0, 4 x USB 3.2 (plus 1 x USB-C 3.2)
-
USB-C1 x USB 3.2 Type-C (rear)
-
Video OutputsHDMI 2.1, DisplayPort
-
Audio7.1 channel onboard audio
-
VRMDigital 5+3 phase PWM with Low RDS(on) MOSFETs
-
Cooling FeaturesSmart Fan 5, Fan Stop, Hybrid Fan Pin Headers
-
BIOS FeaturesBIOS Flashback (update BIOS without CPU/RAM installed)
-
RGBRGB header
-
ExtrasSupport for AMD StoreMI, Smart Fan 5 software control
-
Target UseDesktop / Gaming / Productivity builds using AM4 CPUs
-
Form Factor Dimensions (standard mATX)~244 x 244 mm
-
MaterialStandard FR-4 PCB with electronic components
-
EAN4719331883416
-
MPNB550M X A ELITE
Ratings
Description
The Gigabyte B550M X Aorus Elite is a Micro ATX motherboard based on the AMD B550 chipset for the AM4 socket. It supports AMD Ryzen CPUs (Zen 2 and Zen 3) and provides PCIe 4.0 support for graphics and NVMe storage with compatible processors. Key features include: Micro ATX form factor, 4x DDR4 DIMM slots (dual channel, wide range of supported memory frequencies including OC), 1x PCIe 4.0 x16 slot, dual M.2 (one PCIe 4.0 x4, one PCIe 3.0/PCIe3 x2), 4x SATA III 6Gb/s ports, Realtek Gigabit Ethernet, HDMI 2.1 and DisplayPort outputs, 7.1-channel audio, a 5+3 phase VRM with Low RDS(on) MOSFETs, Smart Fan 5 (Fan Stop and Hybrid Fan Headers), RGB header and BIOS Flashback support.
Technical Specifications
-
BrandGigabyte
-
ModelB550M X AORUS ELITE
-
Form FactorMicro ATX
-
ChipsetAMD B550
-
SocketAM4
-
CPU SupportAMD Ryzen (Zen 2, Zen 3) - see vendor CPU support list
-
Memory TypeDDR4
-
DIMM Slots4 DIMM Slots
-
Memory ChannelsDual Channel
-
Memory Speeds Supported2133, 2400, 2667, 2933, 3200, 3333OC, 3600OC, 4000OC, 4400OC, 4600OC, 4733OC
-
PCIe x16 Slots1 x PCIe 4.0 x16
-
M.2 Slots2 (1 x M.2 PCIe 4.0 x4, 1 x M.2 PCIe 3.0 (x2) / PCIe3)
-
SATA Ports4 x SATA III 6Gb/s
-
NVMe SupportDual NVMe PCIe 4.0/3.0 M.2 support with up to 64 Gb/s bandwidth on supported M.2
-
LANRealtek Gigabit Ethernet (GbE)
-
USB Ports (rear)2 x USB 2.0, 4 x USB 3.2 (plus 1 x USB-C 3.2)
-
USB-C1 x USB 3.2 Type-C (rear)
-
Video OutputsHDMI 2.1, DisplayPort
-
Audio7.1 channel onboard audio
-
VRMDigital 5+3 phase PWM with Low RDS(on) MOSFETs
-
Cooling FeaturesSmart Fan 5, Fan Stop, Hybrid Fan Pin Headers
-
BIOS FeaturesBIOS Flashback (update BIOS without CPU/RAM installed)
-
RGBRGB header
-
ExtrasSupport for AMD StoreMI, Smart Fan 5 software control
-
Target UseDesktop / Gaming / Productivity builds using AM4 CPUs
-
Form Factor Dimensions (standard mATX)~244 x 244 mm
-
MaterialStandard FR-4 PCB with electronic components
-
EAN4719331883416
-
MPNB550M X A ELITE
