The Gigabyte B550 X Eagle WiFi6E is an ATX motherboard for AMD AM4 socket with AMD B550 chipset, supporting Ryzen processors (Zen/Zen2/Zen3, including Ryzen 5000 series). It features a robust digital VRM with 8 VCORE + 2 SOC DrMOS 60A phases for stable power delivery and overclocking, supports DDR4...
More

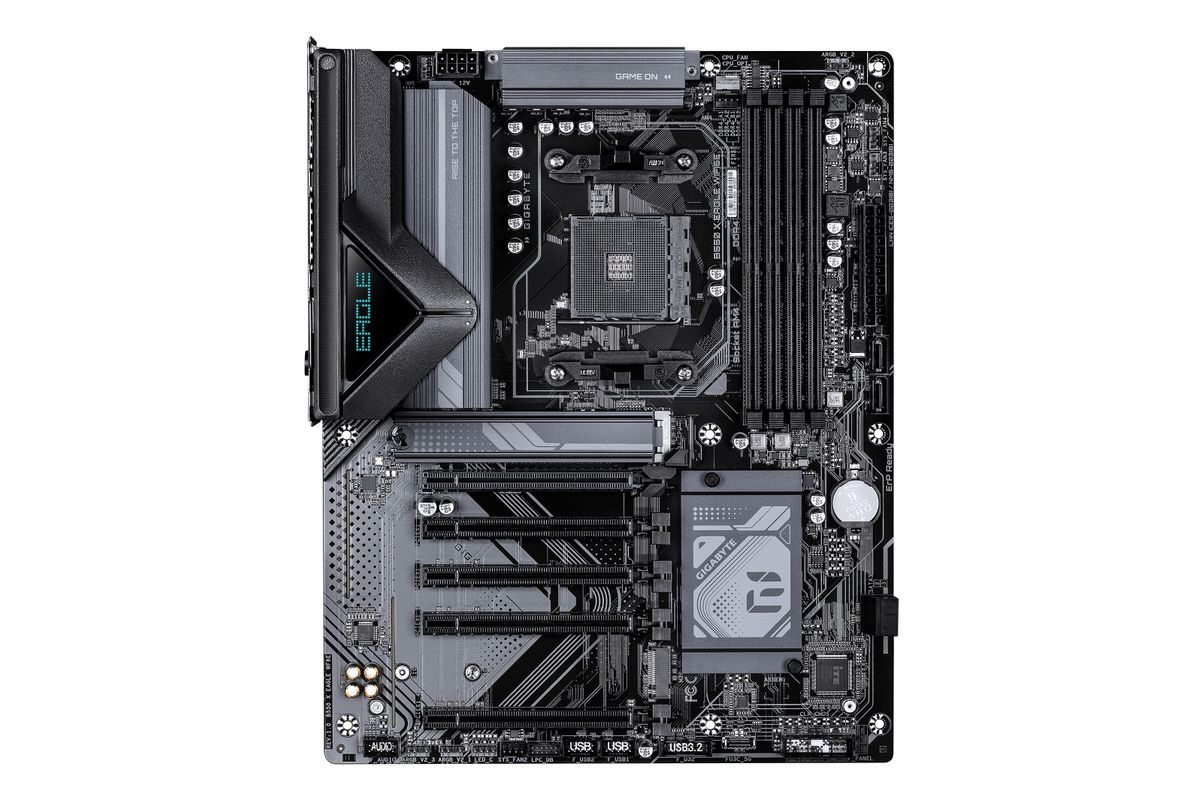

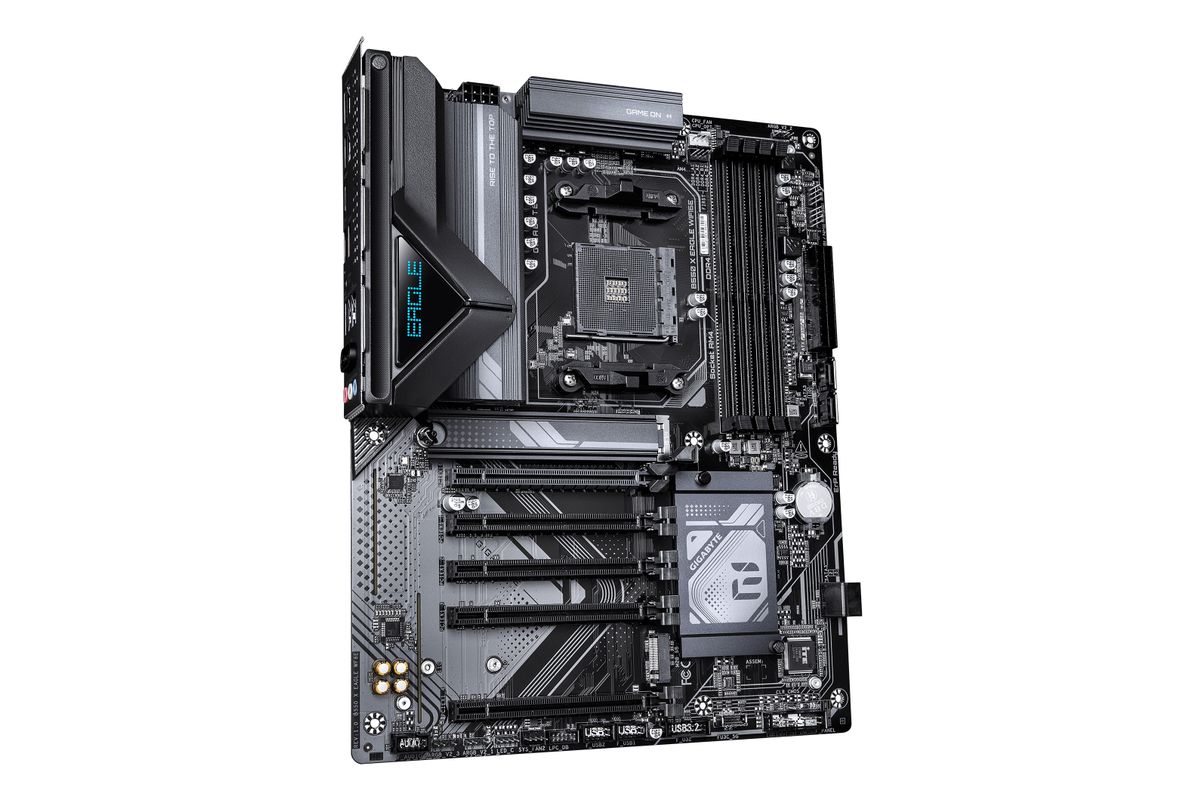

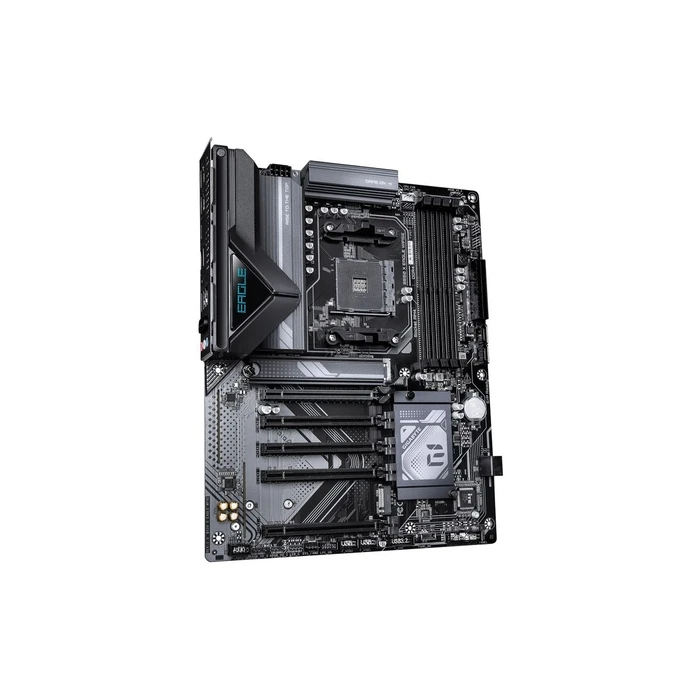

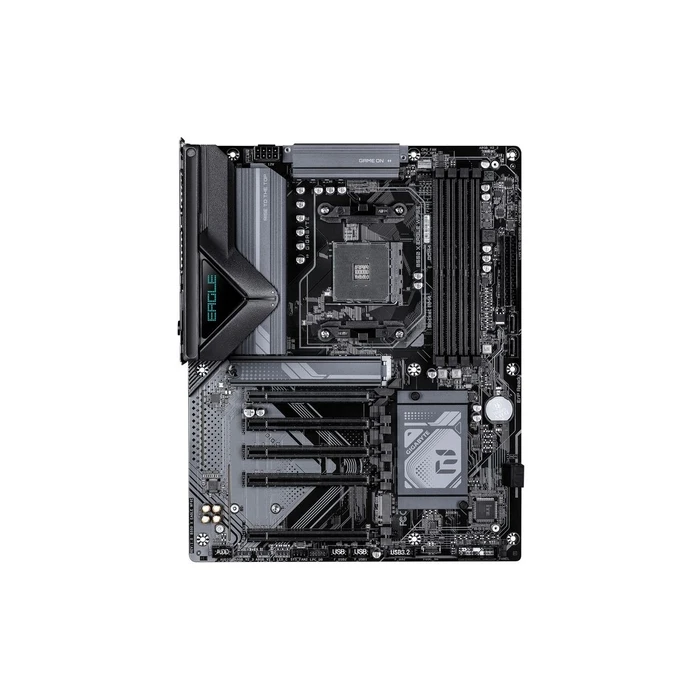

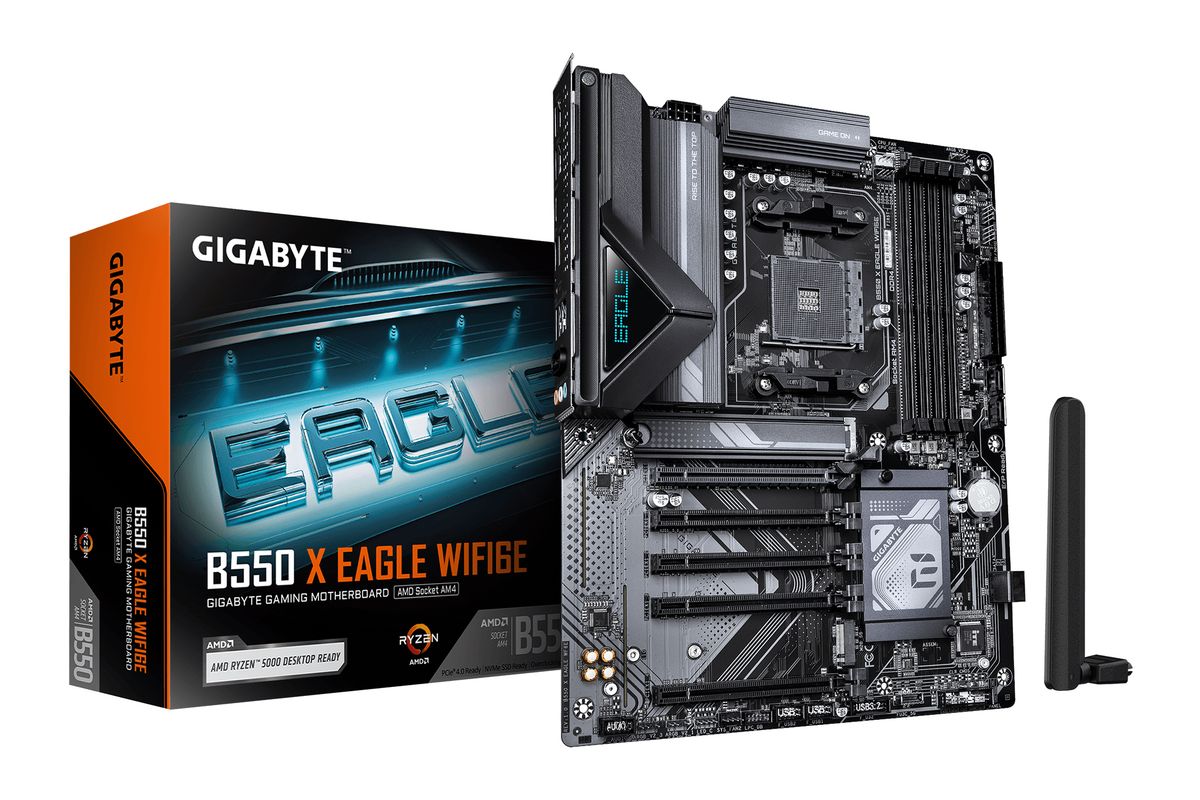

Gigabyte B550 X Eagle WiFi6E Motherboard (B550, AM4, ATX, DDR4)
Product Code: 1117744961
Available in 1 - 3 days
189,05 €
or
5,90€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 568 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Gigabyte B550 X Eagle WiFi6E is an ATX motherboard for AMD AM4 socket with AMD B550 chipset, supporting Ryzen processors (Zen/Zen2/Zen3, including Ryzen 5000 series). It features a robust digital VRM with 8 VCORE + 2 SOC DrMOS 60A phases for stable power delivery and overclocking, supports DDR4 memory across 4 DIMM slots (dual-channel) with official/typical speeds up to 3200 MHz (OC/XMP). Storage: two M.2 slots (one PCIe 4.0, one PCIe 3.0) and four SATA III 6Gb/s ports. Expansion: 1 x PCIe 4.0 x16 primary slot and 1 x PCIe 3.0 x16 secondary slot. Connectivity: 2.5G LAN, 802.11ax Wi?Fi 6E (including 6 GHz band) with integrated antennas, Bluetooth 5, rear I/O with 3x USB 3.2 Type?A, 1x USB 3.2 Type?C, 4x USB 2.0, and HDMI output. Audio subsystem is Hi?Fi grade with 7.1 channel support. Additional features: RGB header, high-quality PCB audio isolation, and optimized thermal design for the VRM.
-
BrandGigabyte
-
ModelB550 X Eagle WiFi6E
-
Form FactorATX
-
SocketAM4
-
ChipsetAMD B550
-
Supported CPU FamilyAMD Ryzen (Zen, Zen2, Zen3) including Ryzen 5000
-
Memory TypeDDR4
-
Memory Slots4 DIMM slots
-
Memory ChannelsDual Channel
-
Supported Memory Speeds2133, 2400, 2667, 2933, 3200 (OC/XMP support)
-
Maximum M.2 Slots2 (1 x PCIe 4.0, 1 x PCIe 3.0)
-
PCI Express Slots1 x PCIe 4.0 x16 (primary), 1 x PCIe 3.0 x16
-
SATA Ports4 x SATA III 6Gb/s
-

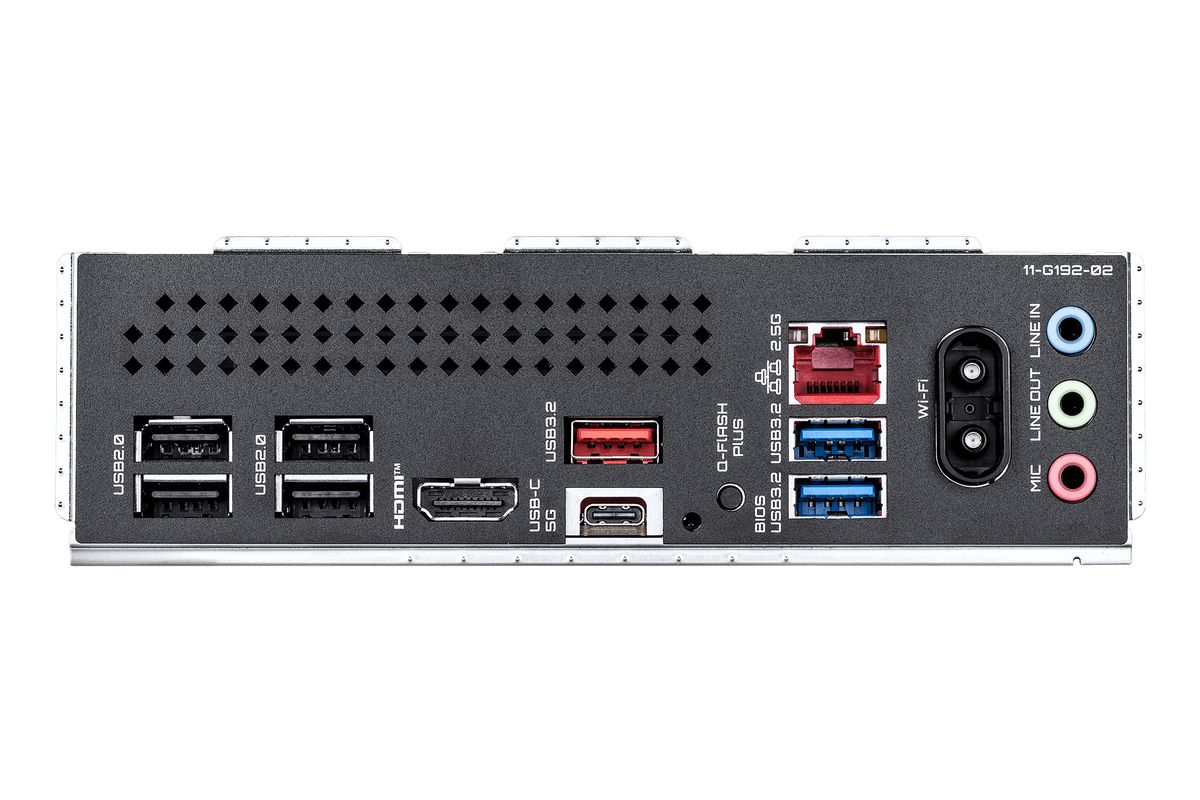

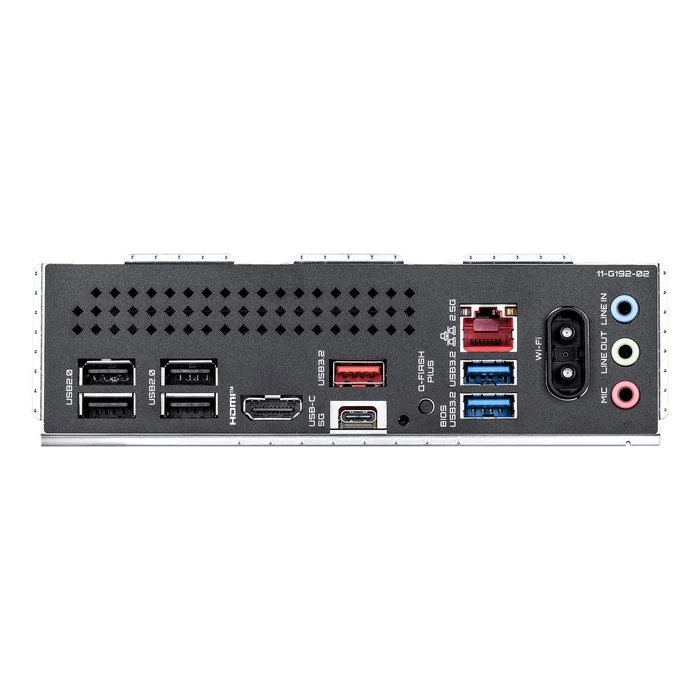

USB Ports (rear)3 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 4 x USB 2.0
-
LAN2.5G LAN
-
Wi?Fi802.11ax Wi?Fi 6E (includes 6 GHz band)
-
BluetoothBluetooth 5
-
Onboard AudioHi?Fi grade audio, 7.1 channel
-
Video OutputHDMI
-
RGBRGB header (yes)
-
Other FeaturesVRM heatsinks, DrMOS 60A phases for VCORE and SOC, PCB audio isolation
-
Form Factor DimensionsStandard ATX (305 x 244 mm)
-
Package ContentsMotherboard, I/O shield, SATA cables, user manual, driver CD/QR (typical)
-
Target UseGaming, content creation, general desktop high-performance builds
Ratings
Description
The Gigabyte B550 X Eagle WiFi6E is an ATX motherboard for AMD AM4 socket with AMD B550 chipset, supporting Ryzen processors (Zen/Zen2/Zen3, including Ryzen 5000 series). It features a robust digital VRM with 8 VCORE + 2 SOC DrMOS 60A phases for stable power delivery and overclocking, supports DDR4 memory across 4 DIMM slots (dual-channel) with official/typical speeds up to 3200 MHz (OC/XMP). Storage: two M.2 slots (one PCIe 4.0, one PCIe 3.0) and four SATA III 6Gb/s ports. Expansion: 1 x PCIe 4.0 x16 primary slot and 1 x PCIe 3.0 x16 secondary slot. Connectivity: 2.5G LAN, 802.11ax Wi?Fi 6E (including 6 GHz band) with integrated antennas, Bluetooth 5, rear I/O with 3x USB 3.2 Type?A, 1x USB 3.2 Type?C, 4x USB 2.0, and HDMI output. Audio subsystem is Hi?Fi grade with 7.1 channel support. Additional features: RGB header, high-quality PCB audio isolation, and optimized thermal design for the VRM.
Technical Specifications
-
BrandGigabyte
-
ModelB550 X Eagle WiFi6E
-
Form FactorATX
-
SocketAM4
-
ChipsetAMD B550
-
Supported CPU FamilyAMD Ryzen (Zen, Zen2, Zen3) including Ryzen 5000
-
Memory TypeDDR4
-
Memory Slots4 DIMM slots
-
Memory ChannelsDual Channel
-
Supported Memory Speeds2133, 2400, 2667, 2933, 3200 (OC/XMP support)
-
Maximum M.2 Slots2 (1 x PCIe 4.0, 1 x PCIe 3.0)
-
PCI Express Slots1 x PCIe 4.0 x16 (primary), 1 x PCIe 3.0 x16
-
SATA Ports4 x SATA III 6Gb/s
-
USB Ports (rear)3 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 4 x USB 2.0
-
LAN2.5G LAN
-
Wi?Fi802.11ax Wi?Fi 6E (includes 6 GHz band)
-
BluetoothBluetooth 5
-
Onboard AudioHi?Fi grade audio, 7.1 channel
-
Video OutputHDMI
-
RGBRGB header (yes)
-
Other FeaturesVRM heatsinks, DrMOS 60A phases for VCORE and SOC, PCB audio isolation
-
Form Factor DimensionsStandard ATX (305 x 244 mm)
-
Package ContentsMotherboard, I/O shield, SATA cables, user manual, driver CD/QR (typical)
-
Target UseGaming, content creation, general desktop high-performance builds
