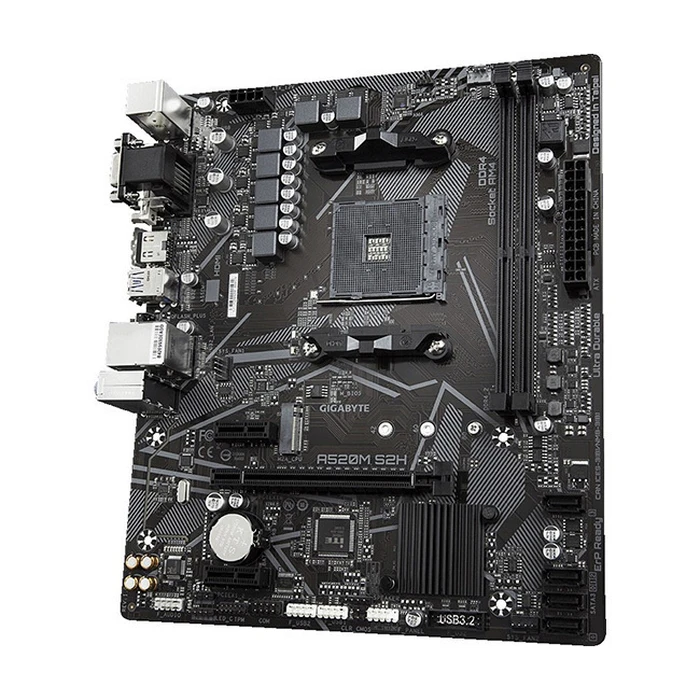

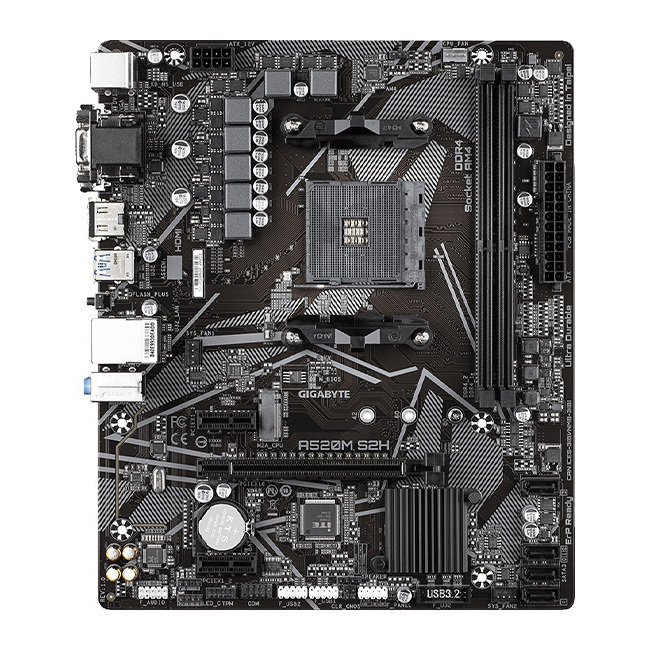

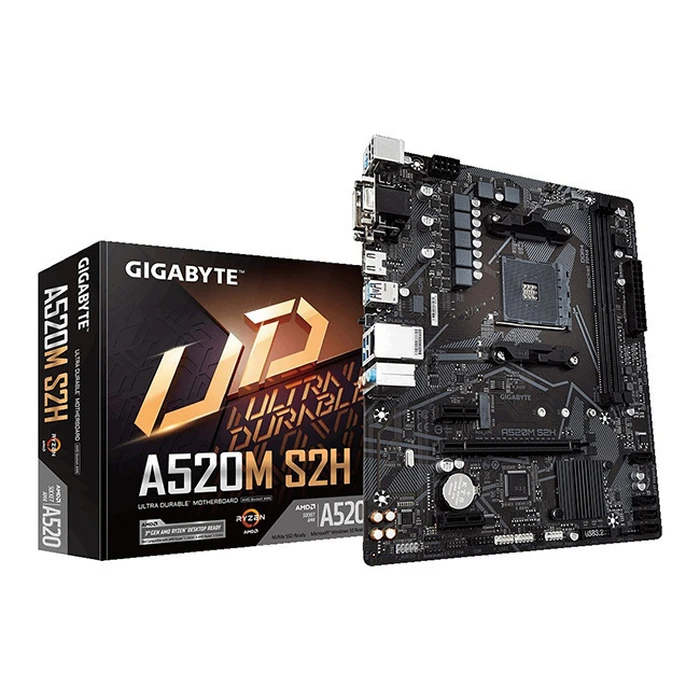

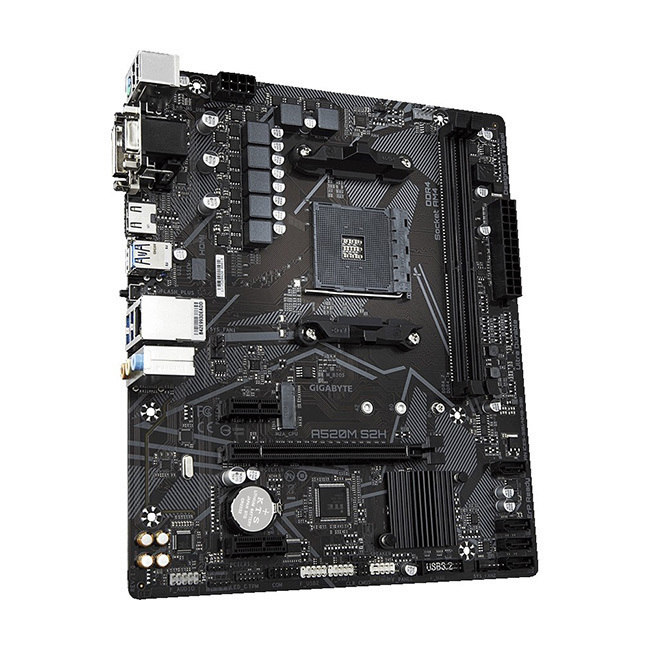

GIGABYTE A520M S2HP Micro ATX Motherboard (AM4)

Description

Technical Specifications

• Brand
  Gigabyte
• Model
  A520M S2HP
• Form Factor
  Micro ATX
• Socket
  AM4
• Chipset
  AMD A520
• Supported CPUs
  AMD Ryzen 5000, 4000 G-Series, 3000 series
• VRM
  Digital 4+2 phase VRM with Low RDS(on) MOSFETs
• Memory Type
  DDR4
• Memory Slots
  2 DIMM
• Max Memory Configuration
  Dual Channel, supports DDR4 2133 / 2400OC / 2667 / 2933 / 3200
• PCI Express x16
  1 x PCIe 3.0 x16 slot
• M.2 Slots
  1 x M.2 (PCIe 3.0 x4)
• SATA Ports
  4 x SATA III 6Gb/s

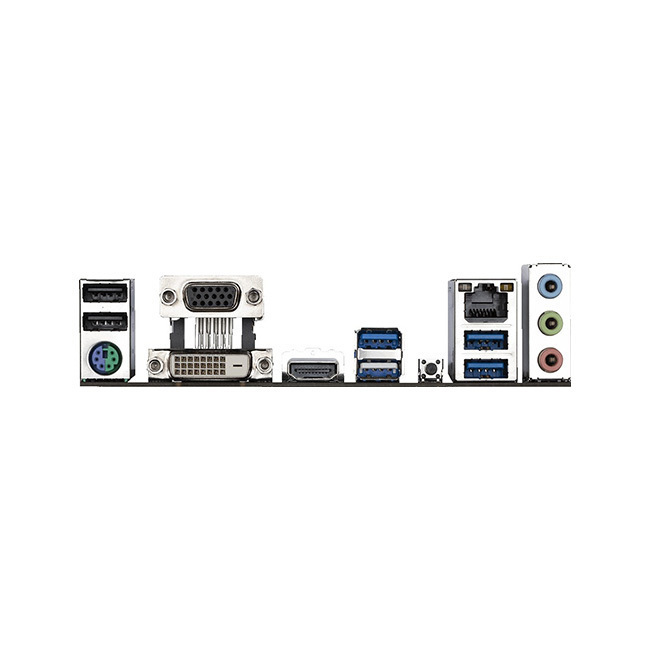

• USB (rear)
  4 x USB 3.2 (type-A) (as specified)
• LAN
  1 x Gigabit Ethernet (1 GbE)
• Video Outputs
  HDMI 2.1, DisplayPort, D-Sub (VGA)
• HDMI Features
  HDMI 2.1 support up to 48 Gbps, 4K@60Hz, 21:9, Full HDR, HDCP 2.3
• Onboard Audio
  7.1 channels, Audio Noise Guard, high-end audio capacitors
• Fan Headers & Cooling
  Smart Fan 6 support, multiple fan headers with FAN STOP and PWM/DC control, fan header power up to 24W
• BIOS/Software
  BIOS UI 7 with fan control and FAN STOP support
• Protection/Build
  Ultra Durable™ Anti-Sulfur components, Anti-Sulfur Resistors Protection, solid pin power connectors
• RGB
  No (not supported)
• Wi-Fi/Bluetooth
  No onboard Wi‑Fi/Bluetooth
• Form Factor Dimensions
  Micro ATX standard (≈244 x 244 mm)
• Package Weight (approx)
  1200 g
• Product Weight (approx)
  600 g
