Gigabyte A520M DS3H WIFI6E is a Micro ATX motherboard featuring an AMD AM4 socket and AMD A520 chipset. It supports Ryzen™ 5000 / 5000 G‑Series / 4000 G‑Series / 3000 / 3000 G‑Series processors and offers 4x DDR4 DIMM slots (dual‑channel) up to 128 GB total, with memory OC support up to 4733 MHz....
More

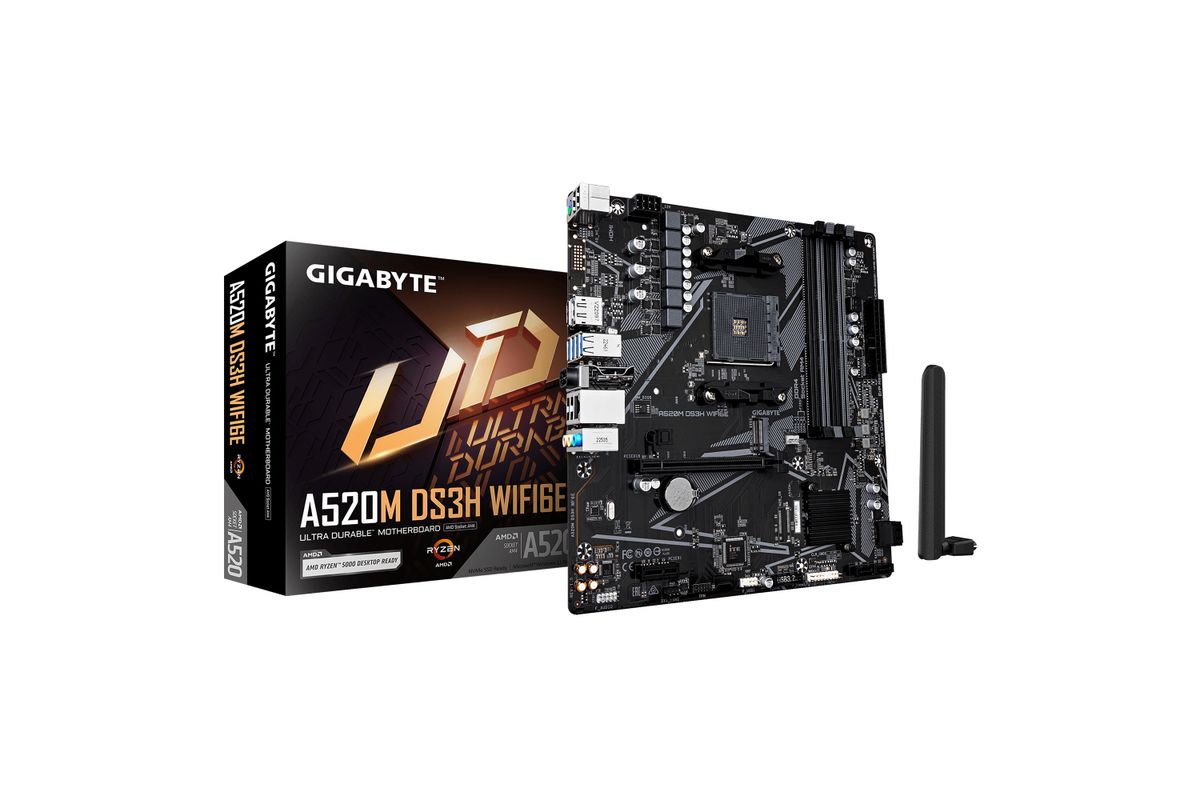

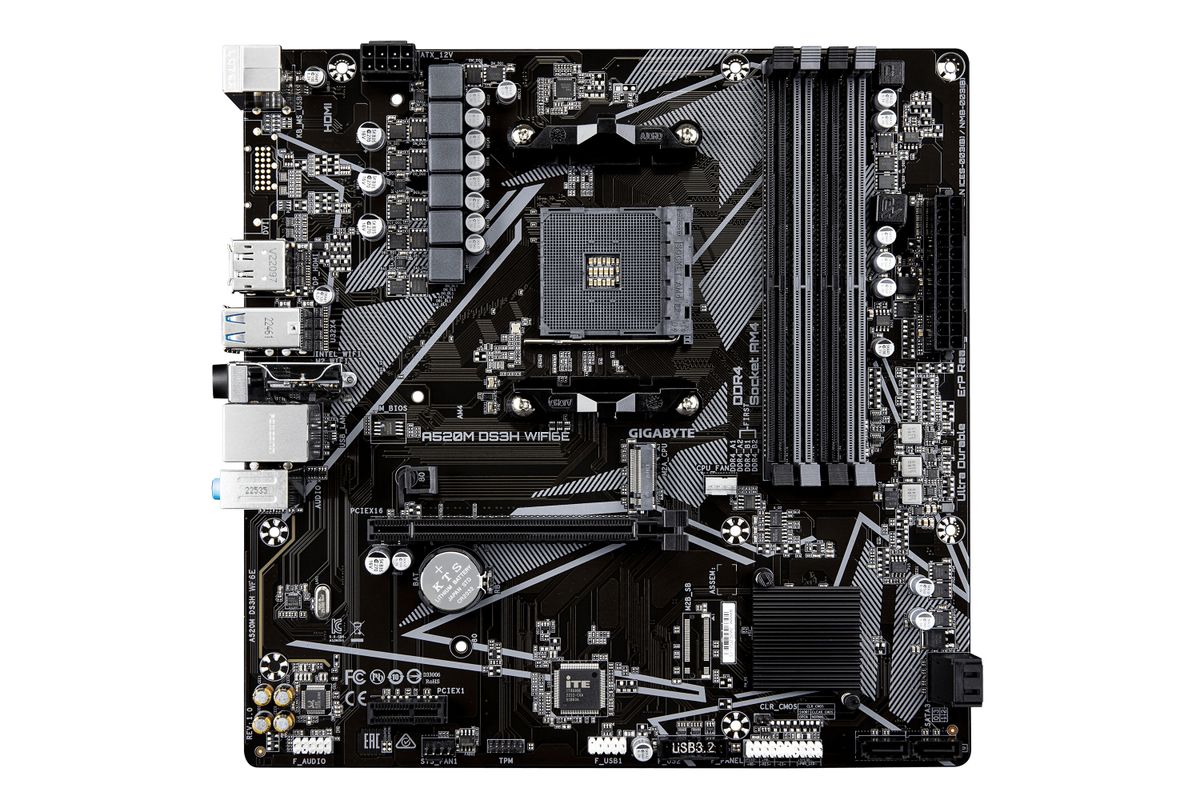

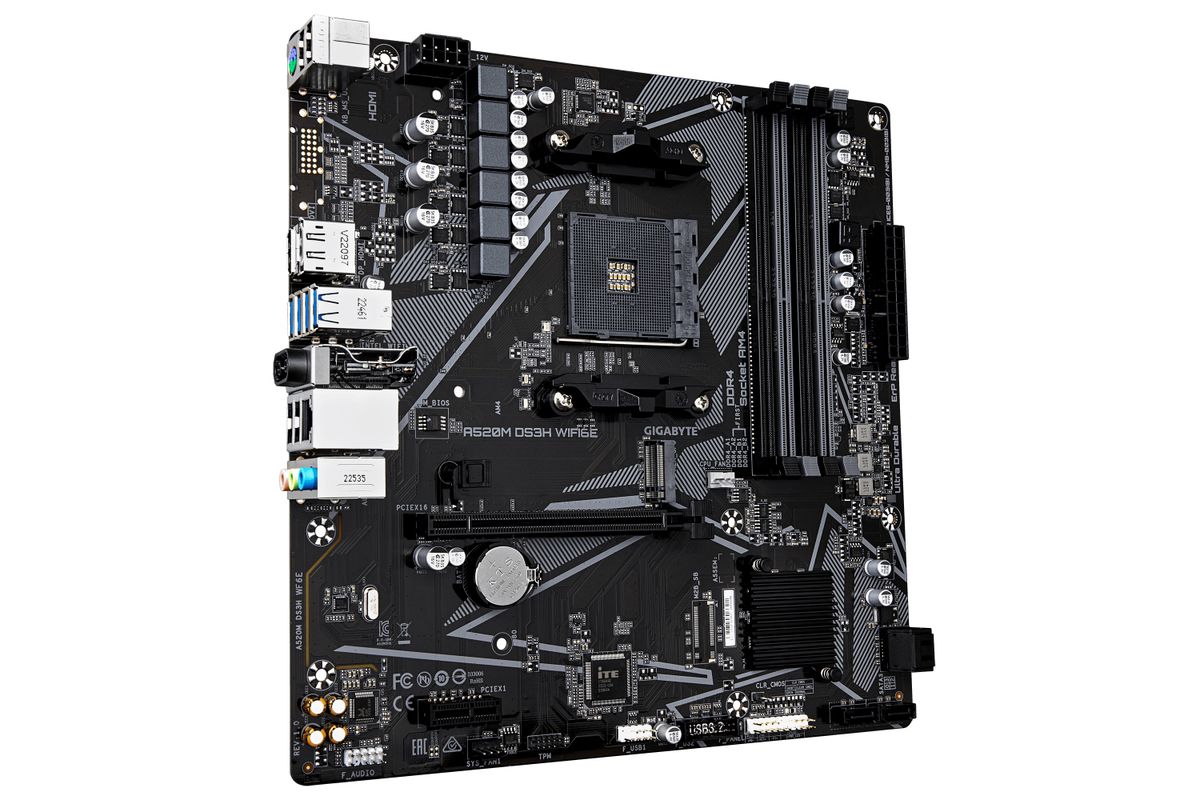

Gigabyte A520M DS3H WIFI6E Micro ATX Motherboard (AMD AM4, A520 Chipset, Wi‑Fi 6E)
Product Code: 1117715580
Available in 1 - 3 days
105,76 €
or
3,30€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 318 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Gigabyte A520M DS3H WIFI6E is a Micro ATX motherboard featuring an AMD AM4 socket and AMD A520 chipset. It supports Ryzen™ 5000 / 5000 G‑Series / 4000 G‑Series / 3000 / 3000 G‑Series processors and offers 4x DDR4 DIMM slots (dual‑channel) up to 128 GB total, with memory OC support up to 4733 MHz. Storage includes 1x NVMe PCIe 3.0 x4 M.2 slot and 4x SATA III 6 Gb/s ports with RAID 0/1/10 support. Expansion: 1x PCIe 3.0 x16 slot for discrete GPU. Networking: MediaTek Wi‑Fi 6E (MT7902) with 6 GHz band and Bluetooth 5.3 (WIFI EZ‑Plug for back panel installation) plus Realtek Gigabit LAN (1 Gbps). Back panel I/O: 4x USB 3.2 Gen1, 4x USB 2.0, HDMI, DisplayPort, audio jacks. Features include Gigabyte Ultra Durable components, Anti‑Sulfur Resistors, Digital VRM solution, Smart Fan 6 with FAN STOP, RGB header, High Quality Audio Capacitors and Audio Noise Guard (7.1). Form factor Micro ATX (244 x 244 mm). Material: standard multi‑layer FR‑4 PCB with plated connectors and metal I/O shield. Brand: Gigabyte. Model: A520M DS3H WIFI6E. SKU: 590446. MPN: A520M DS3H WF6E. EAN: 4719331880743.
-
BrandGigabyte
-
ModelA520M DS3H WIFI6E
-
Form FactorMicro ATX (244 x 244 mm)
-
SocketAMD AM4
-
ChipsetAMD A520
-
CPU SupportAMD Ryzen™ 5000, Ryzen™ 5000 G‑Series, Ryzen™ 4000 G‑Series, Ryzen™ 3000, Ryzen™ 3000 G‑Series
-
Memory TypeDDR4
-
Memory Slots4 DIMM
-
Max Memory128 GB (32 GB per DIMM)
-
Memory ConfigurationDual Channel
-
Supported Memory Speeds2133, 2400, 2667, 2933, 3200, 3333OC, 3600OC, 4000OC, 4400OC, 4600OC, 4733OC
-
PCIe x161 x PCIe 3.0 x16 slot
-
M.2 Slots1 x M.2 PCIe 3.0 x4 (NVMe)
-
SATA Ports4 x SATA III 6 Gb/s
-
RAID SupportRAID 0/1/10
-

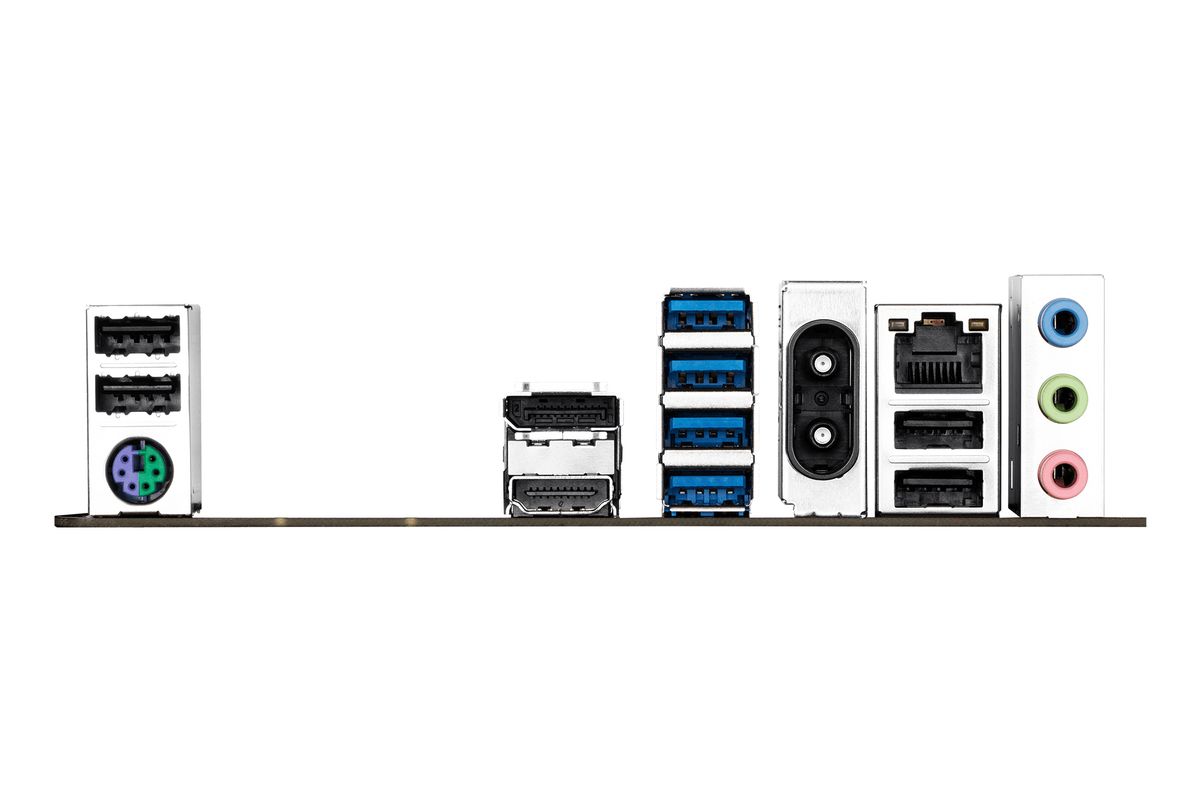

USB (Back Panel)4 x USB 3.2 Gen1, 4 x USB 2.0
-
LANRealtek Gigabit LAN (1 Gbps)
-
Wi‑FiMediaTek Wi‑Fi 6E MT7902 (includes 6 GHz band)
-
BluetoothBluetooth 5.3
-
Video OutputsHDMI, DisplayPort
-
Audio7.1 channels, High Quality Audio Capacitors, Audio Noise Guard
-
Power DeliveryDigital VRM Solution
-
Cooling FeaturesSmart Fan 6, multiple fan headers, FAN STOP support
-
Durability FeaturesUltra Durable design, Anti‑Sulfur Resistors
-
ExtrasRGB Header, WIFI EZ‑Plug (for back panel Wi‑Fi module installation)
-
EAN4719331880743
-
MPNA520M DS3H WF6E
-
SKU590446
Ratings
Description
Gigabyte A520M DS3H WIFI6E is a Micro ATX motherboard featuring an AMD AM4 socket and AMD A520 chipset. It supports Ryzen™ 5000 / 5000 G‑Series / 4000 G‑Series / 3000 / 3000 G‑Series processors and offers 4x DDR4 DIMM slots (dual‑channel) up to 128 GB total, with memory OC support up to 4733 MHz. Storage includes 1x NVMe PCIe 3.0 x4 M.2 slot and 4x SATA III 6 Gb/s ports with RAID 0/1/10 support. Expansion: 1x PCIe 3.0 x16 slot for discrete GPU. Networking: MediaTek Wi‑Fi 6E (MT7902) with 6 GHz band and Bluetooth 5.3 (WIFI EZ‑Plug for back panel installation) plus Realtek Gigabit LAN (1 Gbps). Back panel I/O: 4x USB 3.2 Gen1, 4x USB 2.0, HDMI, DisplayPort, audio jacks. Features include Gigabyte Ultra Durable components, Anti‑Sulfur Resistors, Digital VRM solution, Smart Fan 6 with FAN STOP, RGB header, High Quality Audio Capacitors and Audio Noise Guard (7.1). Form factor Micro ATX (244 x 244 mm). Material: standard multi‑layer FR‑4 PCB with plated connectors and metal I/O shield. Brand: Gigabyte. Model: A520M DS3H WIFI6E. SKU: 590446. MPN: A520M DS3H WF6E. EAN: 4719331880743.
Technical Specifications
-
BrandGigabyte
-
ModelA520M DS3H WIFI6E
-
Form FactorMicro ATX (244 x 244 mm)
-
SocketAMD AM4
-
ChipsetAMD A520
-
CPU SupportAMD Ryzen™ 5000, Ryzen™ 5000 G‑Series, Ryzen™ 4000 G‑Series, Ryzen™ 3000, Ryzen™ 3000 G‑Series
-
Memory TypeDDR4
-
Memory Slots4 DIMM
-
Max Memory128 GB (32 GB per DIMM)
-
Memory ConfigurationDual Channel
-
Supported Memory Speeds2133, 2400, 2667, 2933, 3200, 3333OC, 3600OC, 4000OC, 4400OC, 4600OC, 4733OC
-
PCIe x161 x PCIe 3.0 x16 slot
-
M.2 Slots1 x M.2 PCIe 3.0 x4 (NVMe)
-
SATA Ports4 x SATA III 6 Gb/s
-
RAID SupportRAID 0/1/10
-
USB (Back Panel)4 x USB 3.2 Gen1, 4 x USB 2.0
-
LANRealtek Gigabit LAN (1 Gbps)
-
Wi‑FiMediaTek Wi‑Fi 6E MT7902 (includes 6 GHz band)
-
BluetoothBluetooth 5.3
-
Video OutputsHDMI, DisplayPort
-
Audio7.1 channels, High Quality Audio Capacitors, Audio Noise Guard
-
Power DeliveryDigital VRM Solution
-
Cooling FeaturesSmart Fan 6, multiple fan headers, FAN STOP support
-
Durability FeaturesUltra Durable design, Anti‑Sulfur Resistors
-
ExtrasRGB Header, WIFI EZ‑Plug (for back panel Wi‑Fi module installation)
-
EAN4719331880743
-
MPNA520M DS3H WF6E
-
SKU590446
