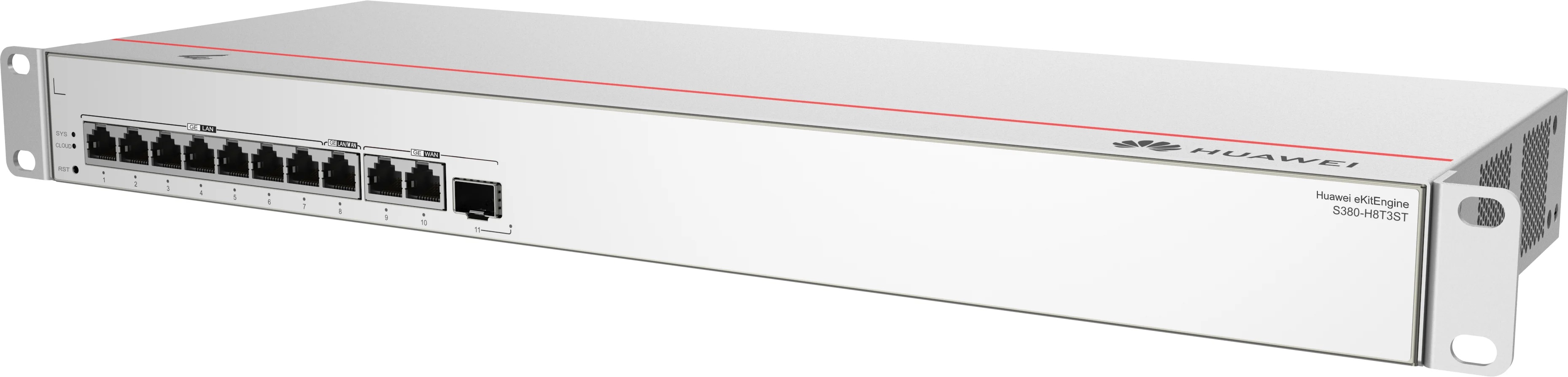

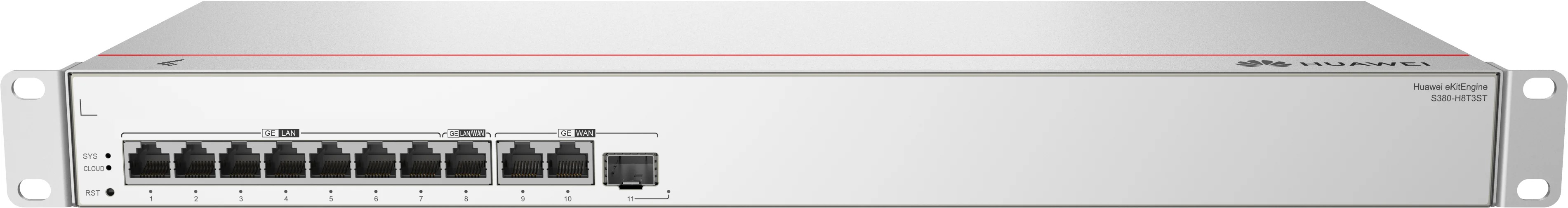

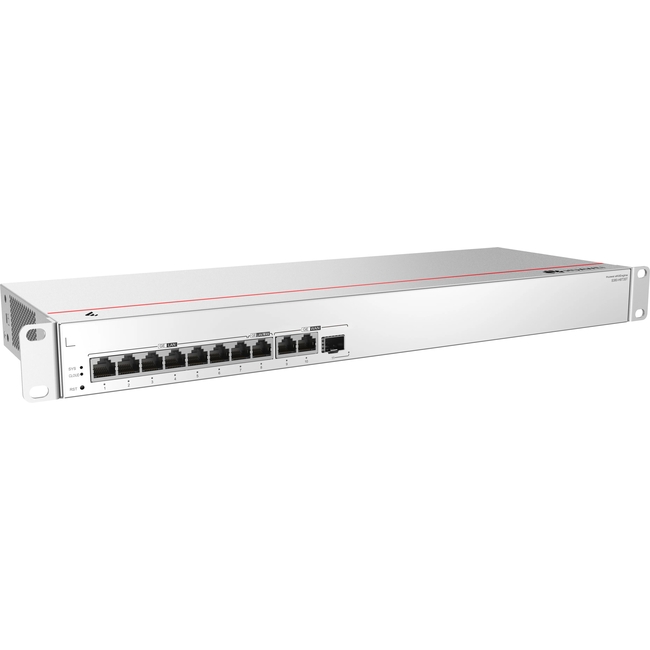

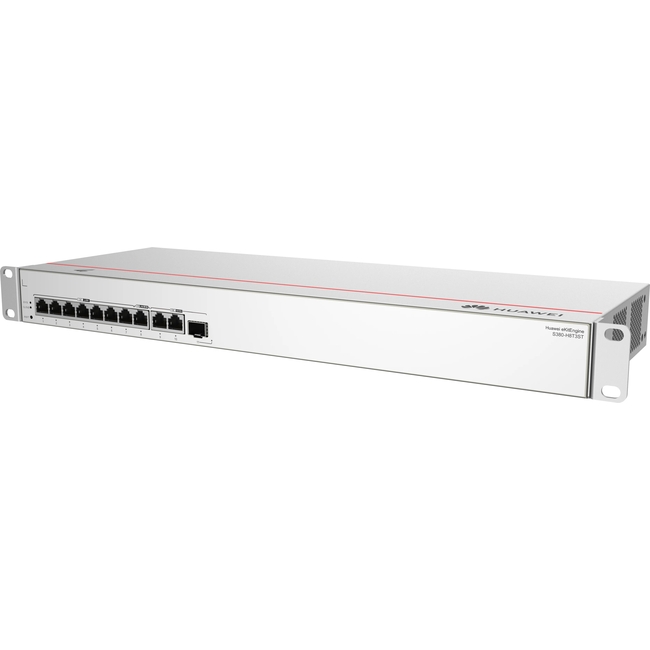

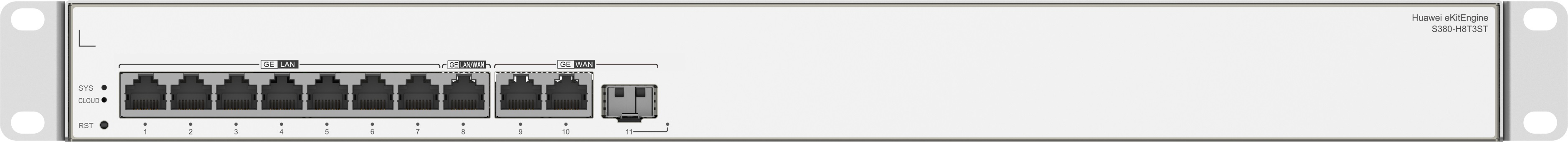

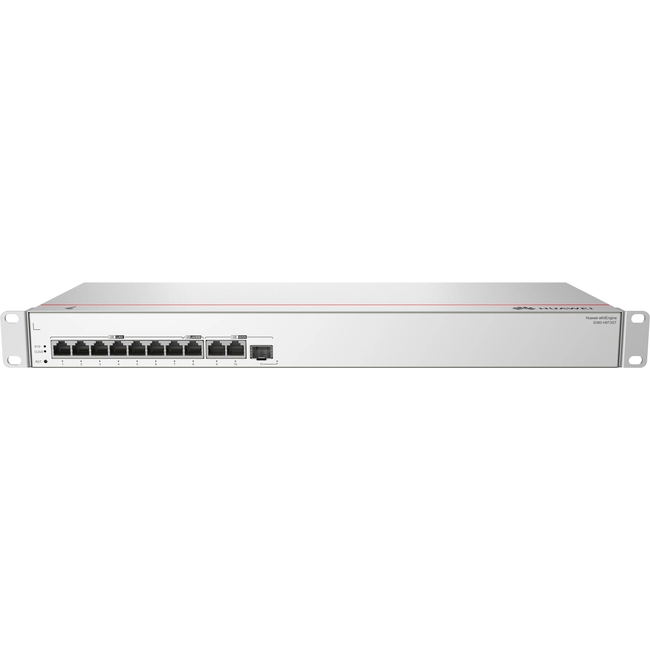

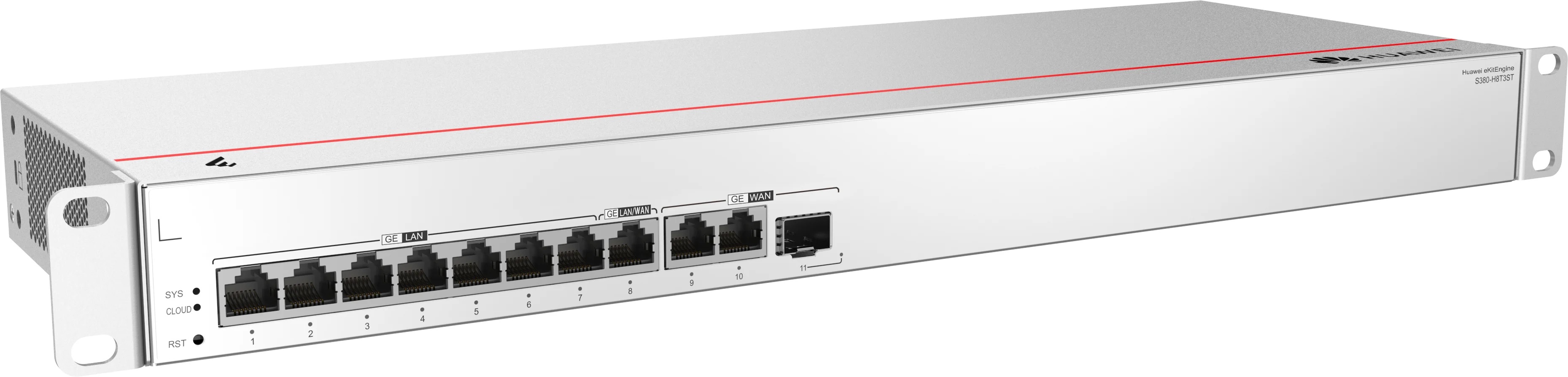

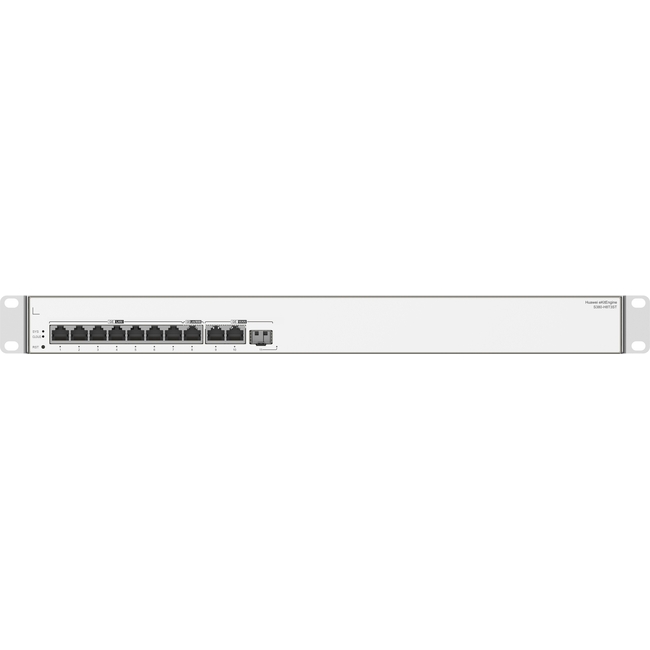

The HUAWEI eKitEngine Gateway S380-H8T3ST is a versatile and reliable networking solution designed to support up to 500 users. This gateway features a robust hardware configuration that includes three WAN ports and eight LAN ports, making it ideal for diverse network configurations.
Key Features
- WAN Ports: The S380-H8T3ST comes equipped with 2 gigabit Ethernet WAN ports and 1 SFP slot, providing flexibility in connecting to various wide area networks.
- LAN Ports: The gateway boasts 8 gigabit Ethernet LAN ports, capable of supporting speeds of 10/100/1000 Mbps, ensuring ample connectivity for local devices.
- Switching Capacity: With a maximum switching capacity of 16 Gbps, it enables efficient data processing.
- Egress Bandwidth: The gateway's egress bandwidth is 2 Gbps.
- Memory and Storage: Equipped with 1 GB of DDR4 RAM and 512 MB of NAND Flash memory.
- Power and Environmental Specifications: Operates within a voltage range of 90 V AC to 264 V AC.
This device is designed for natural heat dissipation, ensuring quiet operation and reduced maintenance needs. It can operate in temperatures ranging from 0°C to 40°C and withstand storage temperatures from -40°C to +70°C.
The gateway also supports various service features, including VLAN configurations, jumbo frames, and DHCP server/client functionality, making it suitable for a range of applications.
The S380-H8T3ST offers comprehensive device management features, including web system access and one-click diagnosis for easy troubleshooting.
-
WAN Ports2
-
SFP Slot1
-
LAN Ports8
-
Maximum Switching Capacity16 Gbps
-
Packet Forwarding Rate (Uploads)500 Kpps
-
Packet Forwarding Rate (Downloads)420 Kpps
-
Egress Bandwidth2 Gbps
-
RAM1 GB DDR4
-
NAND Flash Memory512 MB
-
Input Voltage Range90 V AC - 264 V AC
-
Operating Frequency45 Hz - 65 Hz
-
Rated Input Voltage100-240 V AC at 50/60 Hz
-
Operating Temperature0°C - 40°C
-
Storage Temperature-40°C to +70°C
-
Humidity5% - 95% (non-condensing)
-
Dimensions (Height x Width x Depth)43.6 mm x 442 mm x 160 mm
-
Weight1.6 kg
-
Maximum Power Consumption11.5 W
-
Static Power Consumption6.49 W
-
Mean Time Between Failures (MTBF)63.71 years
-
Mean Time To Repair (MTTR)2 hours
Ratings
Description
The HUAWEI eKitEngine Gateway S380-H8T3ST is a versatile and reliable networking solution designed to support up to 500 users. This gateway features a robust hardware configuration that includes three WAN ports and eight LAN ports, making it ideal for diverse network configurations.
Key Features
- WAN Ports: The S380-H8T3ST comes equipped with 2 gigabit Ethernet WAN ports and 1 SFP slot, providing flexibility in connecting to various wide area networks.
- LAN Ports: The gateway boasts 8 gigabit Ethernet LAN ports, capable of supporting speeds of 10/100/1000 Mbps, ensuring ample connectivity for local devices.
- Switching Capacity: With a maximum switching capacity of 16 Gbps, it enables efficient data processing.
- Egress Bandwidth: The gateway's egress bandwidth is 2 Gbps.
- Memory and Storage: Equipped with 1 GB of DDR4 RAM and 512 MB of NAND Flash memory.
- Power and Environmental Specifications: Operates within a voltage range of 90 V AC to 264 V AC.
This device is designed for natural heat dissipation, ensuring quiet operation and reduced maintenance needs. It can operate in temperatures ranging from 0°C to 40°C and withstand storage temperatures from -40°C to +70°C.
The gateway also supports various service features, including VLAN configurations, jumbo frames, and DHCP server/client functionality, making it suitable for a range of applications.
The S380-H8T3ST offers comprehensive device management features, including web system access and one-click diagnosis for easy troubleshooting.
Technical Specifications
-
WAN Ports2
-
SFP Slot1
-
LAN Ports8
-
Maximum Switching Capacity16 Gbps
-
Packet Forwarding Rate (Uploads)500 Kpps
-
Packet Forwarding Rate (Downloads)420 Kpps
-
Egress Bandwidth2 Gbps
-
RAM1 GB DDR4
-
NAND Flash Memory512 MB
-
Input Voltage Range90 V AC - 264 V AC
-
Operating Frequency45 Hz - 65 Hz
-
Rated Input Voltage100-240 V AC at 50/60 Hz
-
Operating Temperature0°C - 40°C
-
Storage Temperature-40°C to +70°C
-
Humidity5% - 95% (non-condensing)
-
Dimensions (Height x Width x Depth)43.6 mm x 442 mm x 160 mm
-
Weight1.6 kg
-
Maximum Power Consumption11.5 W
-
Static Power Consumption6.49 W
-
Mean Time Between Failures (MTBF)63.71 years
-
Mean Time To Repair (MTTR)2 hours
