Φωτεινός Σηματοδότης Patlite LR4-302WJNW-RYG verkabelt LED White
| Installment plan | Amount / month |
|---|---|
| 2 | 61,83 € |
| 4 | 31,08 € |
| 6 | 20,83 € |
| 8 | 15,71 € |
| 10 | 12,63 € |
| 12 | 10,58 € |
| 18 | 7,17 € |
| 24 | 5,46 € |
| 36 | 3,75 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

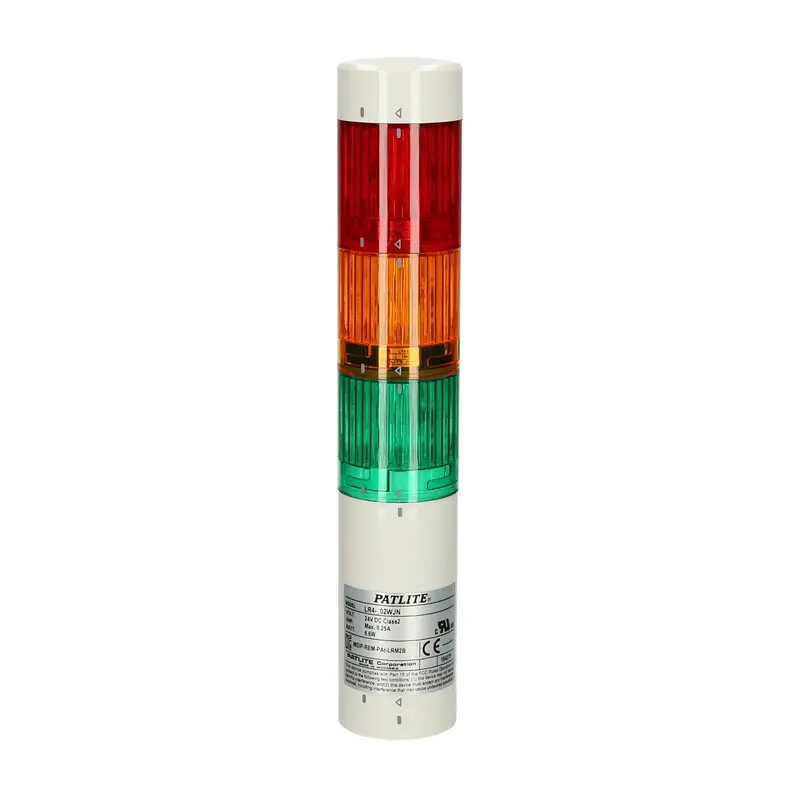

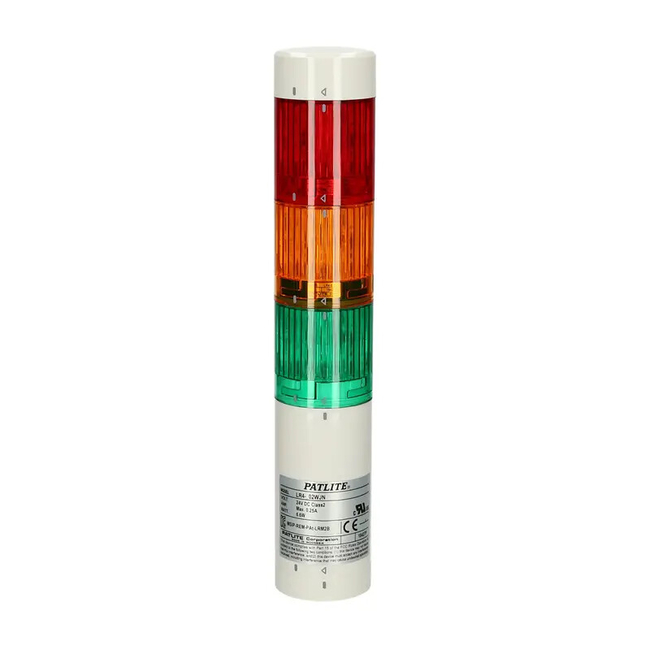

The Patlite LR4-302WJNW-RYG wired LED White Signal Tower is an exceptional signaling device tailored for industrial applications. This tower boasts a compact 40mm size and features a 3-tier design that includes vibrant amber, green, and red LEDs, ensuring high visibility in all environments.
One of the standout features is its integrated buzzer, which generates an impressive 85 dB sound output when powered at 24V DC. This makes it ideal for alert systems in manufacturing and automation setups.
- LED Colors: Amber, Green, Red
- Flash Rate: 60 ± 2 flashes per minute
- Operating Temperature: -20°C to +50°C
- Protection Rating: IP65 for dust and water resistance
- Material: Durable polycarbonate body
The design features a modular “Twist and Lock” approach, making it easy to customize and assemble various LED modules and sound units according to specific needs. Its prism-cut lens enhances visibility, emitting light with a remarkable intensity of up to 2000 mcd.

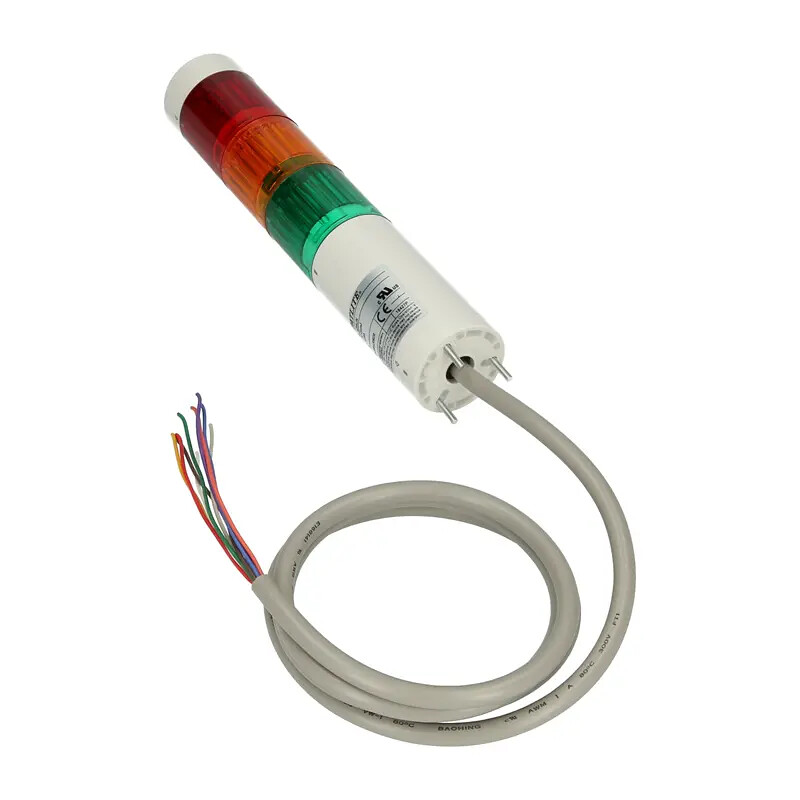

With an operating humidity of up to 90% non-condensing and vibration resistance rated at 20 m/s² at 30 Hz, it is built to perform reliably in challenging conditions. The cable specification includes UL2464 AWG24 signal and power wires, ensuring safety and durability.
Specifications
-
LED Colors
- Amber, Green, Red
-
Diameter
- 40 mm
-
Voltage
- 24 V DC
-
Current consumption (typical)
- 40 mA
-
Current consumption (max)
- 45 mA
-
Sound output
- 85 dB
-
Flash rate
- 60 ±2 flashes/minute
-
Operating temperature
- -20°C to +50°C
-
Humidity
- Up to 90% non-condensing
-
Vibration resistance
- 20 m/s² at 30 Hz
-
Materials
- Polycarbonate body and prism lens with waterproof packing
-
Mounting
- Direct mount with cable; supports pole mounting
-
Cable length
- 1300 mm
-
Protection rating
- IP65
Άμεσα Διαθέσιμα
