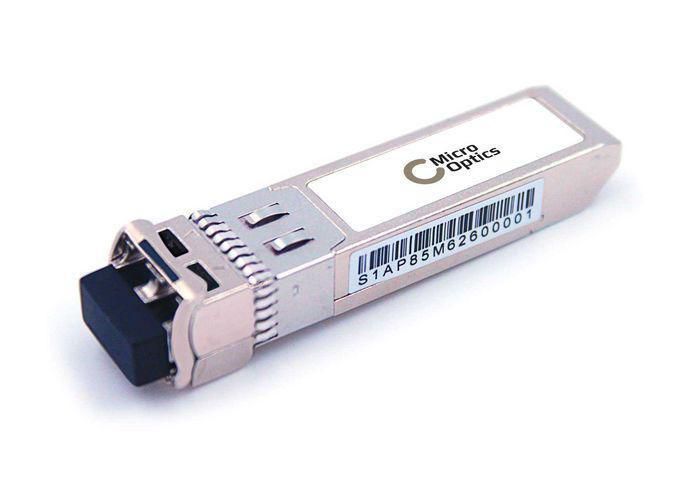

The MO-FG-TRAN-SFP+SR is a third-party compatible SFP+ short-range optical transceiver designed for Fortinet equipment. It operates at 10 Gbps over multimode fiber up to 300 m using an 850 nm VCSEL laser and duplex LC connector. The module is hot-pluggable, supports DDM DOM digital diagnostics, and...
More
Fortinet Compatible SFP Plus SR 850nm Transceiver Module
Product Code: 1200655324
Available in 4 - 10 days
27,45 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The MO-FG-TRAN-SFP+SR is a third-party compatible SFP+ short-range optical transceiver designed for Fortinet equipment. It operates at 10 Gbps over multimode fiber up to 300 m using an 850 nm VCSEL laser and duplex LC connector. The module is hot-pluggable, supports DDM DOM digital diagnostics, and complies with IEEE 802.3ae 10GBASE-SR and MSA standards. It is intended for 10 Gigabit Ethernet short-range links and is a cost-effective compatible alternative to the Fortinet OEM transceiver.
-
Form FactorSFP+ hot-pluggable
-
Data Rate10 Gbps (10GBASE-SR, up to 10.3 Gbps bi-directional)
-
Wavelength850 nm
-
ReachUp to 300 m on OM3/OM4 multimode fiber, 82 m on OM2, 33 m on OM1
-
Fiber TypeMultimode Fiber (MMF)
-
ConnectorDuplex LC
-
Digital DiagnosticsDDM/DOM supported, SFF-8472 compliant
-
Power SupplySingle 3.3 V
-
Standards ComplianceIEEE 802.3ae 10GBASE-SR, MSA compliant, RoHS 6
-
Temperature Range0°C to 70°C
-
Power Budget5.1 dB
-
TX Power-6.00 to -1.00 dBm
-
RX Power-11.1 to -1.00 dBm
-
CompatibilityFortinet equipment compatible
-
Product TypeThird-party compatible optical transceiver module
-
Application10 Gigabit Ethernet short-range optical links
-
Connector TypeLC duplex (dual-LC)
-
Laser TypeVCSEL
-
PackagingTypically retail boxed transceiver module, single unit
-
WarrantyLifetime warranty from some compatible vendors
-
WeightApproximately 56 g
Ratings
Description
The MO-FG-TRAN-SFP+SR is a third-party compatible SFP+ short-range optical transceiver designed for Fortinet equipment. It operates at 10 Gbps over multimode fiber up to 300 m using an 850 nm VCSEL laser and duplex LC connector. The module is hot-pluggable, supports DDM DOM digital diagnostics, and complies with IEEE 802.3ae 10GBASE-SR and MSA standards. It is intended for 10 Gigabit Ethernet short-range links and is a cost-effective compatible alternative to the Fortinet OEM transceiver.
Technical Specifications
-
Form FactorSFP+ hot-pluggable
-
Data Rate10 Gbps (10GBASE-SR, up to 10.3 Gbps bi-directional)
-
Wavelength850 nm
-
ReachUp to 300 m on OM3/OM4 multimode fiber, 82 m on OM2, 33 m on OM1
-
Fiber TypeMultimode Fiber (MMF)
-
ConnectorDuplex LC
-
Digital DiagnosticsDDM/DOM supported, SFF-8472 compliant
-
Power SupplySingle 3.3 V
-
Standards ComplianceIEEE 802.3ae 10GBASE-SR, MSA compliant, RoHS 6
-
Temperature Range0°C to 70°C
-
Power Budget5.1 dB
-
TX Power-6.00 to -1.00 dBm
-
RX Power-11.1 to -1.00 dBm
-
CompatibilityFortinet equipment compatible
-
Product TypeThird-party compatible optical transceiver module
-
Application10 Gigabit Ethernet short-range optical links
-
Connector TypeLC duplex (dual-LC)
-
Laser TypeVCSEL
-
PackagingTypically retail boxed transceiver module, single unit
-
WarrantyLifetime warranty from some compatible vendors
-
WeightApproximately 56 g
